FLUX FX

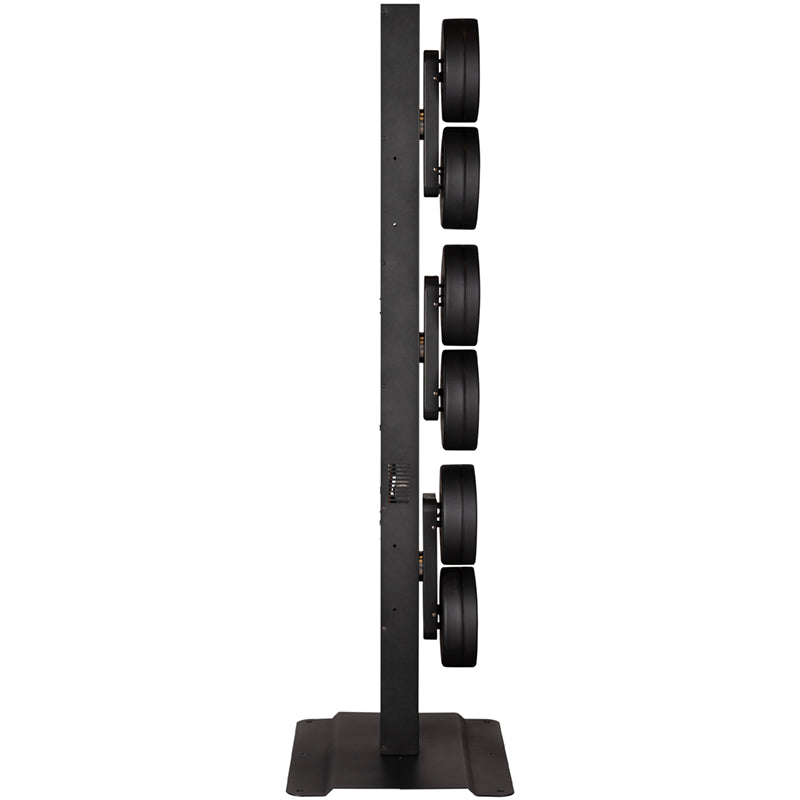

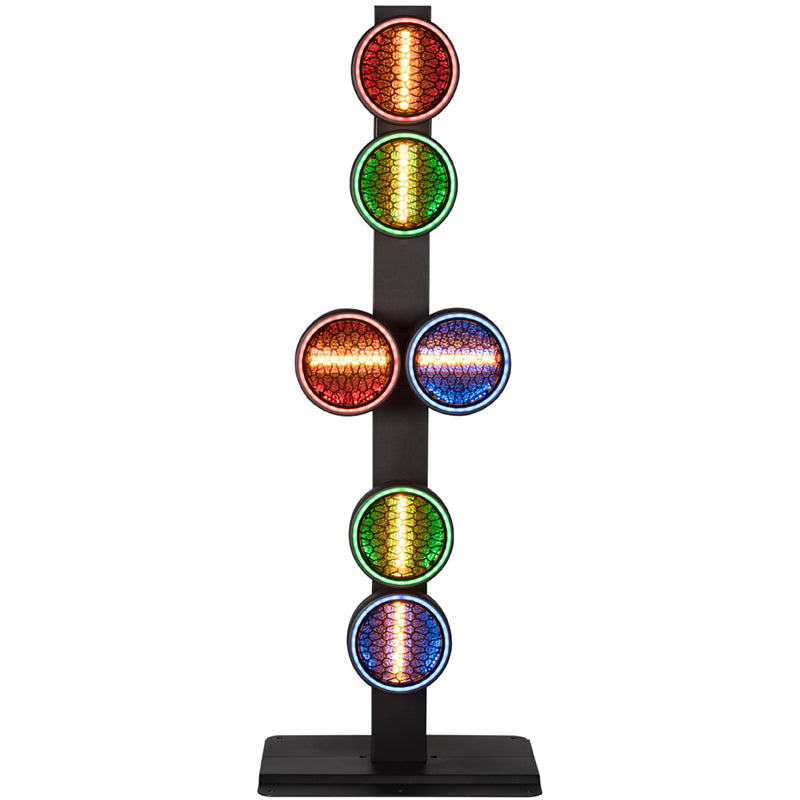

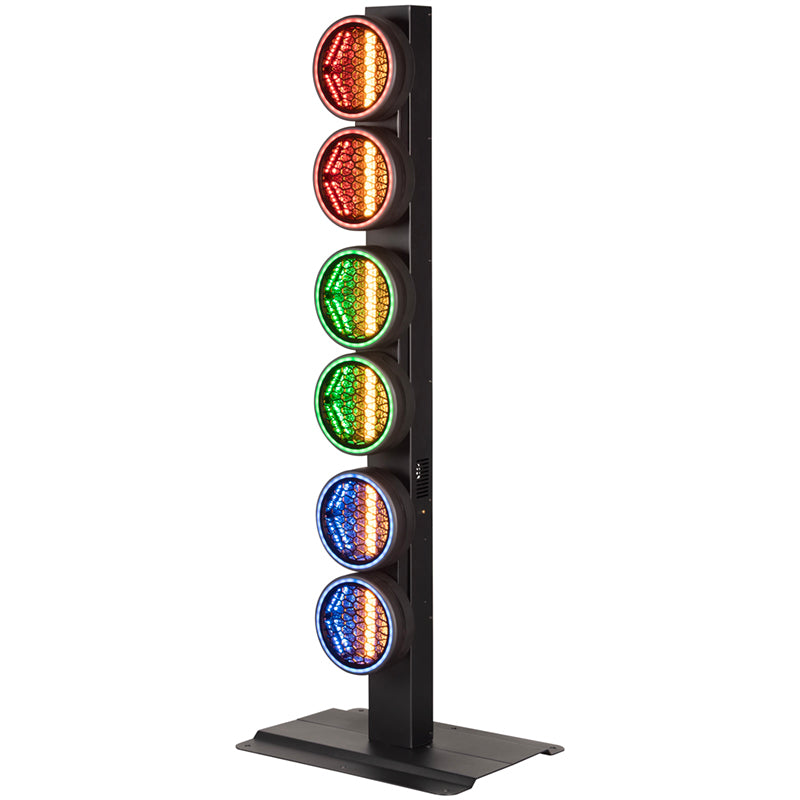

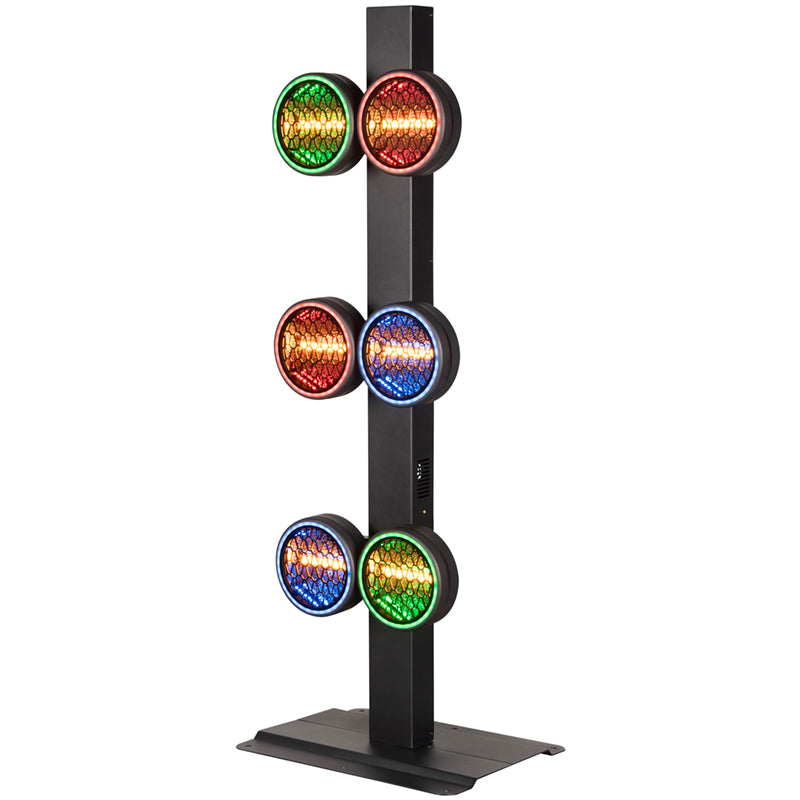

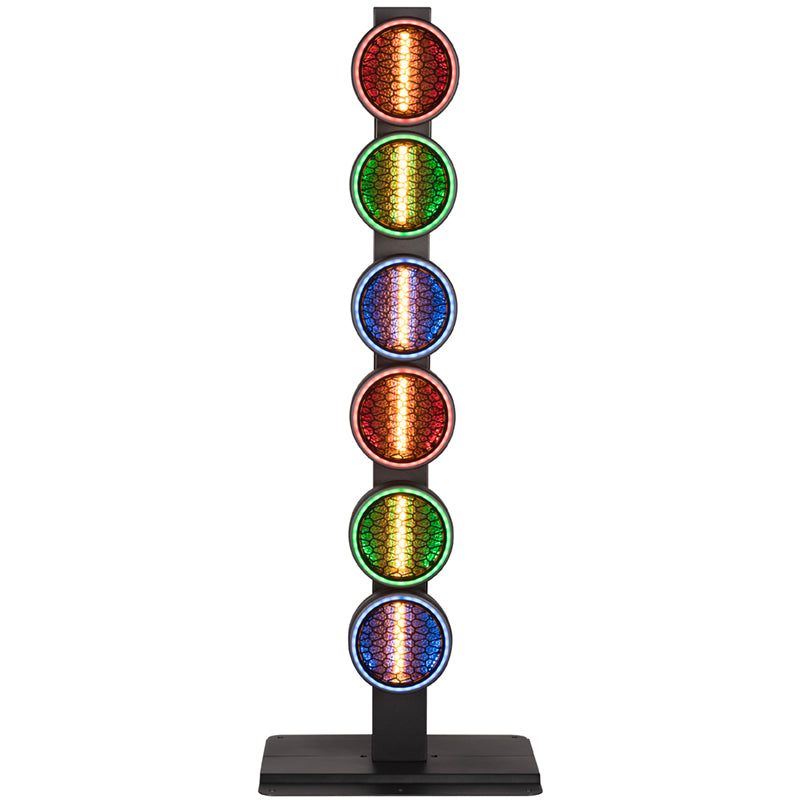

Add movement, depth, and another dimension to your lightshow with the Eliminator Lighting Flux FX. Designed for flexible placement, this distinctive multi-effect LED fixture can be positioned vertically on its included floor base or flown from truss using the two included mounting brackets and rigging clamps sold separately.

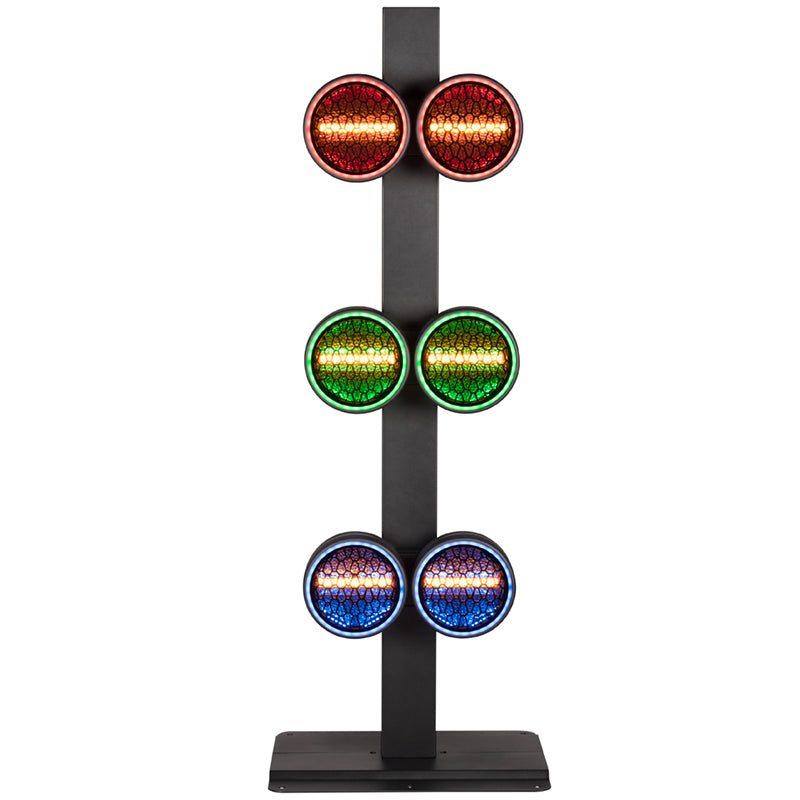

When used as a floor-standing effect, the Flux FX brings movement and visual energy to stage level. Position it behind performers, along the sides of a stage, around a DJ booth, or beneath a traditional overhead lighting system to fill the visual space from the ground up.

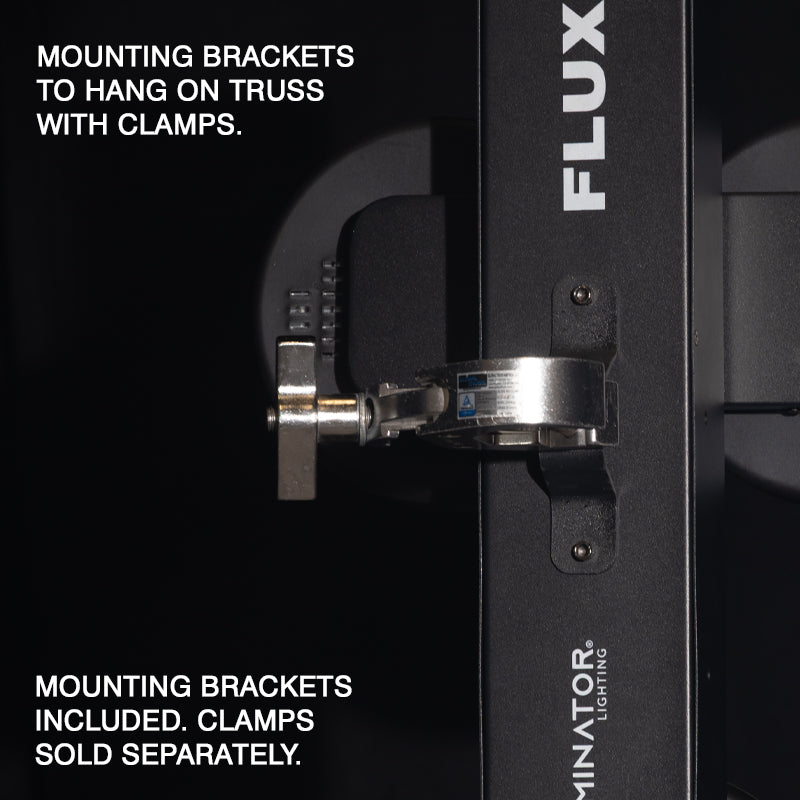

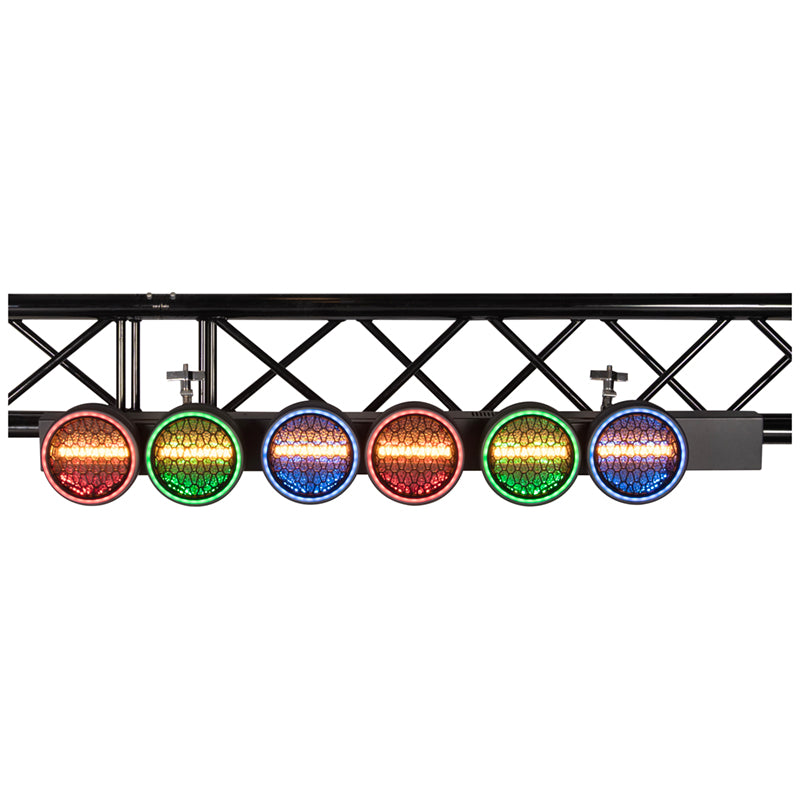

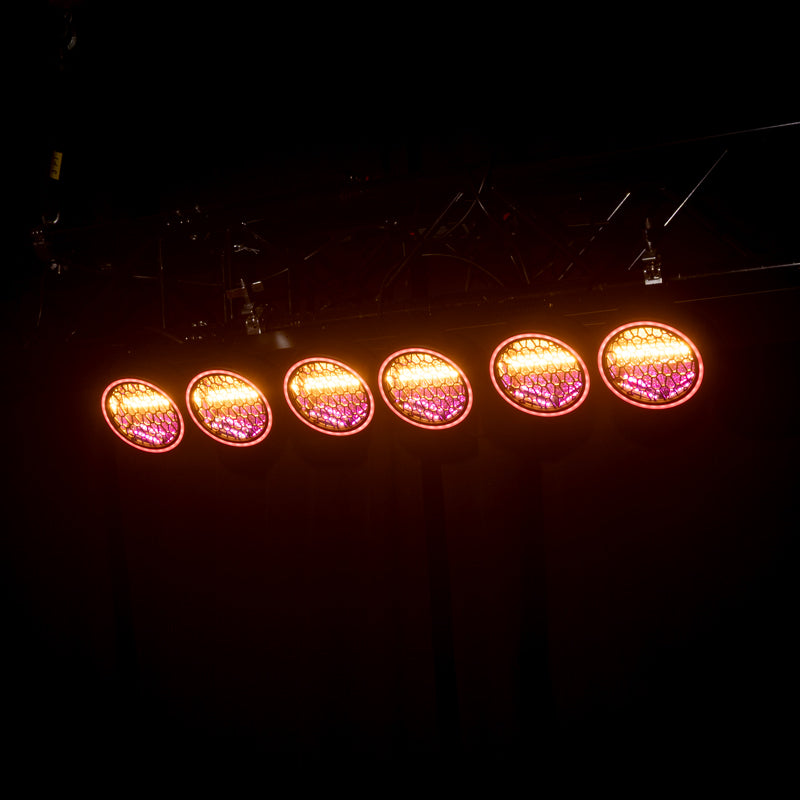

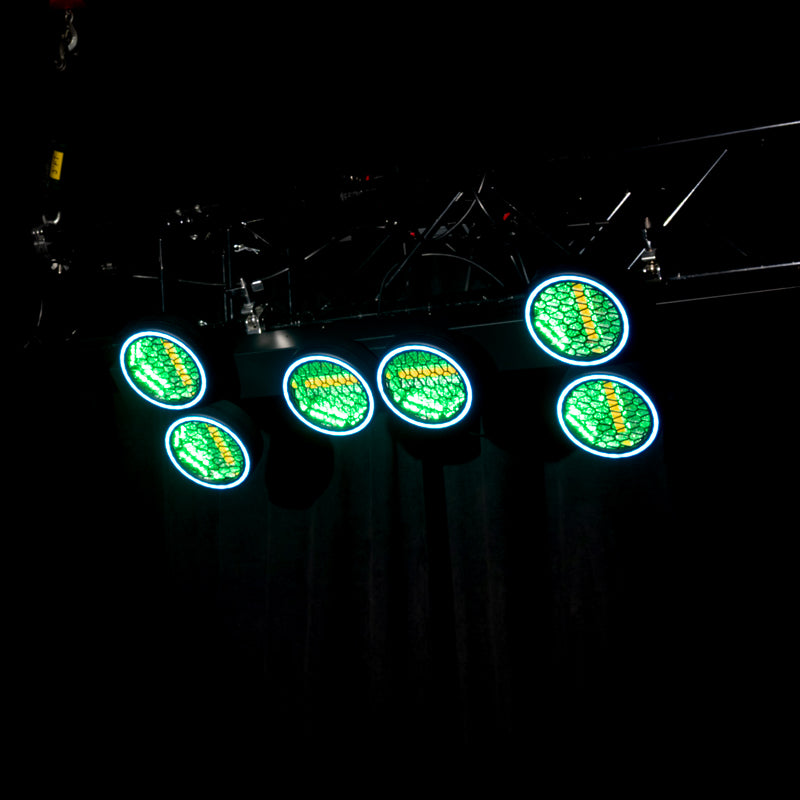

For elevated applications, the included mounting brackets attach directly to the fixture, allowing it to be integrated into a suitable truss system. This gives lighting designers the freedom to create overhead effects, symmetrical configurations, elevated movement, and more complex multi-fixture designs.

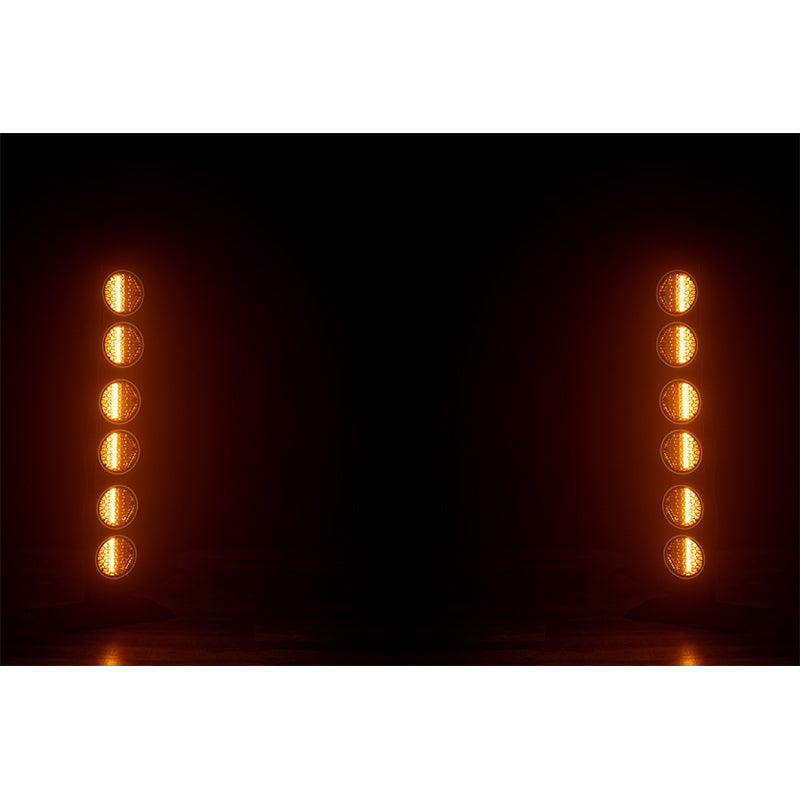

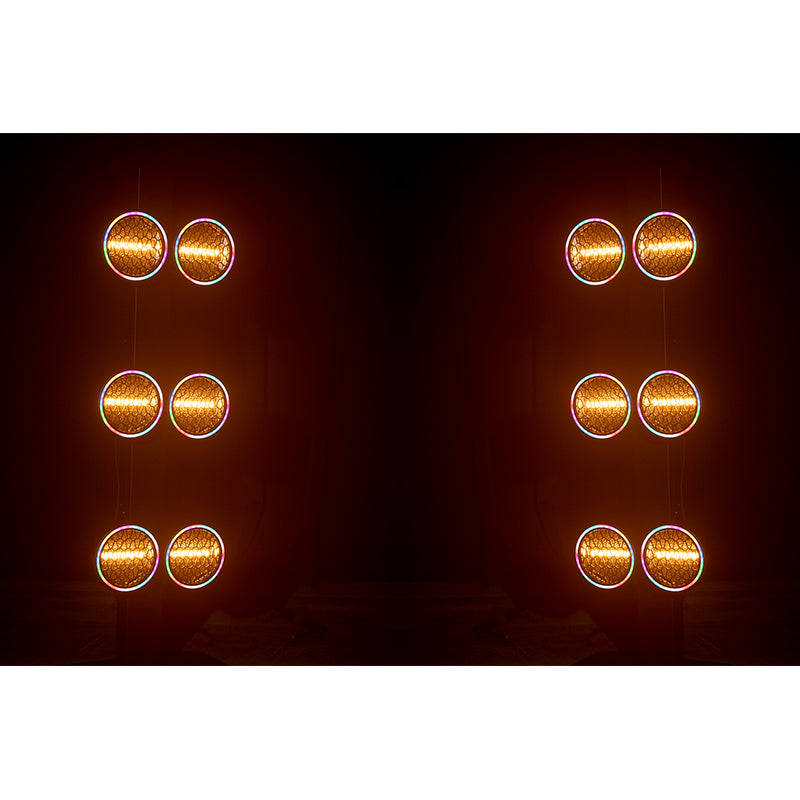

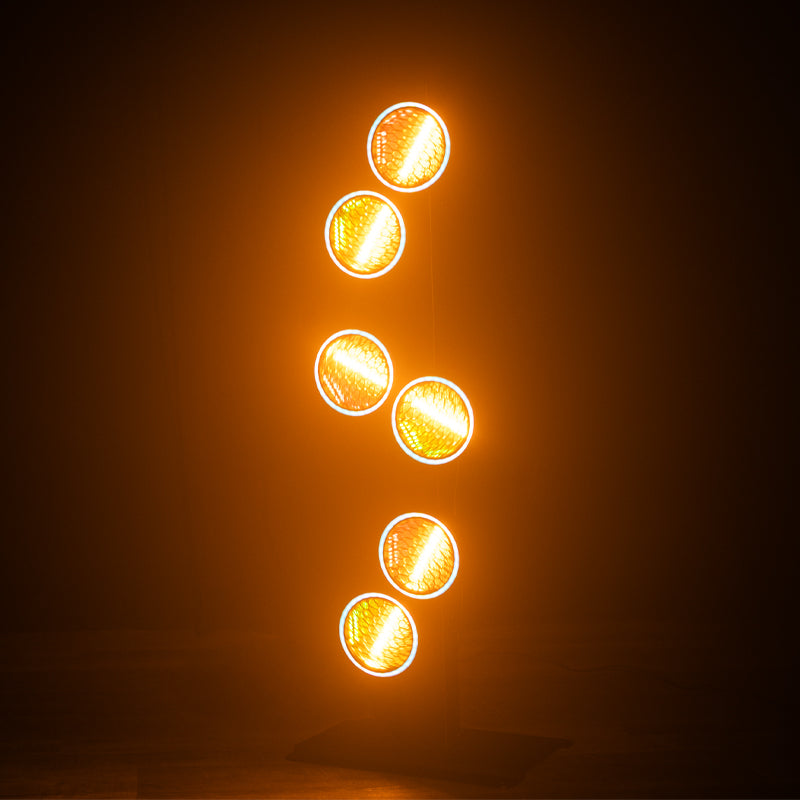

At the core of the Flux FX are six high-output 40W Amber COB LED's that produce intense, warm beams with striking visual impact. These beams add contrast to saturated RGB effects and create bold aerial looks when used with fog or haze.

Six RGB background sections featuring a total of 192 RGB LED's surround the amber light sources with vibrant color, animated patterns, and additional visual texture. Six RGB halo strips featuring a total of 186 0.2W RGB LED's add colorful chases, animated effects, and eye-catching accents.

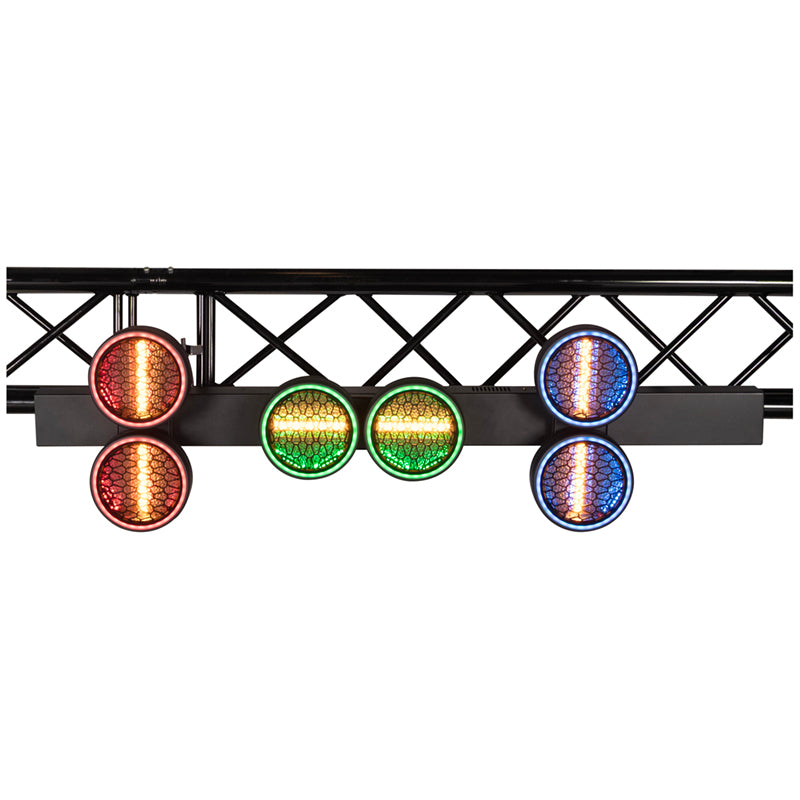

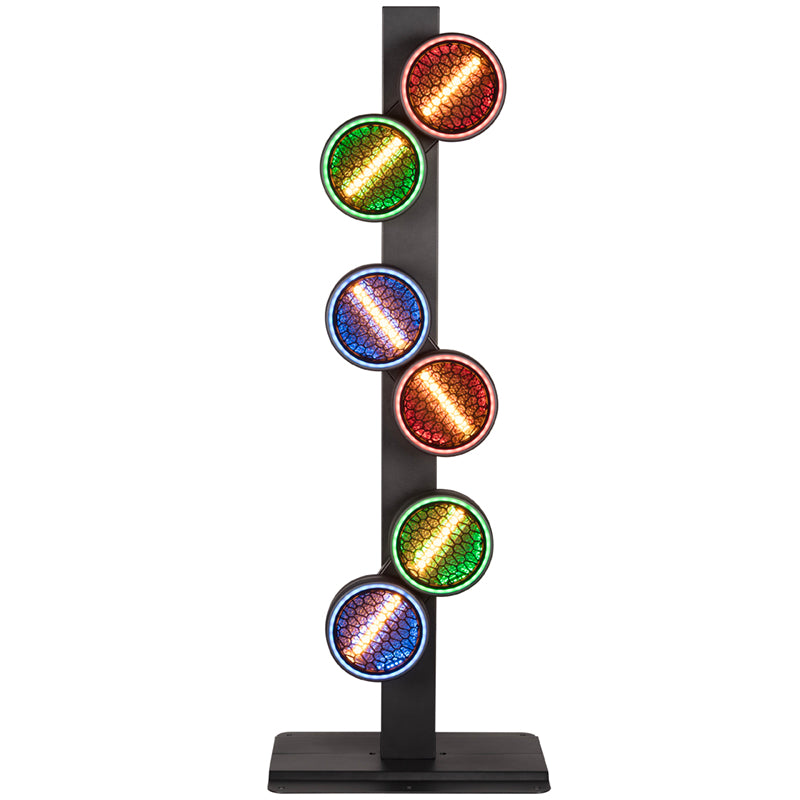

The Flux FX’s unique three-head system features continuous 360° rotation, creating sweeping movement and constantly evolving beam positions. Depending on how the fixture is mounted, these effects can rise from the floor, travel across the stage, or sweep downward from elevated truss positions.

Individual DMX control of the heads, RGB background sections, and halo strips gives lighting designers the ability to program detailed movements, color combinations, chases, and layered sequences. Selectable 24-, 34-, and 64-channel DMX modes support both streamlined operation and advanced programming.

For users who need impressive results without custom DMX programming, the Flux FX offers 20 built-in Amber LED programs, 30 RGB background programs, and 85 RGB halo programs. Auto, Sound Active, and Primary-Secondary modes make it easy to create synchronized and music-driven shows for clubs, bands, venues, and mobile events.

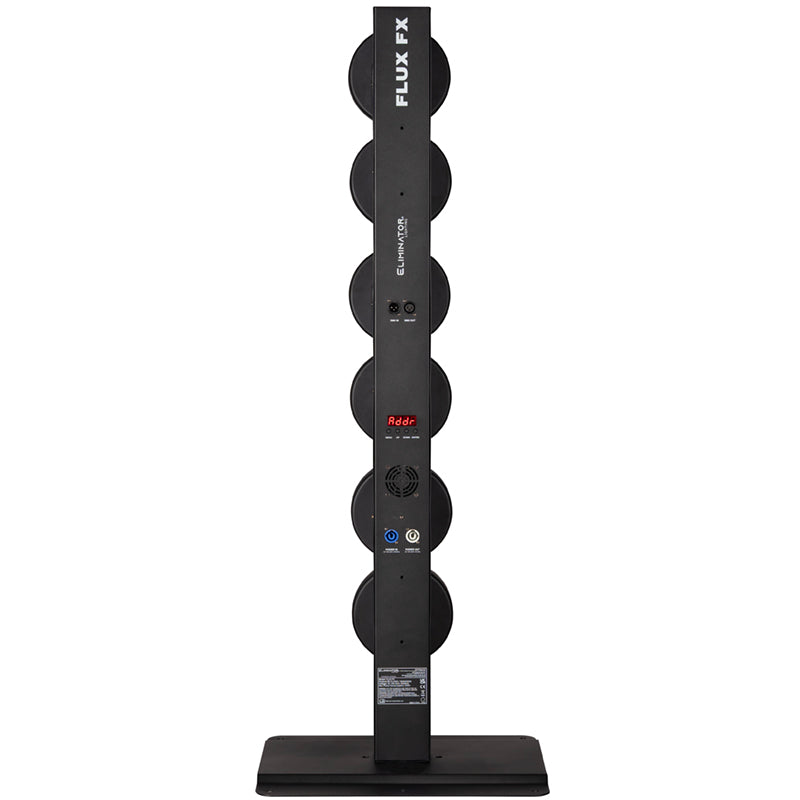

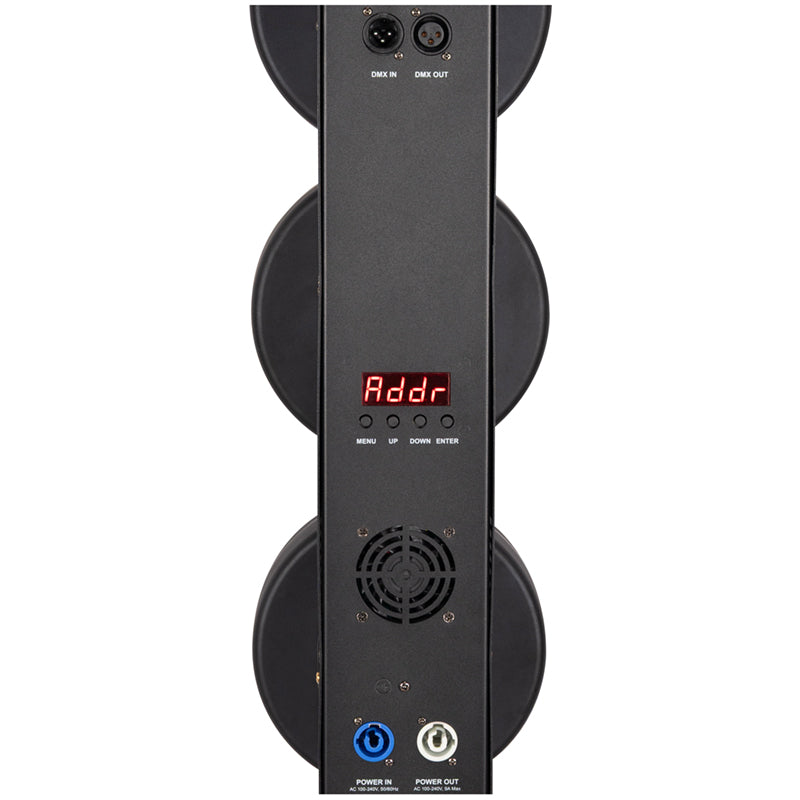

Ultra-smooth 0–100% dimming supports seamless fades and precise intensity control. The fixture also features 3-pin XLR DMX input and output, indoor locking power input and output connections, universal voltage operation, and fan cooling for dependable performance.

Whether positioned on the floor, mounted above the stage, or used in a combination of ground-level and elevated placements, the Flux FX brings an additional layer of movement, color, and animated visual energy to any entertainment lighting system.
