Flat Par QA5
This item is discontinued
Flat Par QA5
Sale price$0.00
Flat Par QA5
Specifications
- Ultra bright slim fixture with 5x 5-Watt QUAD LEDs (4-in-1 RGBA- Red, Green, Blue Amber)
- Unique “sit flat” design – Power DMX Ins/Outs are intelligently designed so the unit can be set flat on the ground or set inside truss
- Great for performance stages where traditional par cans emit a lot of heat onto performers
- Low profile case design
- Wireless infrared remote control up to 15 ft./4.5M (Model: ADJ LED RC2 - sold separately)
- 8 DMX Channel modes: 1, 2, 3, 4, 5, 6, 7 or 8 channel modes
- 6 Operational modes: Manual Color Mode; Color Change Mode; Color Fade Mode; Auto (Program Run) Mode; Sound Active Mode and DMX-512 Mode
- Smooth RGBA color mixing (fast or slow color change operation)
- QUAD LED (4-in-1) projects no RGB shadows
- 15 built-in Color Macros
- Color strobe effect
- Electronic Dimming: 0 - 100%
- Beam angle: 40-degree
- Linkable via 3-pin XLR cable (In/Out)
- 4-button LED DMX display on rear panel
- Dual bracket yoke allows fixture to be hung or set on the ground
- IEC AC IN/OUT outlets on rear to daisy chain power (up to 18 units)
- Includes gel frame for optional diffusion filters
- Run all night – No duty cycle
- Flicker Free
- Long Life LEDs (50,000 hrs.)
- Power Draw: 34W max
- Multi-voltage operation: AC 100-240V, 50/60Hz (IEC power In/Out)
- Dimensions (LxWxH): 10.75”x9”x4.5” / 272x230x115mm
- Weight: 6 lbs. / 2.5 kg.
Downloads
Cut sheet

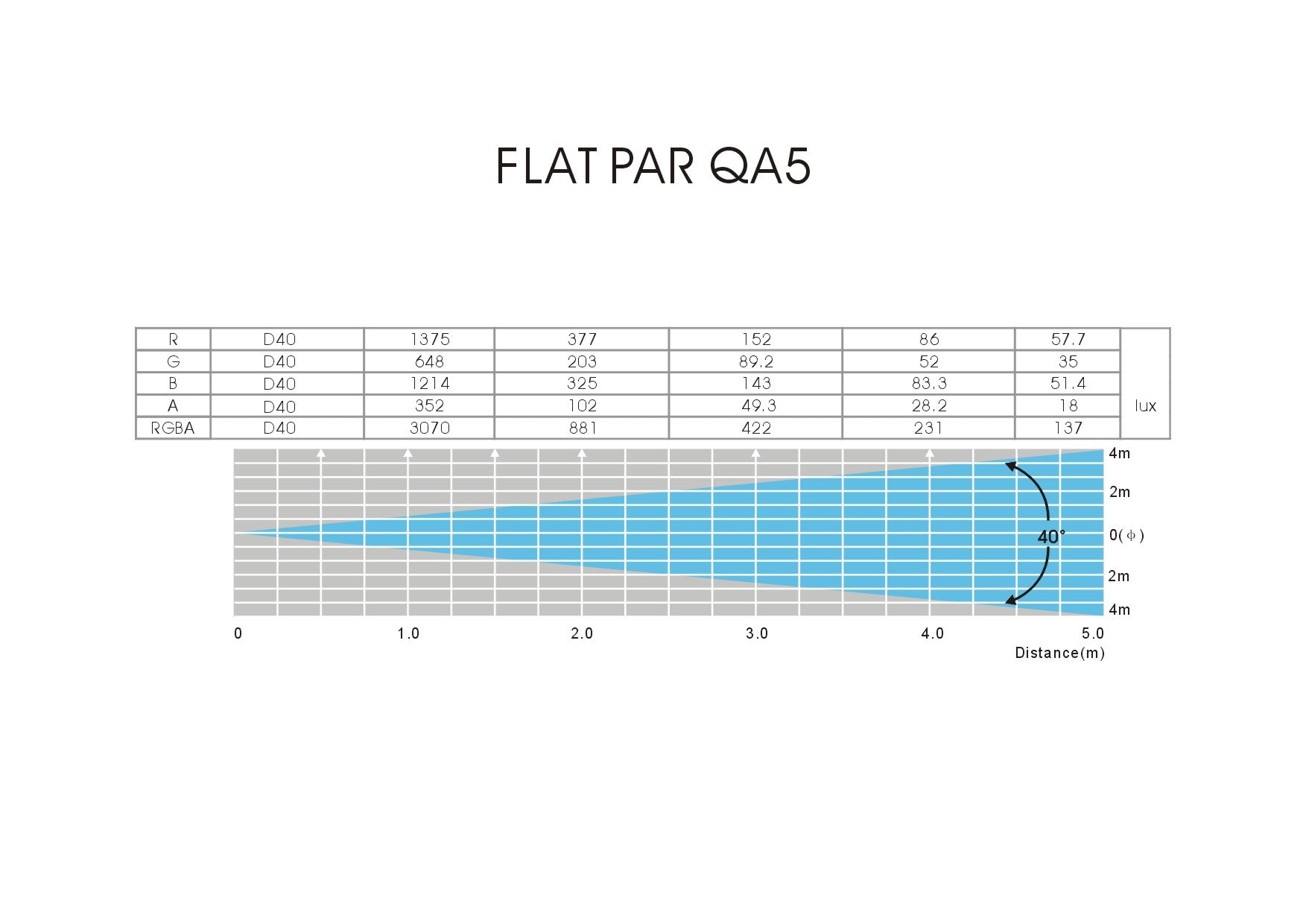

Photometrics
User manual
Flat Par QA5 Parts & Service
Our Flat Par QA5 Parts and Support page is your hub for technical support for your product. Here you’ll find support docs, service resources, and replacement parts specifically matched to your Flat Par QA5. You can also use this area to plan future maintenance, extending the life of your investment and minimizing downtime.
