Entour Pileus
Key features
| Feature | Value |
|---|---|
| Heater Element | 1650 Watts |
| Output | Think Fog or Thin Haze |
| Housing | Road Case + Casters |
| Fog Fluid Tanks | Dual 5.6-Litre |
| Control | 4-Button LED Display + DMX |
Video
Entour Pileus

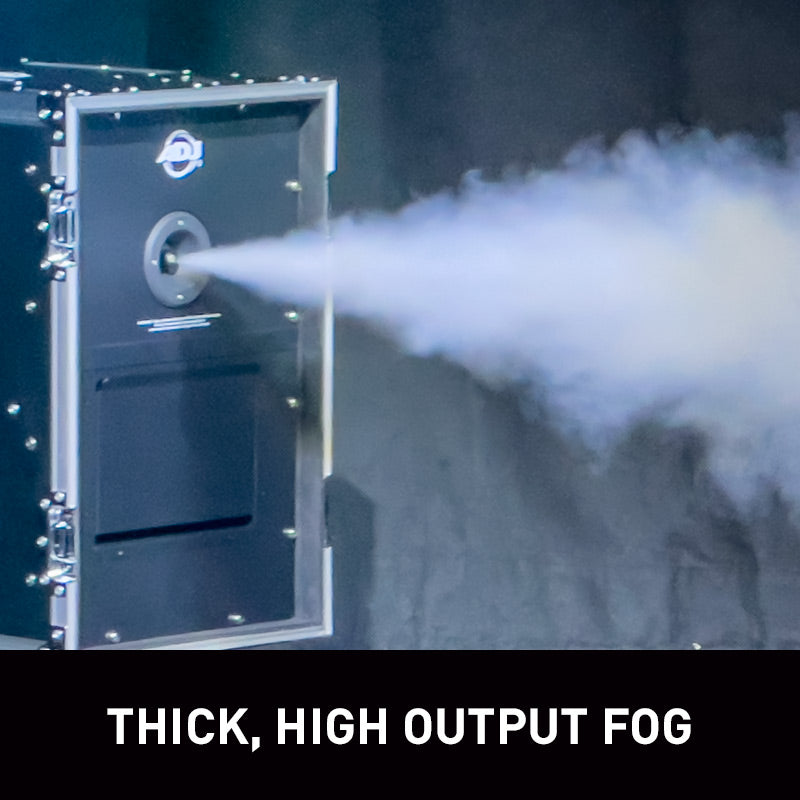

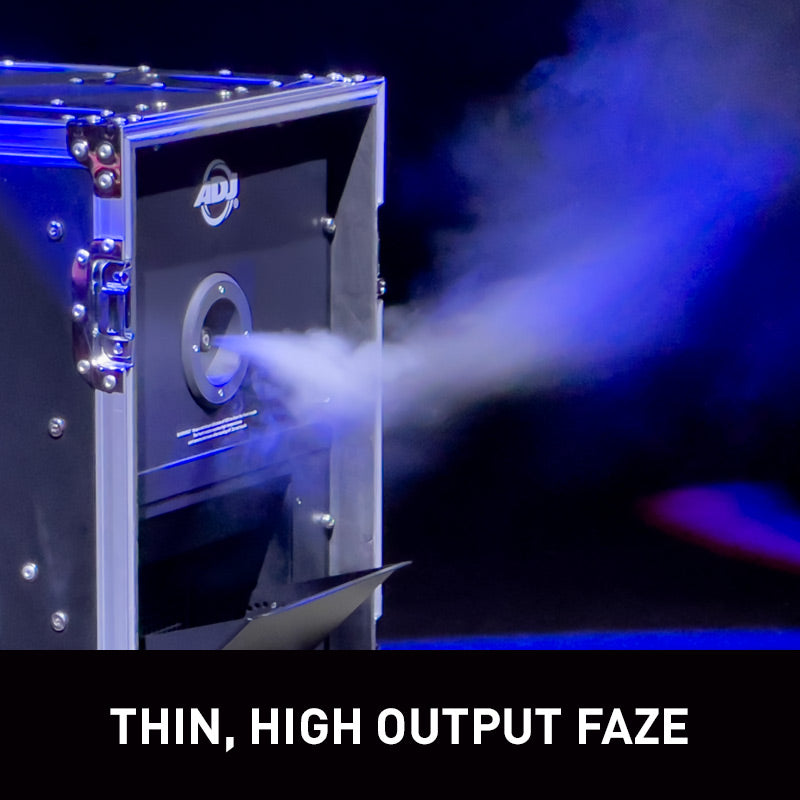

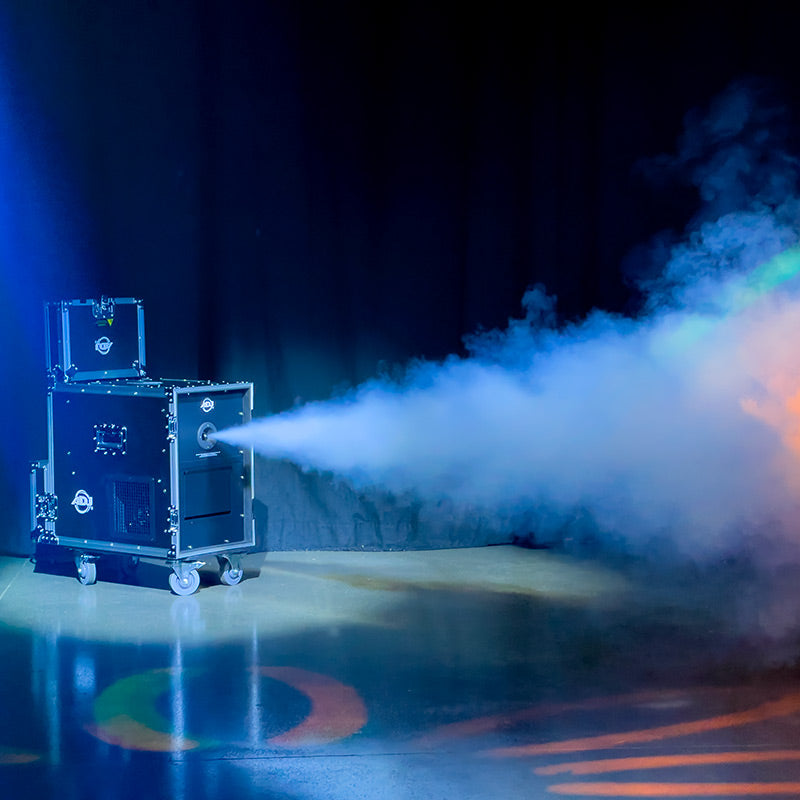

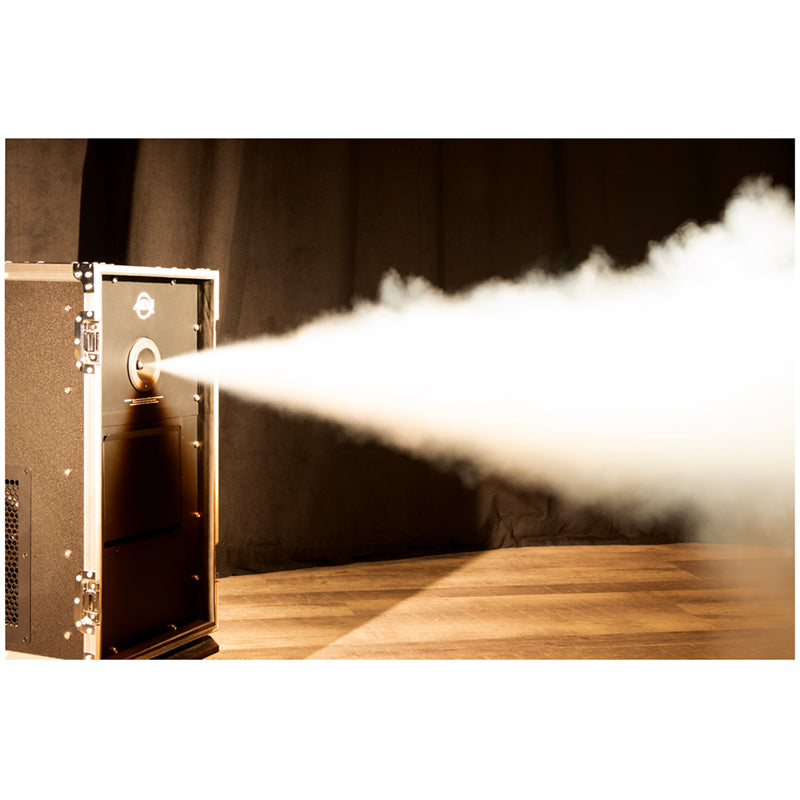

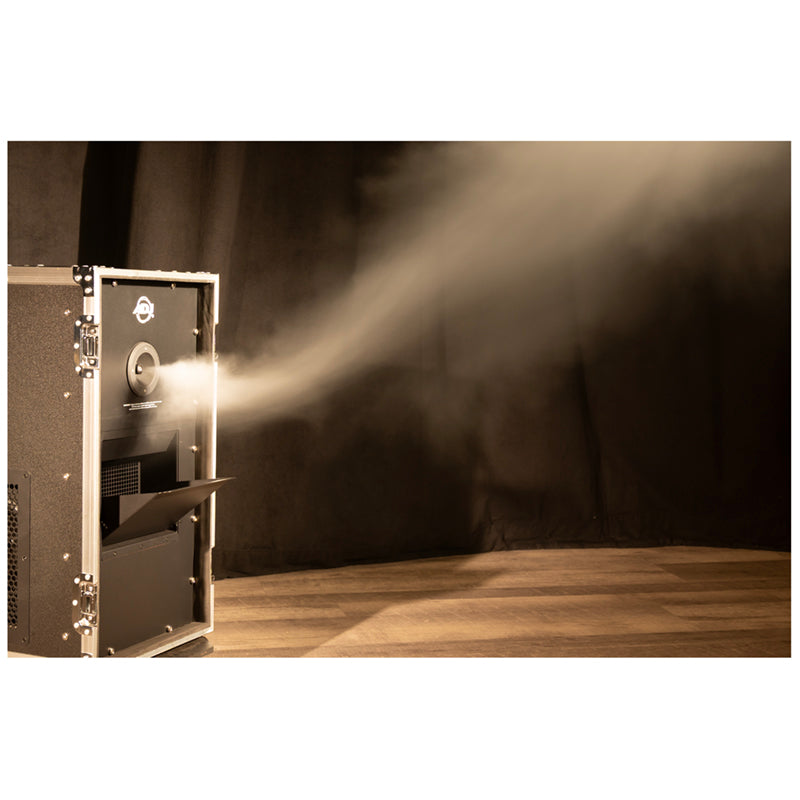

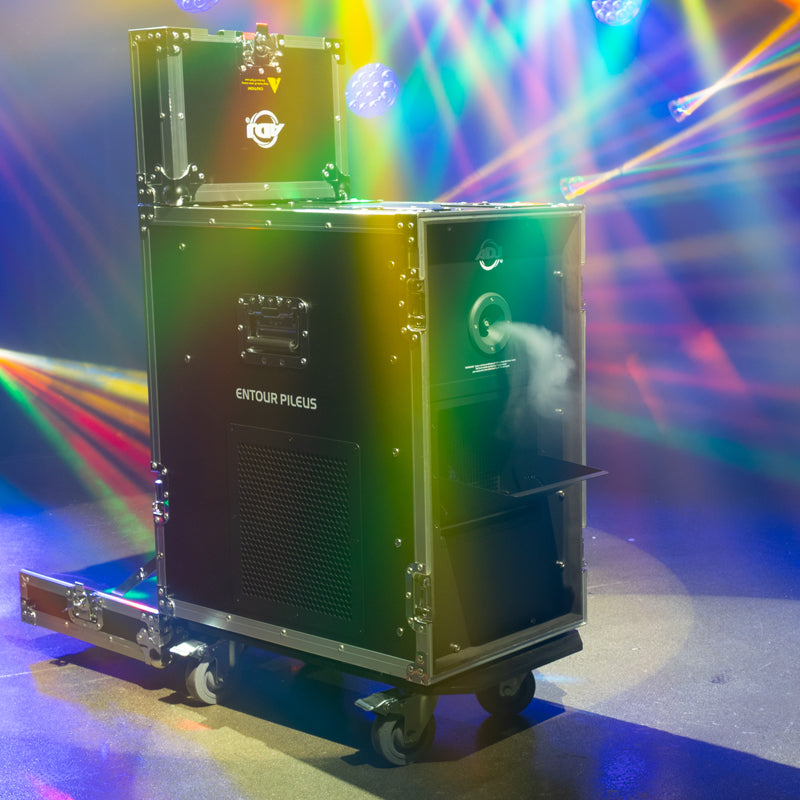

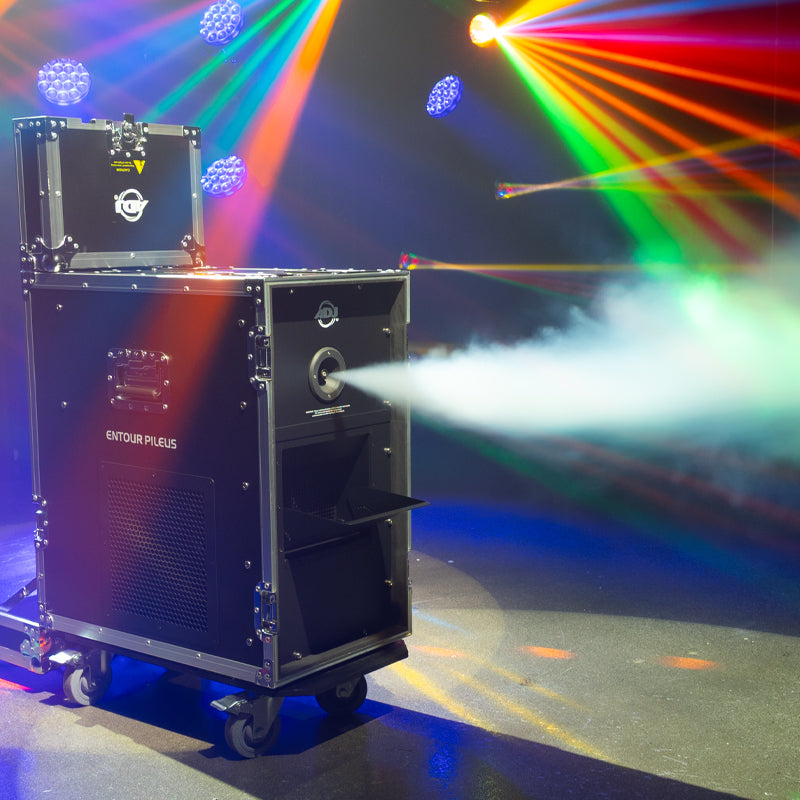

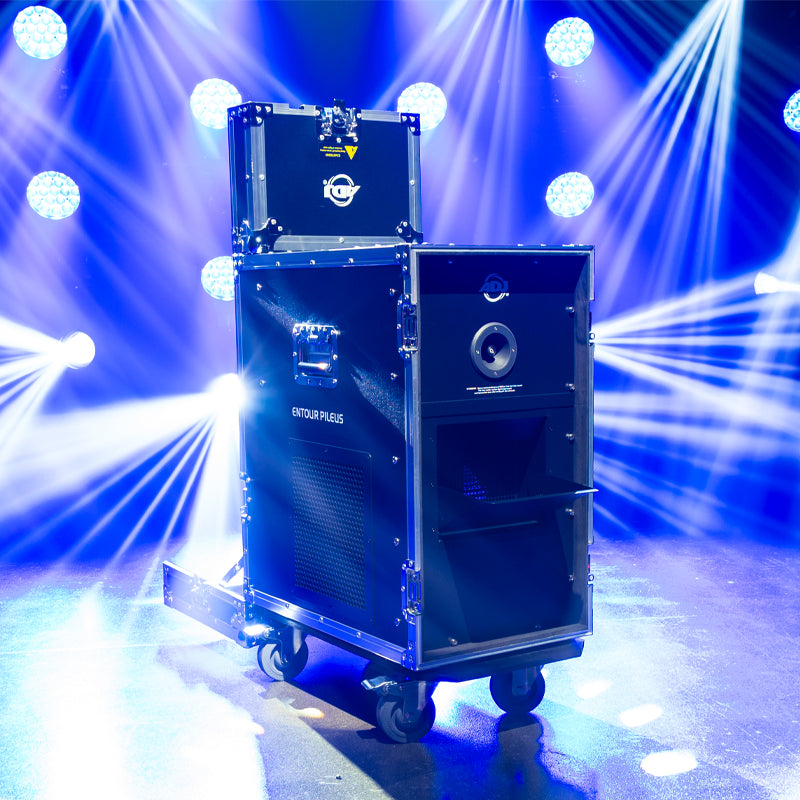

The ADJ Entour Pileus is a powerful, professional atmospheric effects machine engineered to deliver everything from thick, dramatic fog to a lighter, evenly dispersed faze. Designed for touring productions, concert stages, theaters, large venues, and other demanding entertainment applications, it combines extremely high output with precise control and rugged road-ready construction.

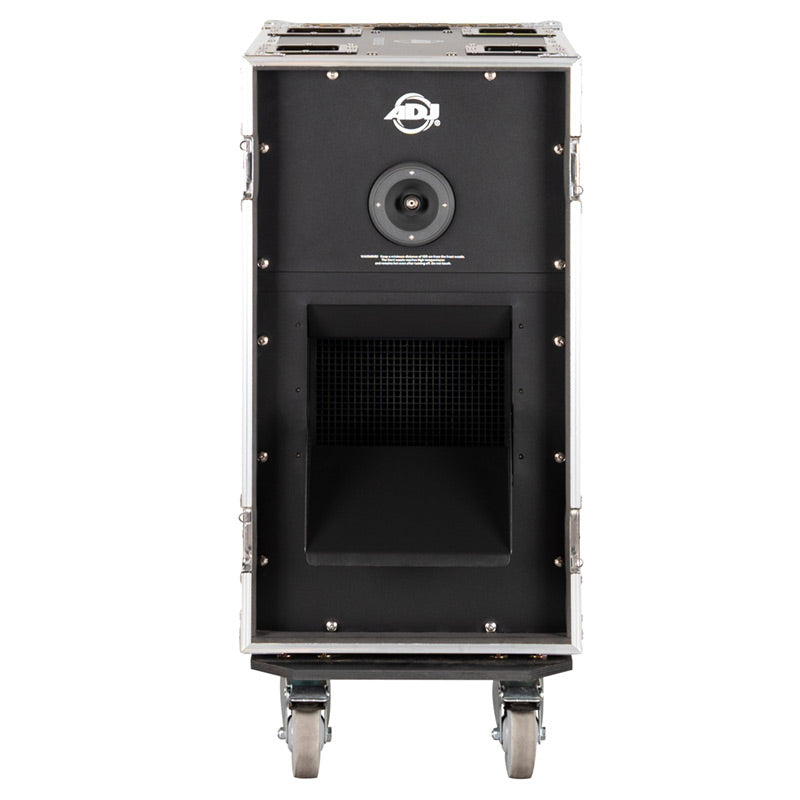

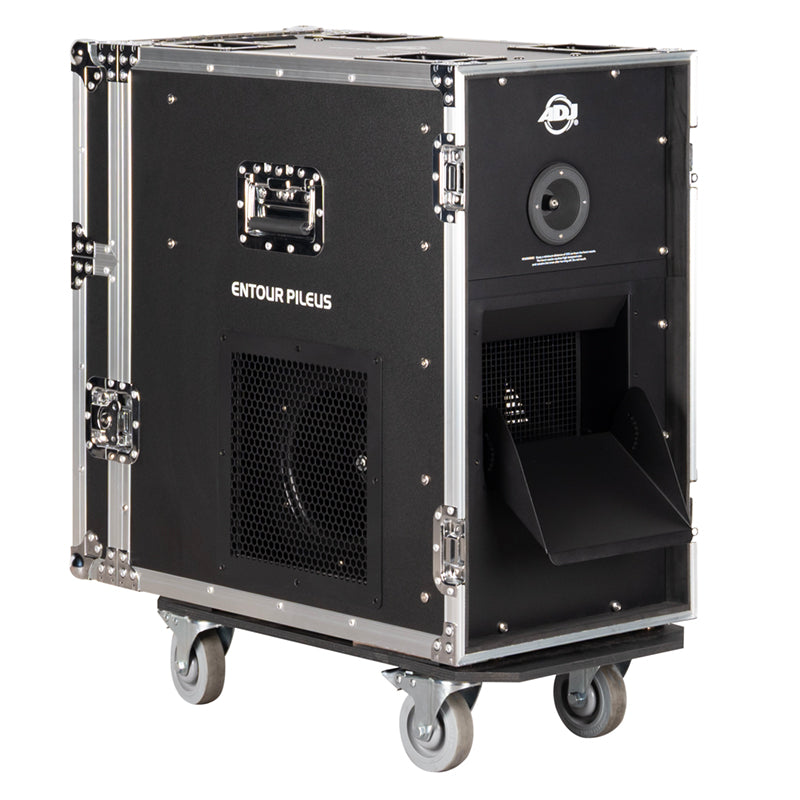

Capable of producing up to 60,000 cubic feet of atmospheric output per minute, the Entour Pileus provides adjustable output from 5–100%, allowing operators to tailor atmospheric density to the application. An independently adjustable fan offers 5–100% speed control and can also be disconnected when fan-assisted dispersion is not required. With Continuous Mode disabled, the machine can deliver maximum-output bursts of up to 35 seconds. When Continuous Mode is enabled, the Entour Pileus automatically adjusts its output to provide longer sustained bursts.

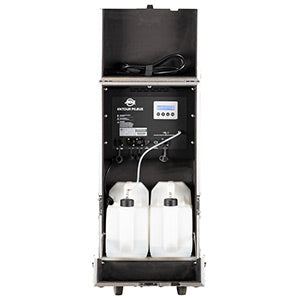

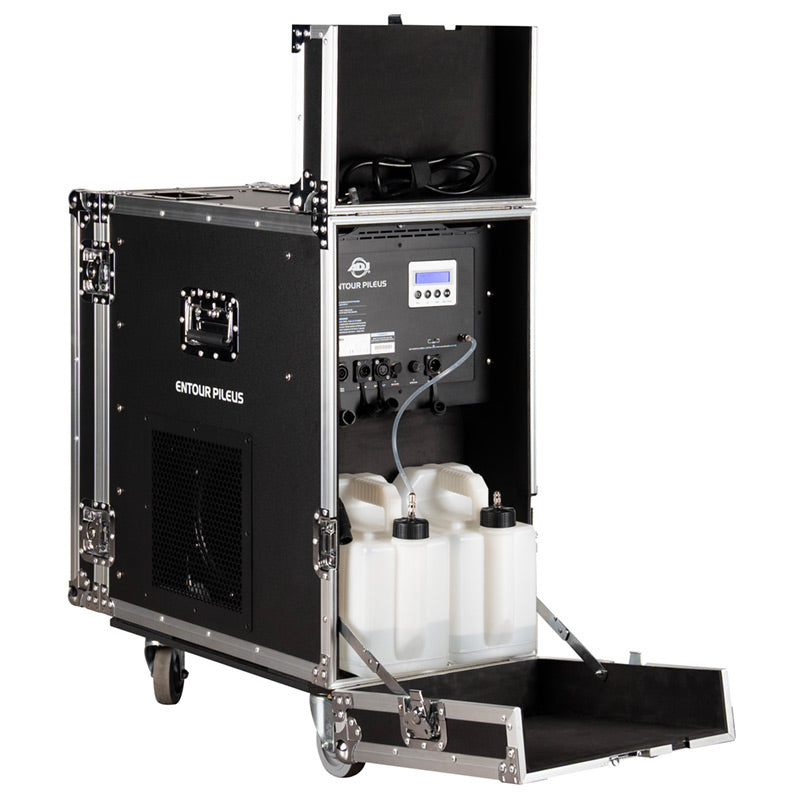

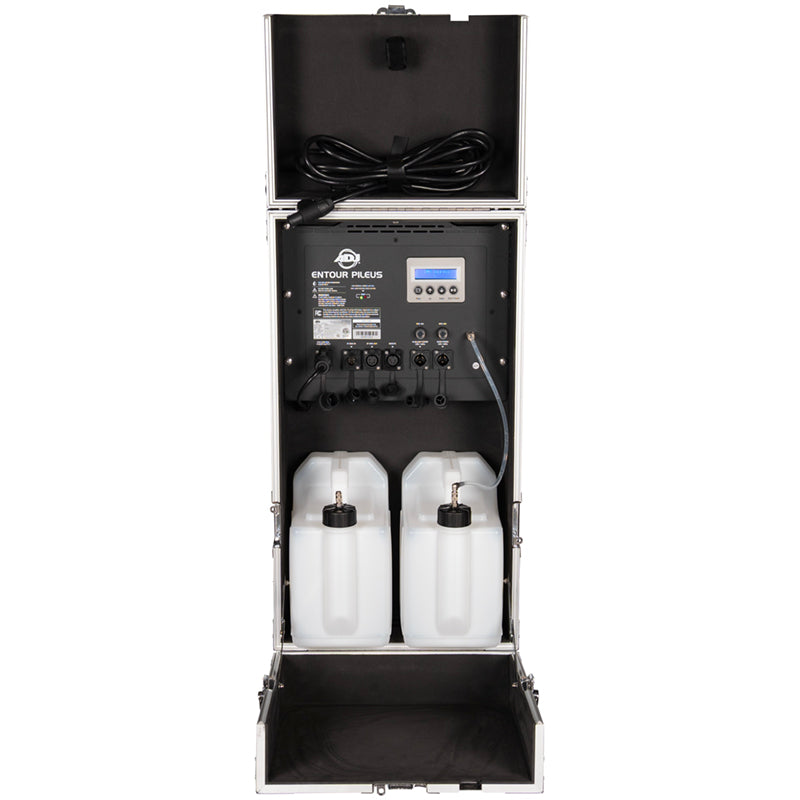

The Entour Pileus incorporates a powerful 1500W heater and has a warm-up time of approximately 16.5 minutes. A built-in 30-second self-cleaning cycle helps maintain the internal fluid system and supports reliable operation. Dual 5.6-liter fluid tanks provide a combined 11.2-liter capacity, reducing the need for frequent refilling during extended productions.

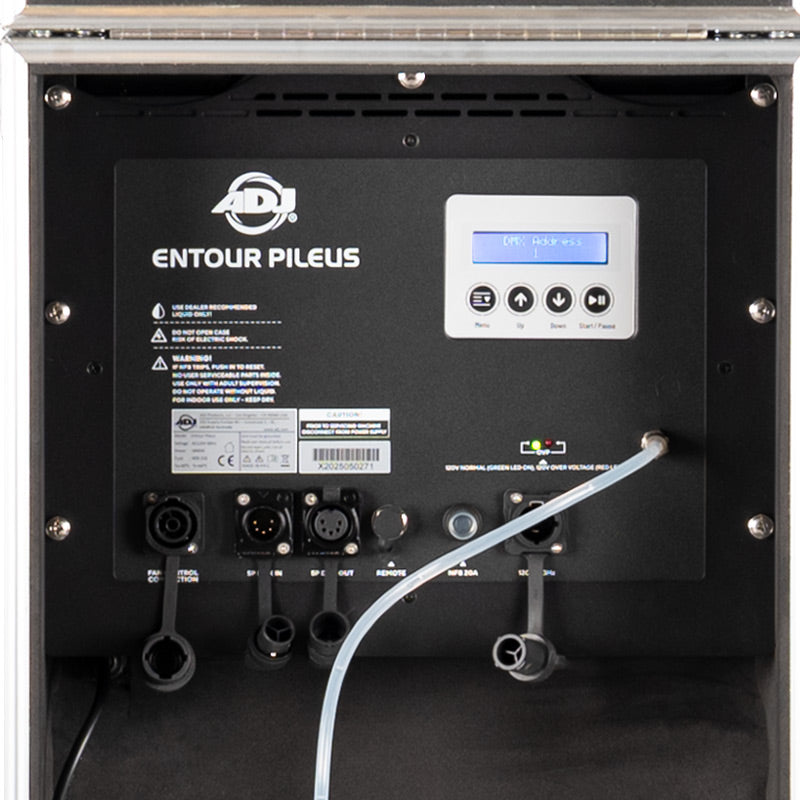

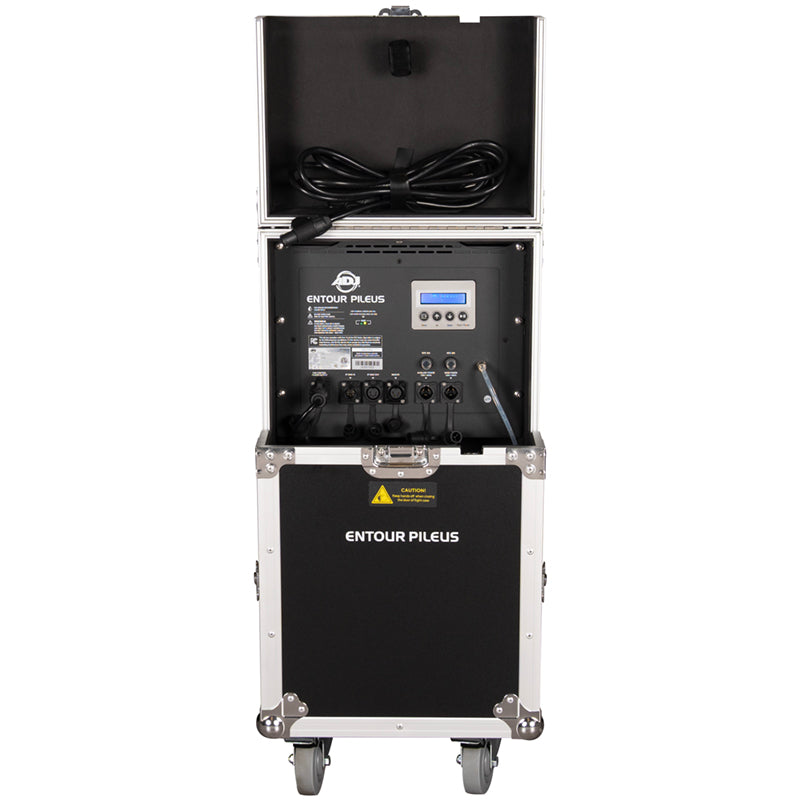

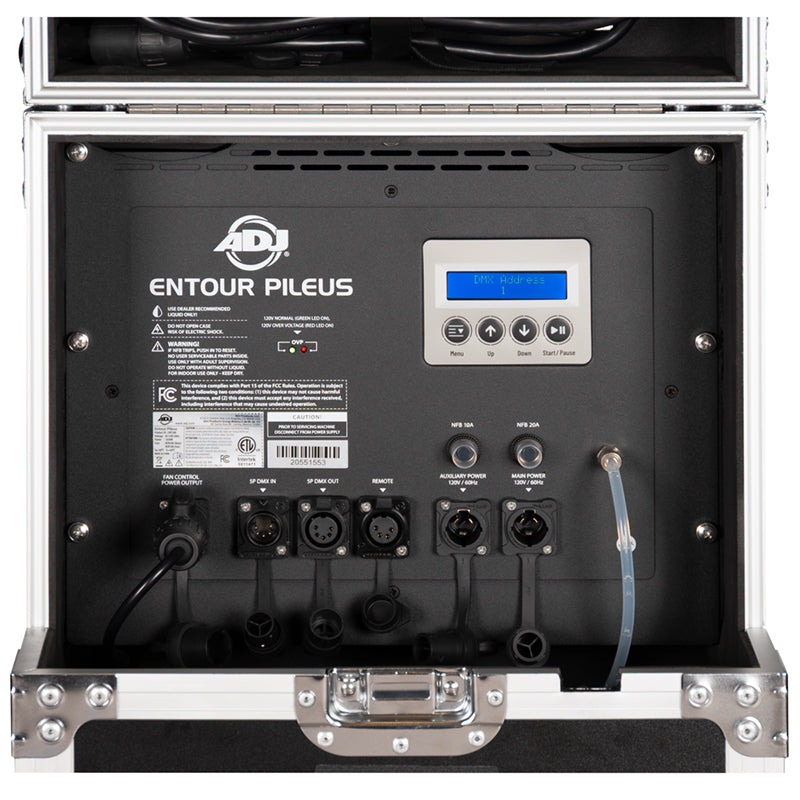

For flexible operation, the Entour Pileus features an LCD display with a 4-button control interface and onboard timer control. DMX operation is available through 1, 2, or 4-channel modes, with professional 5-pin XLR DMX In/Outconnections. A 4-pin XLR connection is also provided for a remote controller.

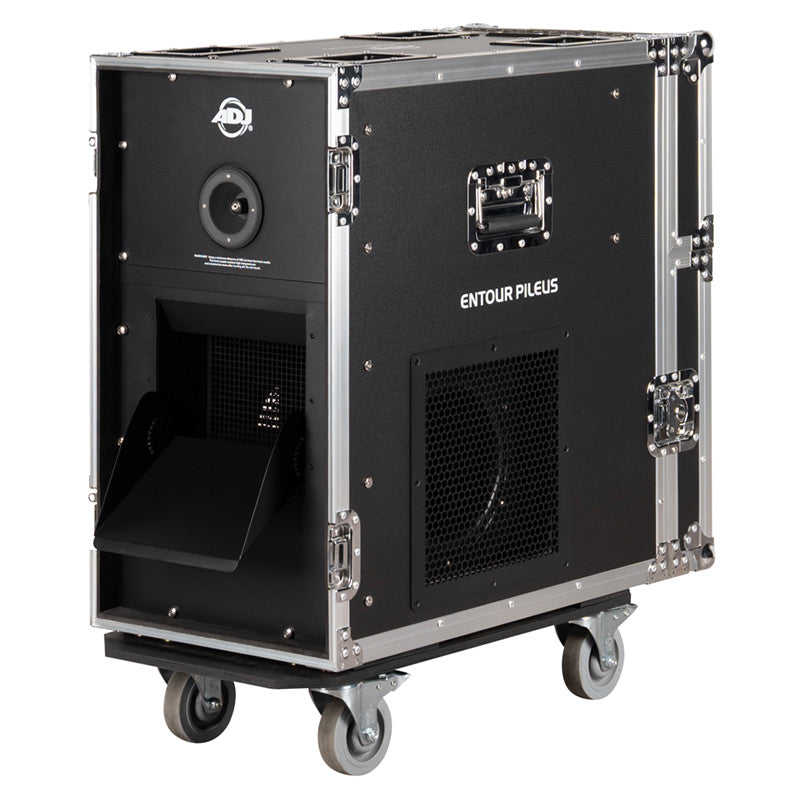

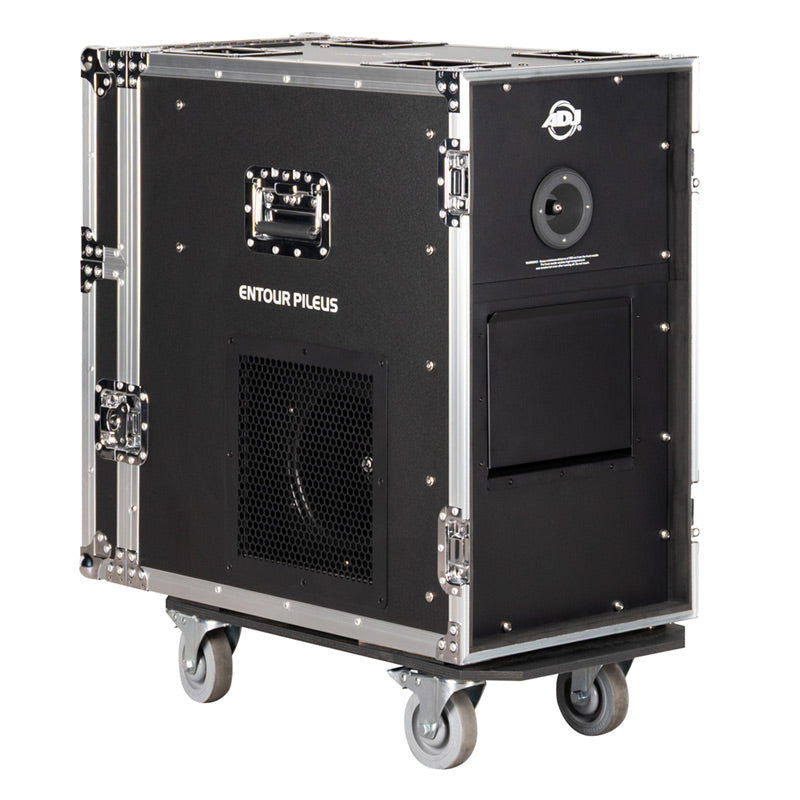

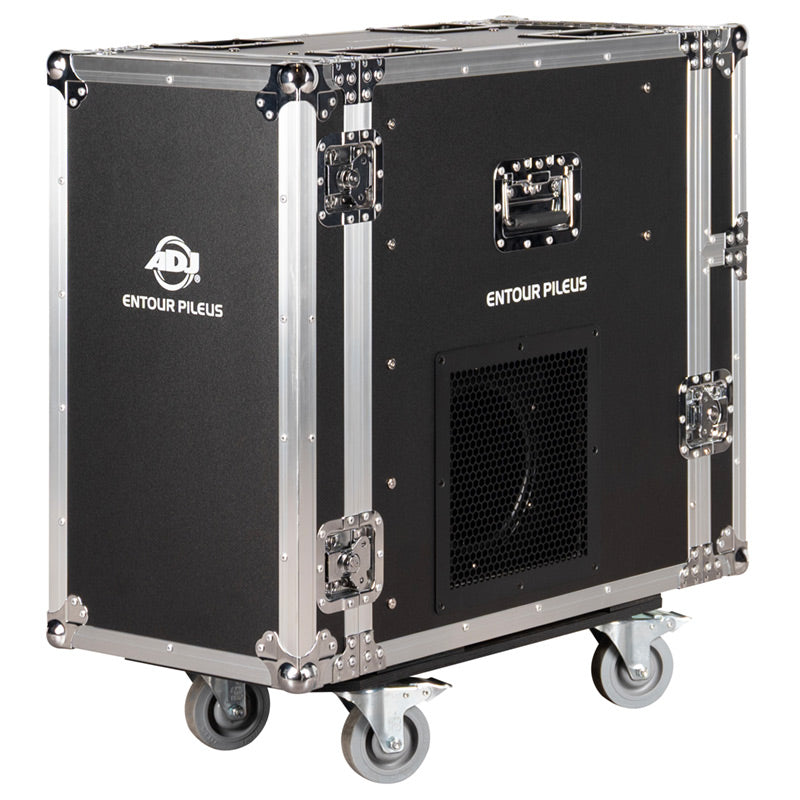

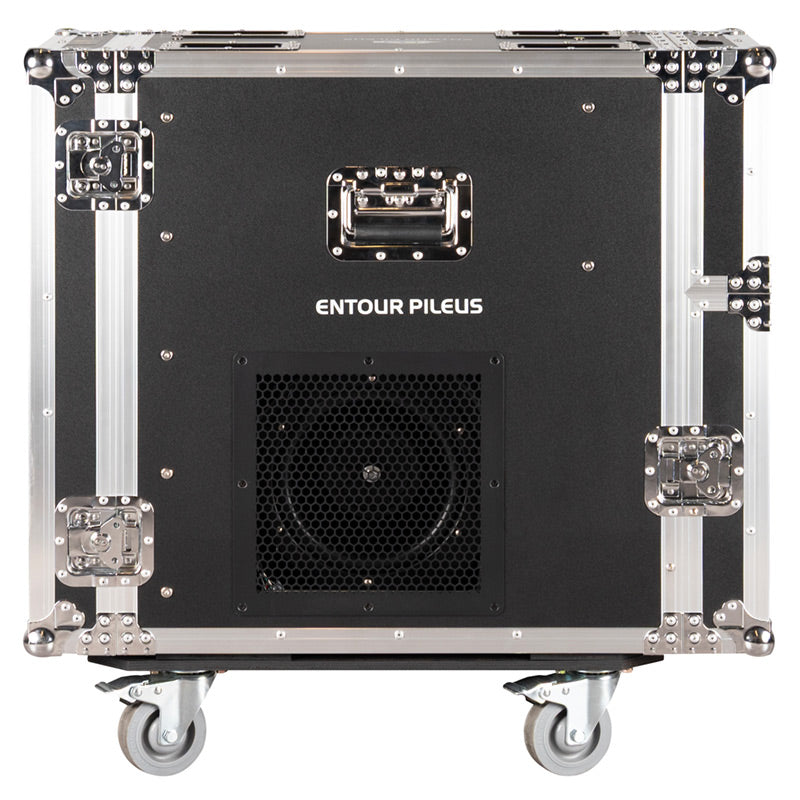

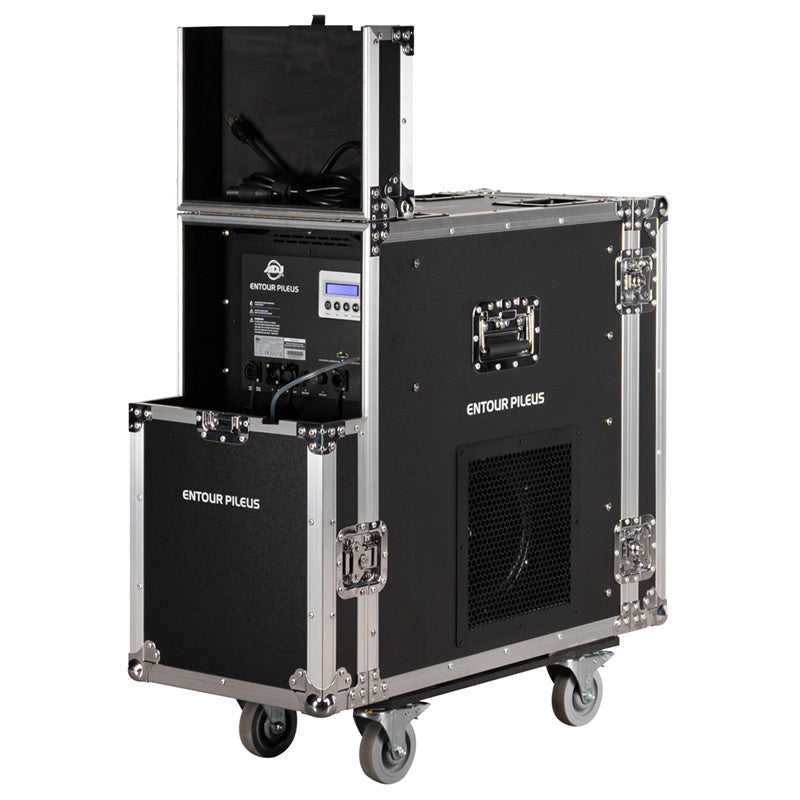

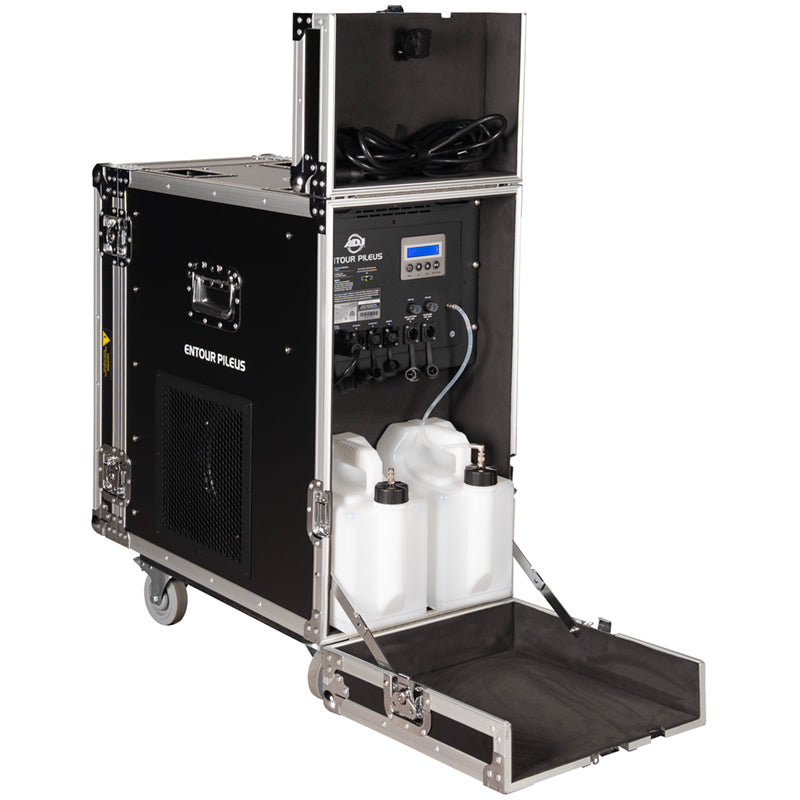

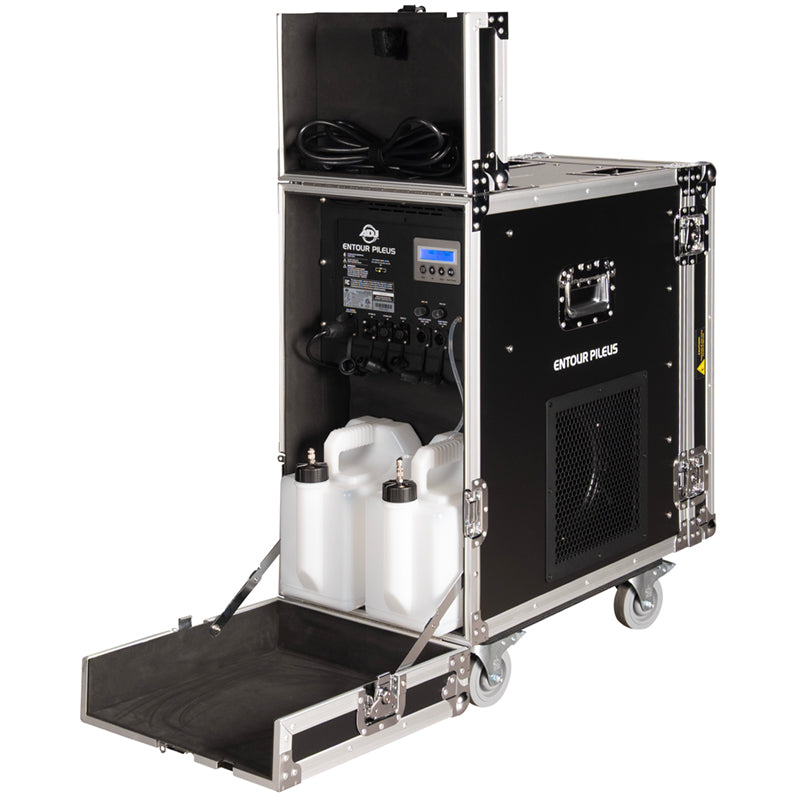

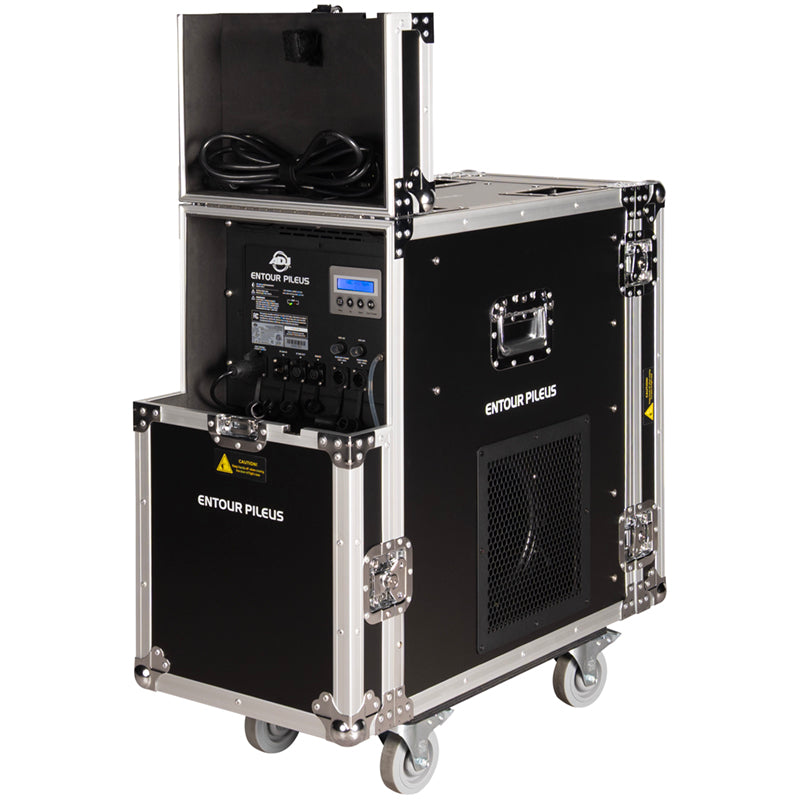

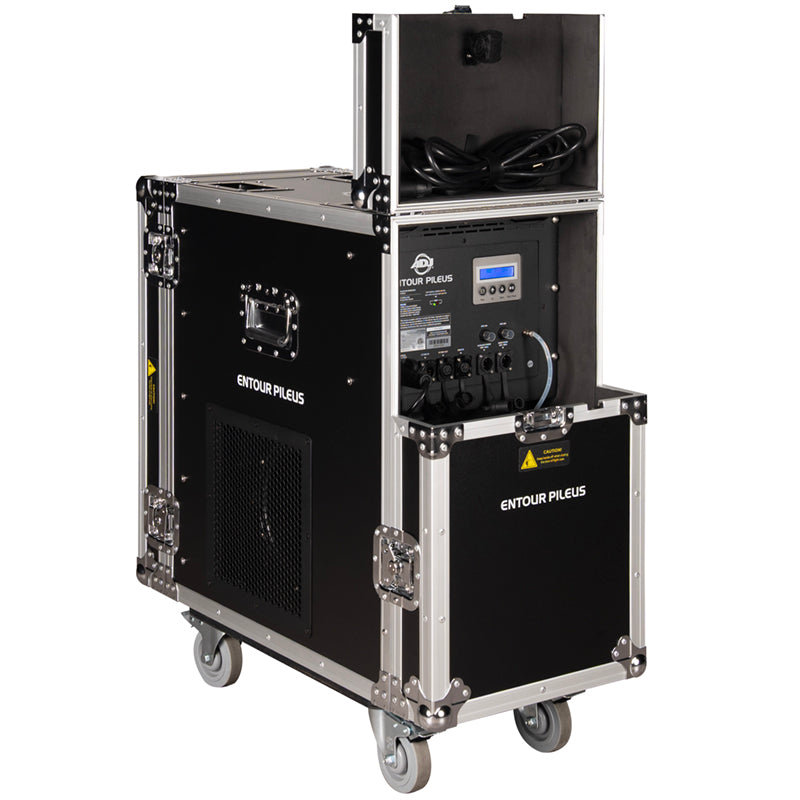

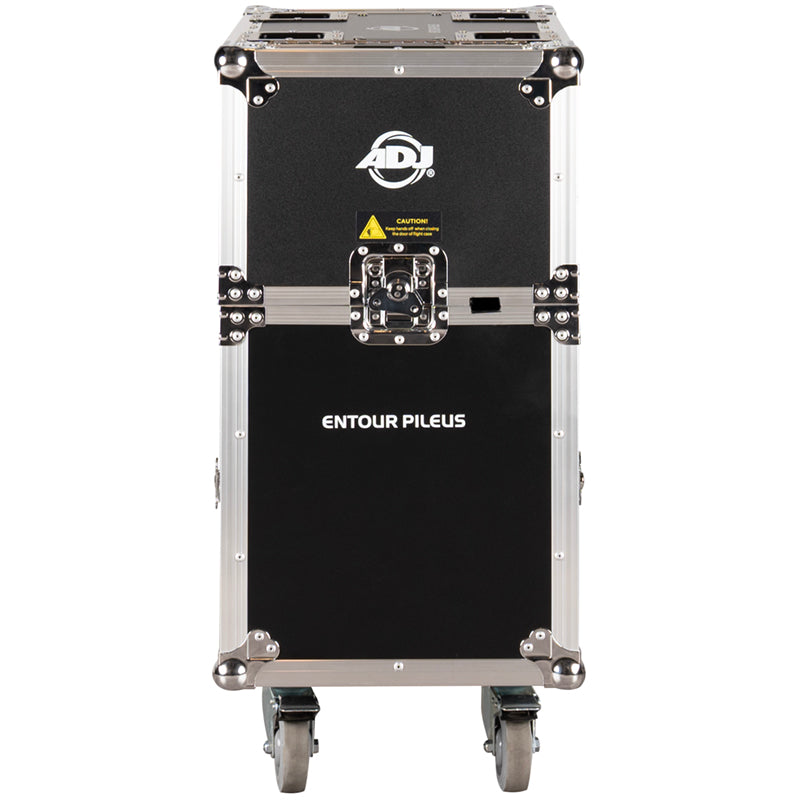

Built for demanding production environments, the Entour Pileus is housed in a rugged road case enclosure with heavy-duty locking casters, making transportation and deployment easier while protecting the machine during regular touring use. A locking power input connection, fan cooling, and OVP (Over Voltage Protection) further support dependable professional operation.
The Entour Pileus operates at 120V/60Hz for the US market and 230V/50Hz for the European market, with maximum power consumption of 2150W. It is cETLus Certified and carries CE and UKCA conformity, with applicable LVD safety and EMC compliance for professional use.
Specifications
Performance
- Fog Output:60,000 cu. ft./min.
- Fog Output Adjustment:5–100%
- Fan Speed Adjustment:5–100%
- Fan: Disconnectable
- Fluid Consumption:
- Maximum:180 ml/min.
- Minimum:38 ml/min.
- Maximum Output Duration with Continuous Mode Off:35 seconds
- Continuous Mode: Automatically adjusts output to allow for longer bursts
- Self-Cleaning Cycle:30 seconds
- Warm-Up Time:16.5 minutes
Control
- Onboard Timer Control

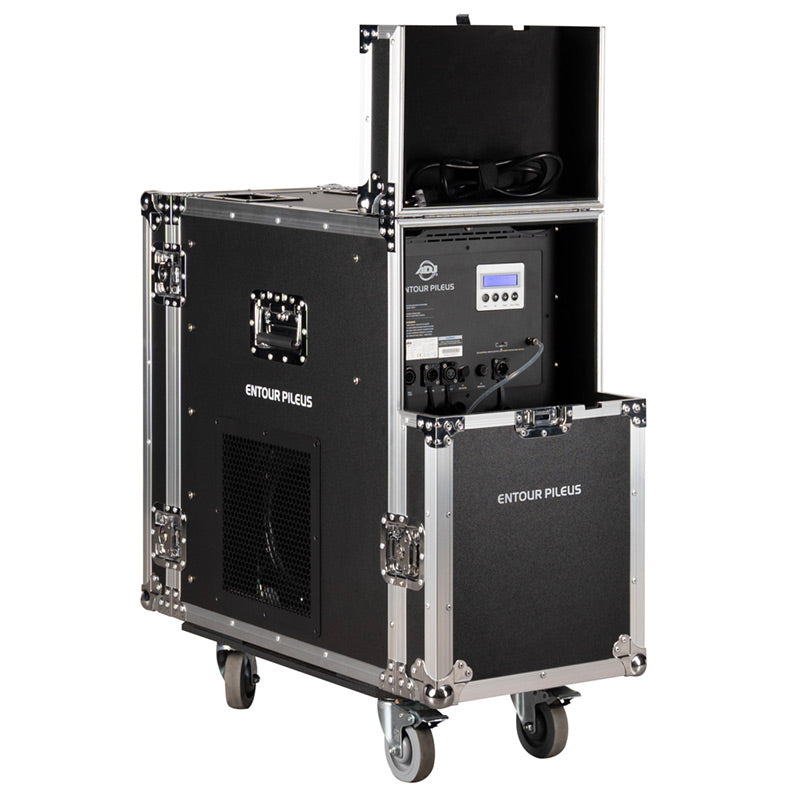

- LCD Display with 4-button control
- DMX Channel Modes:1 / 2 / 4
- DMX Connections:5-pin XLR In/Out
- Remote Controller Connection:4-pin XLR
Fluid System
- Fluid Tanks:2 x 5.6 L
- Total Fluid Capacity:11.2 L
Electrical
- Heater Power:1500W
- Maximum Power Consumption:2150W
- Power Input:
- US:120V, 60Hz
- EU:230V, 50Hz
- Locking Power Input Connection
- OVP (Over Voltage Protection)
- Fan Cooled
Physical
- Maximum Ambient Temperature (Ta):40°C / 104°F
- Dimensions (L x W x H):33.1” x 16.1” x 32.6” / 841 x 408 x 829 mm(wheels included)
- Weight:139 lbs. / 63 kg

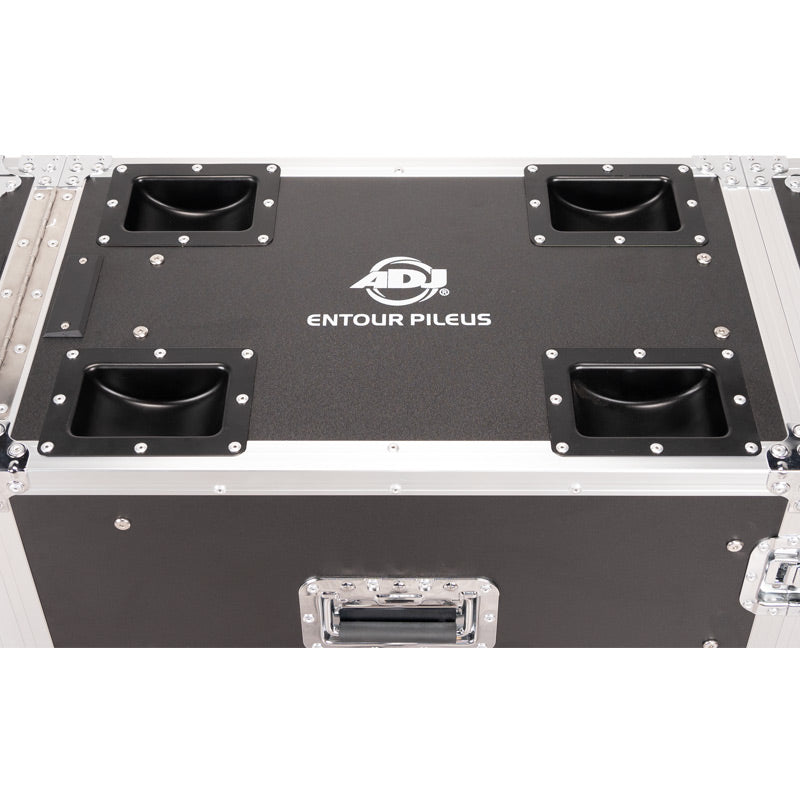

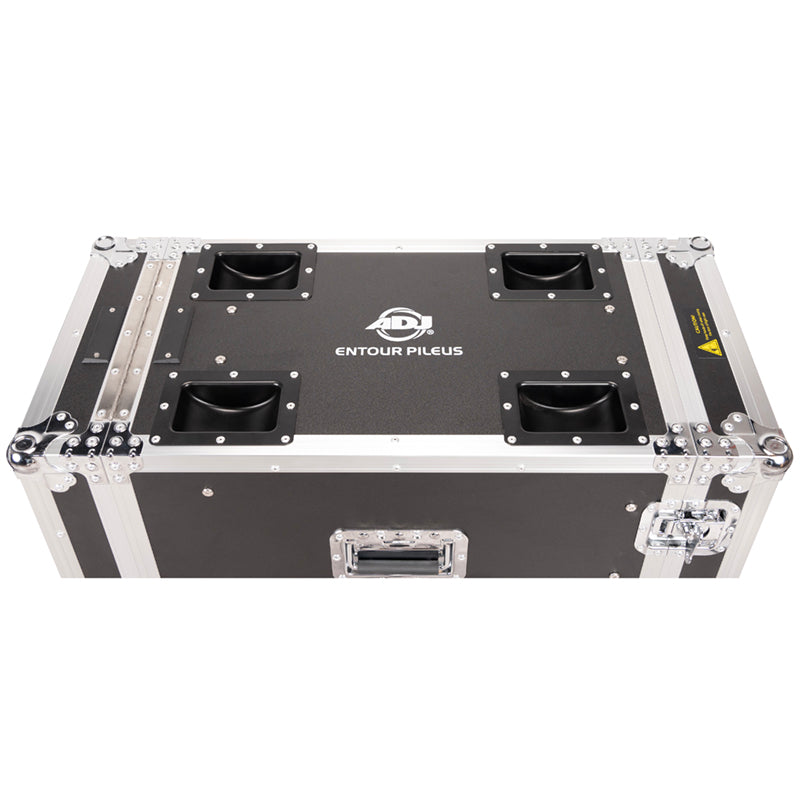

- Rugged Road Case Housing
- Heavy-Duty Locking Casters
Approvals
- cETLus Certified– Control #5011471
- CE Conformity– Low Voltage Directive (LVD) 2014/35/EU and EMC Directive 2014/30/EU
- UKCA Conformity– LVD and EMC requirements; applicable BS EN standards verified as conforming
- LVD Safety Compliance:EN 60335-1, EN 62233, BS EN 60335-1 and BS EN 62233
- EMC Compliance:EN 55032, EN 55035, EN IEC 61000-3-2, EN 61000-3-3 and corresponding BS EN standards
