ELS15A

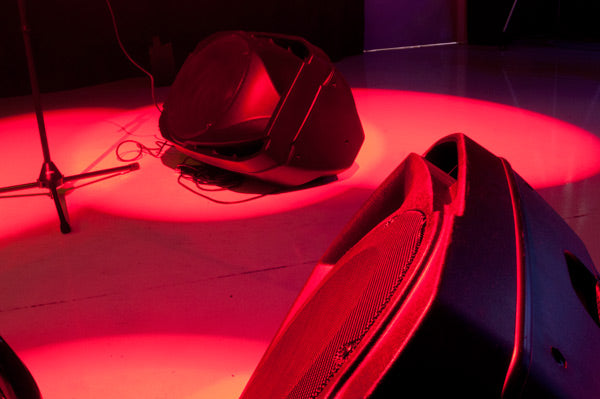

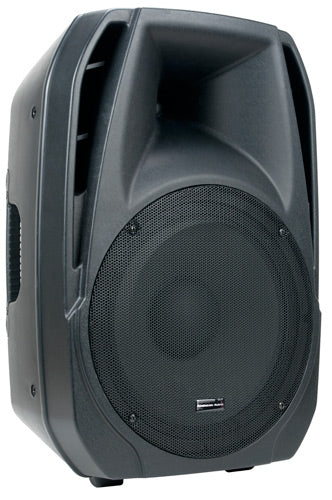

The ELS15A from American Audio delivers high quality sound in portable, versatile, lightweight package. The ELS15A was designed as an affordable option for mobile entertainers and production companies who need great sound on small to mid-sized events. Featuring a 15-inch woofer and a 1-inch Compression Driver along with 4 way amplifier protection insure that the ELS15A is as reliable as it is great sounding. The included mixer has enables you to have a true standalone option if needed, or expand the number of inputs on your system. The cabinet features 9 Fly points, is stand mountable and can be used as a floor monitor.
Specifications
- 2-way active bi-amplified lightweight speaker system
- High power class A/B bi-amplified system designed to perform at maximum efficiency
- Separate High Frequency and Low Frequency provide the power to the speaker as your music demands it
- Flyable stand mountable
- Treble, bass and volume output control
- Microphone, and Line level controls with master volume.
- Treble, and Bass EQ +/- 12 dB
- XLR TRS MIC inputs
- XLR RCA line inputs
- XLR TRS line outputs
- 4-Way Protection System
- 9 Fly Points (M8 with a 1.25” thread)

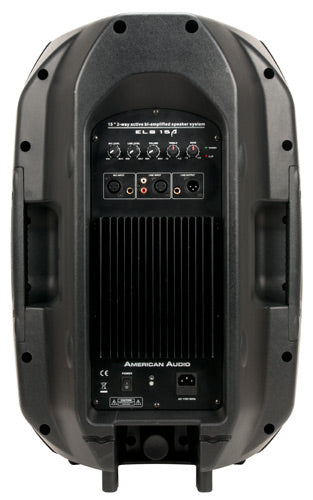

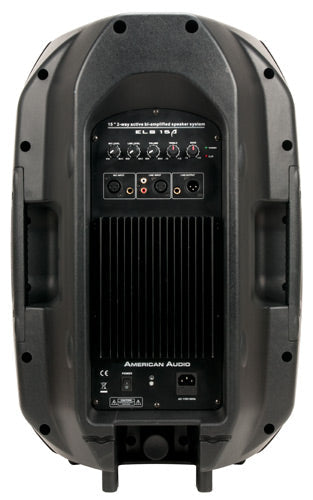

- Active signal limiting system with Clip LED indicator on rear panel
- Time Aligned Electronic Crossover
- Crossover: @ 2.1kHz @ 12dB/Oct.
- Multi-voltage operation: AC 115-230V, 50/60Hz
- Dimensions (LxWxH): 18.5” x 14.75” x 27.75” / 469 x 372 x 700mm
- Weight: 39.5 lbs. / 17kg.

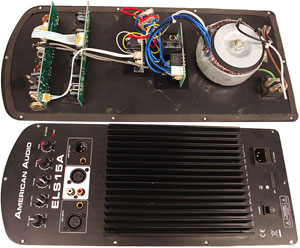

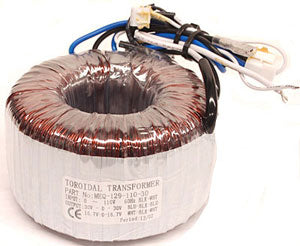

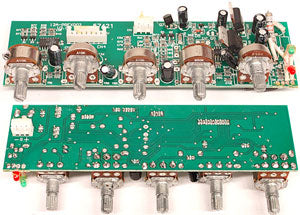

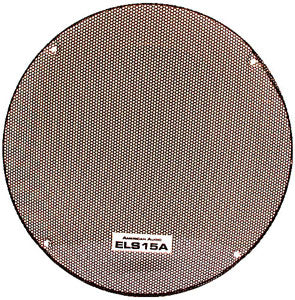

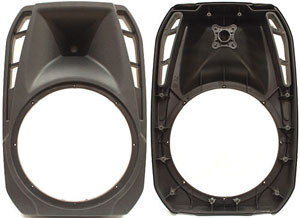

ELS15A Parts & Service
Our ELS15A Parts and Support page is your hub for technical support for your product. Here you’ll find support docs, service resources, and replacement parts specifically matched to your ELS15A. You can also use this area to plan future maintenance, extending the life of your investment and minimizing downtime.
