ELS15 USB
This item is discontinued
ELS15 USB
Sale price$0.00
ELS15 USB
Specifications

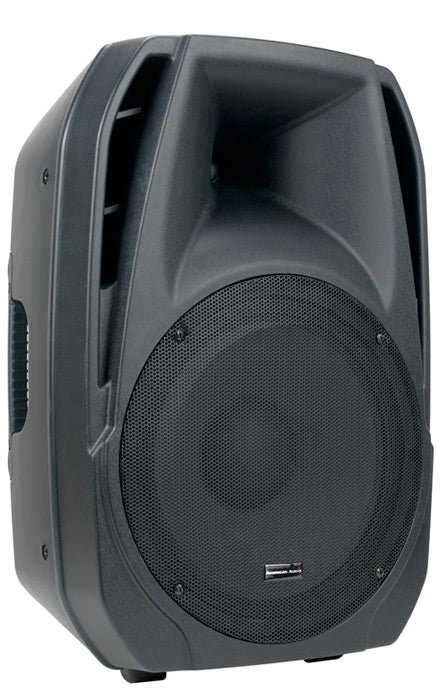

- 2-way active bi-amplified lightweight speaker with built-in USB amp; Memory Card input slot
- MP3 Playback on rear panel with 6-Button Function with blue LCD screen

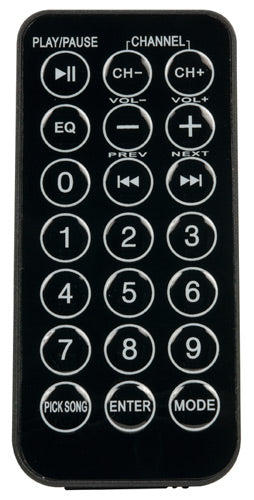

- Comes with 21-Input remote to control MP3 Playback (p/n ADJ AUD RC)
- 11 Preset EQ (Normal, Rock, Pop, Classic, Jazz, Blues, Hall, Bass, Soft, Country or Opera)
- High power class A/B bi-amplified system designed to perform at maximum efficiency.
- Separate High Frequency and Low Frequency provide the power to the speaker as you music demands it.
- 15-inch woofer 4O 100W RMS
- 1-inch driver 8O 30W RMS
- Flyable amp; stand mountable
- Treble, bass and volume output control

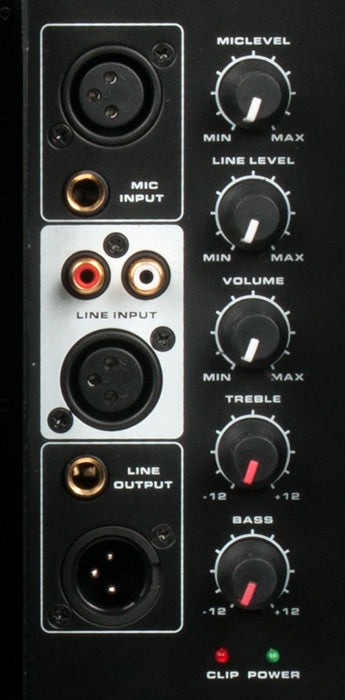

- Microphone, and Line level controls with master volume.
- Treble, and Bass EQ +/- 12 dB
- XLR amp; TRS MIC inputs
- XLR amp; RCA line inputs
- XLR amp; TRS line outputs
- 4-Way Protection System: Short circuit protection; Thermal protection; On/Off Mute; LF/HF Limiters
- 9 Fly Points (M8 with a 1.25" thread)
- Active signal limiting system with Clip LED indicator on rear panel
- Time Aligned Electronic Crossover
- Crossover: @ 2.1kHz @ 12dB/Oct.
- Multi-voltage operation: AC 115-230V, 50/60Hz
- Dimensions (LxWxH): 18.5" x 14.75" x 27.75" / 469 x 372 x 700mm
- Weight: 39.5 lbs. / 17kg.
ELS15 USB Parts & Service
Our ELS15 USB Parts and Support page is your hub for technical support for your product. Here you’ll find support docs, service resources, and replacement parts specifically matched to your ELS15 USB. You can also use this area to plan future maintenance, extending the life of your investment and minimizing downtime.
