ELS12 BT
ELS12 BT

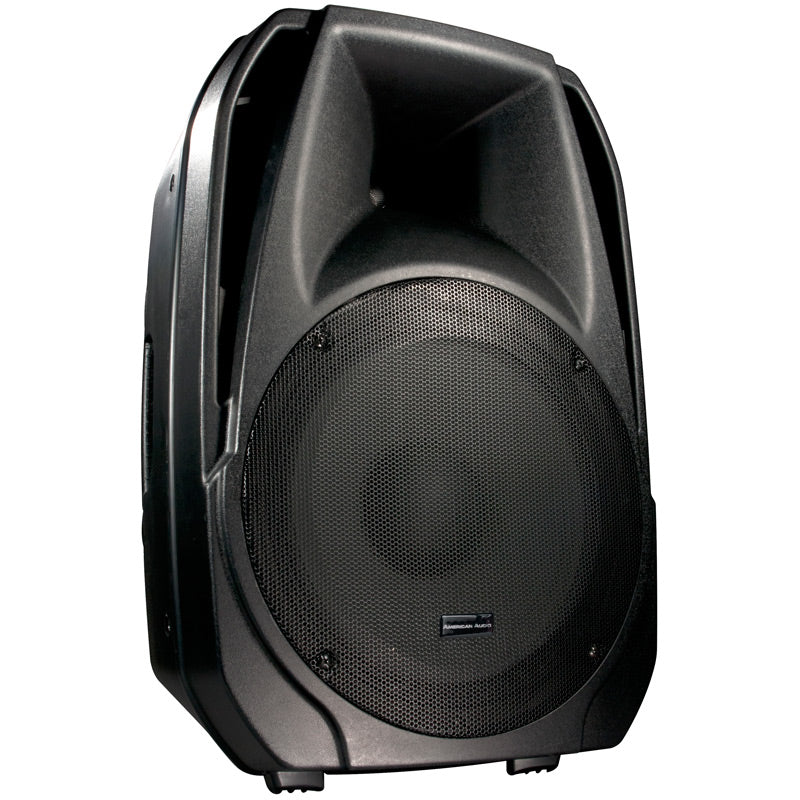

The American Audio ELS12 BT is a lightweight, multi-functional 12-inch Active Speaker featuring Wireless Audio and a built-in MP3 player. Users can play music from Wireless enabled mobile devices such as mobile phones and tablets with the use of running connector cables. Users can also utilize the microphone inputs (XLR and ¼-inch Jack) and the built-in MP3 player with USB and Memory Card inputs.
The ELS12 BT has an extremely high efficient design, low power consumption, and plenty of output power ideal for small and mid-size events. It also has a built-in Bi-amp system: one amp powering the Titanium Driver and one amp for 12" woofer with 33 oz magnet.
Specifications
• 2-way active bi-amplified lightweight speaker with built-in Wireless Audio, USB Memory Card input slot

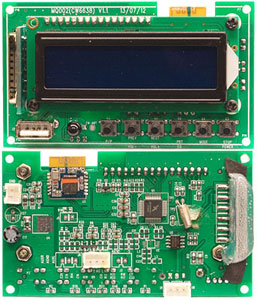

• 6 Button Function with blue LCD on rear panel

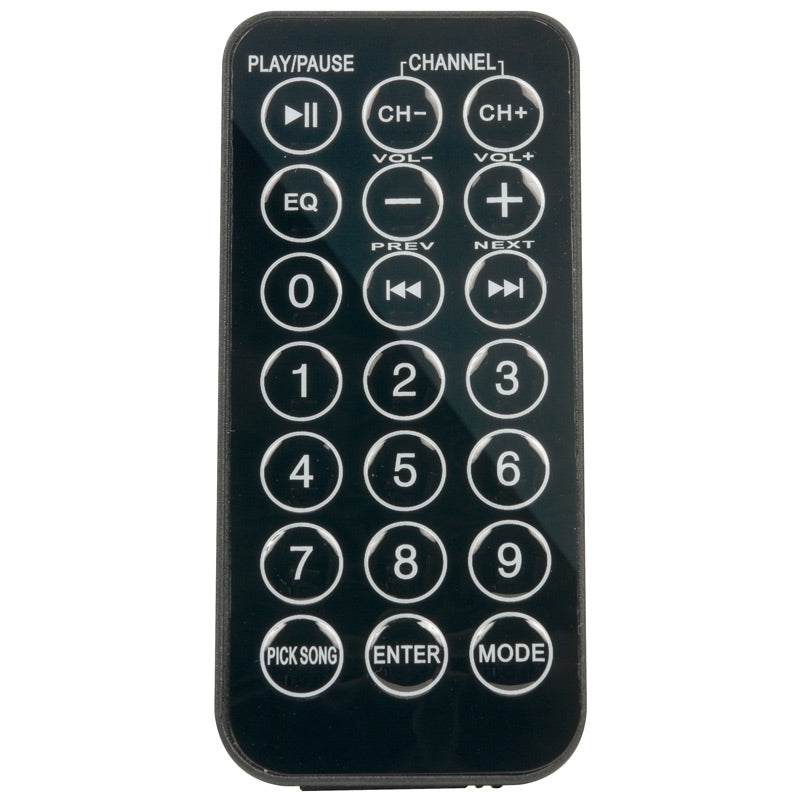

• Includes 21-Input remote control (p/n ADJ AUD RC)
• 11 Preset EQ (Normal, Rock, Pop, Classic, Jazz, Blues, Hall, Bass, Soft, Country or Opera)
• High power class A/B bi-amplified system designed to perform at maximum efficiency
• Separate High Frequency and Low Frequency provide the power to the speaker as you music demands it
• 12-inch woofer 4Ω 100W RMS
• 1-inch driver 8Ω 30W RMS
• Flyable stand mountable
• Treble, bass and volume output control
• Microphone, and Line Level controls with master volume.
• Treble, and Bass EQ +/- 12 dB
• XLR TRS MIC inputs
• XLR RCA line inputs
• XLR TRS line outputs
• 4-Way Protection System: Short circuit protection; Thermal protection; On/off Mute; LF/HF Limiters
• 9 Fly Points (M8 with a 1.25” thread)
• Active signal limiting system with Clip LED indicator on rear panel
• Time Aligned Electronic Crossover
• Crossover: @ 2.1kHz @ 12dB/Oct.
• Switchable voltag: AC 115/60Hz or 230V/50Hz
• Dimensions (LxWxH): 22” x 15” x 12” / 558.8 x 381 x 317.5mm
• Weight: 25 lbs. / 12 kg.
