ELS-PA10
This item is discontinued
The ELS-PA10 from ADJ is a great starting setup for the Professional DJ. The ELS-PA10 from ADJ includes: 2x Speakers, 1x Mixer, 1x Microphone, 2x 16 foot speaker cables. Make the ELS-PA10 from ADJ the base of your DJ setup and you won't be dissapointed
ELS-PA10
Sale price$0.00
ELS-PA10
DISCONTINUED PRODUCTFrom ADJ comes the ELS-PA10. A great setup for any DJ or Venue this package comes complete with 2x Speakers, 1x Mixer, 1x Microphone, 2x 16 foot / 5m speakers cables. Perfect for the on the move DJ or entertainer the ELS-PA10 provides you with portable amplified sound that will make sure your music rises well above the crowds noise level. Other features include: Portable active amplified sound system including 2x 10-inch portable speakers, 1x Powered Mixer, 1x Dynamic Microphone, all component cables needed, 6-Channel powered mixer, 6 Button Function with blue LCD on rear panel, Monitor RCA Output, 3-band EQ, EFX Sound, Pan and Level on each channel, Built-in stereo power amplifier with dynamic Distortion Processor, 4x XLR Mic Combo Jacks, 2x TRS stereo Channels with RCA 3.5mm Stereo input, Wireless Connectivity, Digital Reverb Effect, USB or Memory Card slot to connect a flash disc containing music or a MP3 Player. The ELS-PA10 won't let you down at a critical moment in your show, reliable and dependable from ADJ you can depend on it to make your next show great.
Specifications

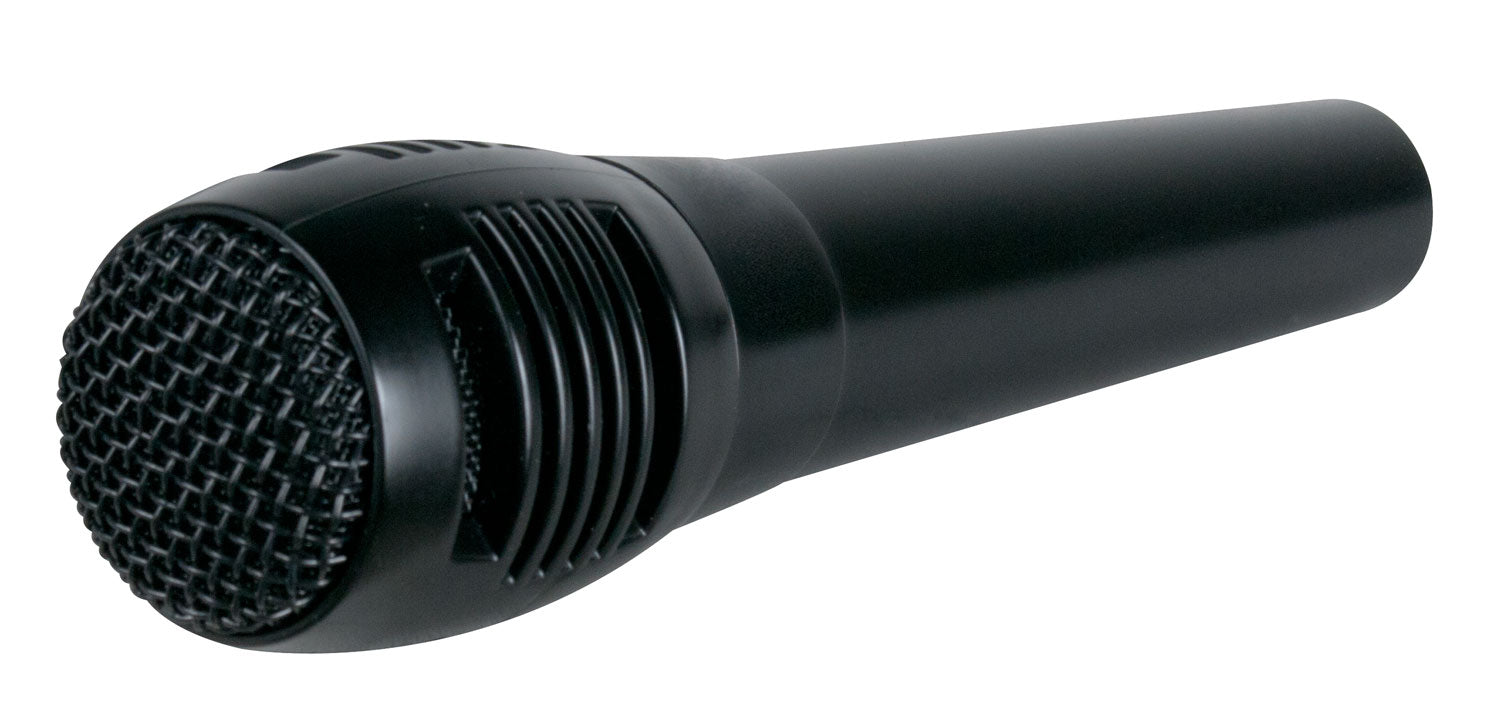

- Portable active amplified sound system including: 2x 10-inch portable speakers, 1x Powered Mixer, 1x Dynamic Microphone, all component cables needed

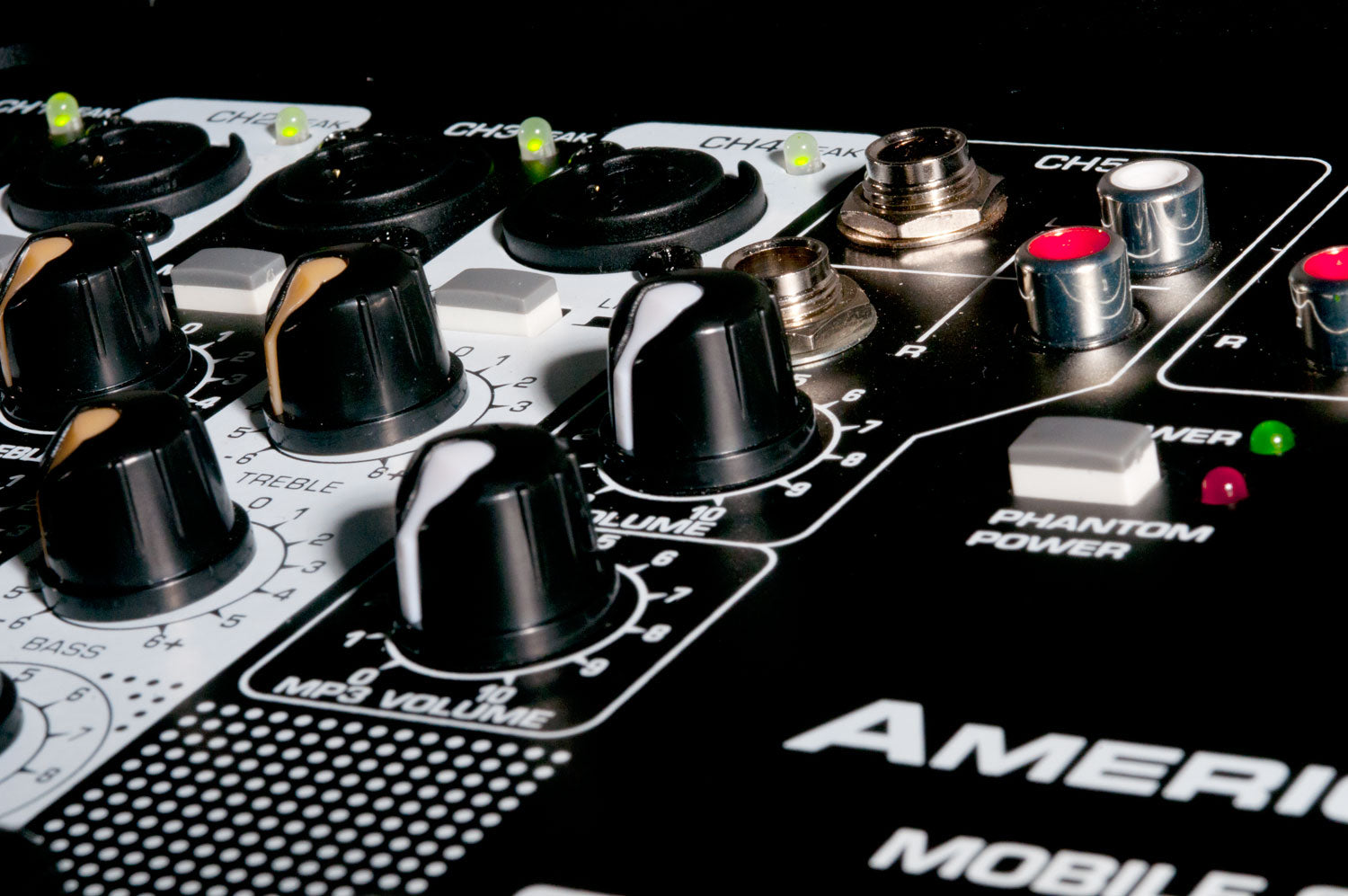

- 6-Channel powered mixer
- 6 Button Function with blue LCD on rear panel
- Monitor RCA Output
- 3-band EQ, EFX Sound, Pan and Level on each channel
- Built-in stereo power amplifier with dynamic Distortion Processor
- 4x XLR Mic Combo Jacks.
- 2x TRS stereo Channels with RCA 3.5mm Stereo input.
- Wireless Connectivity
- Digital Reverb Effect
- USB or Memory Card slot to connect a flash disc containing music or a MP3 Player
- Effects send on every channel with stereo return
- Effects parameter adjustment allows you to customize each effect selection
- Speaker system with I-inch compression drivers and 10-inch woofers

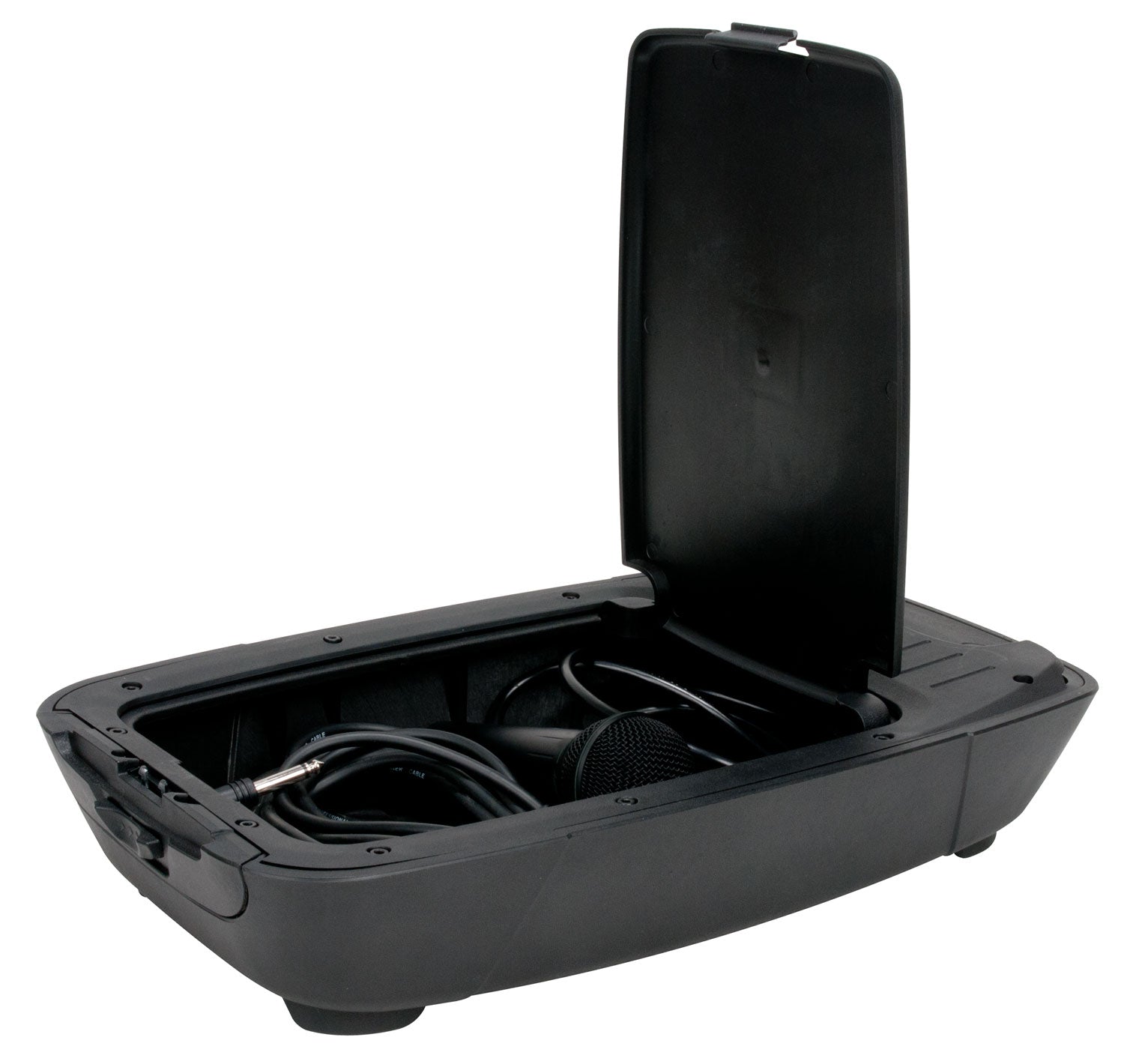

- Speakers have rear latches storage compartment for microphone, cables and accessories.
- Integrated 36mm pole mount socket with stabilizing securing screw
- Powered mixer with two-way bass-reflex enclosures
- Maximum spl output: 124Db
- Frequency Range (-10db): 50Hz-20KHz
- Amplifier Design: Class D (2x75w stereo)
- Output Connector: 2x 1/ 4 TS amplifier outputs
- Input Connectors: 6 inputs(4 mono mic/line ,1xstereo) Channels: 1-4 are XLR 1/ 4 Jack combo connectors , XRL is a mic level input ,1 / 4 is a line level input and pair of RCA jacks (stereo).
- Output Connectors: Monitor outputs: one pair of 1/ 4 balanced TRS jacks (L+R) and a pair of RCA connectors(stereo)
- Signal Indicators: Ch1-4 Peak LED : Green=signal present, Red=input overload
- EQ: Individual channel Bass and Treble controls, center detent, +/-6db cut and boost
- LF Driver: 10 woofer
- HF Driver: 1 woofer
- Output Connector: 2*1/ 4 TS(unbalanced) amplifier inputs
- Phantom Power: 15V
- Switchable voltage operation: AC 120-240V, 50/60Hz
- Dimensions (LxWxH): 12” x 18” x 10.75” / 305 x 457.5 x 273mm
- Weight: 44 lbs. / 20 kg. (Total Sys)
