ELS-12A

This item is discontinued

The ADJ ELS-12A 12" 2-way Active Speakers include XLR & 1/4" Mic Inputs, XLR & RCA Line In, and XLR & 1/4" Line Out with Treble & Bass and volume controls. Designed to be power efficient and lightweight, they are perfect for any small or mid-sized event.
UPC: 819730019370SKU: ELS666

ELS-12A

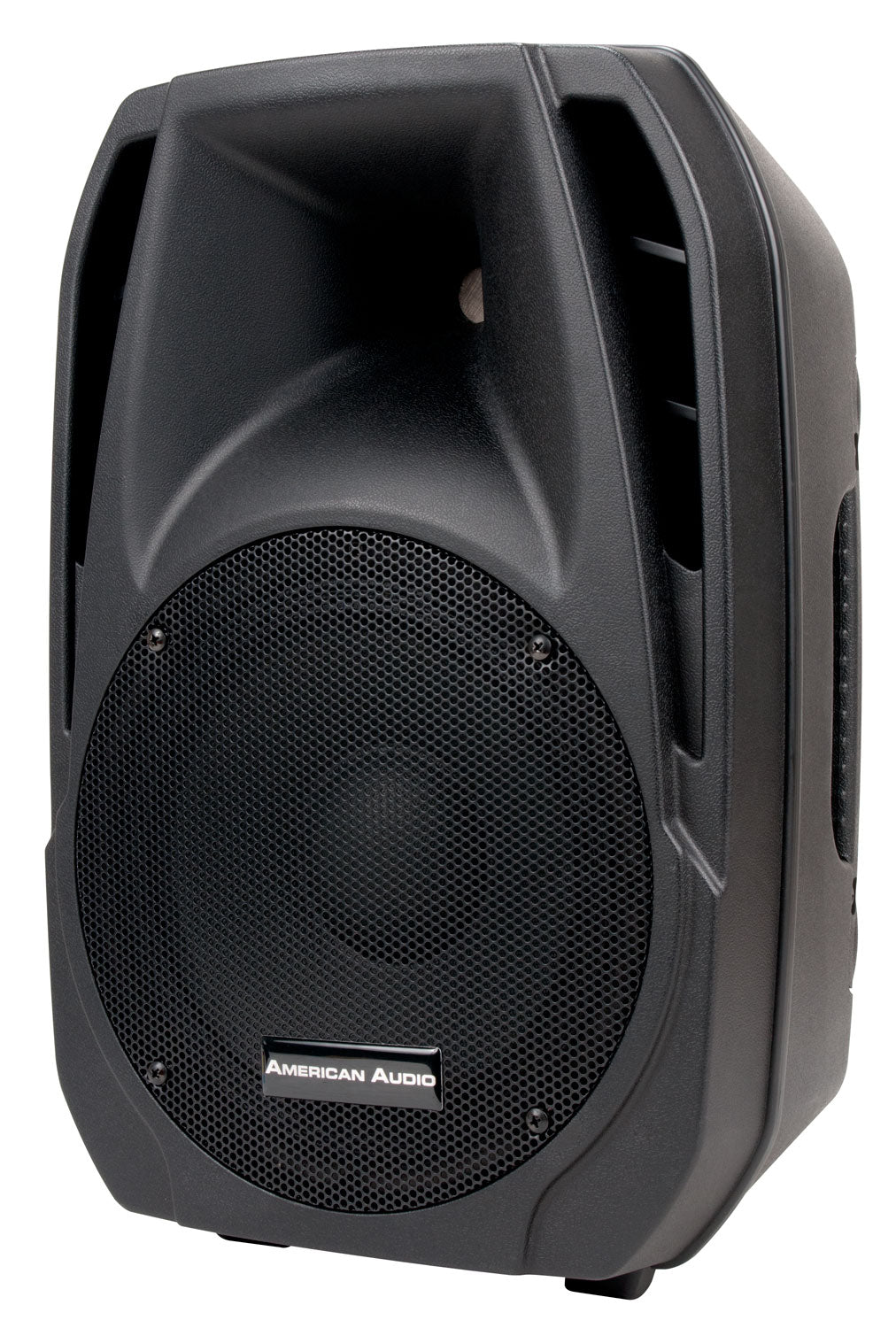

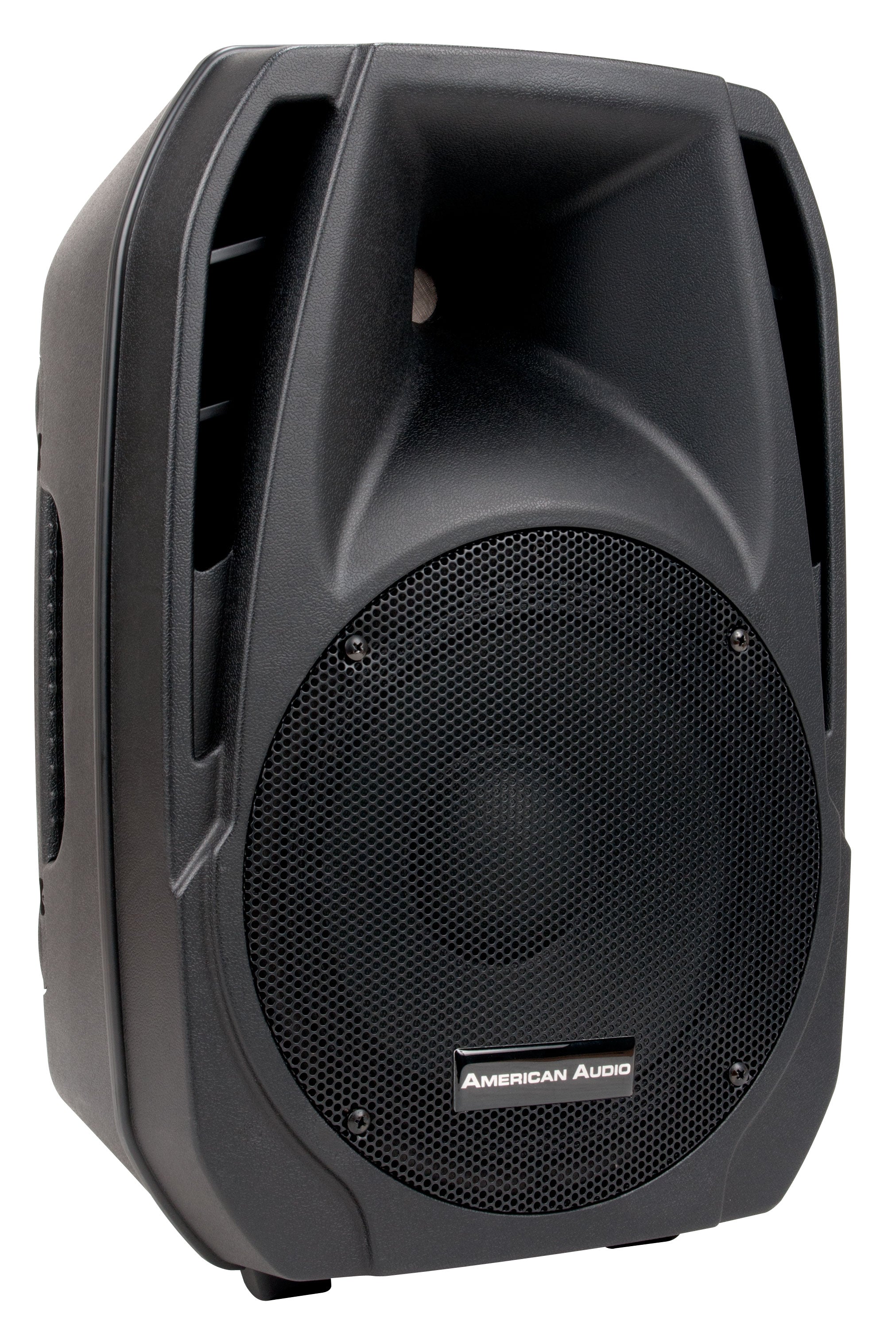

DISCONTINUED PRODUCTWhen you want crisp snares and pulsing bass without breaking the bank, look no further than the ADJ ELS-12A speakers. Designed specifically for the DJ market, these 12" 2-way Active Speakers are designed to be highly efficient with low power consumption without sacrificing power output and volume. The 1-2 punch of quality sound in a lightweight, low-power package makes these speakers an incredible value for anything from a neighborhood block party to a mid-sized DJ event. Each of these incredible ADJ speakers include a 12" 2-way powered speaker and a 1" compression driver, built in XLR & 1/4-inch TS Mic inputs with volume control, Line Level, Volume, Treble, and Bass controls on rear panel, XLR & RCA Line input, and both XLR & 1/4-inch TRS output jacks. By offering both XLR and 1/4-inch jacks, these speakers are compatible right out of the box with whatever mixers, tables, and other components you're already using. Separate Mic Level, Line Level, and Volume controls also give you the options needed to keep total control of your sound.

Specifications

  • 12-inch 2-way Powered Speaker
  • 1-inch Compression Driver
  • Time Aligned Electronic Crossover
  • Flyable or Stand Mountable
  • Built-in XLR ¼-inch TRS Microphone inputs with volume control

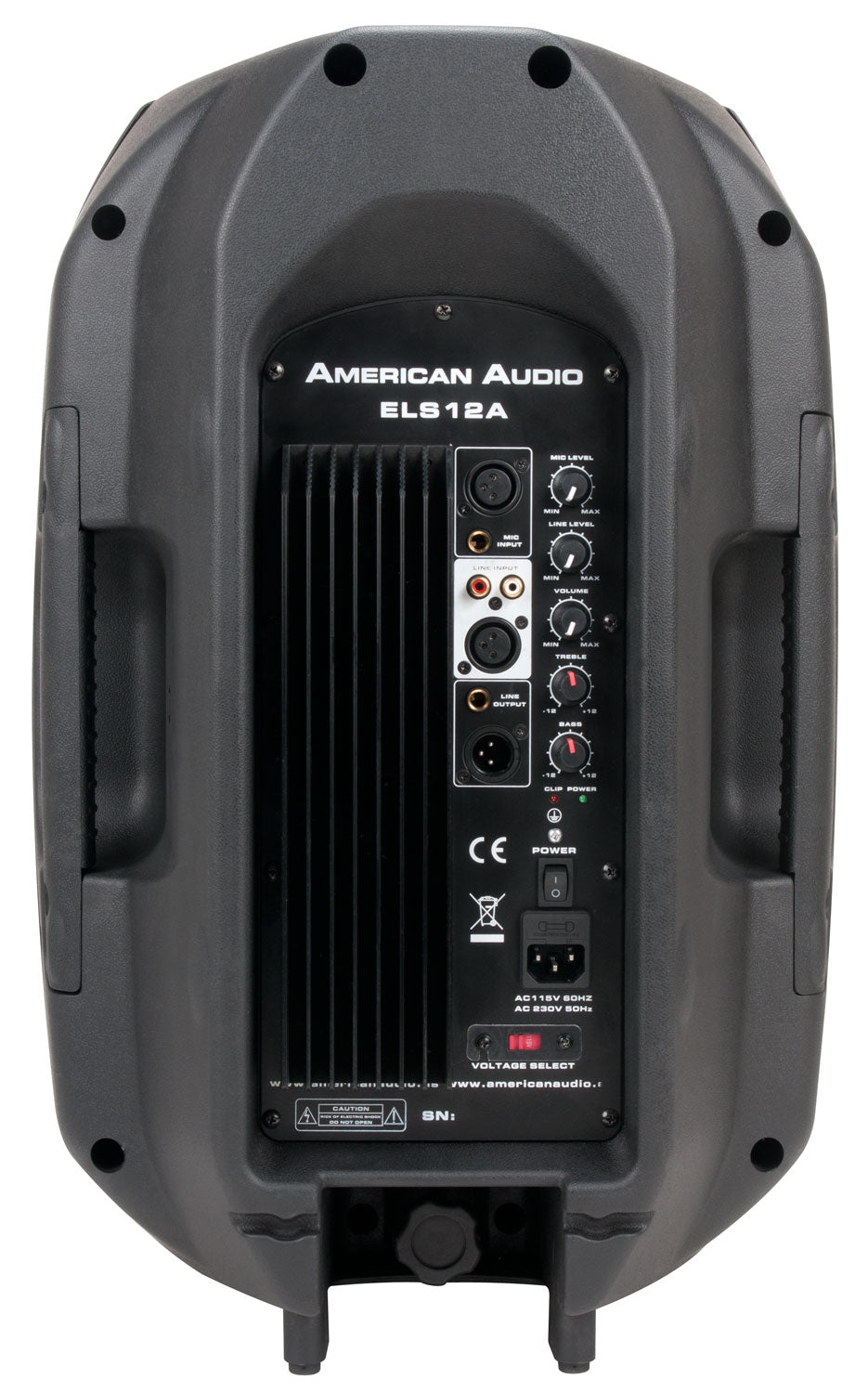

  • Line Level, Volume, Treble Bass control on rear panel
  • XLR RCA Line input
  • XLR ¼-inch TRS through output
  • Active signal limiting system with Clip LED indicator on rear panel
  • Dimensions (LxWxH): 22” x 15” x 12” / 558.8 x 381 x 317.5mm
  • Weight: 26 lbs. / 12 kg.
  • Selectable Voltage: AC 115/60Hz or 230V/50Hz
SPEAKER SPECIFICATIONS:
  • Frequency Response: 70Hz - 18KHz
  • Crossover: Active
  • Nominal Dispersion: 90° x 50° (HXV)
AMPLIFIER SPECIFICATIONS:
  • Balanced: Line 20KO, Mic 3.6KO
  • Unbalanced: Line 10KO, Mic 1.8KO
CROSSOVER:
  • Low Pass: 2nd order filter 2.7KHz @12 dB/octave
  • Low Cut: 2nd order filter 40Hz @12 dB/octave
  • S/N Ratio: Line 100dB,Mic 80dB
CHANNEL EQUALIZER:
  • Bass: 100Hz ±15dB
  • Treble: 10KHz ±19dB
