ELS-10A
This item is discontinued

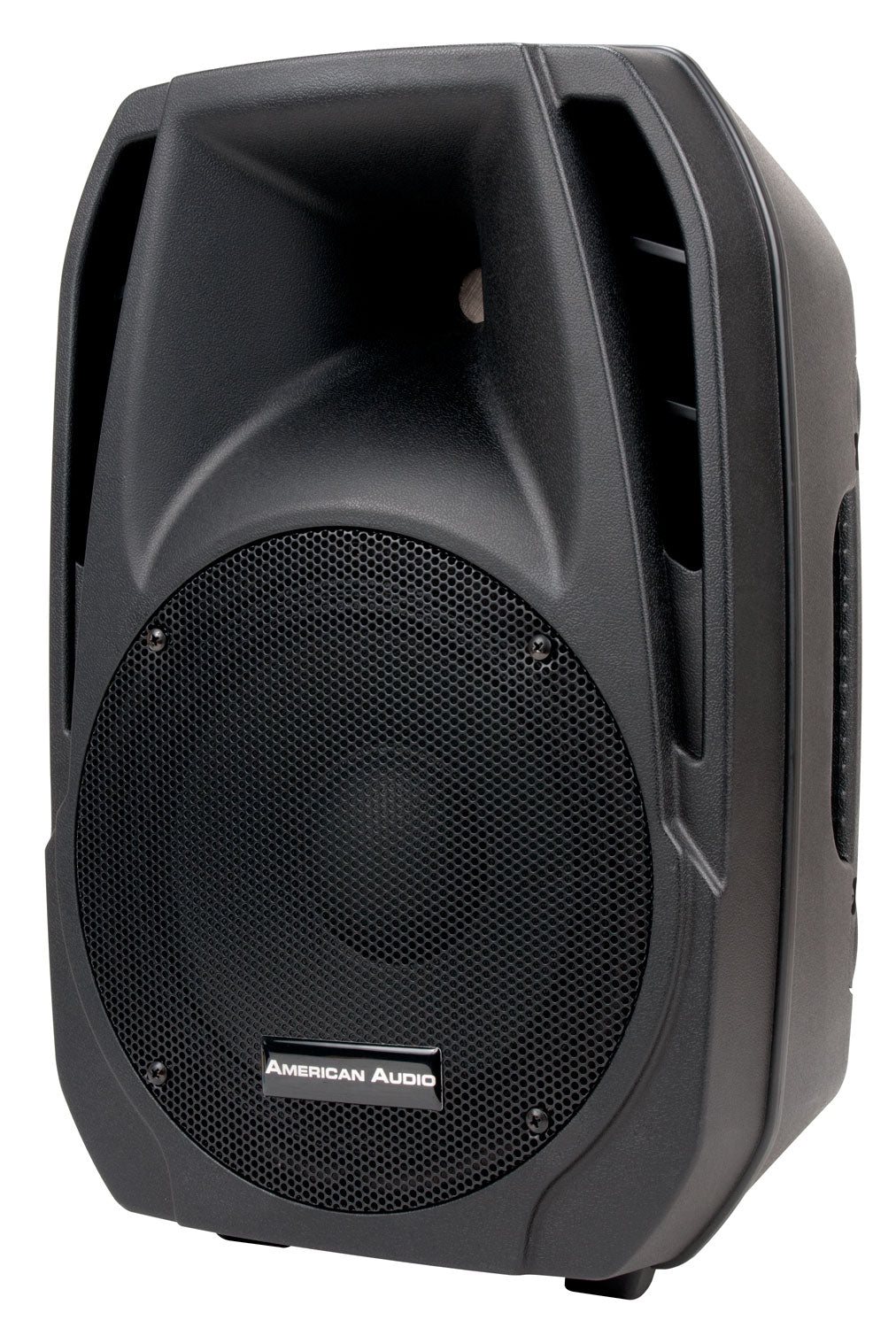

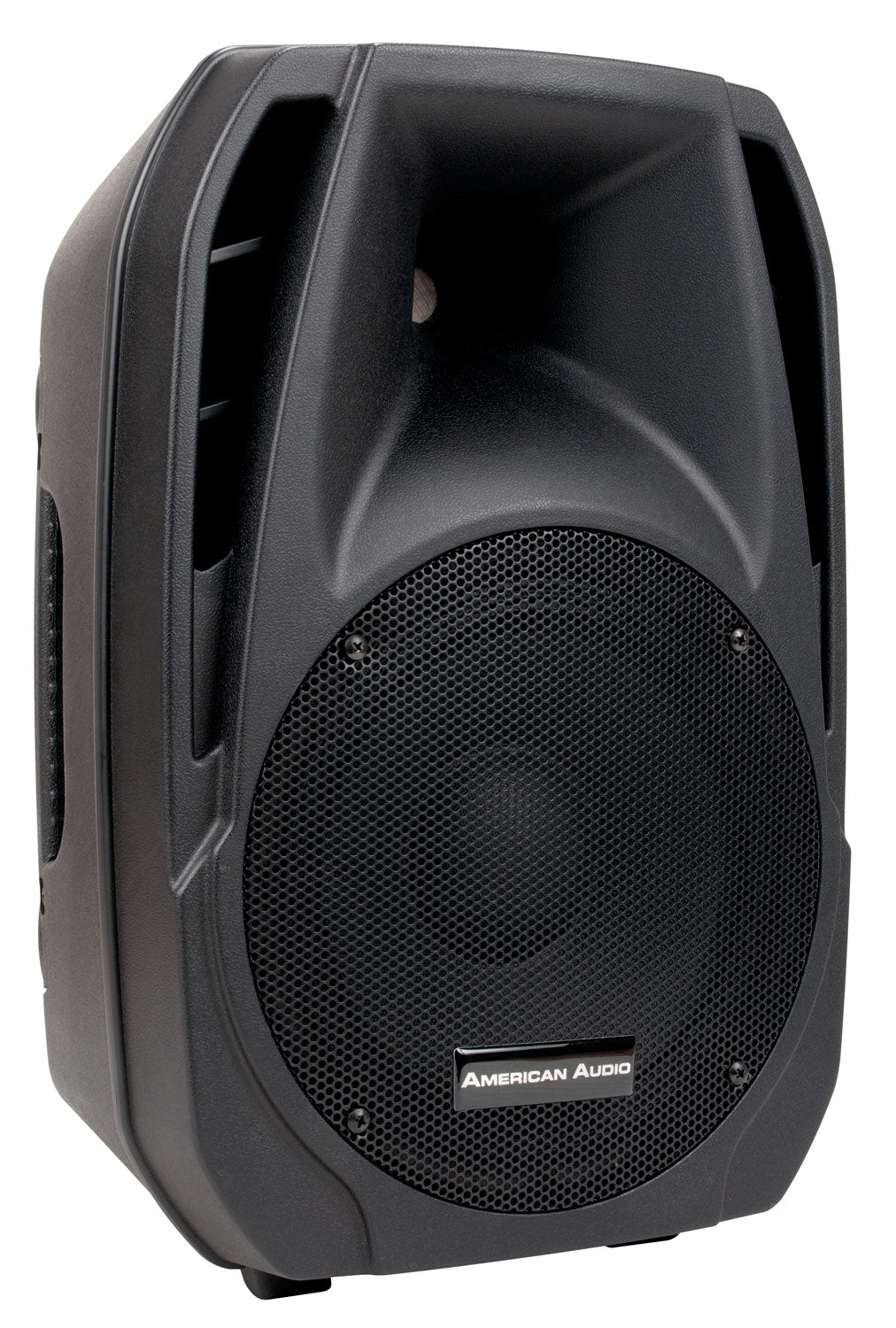

The ADJ ELS-10A 10" 2-way Active Speakers include 2 XLR inputs (Mic & Line) with separate volume controls, XLR Line Out, and Treble & Bass controls. Designed to be power efficient and lightweight, they still pack a punch heavy enough for small to mid-sized parties and events.
ELS-10A
Sale price$0.00
ELS-10A

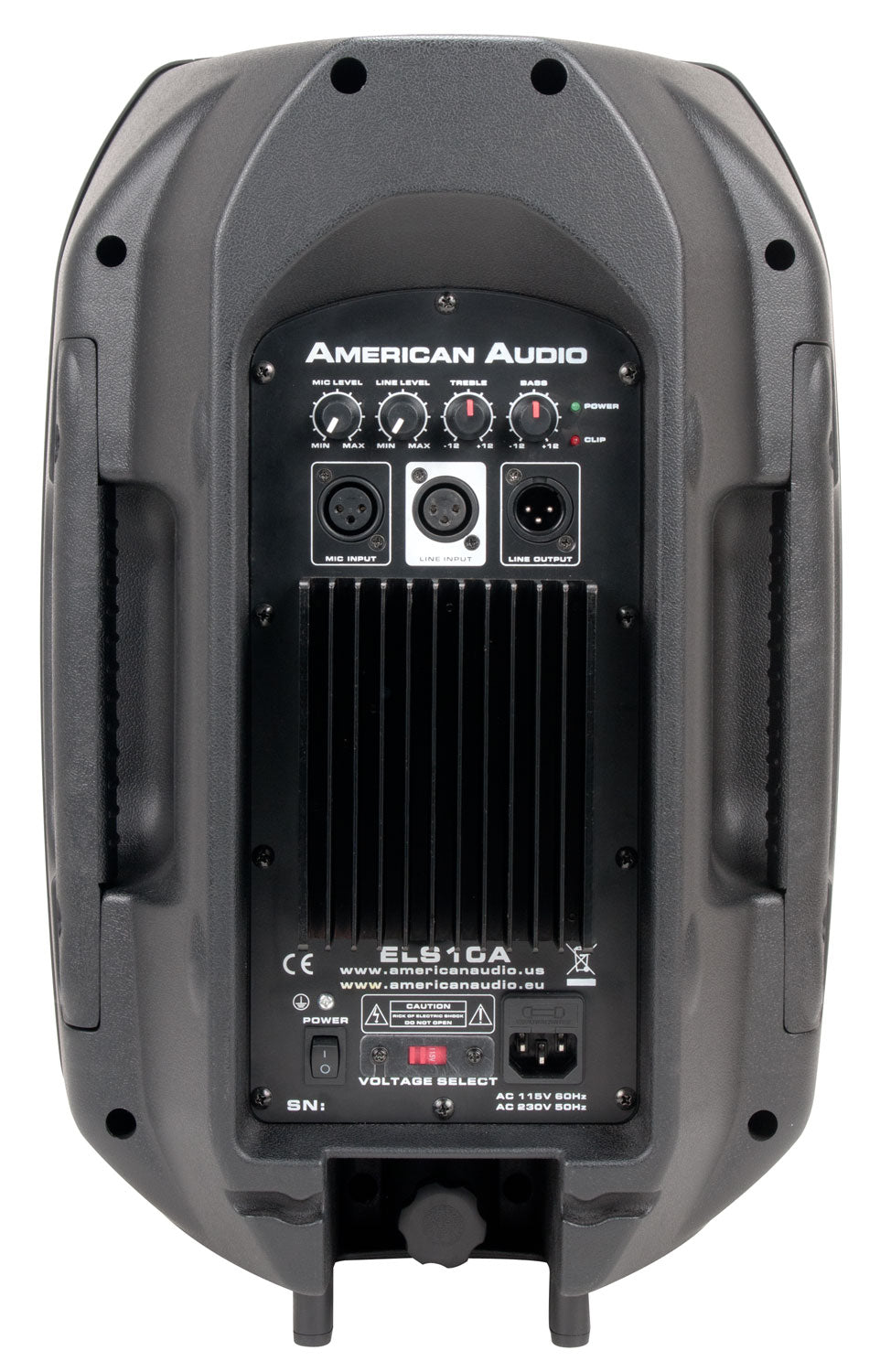

DISCONTINUED PRODUCTGet ready to kick out the jams and bring back that old school BOOM-BAP sound with the ELS-10A speakers from ADJ. These 10 inch, 2-way Active Speakers are specifically designed for the DJ market. They are designed to pack a punch with high enough output for mid-sized parties while still being highly efficient and using very low power consumption. They are also lightweight and easy to transport, making them perfect for anything from DJing a bangin' block party to small/mid-sized venues. Beyond the high quality output, these speakers offer numerous features to give you more control over your sound. The real panel includes 2 XLR inputs (Line & Mic) and 1 XLR Line Out. Real panel controls also include Mic Level, Line Level, Treble, and Bass. The ELS-10A speakers are both flyable and able to be stand mounted, making it easy to place them wherever is most convenient and gives the best sound with the rest of your gear. If you want high quality sound from a smaller package, the 10" ELS-10A speakers from ADJ are the right choice for you.
Specifications
- 10-inch 2-way Powered Speaker
- 1-inch Compression Driver
- Time Aligned Electronic Crossover
- Flyable or Stand Mountable
- Built-in XLR Microphone input with volume control
- XLR Line-in with Level, Treble Bass control
- XLR through output
- Active signal limiting system with Clip LED indicator on rear panel
- Dimensions (LxWxH): 18.5” x 12.5 x 10” / 469.9 x 317.5 x 254mm
- Weight: 18 lbs. / 8 kg.
- Selectable Voltage: AC 115/60Hz or 230V/50Hz
SPEAKER SPECIFICATIONS:
- Frequency Response: 70Hz - 18KHz
- Crossover: Active
- Nominal Dispersion: 90° x 50° (HXV)
AMPLIFIER SPECIFICATIONS:
- Balanced: Line 20KO, Mic 3.6KO
- Unbalanced: Line 10KO, Mic 1.8KO
- Low Pass: 2nd order filter 2.7KHz @ 12 dB/octave
- Low Cut: 2nd order filter 40Hz @ 12 dB/octave
- S/N Ratio:Line 100dB,Mic 80dB
CHANNEL EQUALIZER:
- Bass: 100Hz ±15dB
- Treble: 10KHz ±19dB
