Element QA IP PC6 Pak
Package Includes: 6x Element QAIP 1x Element PC6
Element QA IP PC6 Pak
Available now from ADJ USA
Package Includes: 6x Element QAIP & 1x Element PC6

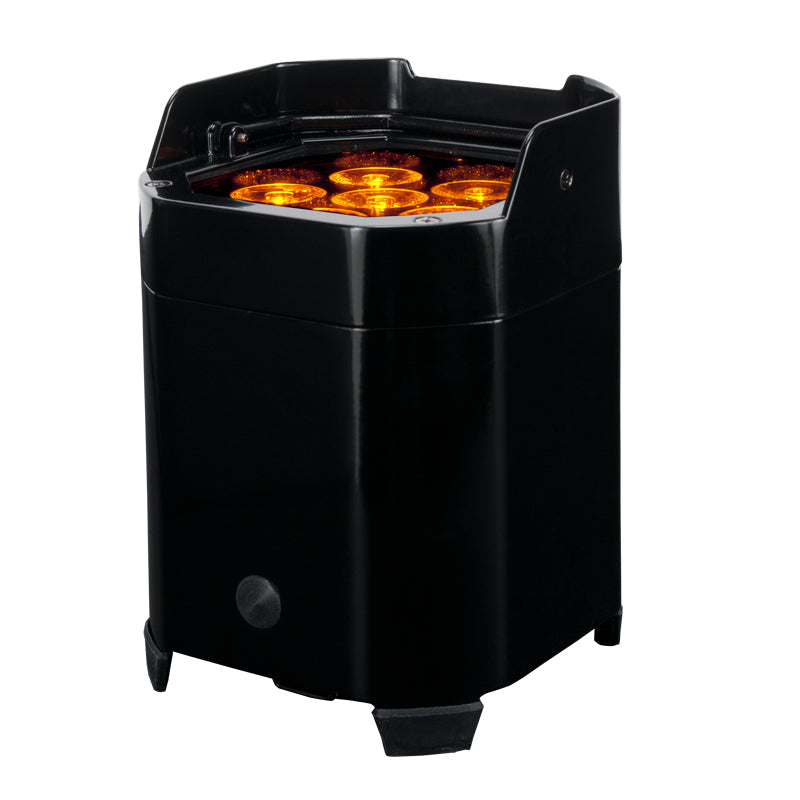

From the Element Par Series, the Element QAIP is an IP54 outdoor rated battery powered LED Par with ADJ’s WiFLY EXR wireless DMX for indoor or outdoor use. It’s powered by six 5W RGBA (4-IN-1) LEDs. The Element Par Series are lightweight and easy to operate with a carry handle and kickstand for uplighting, staging, events, productions and any mobile application. No cables or wires needed!

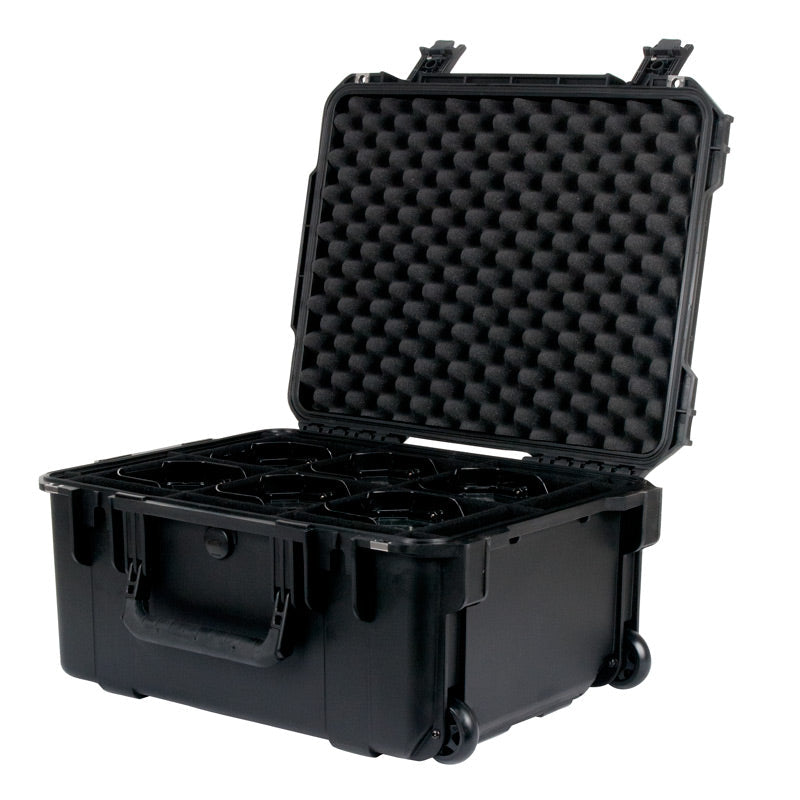

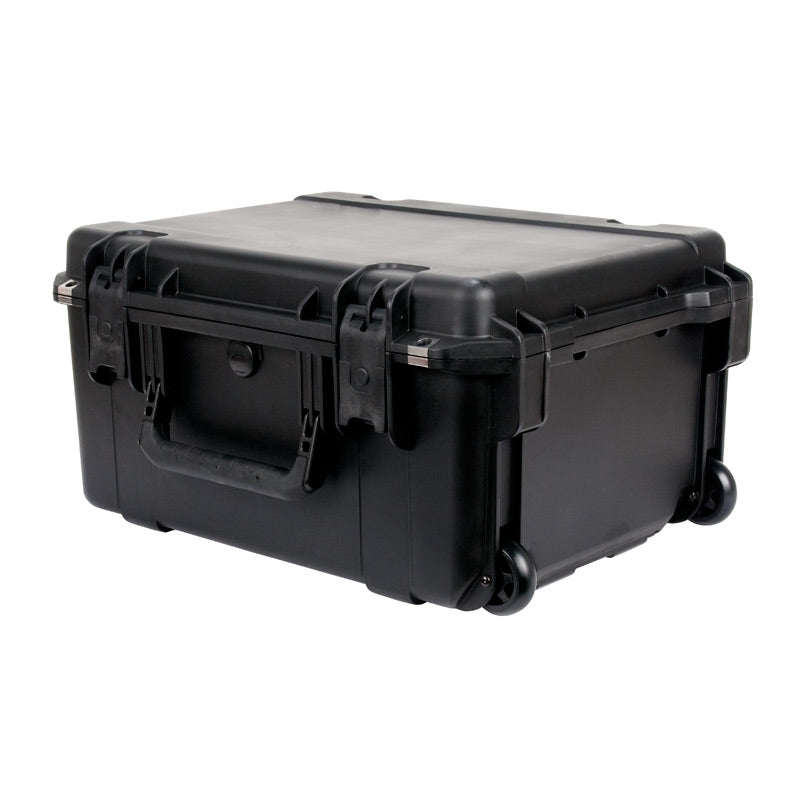

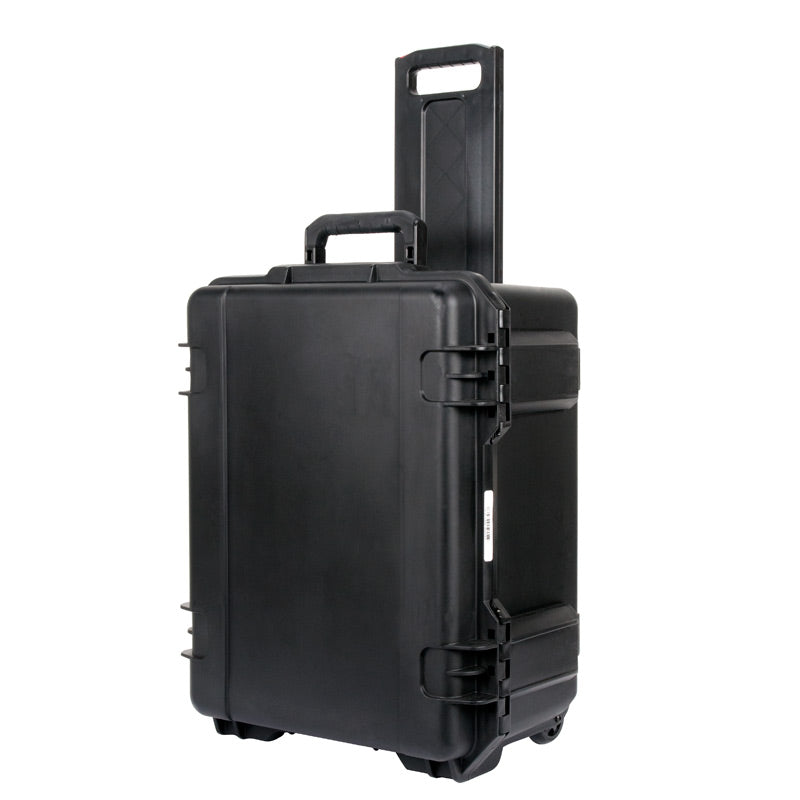

The Element PC6 is a waterproof case made of ultra high-strength polypropylene copolymer resin, featuring a gasket sealed, water and dust tight, submersible design (MIL-C-4150J) that is resistant to corrosion and impact damage. Features a molded-in hinge, patented trigger release latch system, comfortable, snap-down rubber over-molded cushion grip handle, automatic ambient pressure equalization valve (MIL-STD-648C), resistance to UV, solvents, corrosion, fungus and impact damage (MIL-STD-810F).
Specifications
Element QAIP
Optical:
• 6 x 5-Watt RGBA LEDs (4-in-1 - Red, Green, Blue Amber)
• Life expectancy: rated at 50,000 hrs.
• LUX: 901 @ 2M; 213 @ 4M
• Beam angle: 20-degree
• PWM frequency:1000Hz
Connection:
• DMX: WiFLY EXR Wireless DMX
• With Wired Digital Communication Network
• IEC connection to power/charge fixture
Control:
• Control protocol: WiFLY EXR DMX
• 5 DMX Channel modes: 4, 5, 6, 9 or 10
• Remote control: WiFLY EXR DMX, UC-IR, Airstream IR
• 5 Operational modes: RGBA Dimmer Mode; Sound Active mode; Auto Run Mode (16 color change modes, 16 color fade modes, 1 color/fade combo mode); Static Color mode; and DMX Controlled
Features:
• IP54 Outdoor Rated

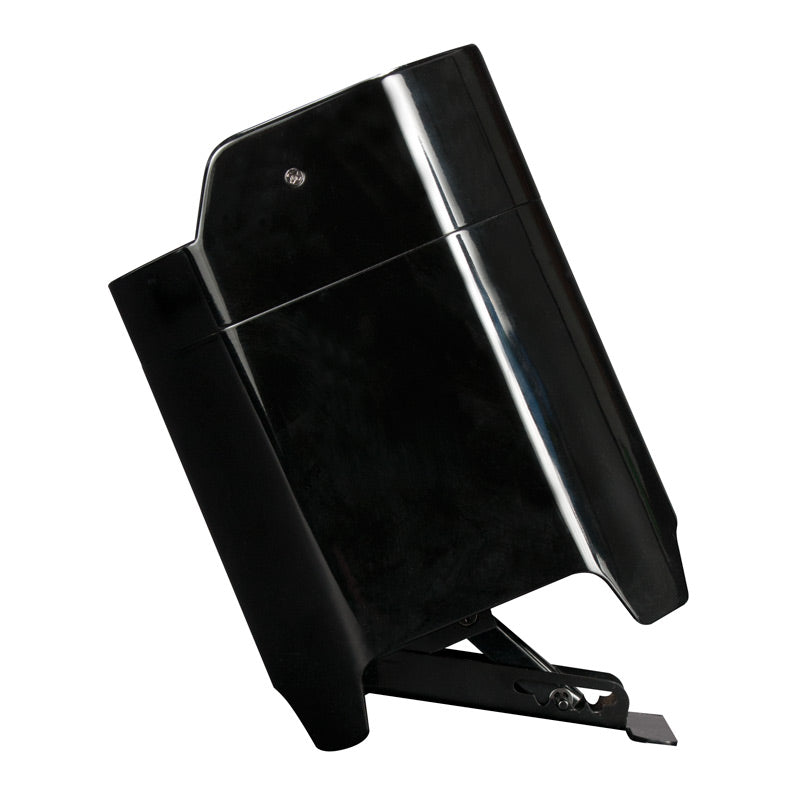

• Built-in kickstand to angle figure while it’s on the floor

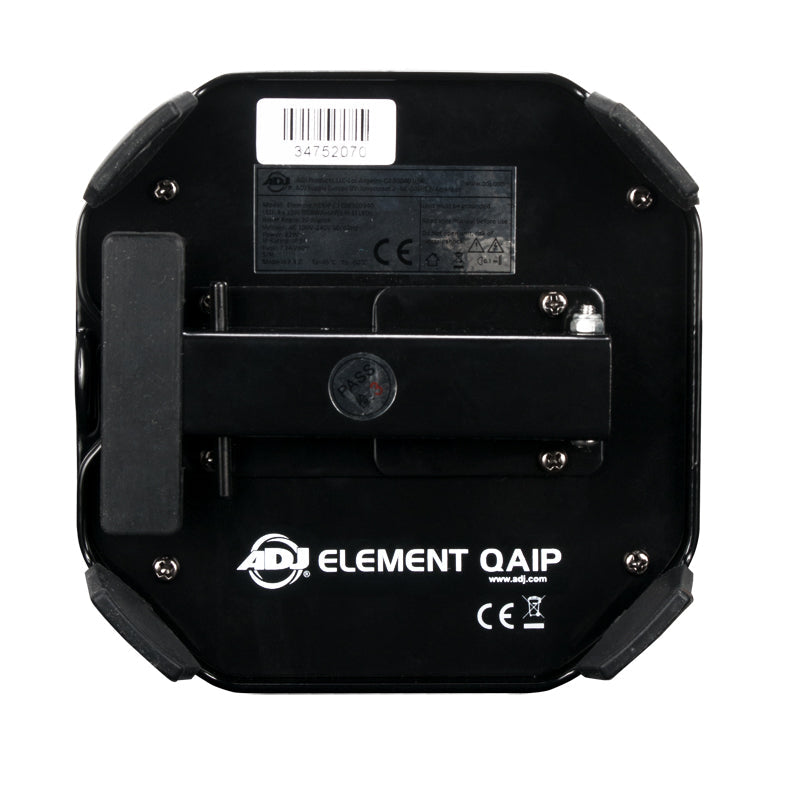

• 4-button DMX menu display on rear panel with water resistant hatch
• Built-in WiFLY EXR wireless DMX: Up to 2,500 feet (760M) when used with ADJ’s WiFLY EXR Battery Transceiver
• 64 built-in Color Macros
• Variable RGBA color mixing offers a smooth, seemingly unlimited color palette - Great for Stage or Wall Washing!
• LED pulse and strobe effect (0.2Hz-11Hz)
• Flicker Free Operation
• Electronic Dimming: 0 - 100% with 5 dimming curves
• Run all night – No duty cycle
• Energy Saving Mode
Battery:
• Battery Type: fixed lithium battery
• Battery Energy: 73.26WH (Watt Hours)
• Battery Weight: 0.42 kg.
• Battery Voltage: 11.1V
• Battery Capacity: 6.6AH
• Total Lithium Ion Cells: 9 pieces
• Battery Wrap Material: PVC sleeving + highland barley paper
• Battery Charge Time: 4.5 Hours (With POWER switch On)
• Battery Life: 11 hours (single color)
Electrical:
• Power Draw Total (All LED's @ Full On): 45W, 0.5A @ 120V/60Hz, 42W, 0.2A @ 220V/50Hz,
• Multi-voltage operation: AC 100-240V, 50/60Hz
Dimensions / Weight:
• Dimensions (LxWxH): 5.5” x 5.5” x 7.5” / 140 x 140 x 190.5mm
• Weight: 6.5 lbs. / 2.9kg.
Certifications:
• ETL Approved
• CE Approved
• IP54 Outdoor rated
Element PC6
• Securely holds six Element Pars
• Waterproof and dust tight design (MIL-C-4150J)
• Molded-in hinge for added protection
• Trigger release latch system
• Snap-down rubber over-molded cushion grip handle
• Ambient pressure equalization valve (MIL-STD-648C)
• Resistant to UV, solvents, corrosion, fungus (MIL-STD-810F)
• Resistant to impact damage (MIL-STD-810F)
• Limited lifetime warranty
• Exterior Dimensions: 22.92” x 18.75” x 12” / 565x476x305mm
• Interior Dimensions: 20.5” x 15.5” x 10” / 520x394x254mm
• Weight (empty): 14.5 lbs. / 6.5kg.
