Electro Disc LED

This item is discontinued

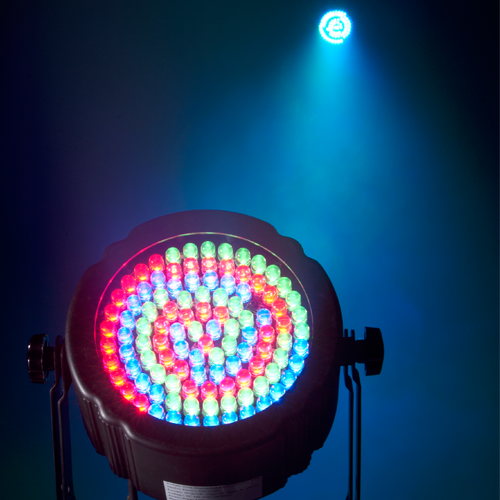

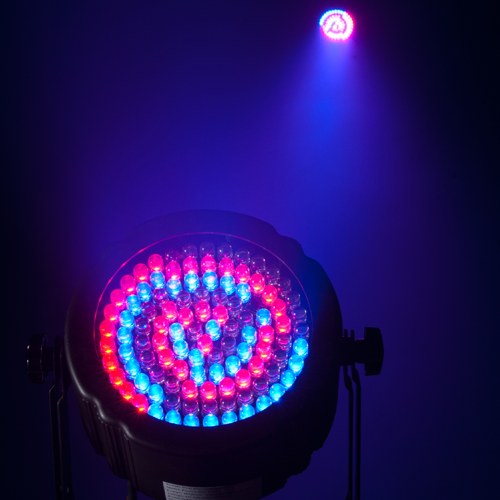

The Eliminator Lighting Electro Disc LED delivers a high output wash with high color saturation for any occasion. The 107 RGB 10mm LED powered effect can strobe, fade or color mix in stand alone mode and can be linked together via the XLR connections and AC connections making it perfect for any stage, band and mobile event. LED Advantages: Long life LEDs, lower power consumption, low heat & No Duty Cycle. Great for performance stages where traditional par cans emit a lot of heat onto performers.
UPC: 817175010075SKU: ELECTRO DISC LED

Electro Disc LED

The Eliminator Lighting Electro Disc LED delivers a high output wash with high color saturation for any occasion. The 107 RGB 10mm LED powered effect can strobe, fade or color mix in stand alone mode and can be linked together via the XLR connections and AC connections making it perfect for any stage, band and mobile event. LED Advantages: Long life LEDs, lower power consumption, low heat & No Duty Cycle. Great for performance stages where traditional par cans emit a lot of heat onto performers.

Specifications

Features:

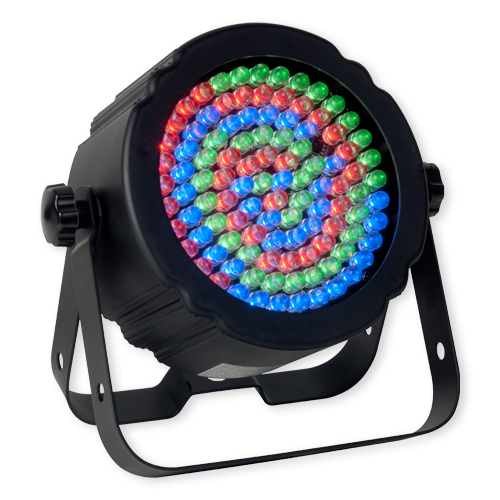

• 107 RGB 10mm LED’s
  (36 Red, 36 Green 35 Blue LED’s)
• Great as an architectural wall wash or for performance
  stages where traditional stage lighting emit a lot of
  heat onto performers
• 4 DMX Channels
• 6 Operational modes: Auto mode and sound active
  feature with built-in programs
• Stand Alone or Primary/Secondary Configuration
• Sound Active
• Beam Angle: 30 degrees
• DMX-512 protocol
• LED Color Pulse and strobe effect
• Linkable via 3-pin XLR cable
• Electronic Dimming: 0-100%
• Includes dual mounting brackets to hang on truss,
  mount on a wall or set on the ground
• Long Life LEDs (50,000 hrs.)
• Power Draw: 14W Max

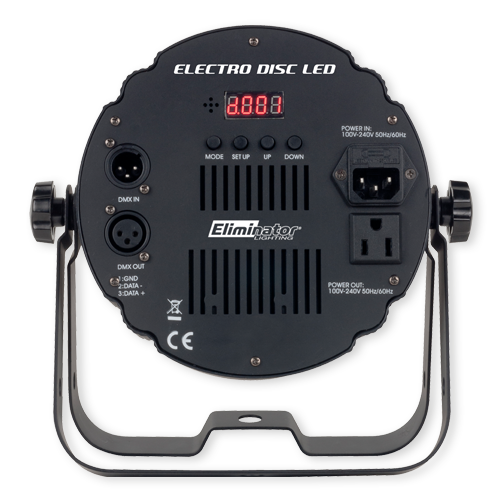

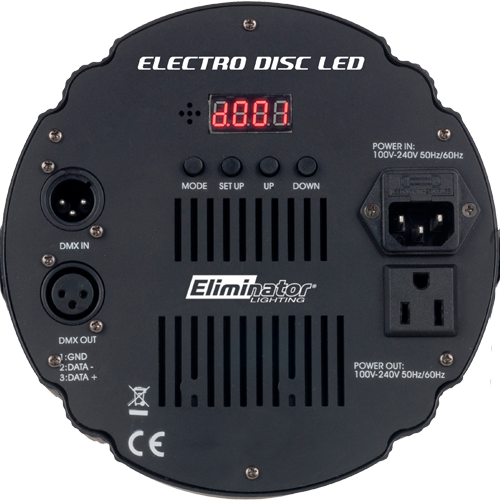

• IEC AC input and output on rear to daisy chain power
  (Up to 40 Electro Disc LED’s)
• Compatible with Eliminator Electro IR wireless
  remote control (sold separately)
• Multi-voltage operation: AC 100V-240V 50/60Hz
• Dimensions (LxWxH): 10.25” x 9.5” x 4”/
  255 x 235 x 100mm
• Weight: 3 lb. / 1.2 kg.
  •  With Wired Digital Communication Network
 Specifications subject to change without notice.

Downloads

User manual
