ElectraPix Bar 16FC

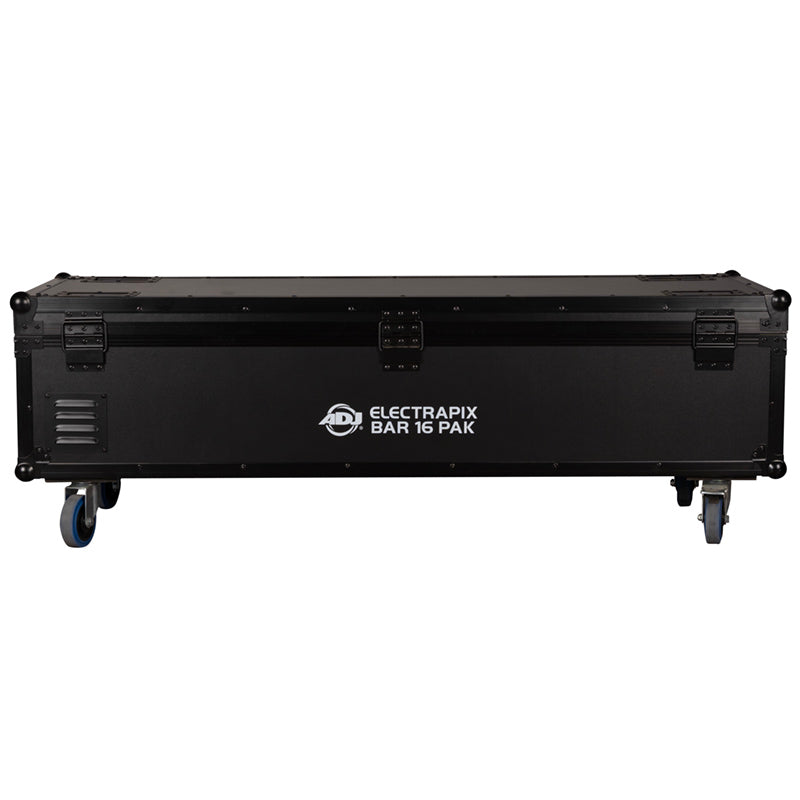

The ElectraPix Bar 16FC is a rugged flight case designed to house, transport, and charge up to four ElectraPix Bar 16 LED fixtures. Featuring a built-in 400W power supply, four charging bases, IP65-rated locking power connections, and a UC-IR24 remote.
ElectraPix Bar 16FC
Sale price$0.00
ElectraPix Bar 16FC
The ElectraPix Bar 16FC is an all-in-one flight case and charging solution engineered for the ElectraPix Bar 16 LED Bars. Built for durability and efficiency, this compact case safely houses and transports up to four fixtures, not included, while simultaneously charging them. It features a powerful 400W power supply, four integrated charging bases, a UC-IR24 infrared remote, and an IP65 locking main power cable for reliable connection.
Designed with professional demands in mind, the ElectraPix Bar 16FC offers an AC100–240V input range, a 6A maximum output load, and a charge status indicator to monitor your fixtures easily. The heavy-duty construction keeps your gear protected, while its compact dimensions (56.8"" L x 19.6" W x 18.1" H) and 192 lb (87 kg) weight make transport simple and manageable.
With IP65-rated power locking input and output connections and a wide operating temperature range of 14°F to 113°F (-10°C to 45°C), the ElectraPix Bar 16FC is built to withstand the rigors of live production environments.
Specifications

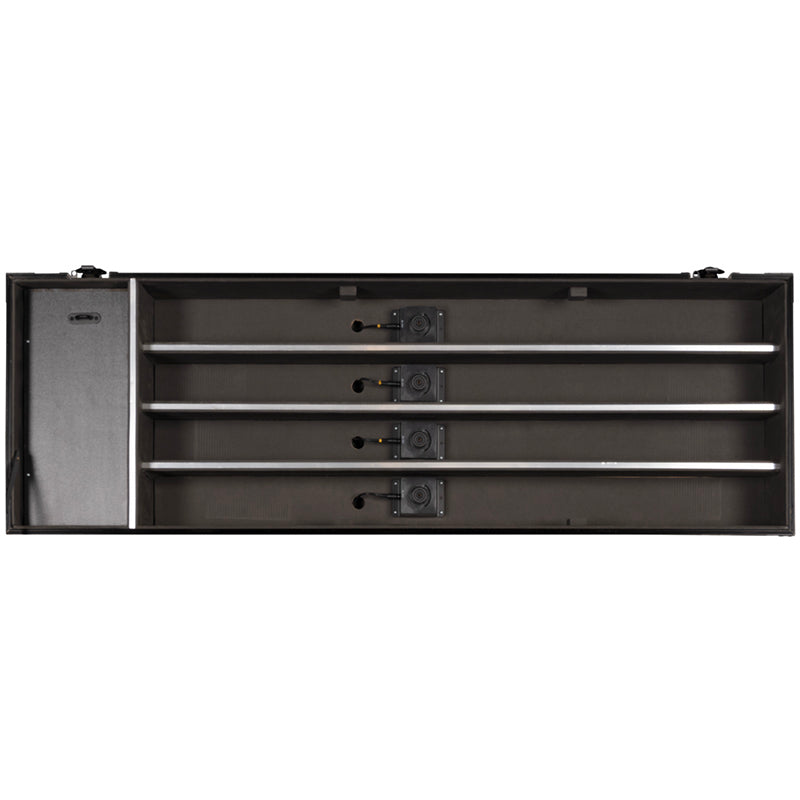

Houses / Transports and Charges (4) ElectraBix Par 16™ fixtures (ElectraPix Bar 16 Fixtures Not Included)
Dimensions & Weight:
Length: 56.5” (1435mm)
Width: 18.9” (480mm)
Height: 19.3” (490mm)
Weight: 81.6 Ibs. (37 kg)
Electrical / Thermal:
Power Input: AC100VAC~240VAC, 50/60Hz
Max Output Load: 6A

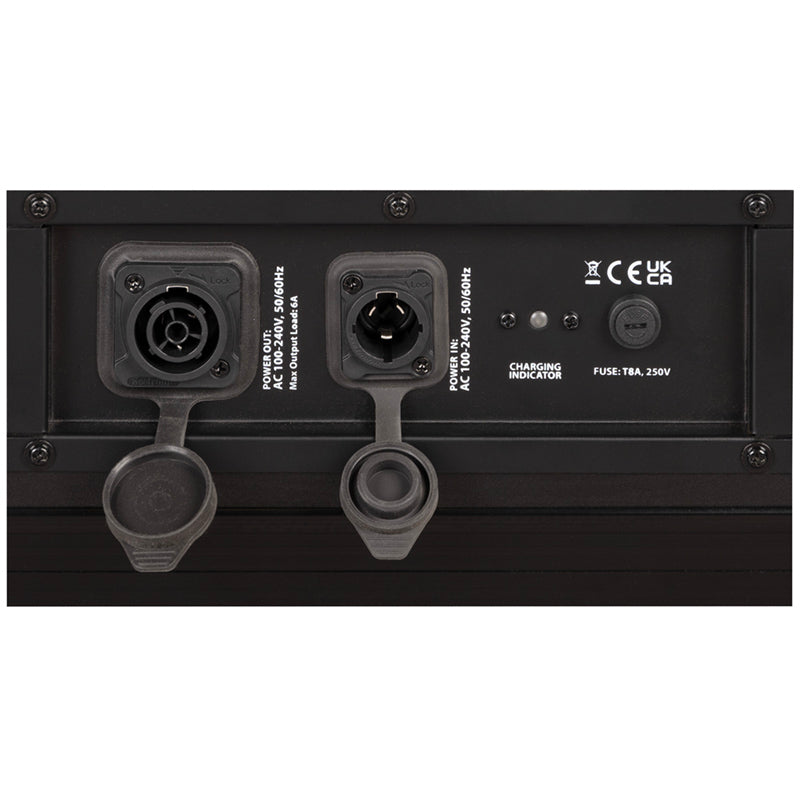

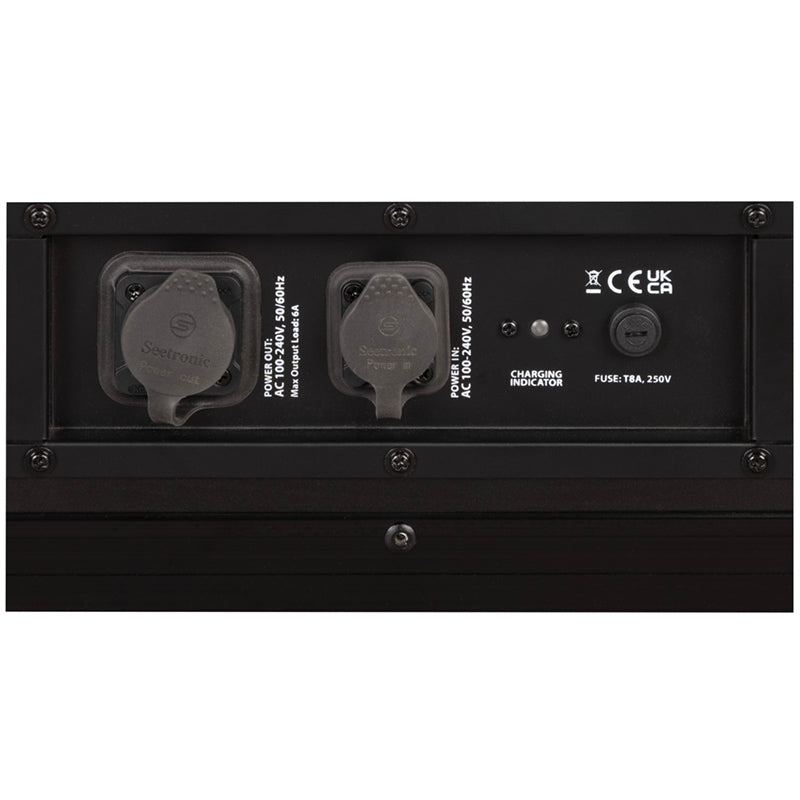

IP65 Power Locking Input and Output
Max Power Consumption: 400 Watts
Power Draw: 4A @120VAC or 2A @ 230VAC

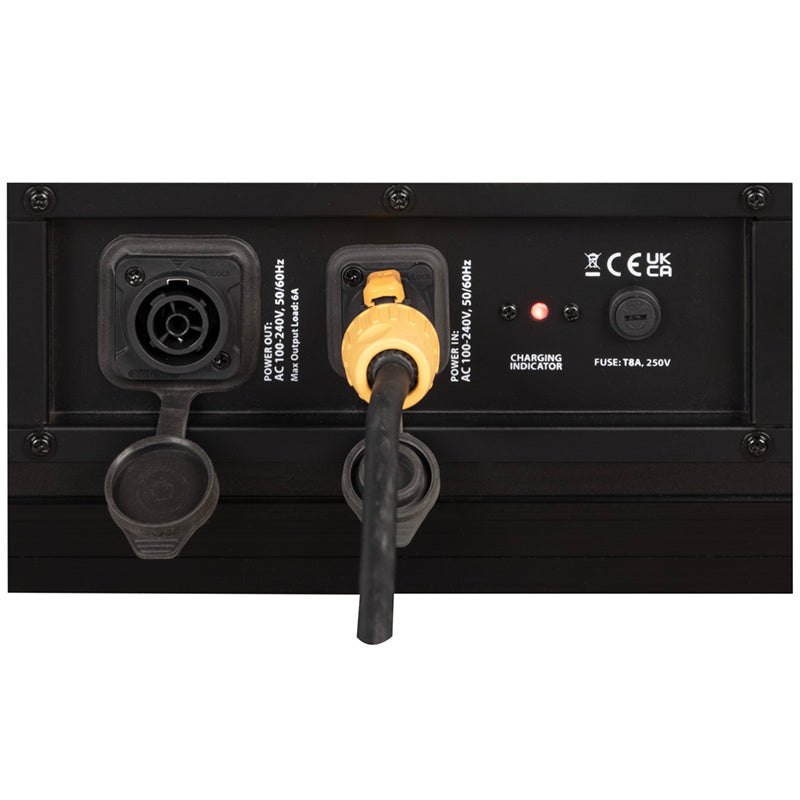

Charge status indicator
Fuse: T8A, 250V
14°F to 113°F (-10°C to 45°C)
Specifications are subject to change without notice.
