ElectraPix Bar 16 Pak
This product is CE certified.
This product is ETL certified.

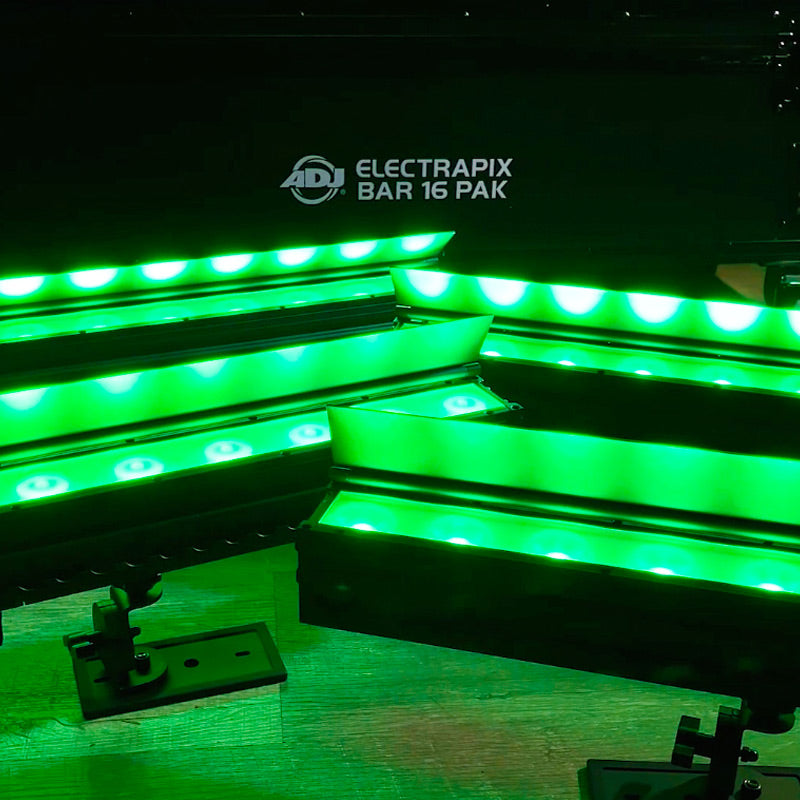

The ElectraPix Bar 16 Pak features four (4) ElectraPix Bar 16 Battery powered, wireless DMX LED linear fixtures housed in a robust road case with dedicated charging slots for each fixture. It is supplied with an ADJ UC-IR24 remote control that allows simple color selection as well as a power cable which plugs into the side of the case for in-case charging.
ElectraPix Bar 16 Pak
Sale price$0.00
Key features
| Feature | Value |
|---|---|
| Battery | Rechargeable Lithium-ion |
| Color Temperature | 2300K ~ 9900K |
| LED Source | 16x 20W RGBAL+UV LEDs |
| Outdoor Rating | IP65 |
| Wireless DMX | Aria X2 |
Video
ElectraPix Bar 16 Pak
AVAILABLE NOW FROM ADJ USA
The ElectraPix Bar 16 Pak is a comprehensive lighting solution that combines cutting-edge technology with convenience and portability. This lighting package includes everything you need to elevate your lighting setup for events, performances, or any situation where vibrant and dynamic illumination is essential.
Key Components:
1. ElectraPix Bar 16 fixtures (x4): Unleash the power of four (4) ElectraPix Bar 16 fixtures, each equipped with state-of-the-art technology including, long-life LEDs, battery-powered and wireless DMX. These lights deliver vivid and customizable colors, allowing you to create captivating light displays that suit any atmosphere. Perfect for stage productions, concerts, or any event where lighting plays a crucial role.
2. Charging Bases (x4): Stay powered up and ready to shine with the included six charging bases. Effortlessly recharge your ElectraPix Bar 8 lights, ensuring they are always ready for action. The convenient design of the charging bases allows for efficient organization and easy access, making setup and teardown a breeze.
3. UC-IR24 Remote Control (x1): Take command of your lighting setup with the UC-IR24 remote control. This versatile device allows you to adjust colors, brightness, and other settings from a distance, providing you with convenient control over your lighting environment.

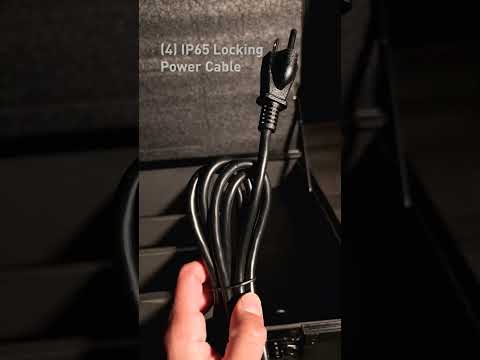

4. Outdoor Locking Power Cable (x4): Designed for durability and reliability, the outdoor locking power cables ensures a secure and weather-resistant connection.

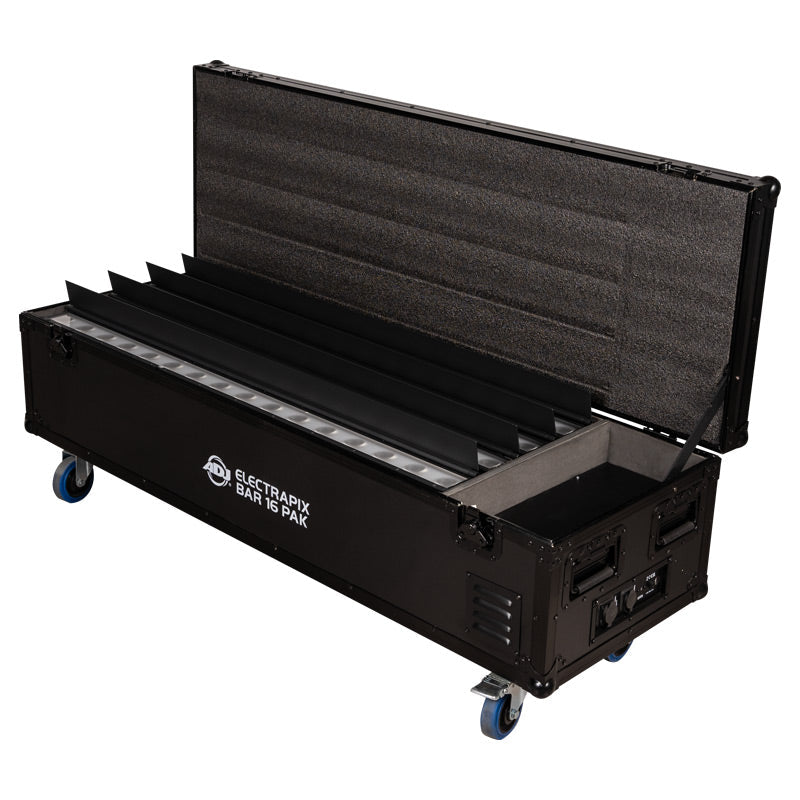

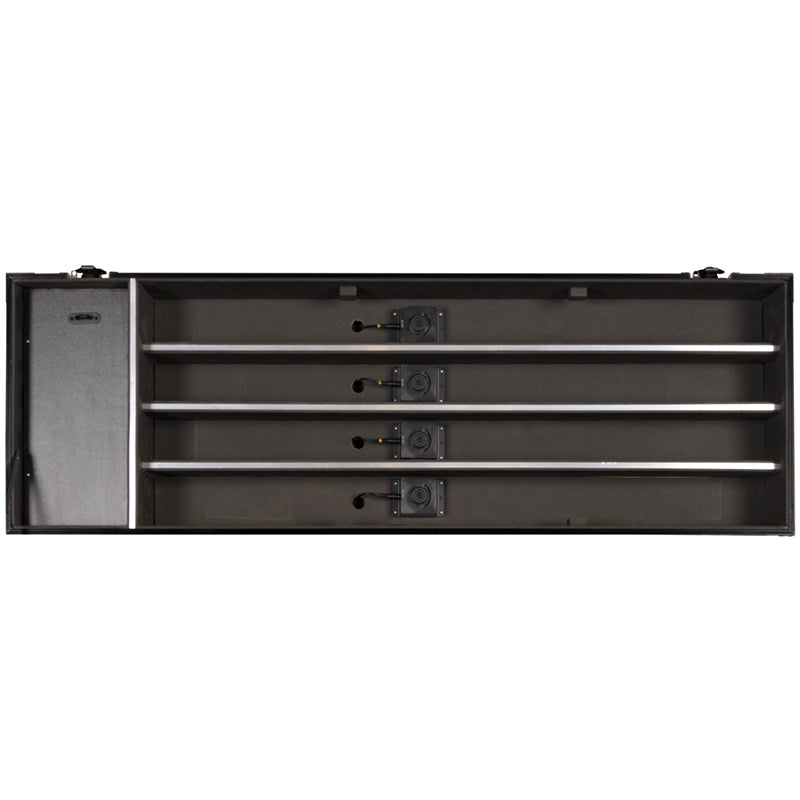

5. ElectraPix Bar 16 FC (Flight Case) (x1): Safeguard your investment and transport your equipment with ease using the ElectraPix Bar 16 FC flight case. This rugged and well-designed case provides a secure and organized storage solution for your lights, charging bases, remote control, and power cable. The dimensions of the flight case (LxWxH): 56.8” x 19.6” x 18.1” (1443x498.4x459.9mm) ensure that your lighting setup remains protected during transit.
With the ElectraPix Bar 16 Pak, you have a versatile and complete lighting solution that combines innovation, convenience, and portability, making it an ideal choice for lighting and event professionals. Illuminate your world and captivate your audience with the power of ElectraPix Bar 16.
Specifications
ElectraPix Bar 16 Pak Includes:
• (4) ElectraPix Bar 16 Pak (Fixtures)
• (1) ElectraPix Bar 16 FC (Flight Case)
• (4) ElectraPix Bar 16 Charging Bases
• (1) UC-IR24 Wireless Infrared Controller
• (4) IP65 Locking Power Cable
ElectraPix Bar 16 Pak Features:
• Houses / Transports and Charges (4) ElectraPix Bar 16 fixtures
ElectraPix Bar 16 Pak Dimensions / Weight (loaded case with 4 fixtures):
• Length: 56.8" (1443mm)
• Width: 19.6" (498.4mm)
• Vertical Height: 18.1" (459.9mm)
• Loaded Weight: 192 lbs. (87 kg)

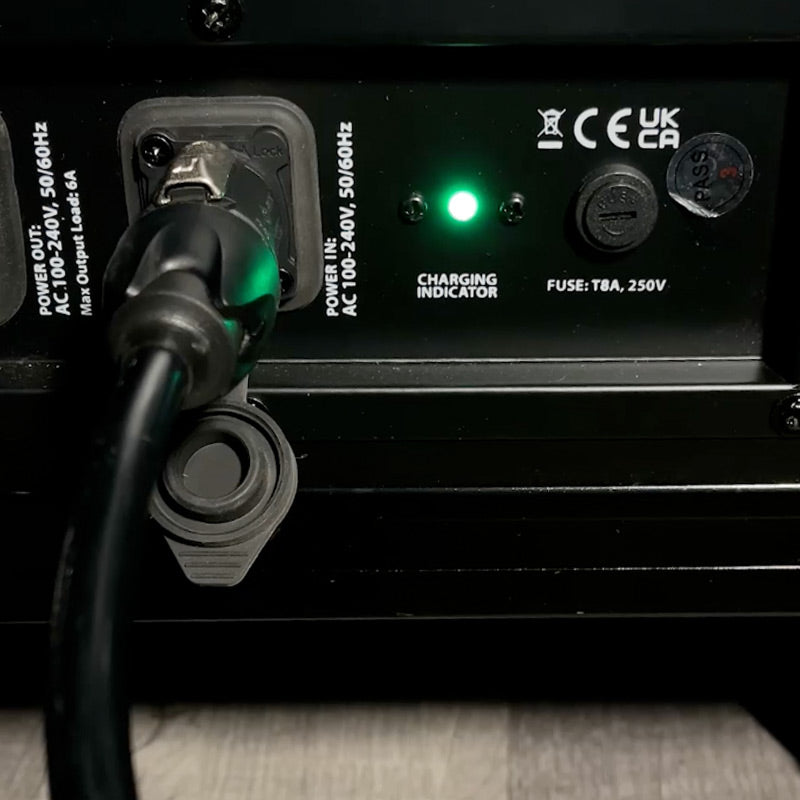

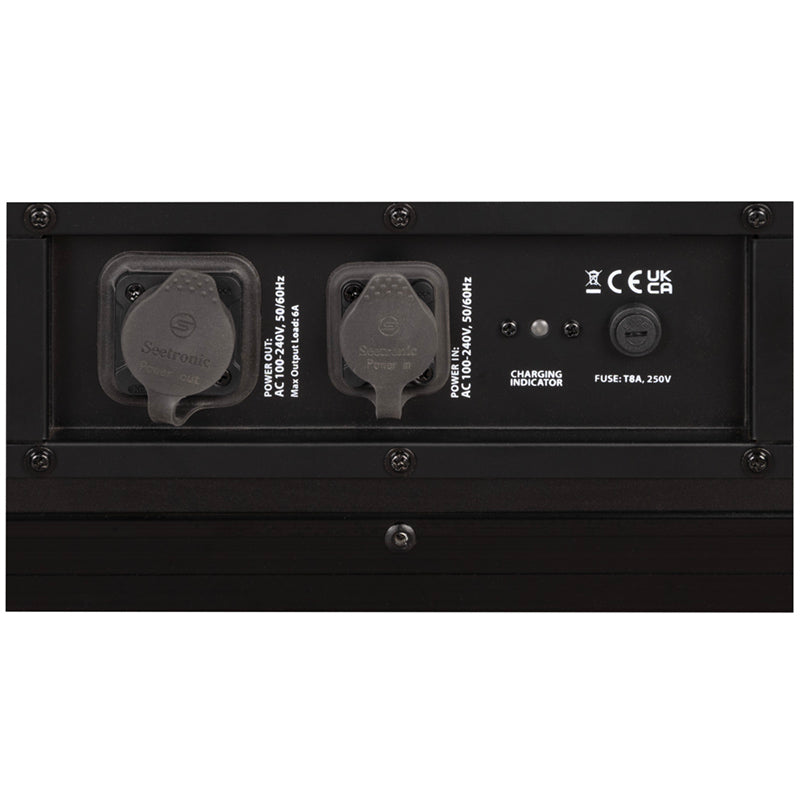

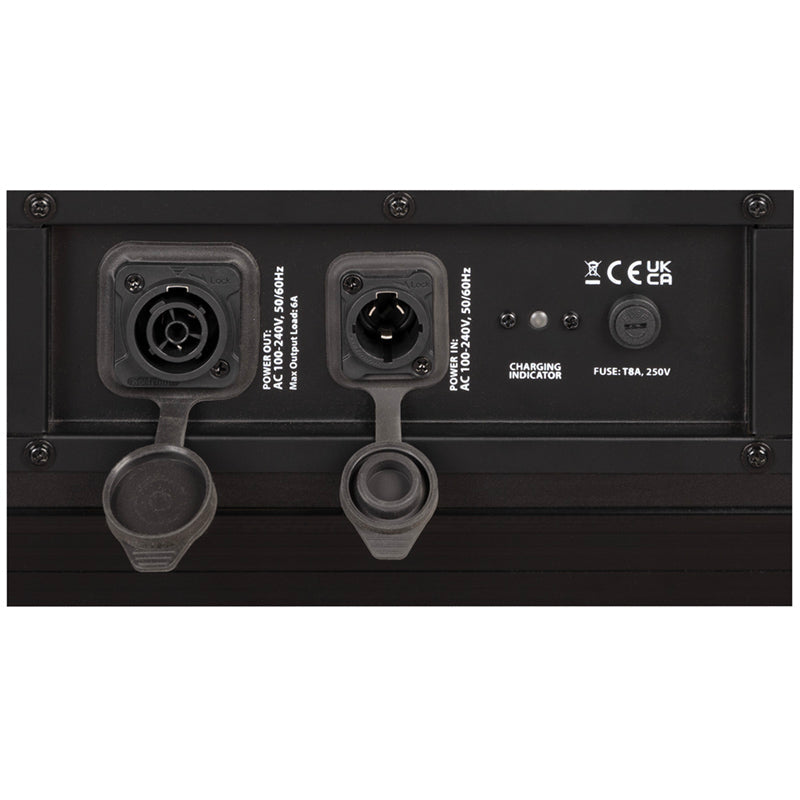

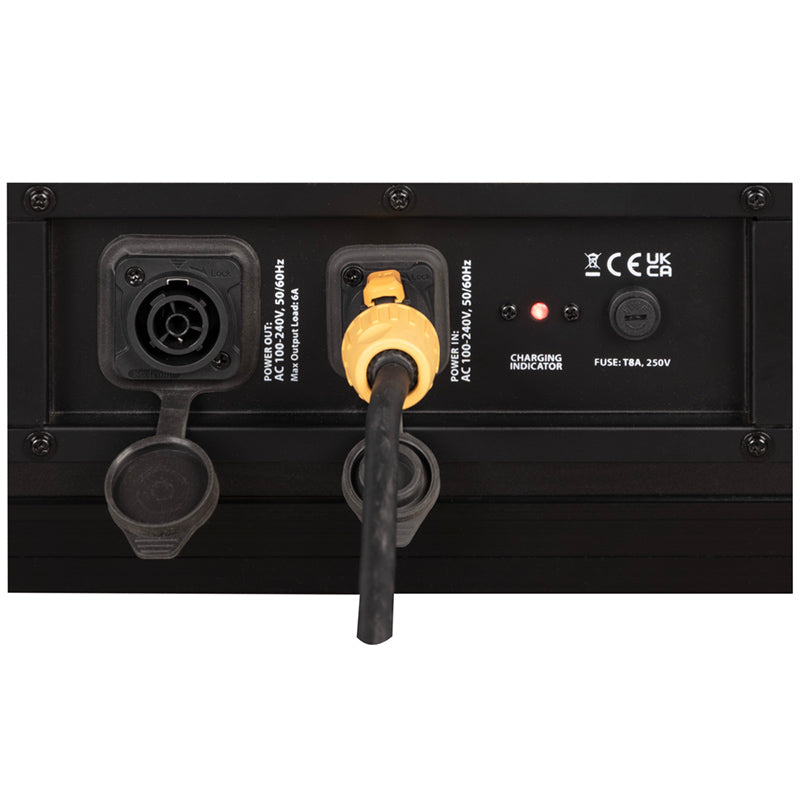

Flight Case Electrical / Thermal:
• Power Input: AC100VAC~240VAC, 50/60Hz
• IP65 Power Locking Input and Output
• Max Power Consumption: 400Watts
• Power Draw: 4A @ 120VAC or 2A @ 230VAC
• Charge status indicator
• 14°F to 113°F (-10°C to 45°C)
ELECTRAPIX BAR 16 FIXTURE SPECIFICATIONS:
Features:
- 16 Pixel, Hex Color LED (RGBAL+UV) LED Bar
- Battery or Wall Powered
- Up to 20 Hour Battery Operation
- Individual Pixel Control
- Built-In Foreground LED Programs
- Built-In Background LED Programs
- Variable White Color Temperature Control (2,300K ~ 9,900K)
- English Spanish User Menu
- Built-In Alarm
- Color Calibrated LED's
- User Selectable LED Refresh Rates (900Hz ~ 25K)
- 6 User Selectable Dim Modes
- 4 User Selectable Dim Curves
- Electronic Strobe (0.3Hz ~ 11Hz)
- Electronic Dimming
- Attach up to two (2) ElectraPix Bar 16 to the Accu Stand VFB1 vertical floor base
Source:
- (16) 20W Hex Color RGBAL+UV Foreground LEDs
- (66) 0.2W RGB Background LED's
- 50,000 Hour Average Life*
- *May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
Optical:
- 2,300K ~ 9,900K White Color Temperature Range
- 17° Beam Angle
- 45mm Lens Diameter x16
Physical:

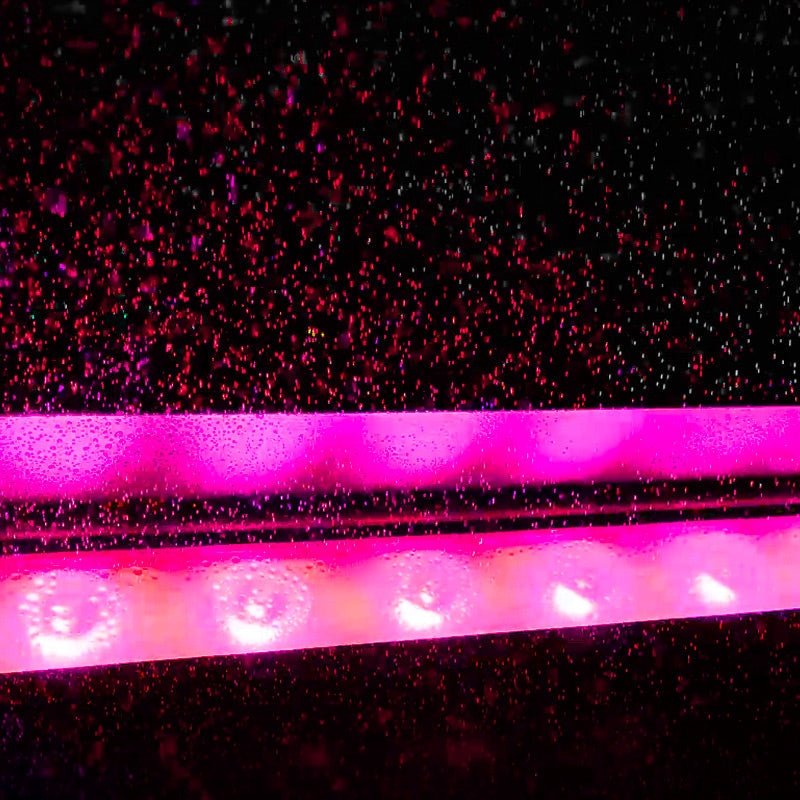

- IP65 Housing
- OLED Digital display
- L Track system for locking accessories / rigging
- Glare Shield
- Diffusion Filter slot
- Angle adjustable feet
- Horizontal slide lock to attach additional ElectraPix Bar 16 or ElectraPix Bar 8
Control:
- DMX512
- Aria X2 Wireless Management / DMX System
- Bluetooth
- RDM and RDM Net Compatible
- IR (Includes UCIR24 wireless remote)
- (9) DMX Channel Modes (5, 6, 9,13, 21, 24, 96, 99 114 Channel modes)
- On-board Manual Control Mode
- Primary / Secondary Mode
Connections:
- 5pin XLR Outdoor DMX In/Out Sockets (Must be used with STRxxx, 5pin DMX cables to create IP65 seal)
- Outdoor Locking Power Sockets
- Battery Charging Socket
Dimensions Weight:
- Length: 3.72" (94.5mm) Width: 45.6" (1158. 7mm) Height: 10.6" (268. 7mm)
- Weight: 26.9 lbs. (12.2 kg)
Power:
- AC100-240V/50Hz-60Hz Input
- 90W Power Consumption
- Link 10 pieces @120VAC or 18 pieces @ 230VAC
Battery:
- Rechargeable Lithium ion
- Battery Capacity: 14,000mAh
- Battery Voltage: 22.2V
- Charge Time, AC Power: 5.5 Hours (To Full)
- Charge Time, Flight Case: 5.5 Hours (To Full)
- Up to 20 Hour Battery Operation
- Battery Cycles: 500
Thermal:
- Ambient Operational Temperature: -4°F to 113°F (-20°C to 45°C)
- Storage Temperature: -22°F to 113°F (-30°C to 45°C)
Certifications IP Rating:
- CE
- cETLus (Control # 4002034)
- FCC
- IP65
Included Accessories:
- (1) Outdoor Locking Power Cable
- (1) UCIR24 Remote
- (1) 20° Diffusion Filter
Optional Accessories:
- Accu Stand VFB1 (Floor Base)
- LTrack A2 (LTrack Adapter Only)
- LTrack CA2 (LTrack Adapter with Narrow Clamp)
- EPIX B816 IPCB: replacement charging base and power supply
Specifications and documentation subject to change without notice.
