Duo Station
This item is discontinued
The American DJ Duo Station is 2 controllers in 1. You have an LED control section which has 9 static color buttons and 10 chase programs which you can use sound activation to control. Then you have the relay control which has 8 on/off dip switches to control each of the 8 channels.
Duo Station
Sale price$0.00
Video
Duo Station

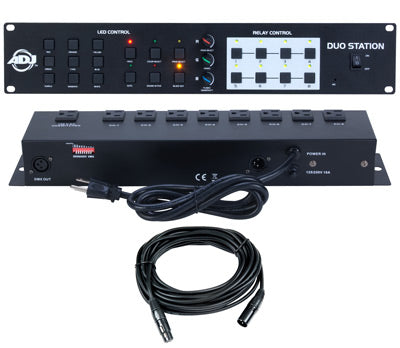

The American DJ DUO STATION features two controllers in one. One side isa basic 3-channel RGB LED controller with the same functions as the ADJRGB3C, while the other side is an 8-channel On/Off Switching Systemsimilar to the ADJ SC8 controller. The DUO STATION has separateoutputs on the rear control panel so each side runs independently fromthe other. It’s the ideal control solution for DJs, bands, small nightclubs, and bars that want simple LED control and On/Off control ofeffect type lights.ADJ's Duo Station LED controller has 9 staticcolor buttons, a color select button, and an auto button whichactivates the 16 chase programs at random. Also you have 3 manual RGBknobs that allows you dial into any color you may desire. The 3 knobsalso double as program select, chase speed and flash/sensitivity manualcontrols.
Specifications
LED CONTROL FEATURES:
- Basic 3-channel RGB LED controller designed to control any standard 3 channel RGB fixture where channel 1 is Red, channel 2 is Green and channel 3 is Blue.
- 9 static color buttons
- Hold COLOR button
- Color Select button
- Program Select button: 16 single and multi color chase programs
- Auto button: activates the 16 chase programs to randomly sequence while the speed of the chases can be controlled via the SPEED potentiometer
- Sound active button: actives 16 chase programs
- Black out button zeros output on the LED control side.
- 3 manual RGB potentiometers: allows the user to dial in a desired color on the fly
- RGB potentiometers double as Program Select, Chase Speed and Flash/Sensitivity manual controls
RELAY CONTROL (ON/OFF):
- 8 buttons to switch relative channels on/off
DUO STATION CONTROL PANEL TECHNICAL SPECS:

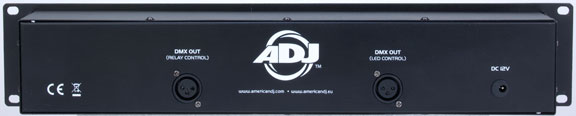

- DMX output connector: 3-pin XLR

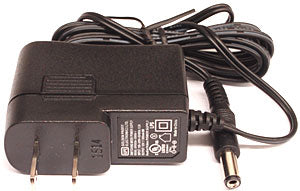

- Power In: 12V 500mA (Included)
- Power consumption: 3.6 Watts
- Dimensions: 19"x 3.5"x3.5" / 483x89x89mm (2 rack spaces)
- Weight: 3.5 lbs. / 1.5 kg.
- DMX amp; Stand Alone operation modes
- DMX input amp; output connectors: 3-pin XLR
- Dip switches for DMX addressing and work mode setting
- 8 x 3-prong ldquo;switched" Edison sockets (120V/60Hz)
- 1 x 3-prong ldquo;Constant power" Edison socket (120V/60Hz)
- 5A max per socket
- Dimensions: 18.75"x3.5"x2.5" / 473x91x63mm
- Weight: 5 lbs. / 2.25kg.
