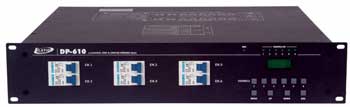

DP-610
This item is discontinued
DP-610
Sale price$0.00
DP-610
Specifications
- 6 Channel Digital Dimmer Pack
- USITT DMX-512 (3pin)
- 10A/CH., Total 60A Single phase connection
- 3 phase connection: 10A/CH., Total 20A per phase
- LCD display, Text (Menu information)
- 24 programmable scenes, 10 shows from 24 programmed scenes, 90 built-in chase programs
- Test of 6 DMX channels (Full On, Half On, Off)
- Start address and patch address can be used for separate DMX addressing
- Each channel can be programmed with the preheat level (0-20%), maximum output level (30-100%), control curve (linear, square and switch) and fade time (0.0s-999s)
- Play Scenes (1-24), Shows (1-10) and Chase Programs (1-90)
- Power failure memory
- Dimensions: Dimensions: 17" x 19" x 3.5"
- Weight: 21 lbs
- Power requirement: AC 120V~60Hz, AC 230V~50/60Hz
