Dotz Par RGBL

Name: Dotz Par RGBL
Brand: ADJ
SKU: DOT287
Availability: InStock

Drawing on the popularity of Chip On Board (C.O.B.) LED from the Dotz Par fixture, the ADJ Lighting Dotz Par RGBL uses the latest advancements in lighting technology with a RGBL (red, green, blue, lime) C.O.B. LED for a smooth, even field, high CRI output, advanced color mixing and tunable white color temperature control from 2700K to 6500K.

UPC: 810087372835

SKU: DOT287

Dotz Par RGBL

$0.00

Video

Dotz Par RGBL

Available now from ADJ USA

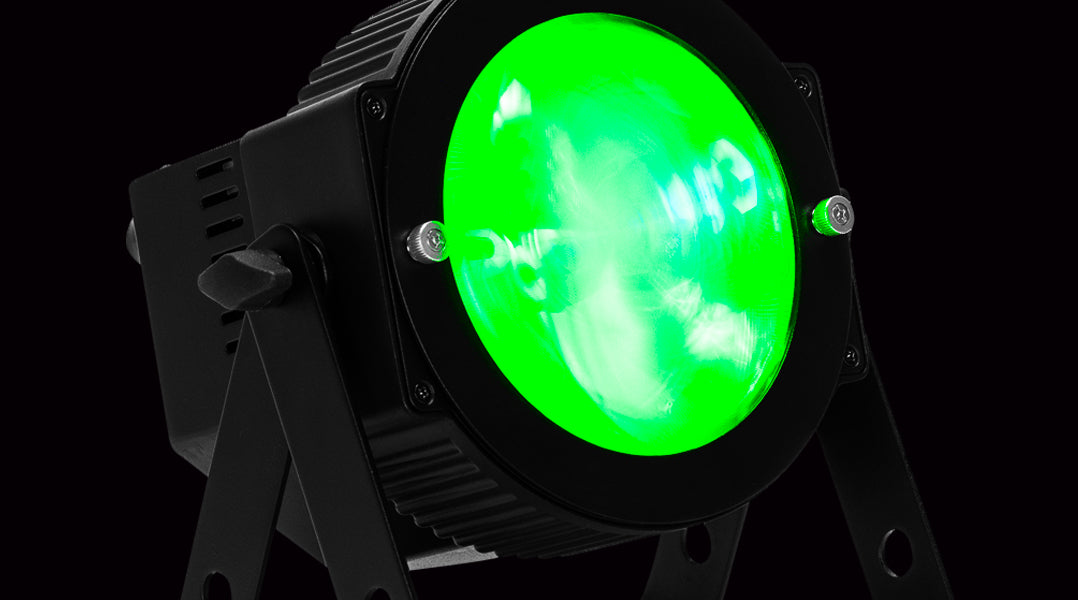

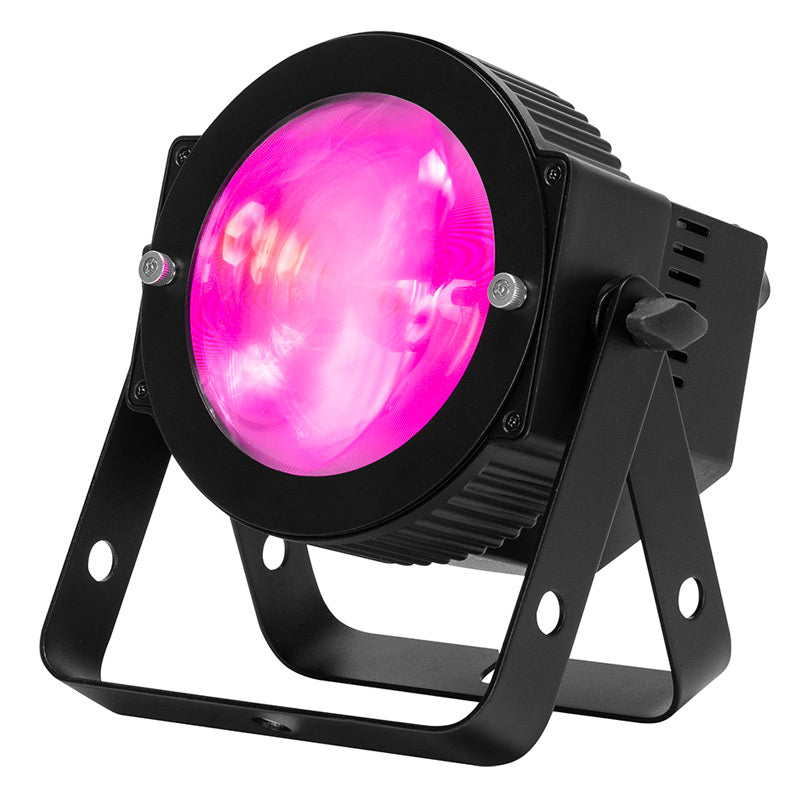

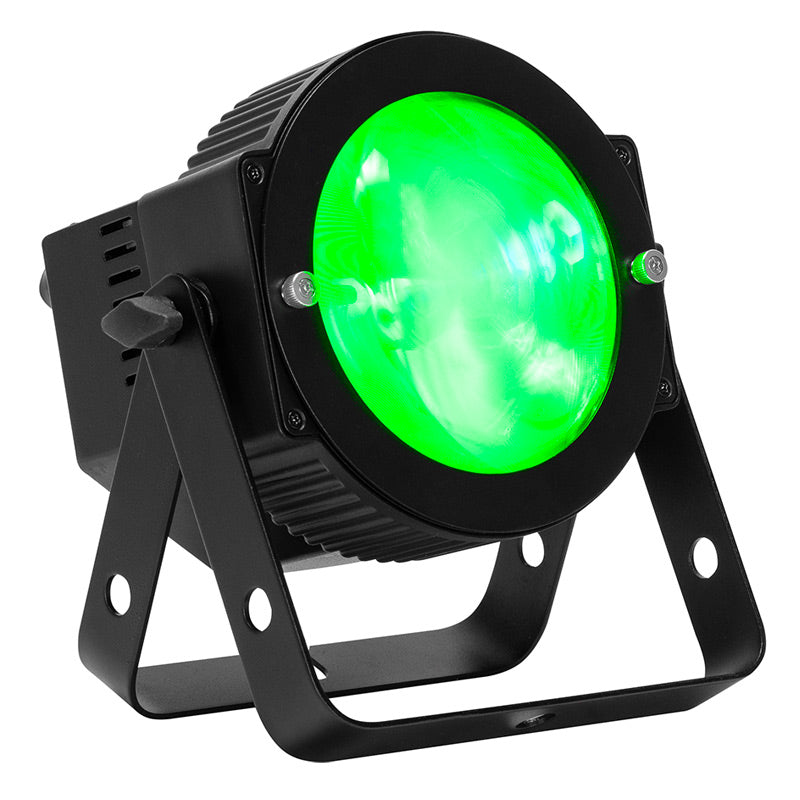

The Dotz Par RGBL offers lighting designers a brilliant, even wash of light using highly efficient Chip-On-Board (C.O.B.) LED technology featuring red, green, blue, and lime LED chips. With the addition of lime, the Dotz Par RGBL delivers high CRI output, advanced color mixing, and linear color temperature control from 2700K to 6500K, including built-in preset color temperatures. Additionally, the fixture features 16-bit fine color control, 64 built-in color macros, an 18° beam angle, and a 30° field angle.

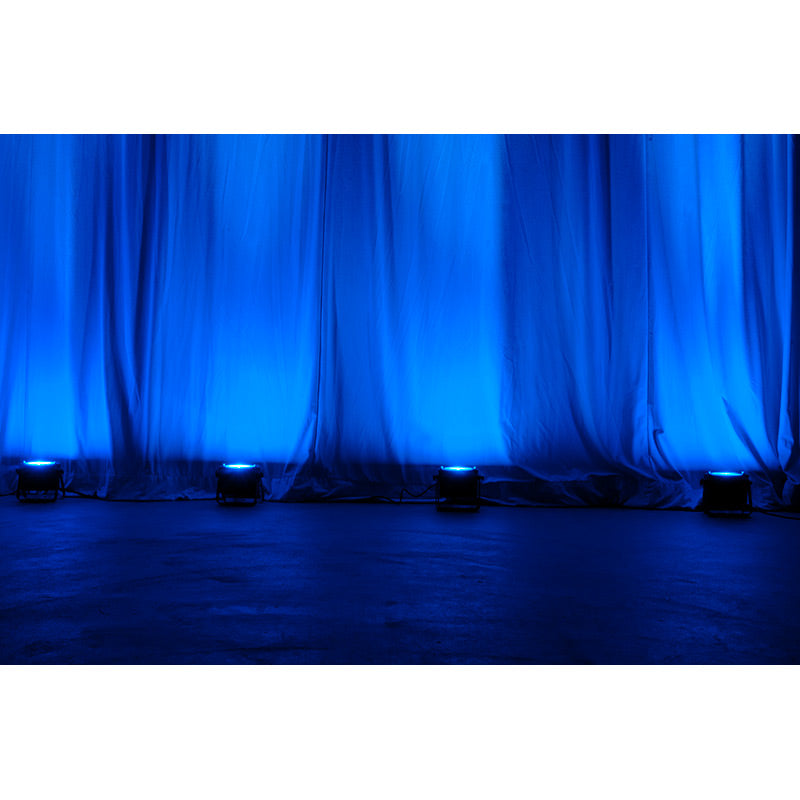

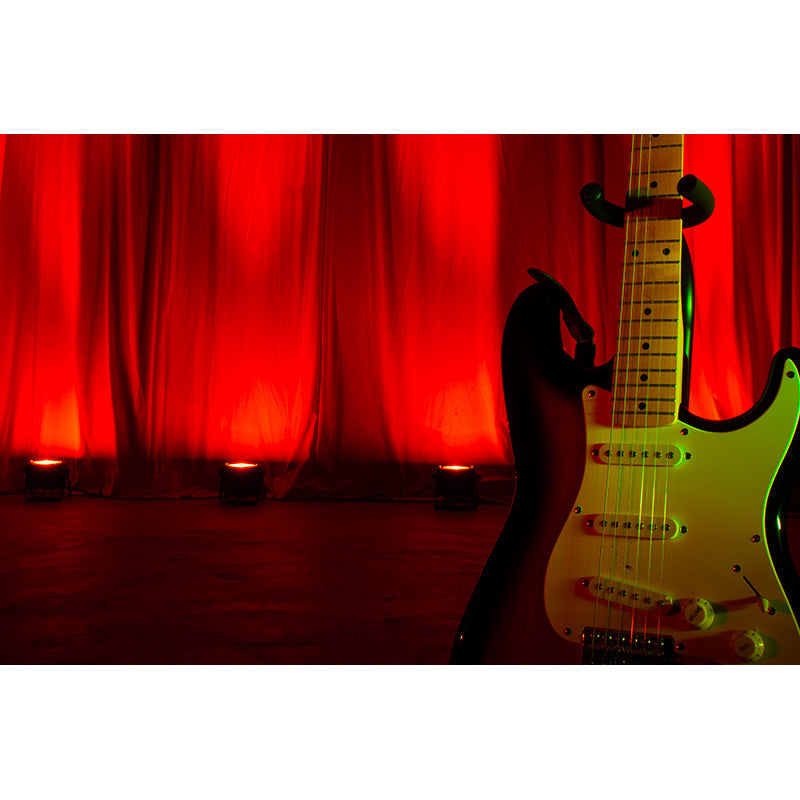

The Dotz Par RGBL has a small footprint and is light in weight making it idea for temporary event production or installation into small stages, churches nightclubs or anywhere entertainment lighting is required. The 4-button, DMX display allows for easy navigating into the fixtures flexible functions. There are 6 operational modes, 6 dimmer curve modes, 4 selectable dim curves and supports DMX and RDM protocols.

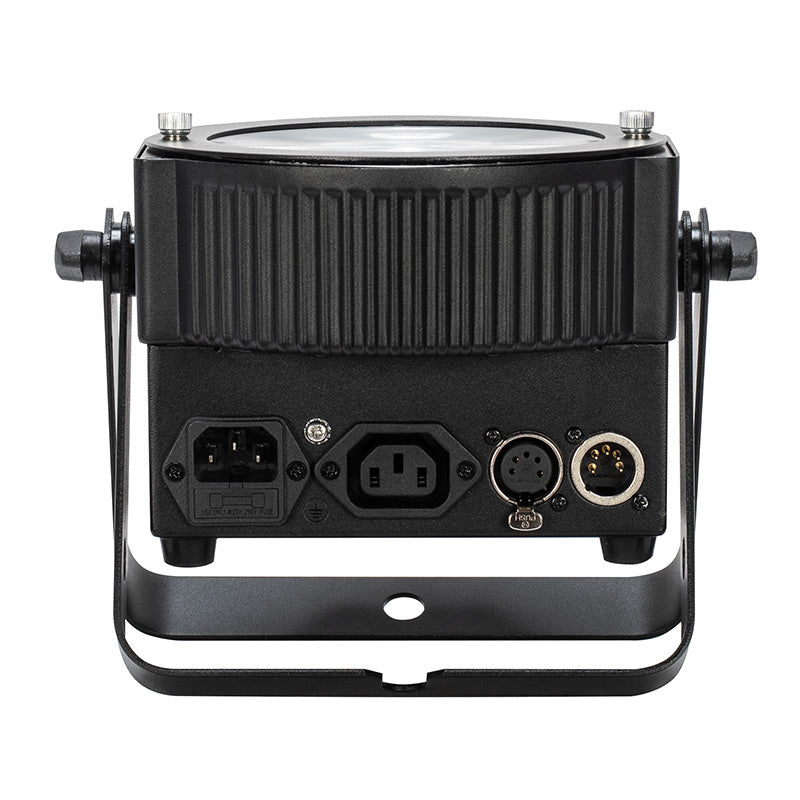

The fixture has IEC power in and out sockets to daisy chain power, plus 5-pin DMX in/out sockets. The supplied scissor yoke allows for flexible use allowing the fixture to be hung in the air or set on the ground.

Click here to read the Dotz Par RGBL press release.

Specifications

SOURCE:

• Light Source: 16x 3.5-Watt RGBL C.O.B. LED (4x Red, 4x Green, 4x Blue 4x Lime)

• 20,000 Hours Rated Life

PHOTOMETRIC DATA:

• 18° Beam Angle (With Included Lens)

• 30° Field Angle (With Included Lens)

• CRI: 85.3

• CRI R9: 79.1

• Lux: 957 (@ 3m, Full On)

• Footcandles: 89 (@ 3m, Full On)

• Lumens: 1102

EFFECTS:

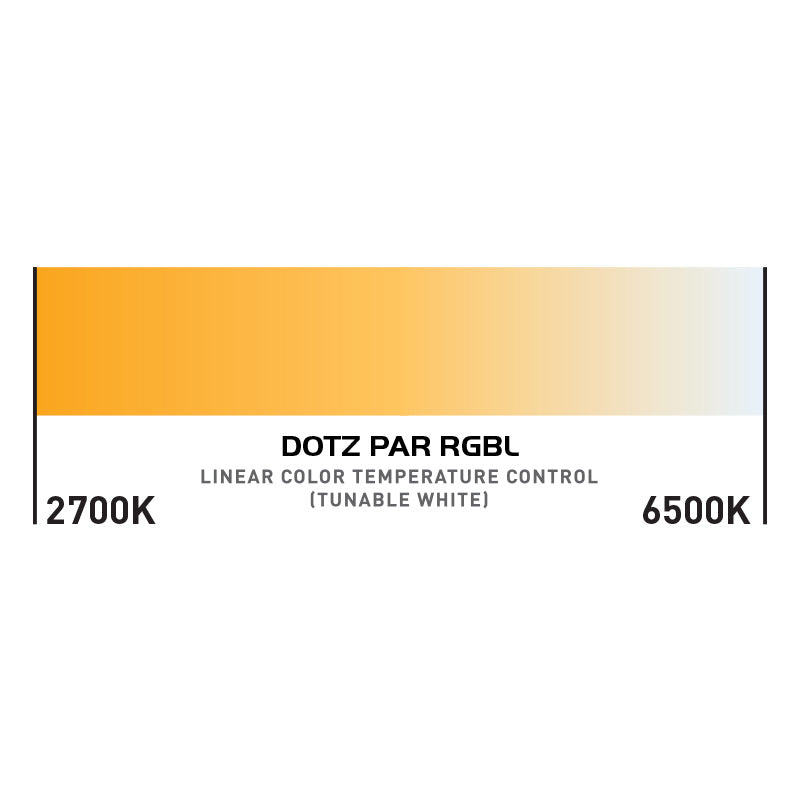

• Linear Color Temperature Control (2700K to 6500K)

• Preset Color Temperatures

• 16-Bit Fine Color Control (Red, Green, Blue Lime)

• 64 built-in Color Macros

CONTROL:

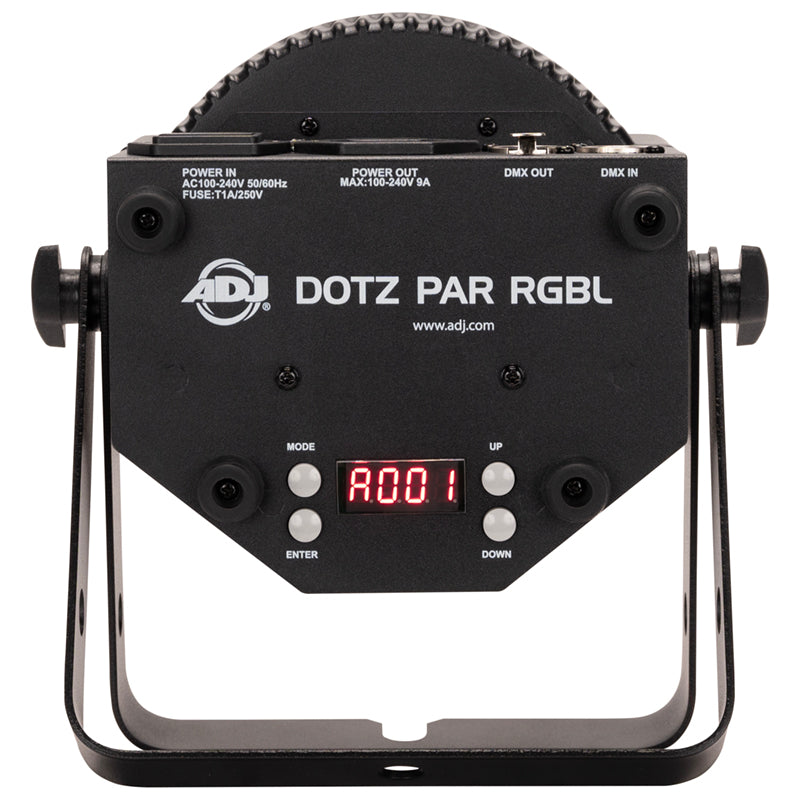

• 4-button, DMX digital display on rear panel

• 6 Operational modes: Static Color Mode, RGBL Dimmer Mode, Program Mode, Sound Active Mode, Wireless RF and DMX Controlled

• Supports RDM (Remote Device Management)

• With Wired Digital Communication Network

• 6 selectable Dimming Modes (Standard, Stage, TV, Architectural, Theatre Stage 2)

• 4 selectable Dim Curves (Linear, Square Inv. Squa, S-Curve)

• 1200Hz LED Refresh Rate

• LED pulse and strobe effect

• Electronic Dimming: 0 - 100%

CONSTRUCTION / CONNECTIONS:

• Plastic construction

• IEC Locking, In/Out Power connectors

• Indoor 5-pin, XLR DMX, In/Out sockets

• Scissor Yoke

ELECTRICAL / THERMAL:

• Multi-voltage operation: AC 100-240V, 50/60Hz

• Max Power LInk: 30 @120V., 57 @230V.

• Max power consumption: 36W

• Fuse protected: T1A/250V (5*20mm)

DIMENSIONS / WEIGHT:

• Length: 5.19" (131.8mm)

• Width: 8.23" (209mm)

• Height: 8.72" (221.44mm)

• Weight: 4.41lbs. / 2kg.

APPROVALS / RATINGS:

• CE

• cETLus (4010765)

• FCC

• IP20

INCLUDED ACCESSORIES:

(1) Power Cord

(1) Lens Kit

Specifications subject to change without notice.
