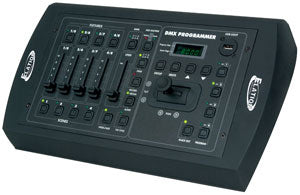

DMX Programmer

This item is discontinued

UPC: 640282016995SKU: DMX PROGRAMMER

DMX Programmer

Specifications

  • 8 assignable fixtures / on 4 buttons
  • 4 Chases of 99 steps
  • 96 Scenes in 24 Pages
  • Assignable joystick for Pan/Tilt control of fixtures

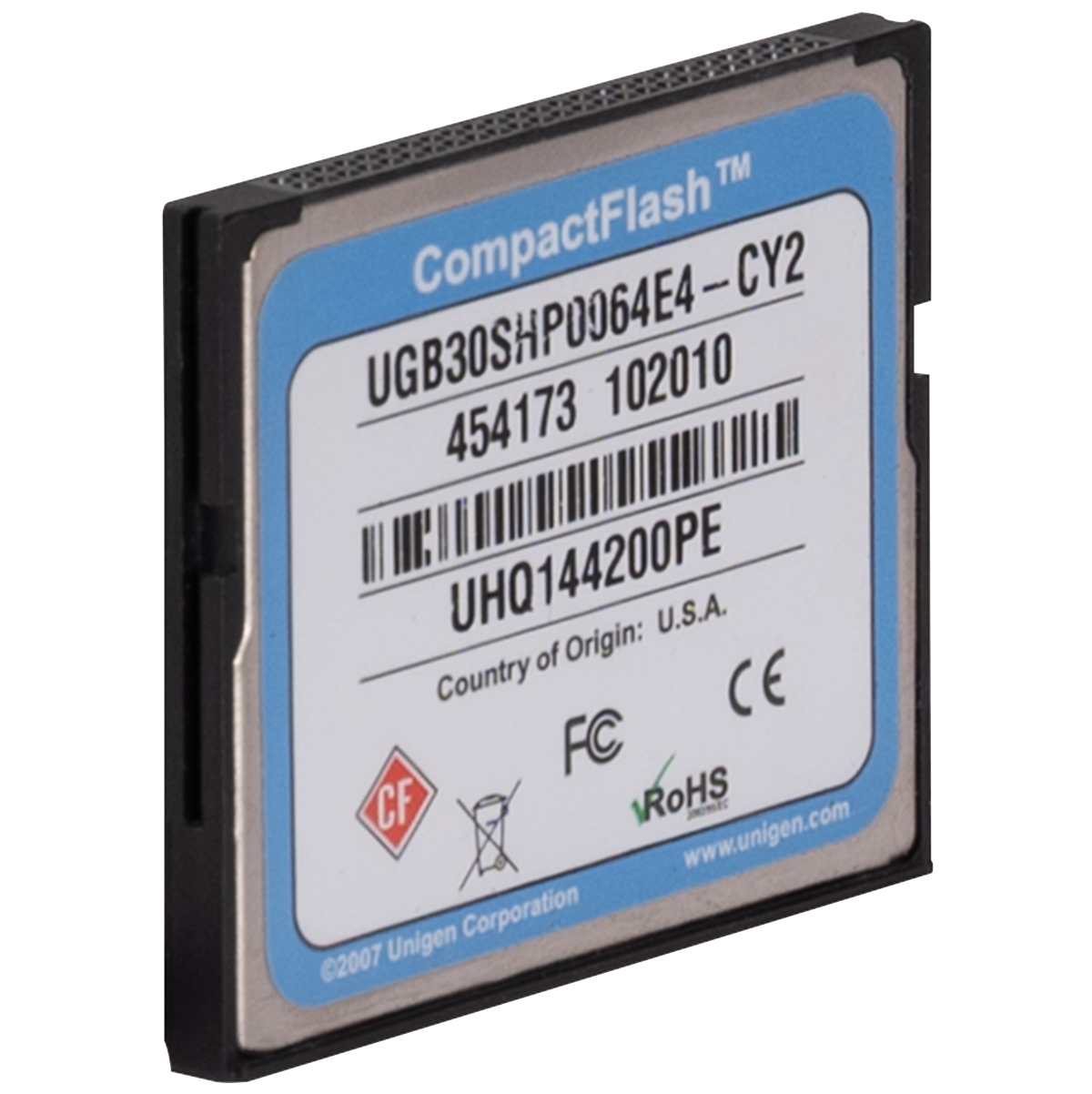

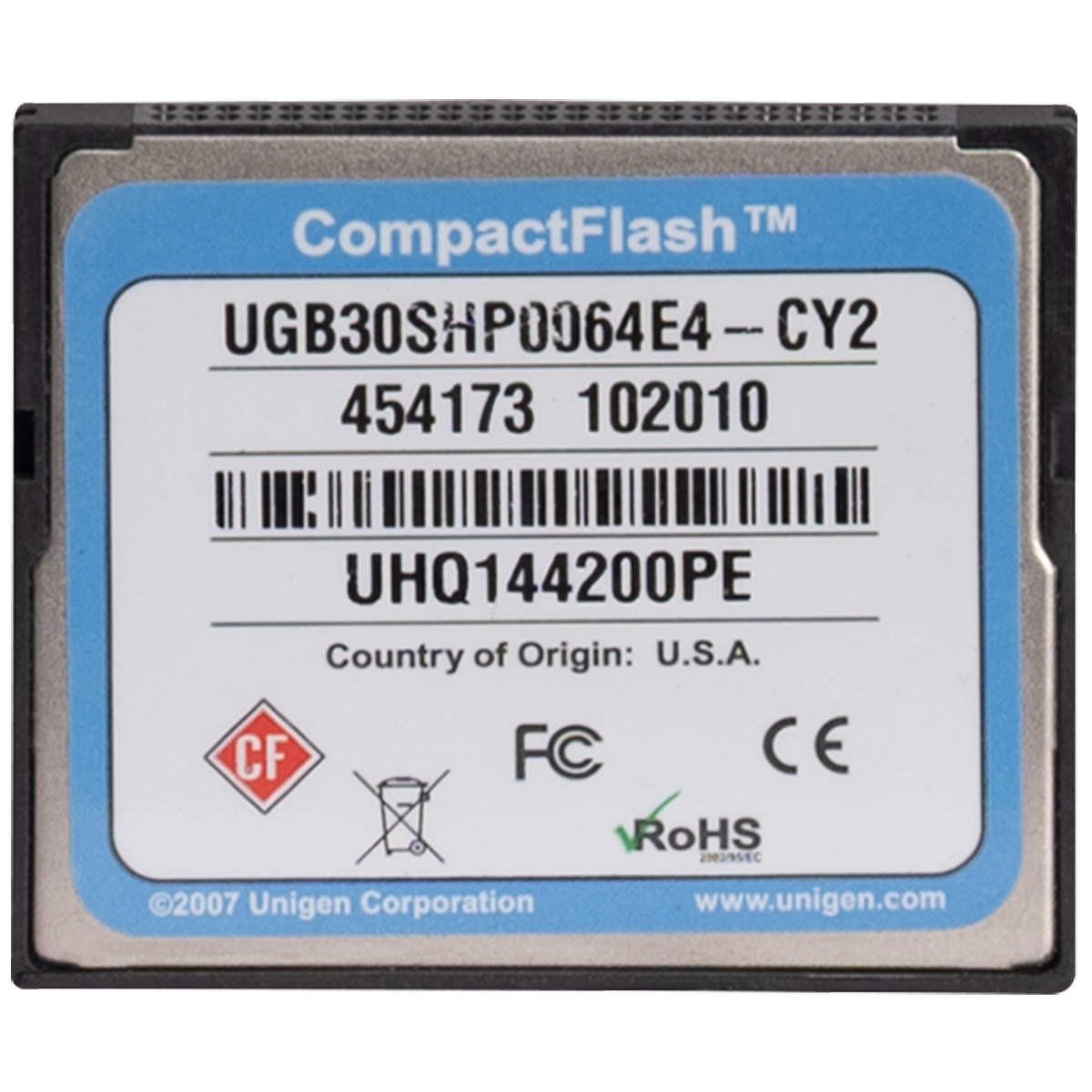

  • Back-up memory using a 32 MB Compact Flash Card
  • USB input for gooseneck light
  • Blackout
  • Built-in Microphone
  • Bright, 4 segment LED display
  • Audio Chase plus Speed and Fade time adjustments
  • Tap Sync function
  • Reversible DMX Polarity Output
  • Fog Machine trigger button with LED function indicators (compatible with American DJ Master Blaster 1000, Stallion, Vaporizer, Vapor Flow, Fog Storm 1200 and Fog Storm 1700)
  • Factory default joystick control: assigned to ch.1 and ch.2 and ready to use with American DJ and Elation fixtures
  • 9-pin RS-232 trackball connector port
  • Power supply included: DC 9-15V, 500mA min.
  • Dimensions (LxWxH): 14.25" x 7.5" x 3" / 360 x 193 x 72 mm
  • Weight: 4.5 lbs / 2.1 kgs.

Downloads

User manual

DMX Programmer Parts & Service

Our DMX Programmer Parts and Support page is your hub for technical support for your product. Here you’ll find support docs, service resources, and replacement parts specifically matched to your DMX Programmer. You can also use this area to plan future maintenance, extending the life of your investment and minimizing downtime.

DMX Programmer Parts & Service
