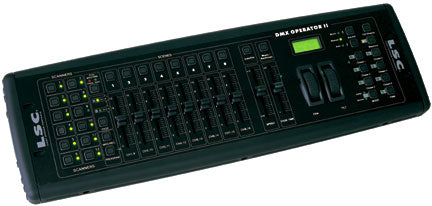

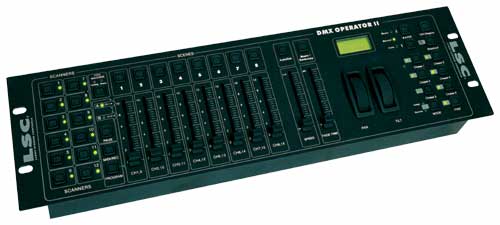

DMX Operator II
This item is discontinued
DMX Operator II
Sale price$0.00
DMX Operator II
Specifications
- An affordable solution for controlling DMX products
- Control up to192 DMX channels
- 12 individual fixture channels - Control up to 12 separate intelligent lights with up to 16 DMX channels per fixture
- Fixtures with less than 16 DMX channels may be combined on 1 DMX scanner button
- Record up to 6 programmable chases with fade time and speeds
- 8 individual faders provide easy programmability for Intelligent Lighting or Dimmer Packs
- MIDI controllable
- USITT DMX-512, 3-pin XLR signal
- Built-in Microphone
- Remote control: Blackout controlled by MIDI input signal
- Blind function - override chases on the fly
- Use in conjunction with the PP-DMX20L or the DP-DMX20L
- Polarity switch to accommodate different types of cable requirements
- Power input: DC 9V-12V, 220 mA min. power supply included,
- Dimensions: 5.25" L x 19" W x 2.5" H - 19 in. rack mount - 3 rack spaces
- Weight: 5 lbs.
- 120V and 220V operation available
DMX Operator II Parts & Service
Our DMX Operator II Parts and Support page is your hub for technical support for your product. Here you’ll find support docs, service resources, and replacement parts specifically matched to your DMX Operator II. You can also use this area to plan future maintenance, extending the life of your investment and minimizing downtime.
