DCD-PRO600
This item is discontinued
DCD-PRO600
Sale price$0.00
DCD-PRO600
Specifications
- Tempo Lock ndash; (Master Tempo) Make adjustment to the speed of the track without altering vocals
- 6 On-board digital FX
- 20 seconds of Anti-Shock memory per side
- Seamless Loop
- Fader-Q-Start
- DSP Technology ndash; Digital Signal Processing
- Digital Output

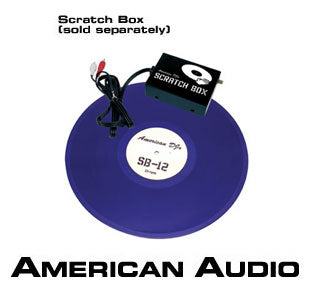

- Compatible with American Audio Scratch Box (sold separately) Additional Features:
- 8x Oversampling 1-bit D/A converter
- Instant start
- 4 programmable cue points with instant start (4 sec. each bank)
- Anti-Skip mechanical shock
- Auto cue function (-48dB)
- Realtime cue
- Pitch range: plusmn;8%, plusmn;12%, plusmn;16%)
- Pitch display
- Selectable elapsed, remain amp; total remain time display
- Single/continuous/repeat play
- Frame search
- 4 fast search modes
- Manual Beat counter
- Large bright LCD screen
- Transport protection
- Sleep mode (after 15 min.pause laser diode will turn off)
- S/PDIF digital audio RCA coaxial Digital Effects:
- Filter ndash; 2 Filter effects ndash; changes frequency of the music up and down.
- Coast ndash; 2 Coast effects - similar to turning off the power on a turntable (3 sec/5 sec coasts).
- Reverse Play ndash; Plays track in reverse until Reverse Play is disengaged.
- Scratch ndash; (Enabled through the Scratch Box) Scratch on a turntable using the compact disc as the audio source.
- BOP ndash; Instantly plays last cue in a stutter effect. Accessories (sold separately):
- Scratch Box amp; Vinyl record kit (special vinyl record with audio signal ndash; no music) S
- Dimensions: Player unit: 19"(W) x 3 15/32" (H) x 9 55/64" (D) / 482mm (W) x 88.8mm (H) x 264mm (D) Control unit: 19"(W) x 3 15/32" (H) x 1 37/64" (D) / 482mm (W) x 132mm (H) x 74mm (D)
- Installation: 19-inch rack mountable
- Player amp; Control units: 3U / 3 rack spaces
- Weight: Player unit: 11 lbs. / 5 kg., Control unit: 4.5 lbs. / 2 kg
- Power: AC 115V 60Hz / 230V 50Hz switchable
- Power consumption: 25W
- Sampling rate: 44.1 kHz at normal pitch
- Over sampling rate: 8 times
- D/A conversion: 1 bit
- Frequency response: +/- 1.0dB 20Hz-20KHz, 0dB
- Total Harmonic Distortion: 0.02%
- Signal to noise ratio: 84 dB
- Search accuracy:1/75 sec. (1 subcode frame)
