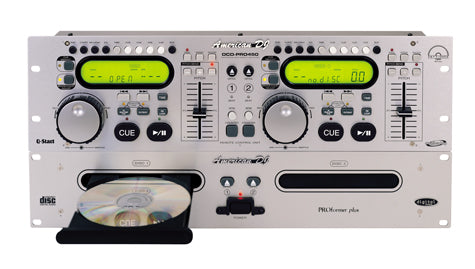

DCD-PRO450
This item is discontinued
DCD-PRO450
Sale price$0.00
DCD-PRO450
Specifications
- 8x Oversampling 1 bit D/A converter
- 20 seconds of anti-shock memory per deck
- Instant start within 10 msec (sound immediately when PLAY button is pressed
- 8 programmable cue points with instant start (4 sec. each bank)
- Seamless loop
- 2 skid effects (0.5 sec/1.0 sec breaks) Anti-Skip mechanical shock
- 2 coast effects (3 sec/5 sec coasts)
- reverse play (unlimited backward play to start of CD)
- Auto cue function (-48dB)
- Realtime cue
- Pitch range: ±8%, ±12%, ±16%)
- Pitch display
- Selectable elapsed, remain total remain time display
- Single/continuous/repeat play
- FlipFlop allows consecutive playback during two decks
- Frame search
- 4 fast search modes
- 30 programmable tracks
- Beat counter
- Large bright LCD screen
- Transport protection
- Sleep mode (after 15 min. pause laser diode will turn off)
- S/PDIF digital audio RCA coaxial S
- Dimensions: Player unit: 19"(W) x 3 15/32" (H) x 9 55/64" (D) / 482mm (W) x 88.8mm (H) x 264mm (D)
- Control unit: 19"(W) x 3 15/32" (H) x 1 37/64" (D) / 482mm (W) x 132mm (H) x 74mm (D)
- Installation: 19-inch rack mountable
- Player Control units: 3U / 3 rack spaces
- Weight:Player unit: 11 lbs. / 5 kg., Control unit: 4.5 lbs. / 2 kg
- Power: AC 115V 60Hz / 230V 50Hz switchable
- Power consumption: 25W
- Sampling rate: 44.1 kHz at normal pitch
- Over sampling rate: 8 times
- D/A conversion: 1 bit
- Frequency response: +/- 1.0dB 20Hz-20KHz, 0dB
- Total Harmonic Distortion: 0.02%
- Signal to noise ratio: 84 dB
- Channel separation: 82 dB
- Output level: 2.OV +/- 1dB
- Load impedance: 47 kohm or more
- Variable pitch: +/-10% or more
- Search accuracy:1/75 sec. (1 subcode frame)
- Memory: Last settings
