Crazy Pocket 8

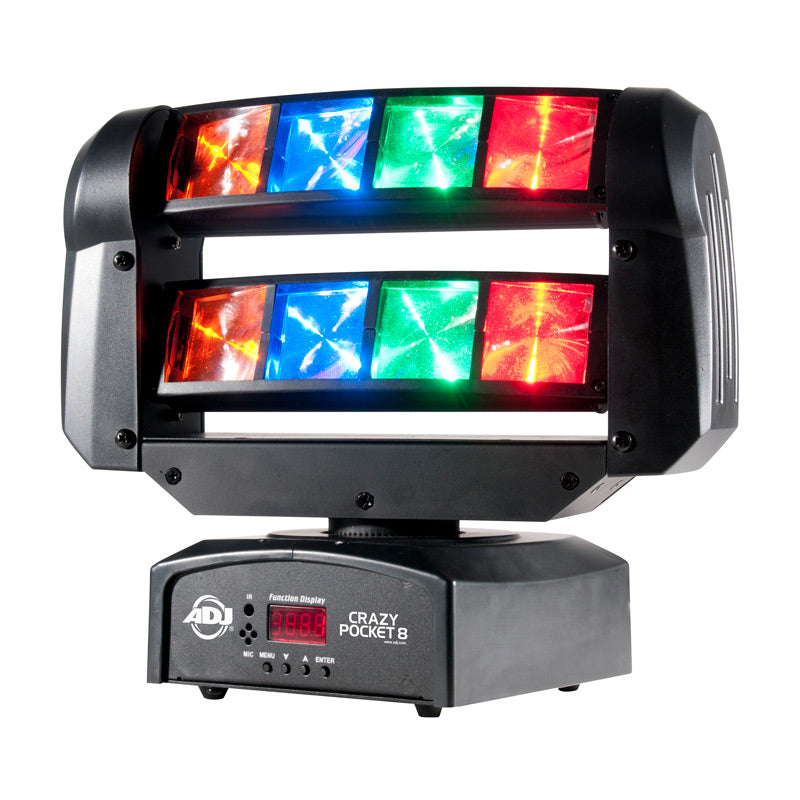

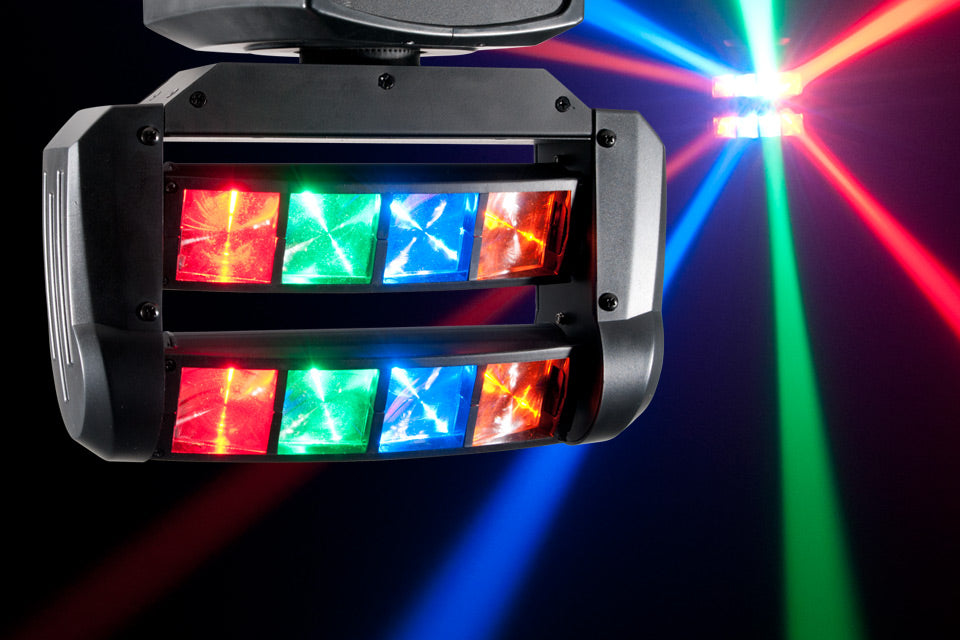

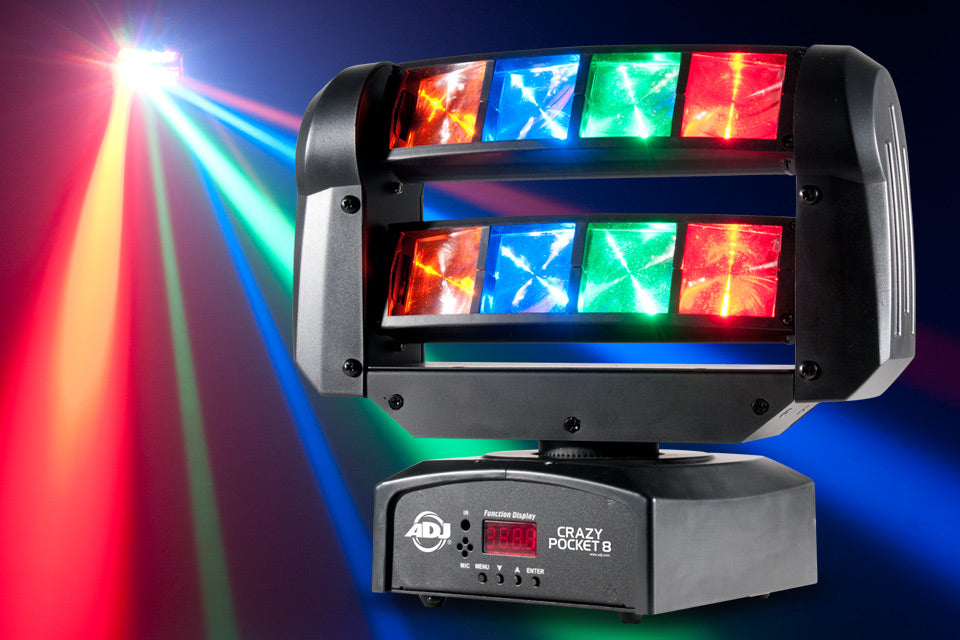

The ADJ Crazy Pocket 8 Moving Head creates exciting lighting effects with its quick sweeping beams and 8-Zone chasing, pulsing and strobing LEDs. This unique fixture features two independently tilting bars (each with 4 lenses) that project tight, 4 degree beams of light from 3-Watt RGBA LEDs.
The Crazy Pocket 8 offers 4 DMX Channel modes and a 4-Button LED menu. It may be controlled via it’s own built-in programs, a DMX Controller or the easy-to-use UC IR Remote (Sold Separately) or Airstream IR. Best when used in multiples, the Crazy Pocket 8 is designed for stages, nightclubs and mobile entertainers.
Specifications
• Moving Head fixture with quick sweeping 8-Zone RGBA LED chase Dual LED Bars, each with 4 lenses, move independently
• 3 Operational modes: Sound Active Mode, Show Mode, amp; DMX Controlled
• 4 DMX Channel Modes: 1/9/17/21
• Electronic Dimming: 0 - 100%
• LED pulse amp; strobe effect
• 4-Button DMX digital display
•5 selectable Dim Curves (Standard, Stage, TV, Architectural amp; Theatre)
• 540-degree base pan, 205-degree bar tilt from smooth Stepper Motors
• Extremely Long Life (Rated at approximately 50,000 hrs.)
• Beam angle: 4-degrees
• Light output: 1733 LUX @2M; 3850 LUX @4M (4-degree beam)
• Runs extremely cool! - NO Duty Cycles! ndash; Run all night!

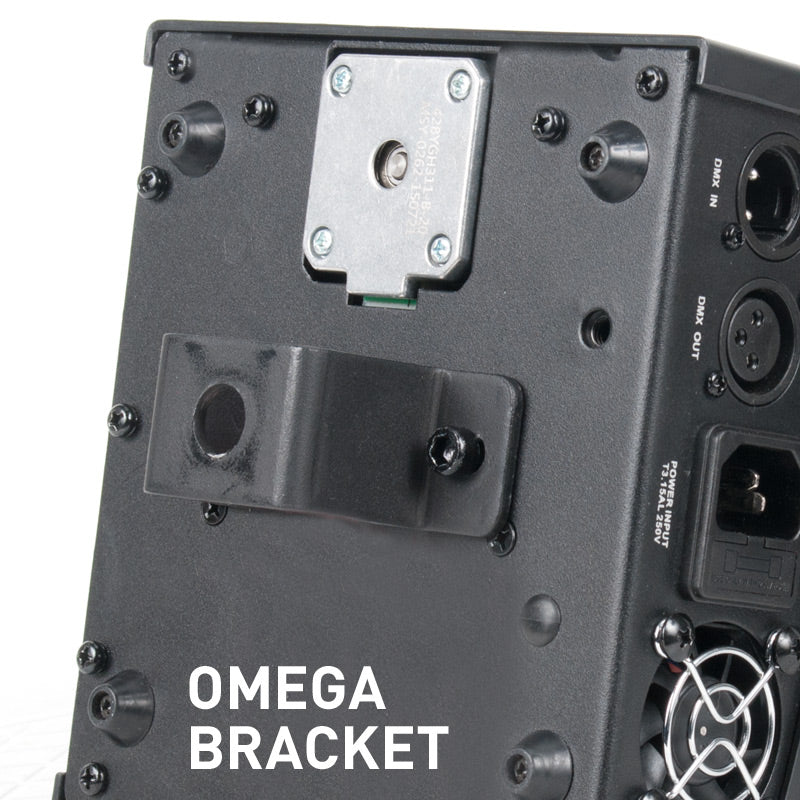

• Includes mounting brackets to mount on a wall or set on the ground
• Includes Safety loop
• Very low power consumption
• Compatible with ADJ UC IR Remote (sold Separately) amp; Airstream IR
• DB Rating @ 1Meter: Front: 37.7; Back: 36.6; Left: 37;
Right: 37.2; Top: 37
• Light Source: 8x 3-Watt RGBA LEDs (2 Red, 2 Green, 2 Blue, amp; 2 Amber)
• Power Consumption: 59W (All LED's @ Full On)
• Multi-voltage operation: AC 100-240V 50/60Hz
• Power Cable Length: 1.5m (IEC)
• Dimensions (LxWxH): 11.75" x 6" x 10.25" / 298 x 149 x 262mm
• Weight: 8 lbs. / 3.5 kg.
Downloads
Cad drawing
Photometrics
User manual
