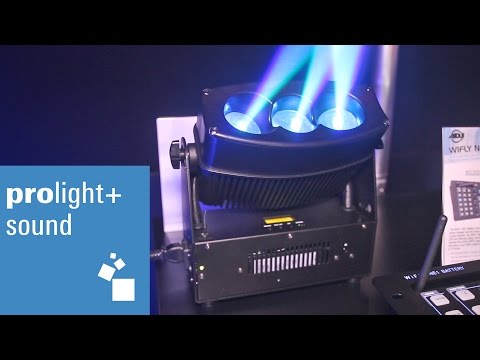

Video
Chameleon QBar Pro
Available Now! • $299.99

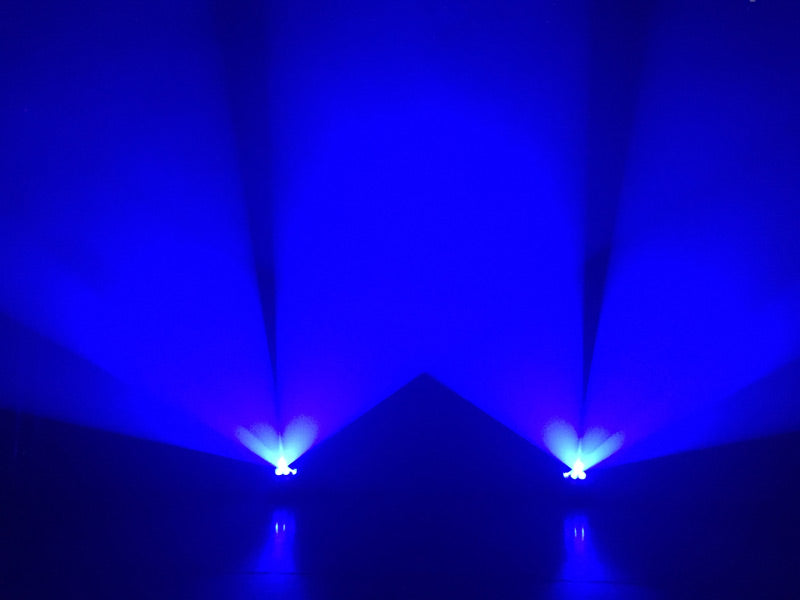

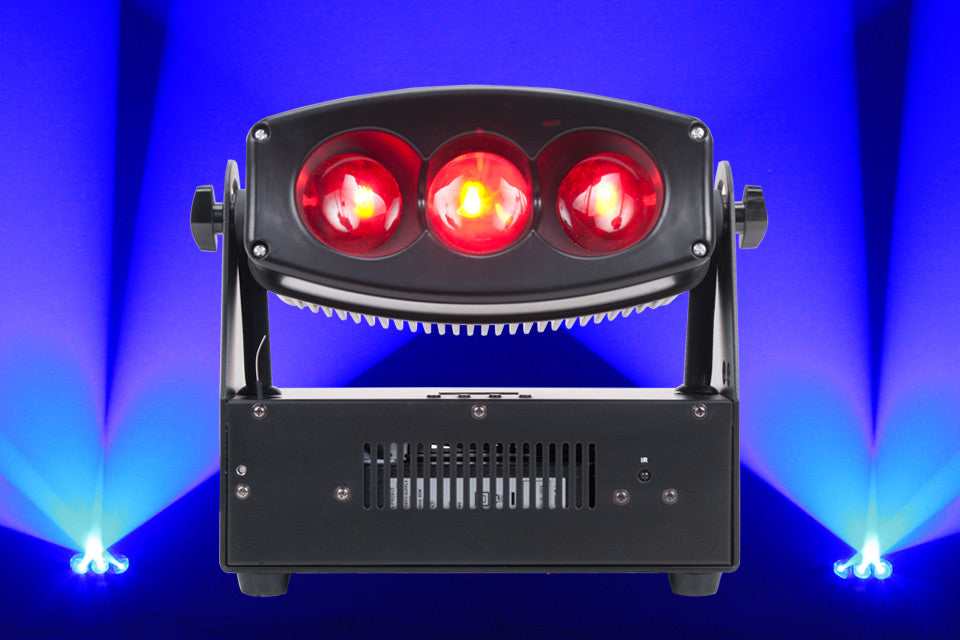

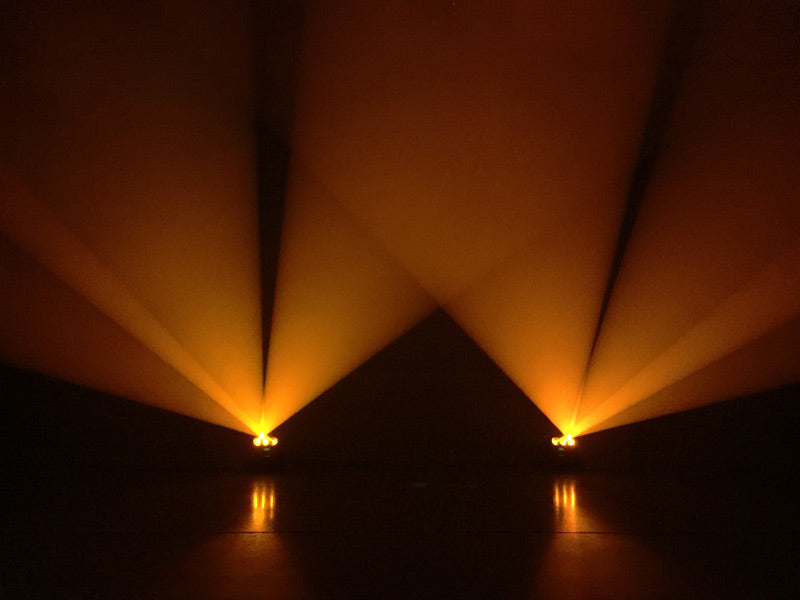

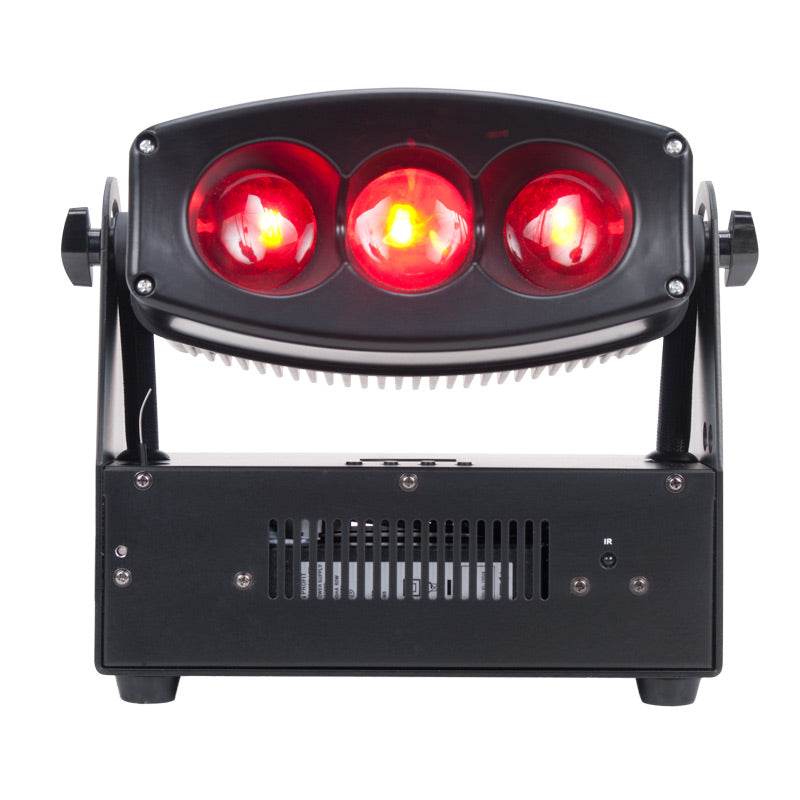

The ADJ Chameleon QBar Pro creates beams from 3 different angled lenses with offset colors for a one-of-a-kind effect. This unique wall washing fixture is powered by three 30W RGBA (4-IN-1) LEDs, and includes ADJ’s WiFLY EXR “Extend Range” wireless DMX up to 2,500 feet. The head is adjustable to change the beam direction.
The Chameleon QBar Pro has 6 DMX channel modes, 6 operational modes, 3-pin DMX and IEC In/Out to daisy chain power. Its compatible with all ADJ WiFLY fixtures and controllers.
Learn more about the Chameleon QBar Pro from the product spotlight article: CLICK HERE
Specifications
Features:
• Built-in WiFLY Extended Range wireless DMX (up to 2,500 ft)
• Adjustable head to manual change beam direction
• Individual Pixel Control
• 2 x 8 Character LCD Display
• 19 Built-In Programs
• 63 Color Macros
• LED pulse strobe effect
• Electronic Dimming: 0 - 100%

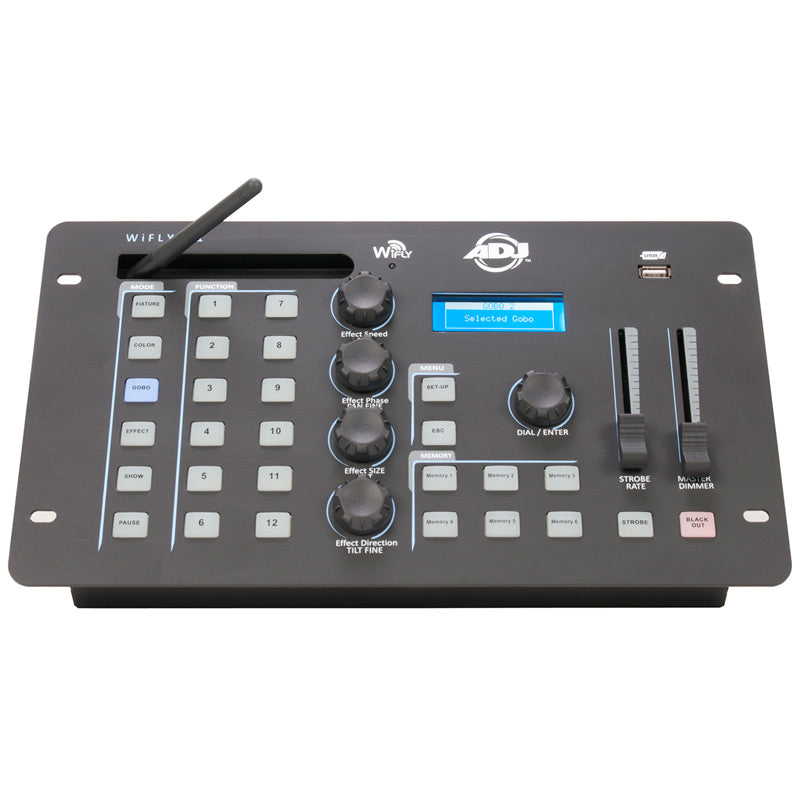

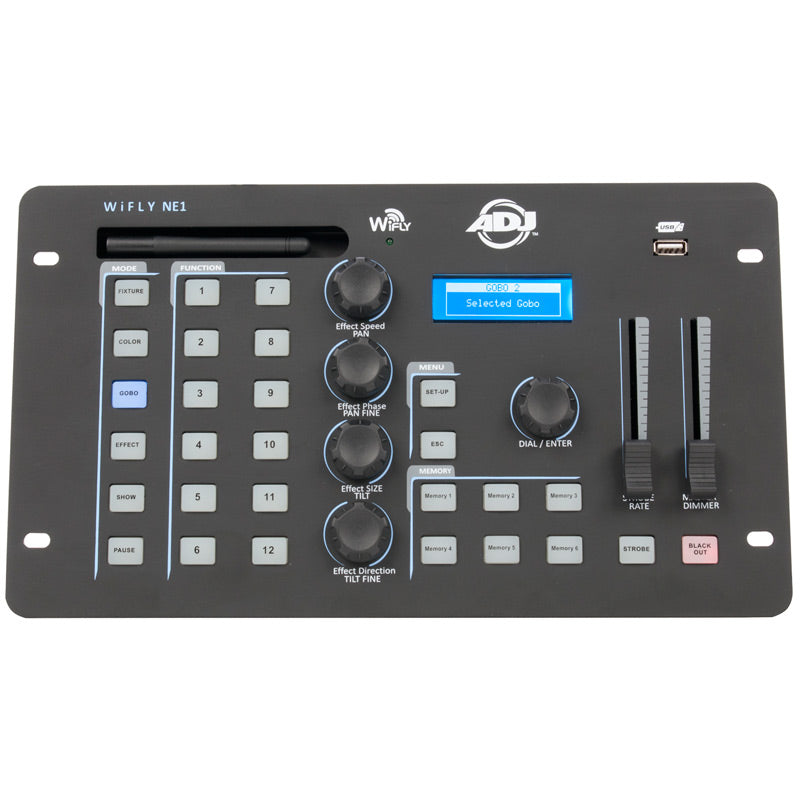

• Compatible with all ADJ WiFLY fixtures and controllers plus the ADJ LED RC2, UC IR wireless remotes (both remotes sold separately), and Airstream IR
Specifications:
• 7 DMX channel modes 4/5/7/9/10/12/14
• 6 Operating Modes: RGBA Dimmer Mode, Built-In Program Mode (19 Programs), Auto Run Mode, Static Color Mode, Sound Active Mode, DMX Control
• 15 degree beam angle

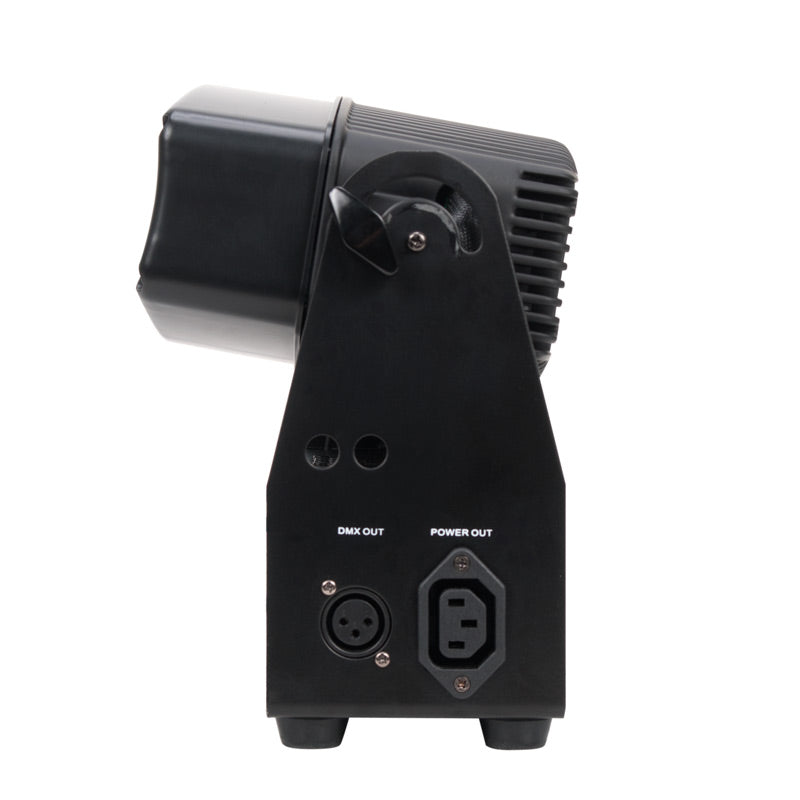

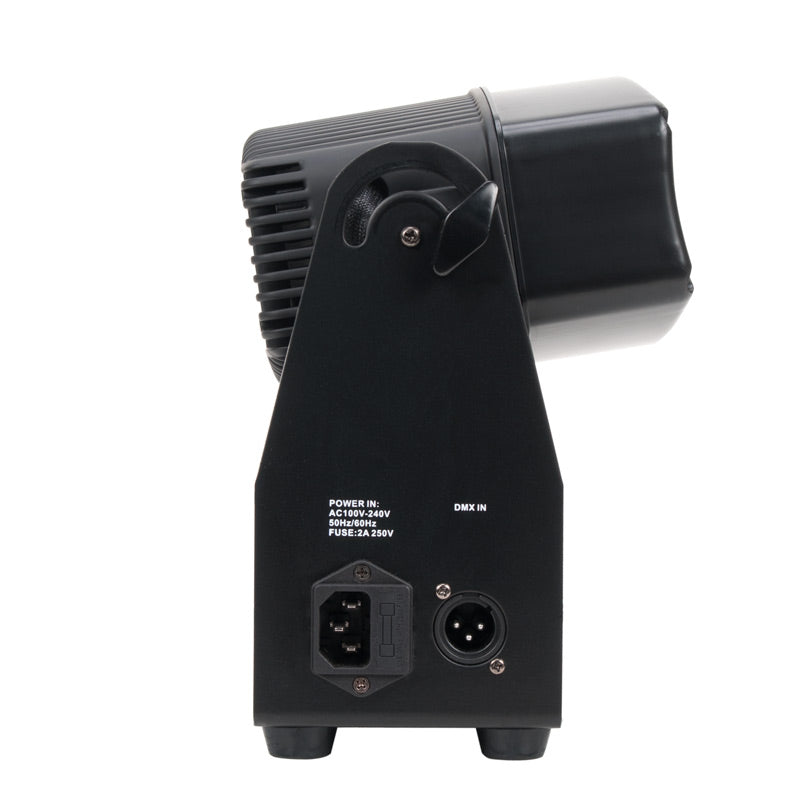

• DMX-512 Protocol 3-pin XLR In/Out
• IEC in/out to Daisy Chain Power (Connect up to 6 fixtures max.)
• Power Consumption: 100W
• Multi-voltage Operation: 100-240V, 50Hz/60Hz
• 3 x 30W RGBA (4-in-1) LEDs
• Refresh Rate: 900Hz
• Light Output: 196 LUX @ 2M; 53.6 LUX @4M (15-degree beam)
• Dimensions (LxWxH): 270 x 100 x 260mm / 10.5” x 4” x 10.25”
• Weight: 8 lbs. / 3.7 kg.
Downloads
Cad drawing
Photometrics
User manual
Chameleon QBar Pro Parts & Service
Our Chameleon QBar Pro Parts and Support page is your hub for technical support for your product. Here you’ll find support docs, service resources, and replacement parts specifically matched to your Chameleon QBar Pro. You can also use this area to plan future maintenance, extending the life of your investment and minimizing downtime.
