ArKaos Studio Server
The ArKaos Studio Server is a powerful system designed for Professional Lighting Designers.
ArKaos Studio Server
Features
Plug and Play SimplicityVast library of high quality digital media from world’s best visual content providers

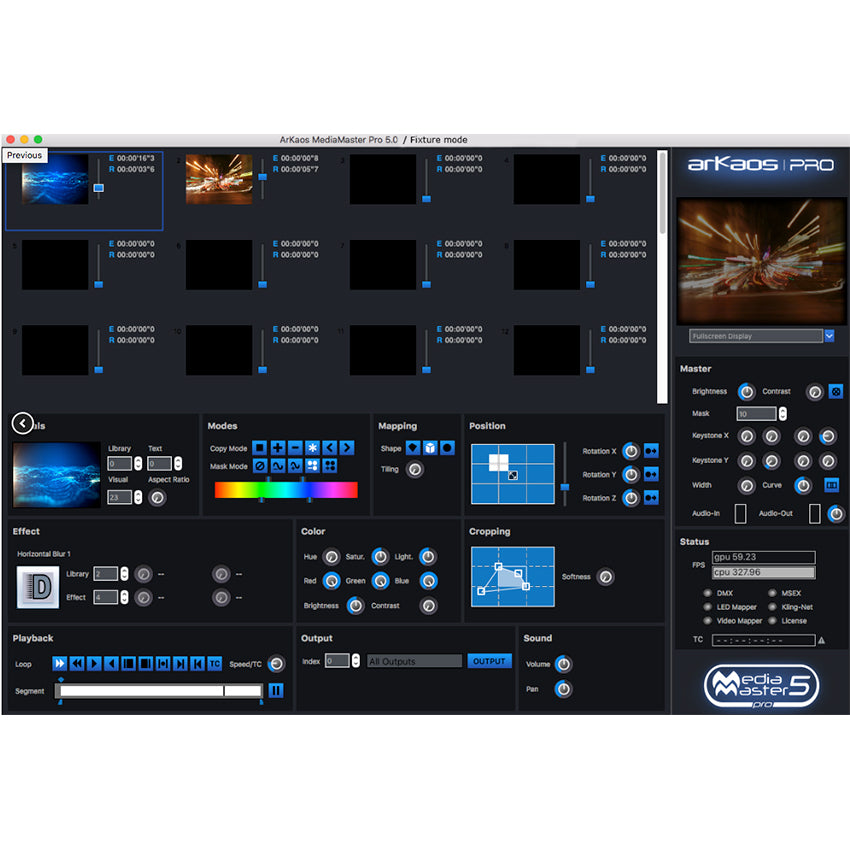

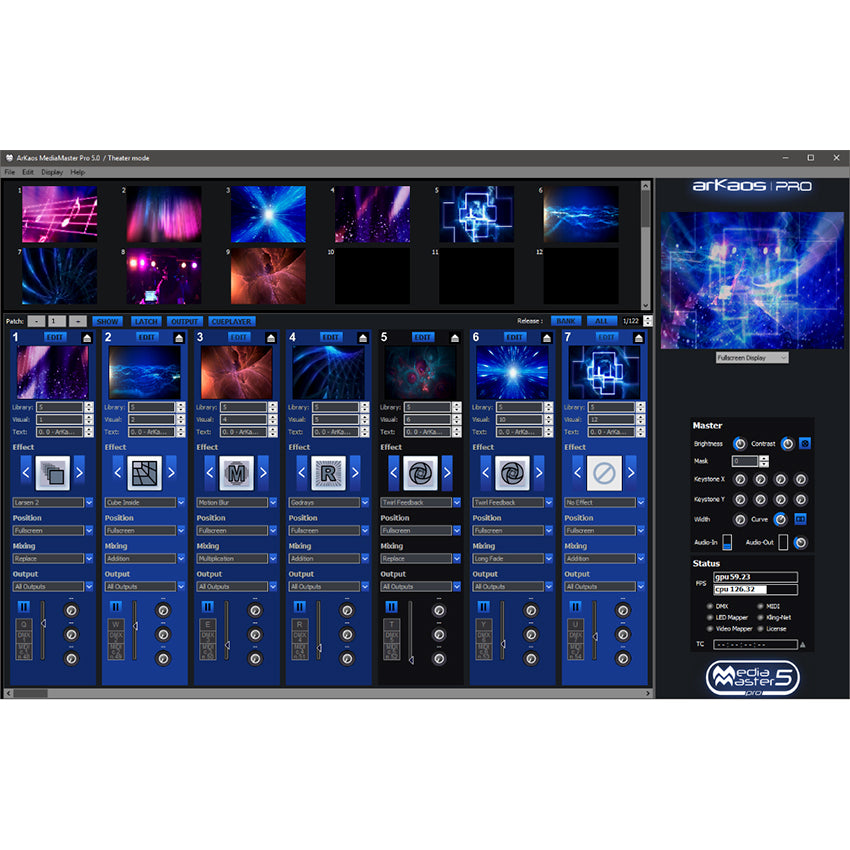

Comes installed with MediaMaster Pro
Smart DesignRuns full HD video on up to four EDID managed outputs
One HD-SDI input and fast SSD drive
Large LED status strip for quick visual feedback on the server’s operation state
Front display allows use of server without the need of additional screens
Fast recovery system by Acronis allows extremely simple reset from the boot menu
Pre-configured to work directly with all market-leading DMX lighting desks
Blistering PerformanceShock-resistant up to 2G
Easy access to fans and filters
Thoroughly tested in structural strength, and toleration of heat and vibration
Specifications
SPEIFICATIONS:

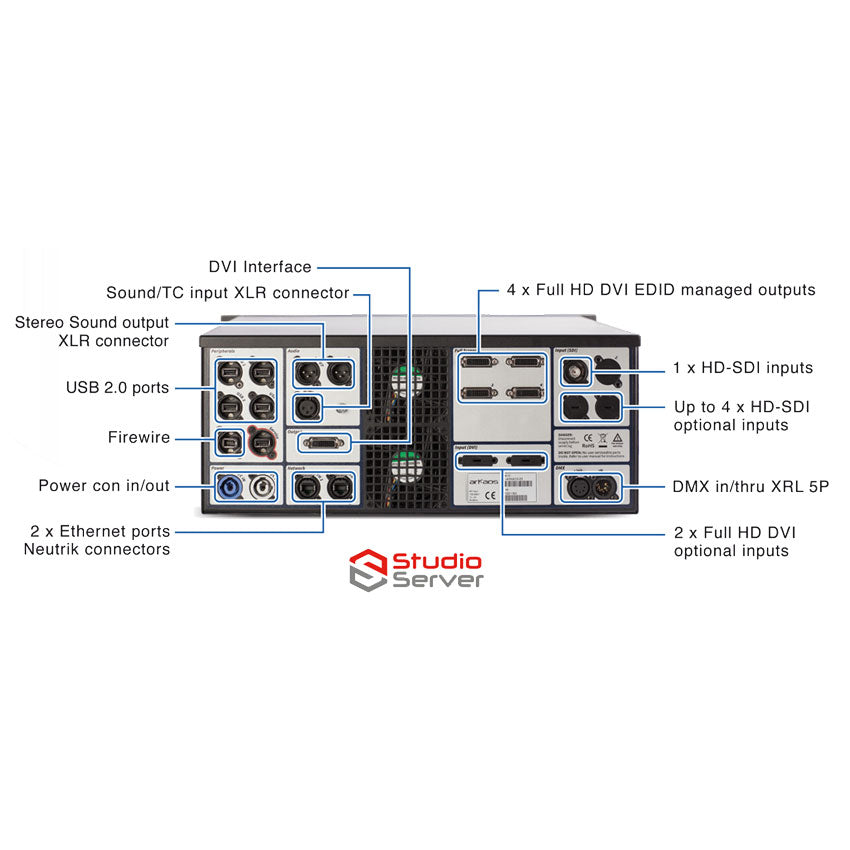

I/O
Interface Output: 1 (DVI)
Output: 4 (DVI)
EDID Management: Yes
Input (Standard): 1x HD-SDI
Input (Upgrade): Up to 4 x HD-SDI 2 x DVI
Output Resolution: 4 x Full HD
DMX 5pin Connectors: Yes
Genlock: No
Framelock: No
USB: 2 x USB 3.0 + 4 x USB 2
Balanced Audio In/Out (XLR): Yes
Network: 2
STORAGE:
System Drive: SSD 128 GB
Separate Drive: SSD 256 GB
SOFTWARE:
MediaMaster: Pro
CuePlayer (Theater mode): Yes

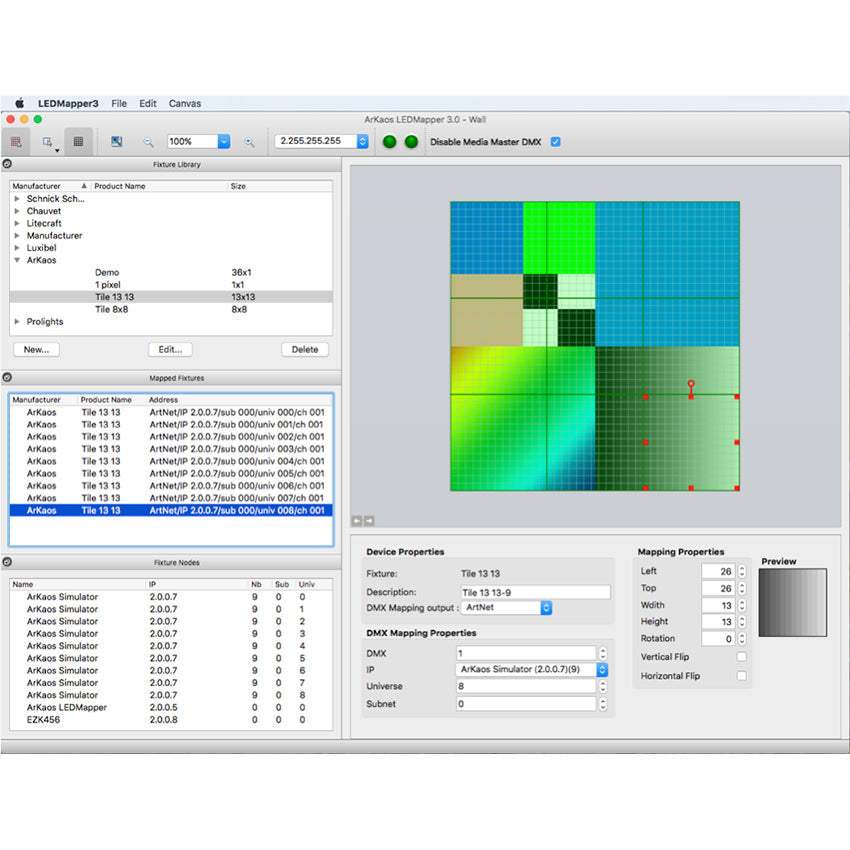

LED Mapper: Yes
Kling-Net Mapper: Yes

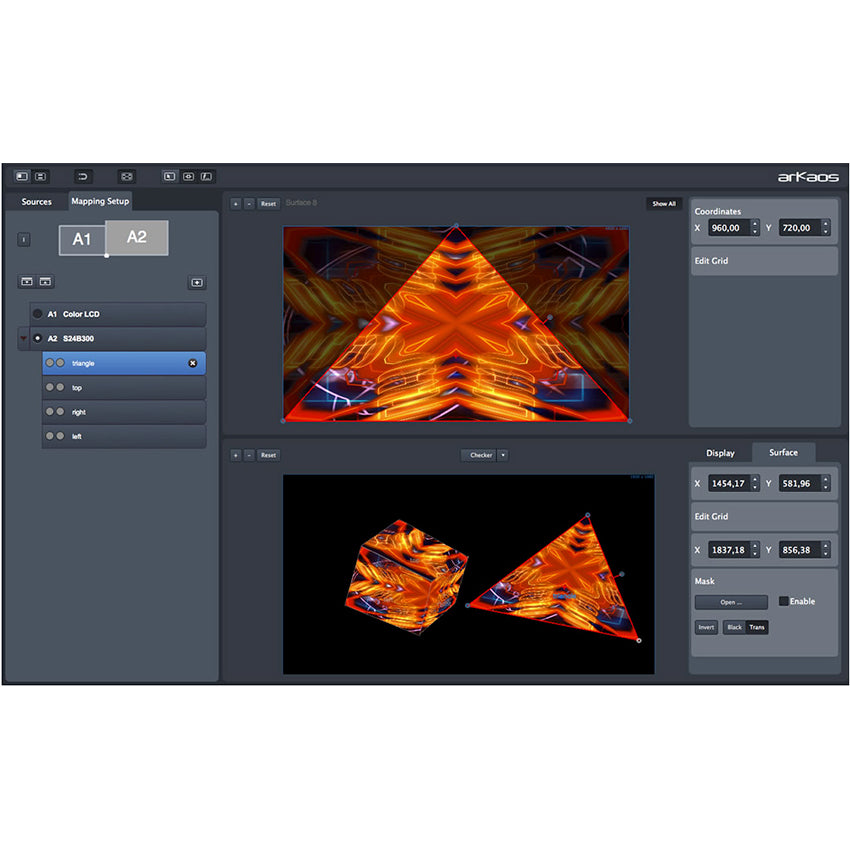

Video Mapper: Yes
Acronis Backup System: Yes
Layers Full HD: Up to 12
Layers HD: 12
Soft-Edge / Geometrical Correction; Yes
CONTROL:
Control Display (Front Panel): Yes
LED Strip (Front Panel): Yes
DMX / MIDI / Keyboard: Yes
ArtNet / MA-Net: Yes
HARDWARE
Voltage: 107-240V Auto Switching
Professional Connectors: Yes
RDM (Remote Device Management): Yes
SIZE / WEIGHT:
Height: 6.9” (176mm)
Length: 16.8” (426mm)
Depth: 20.0” (510mm)
Unit Weight 55.1 lbs. (25kg)
Specifications and documentation subject to change without notice.
