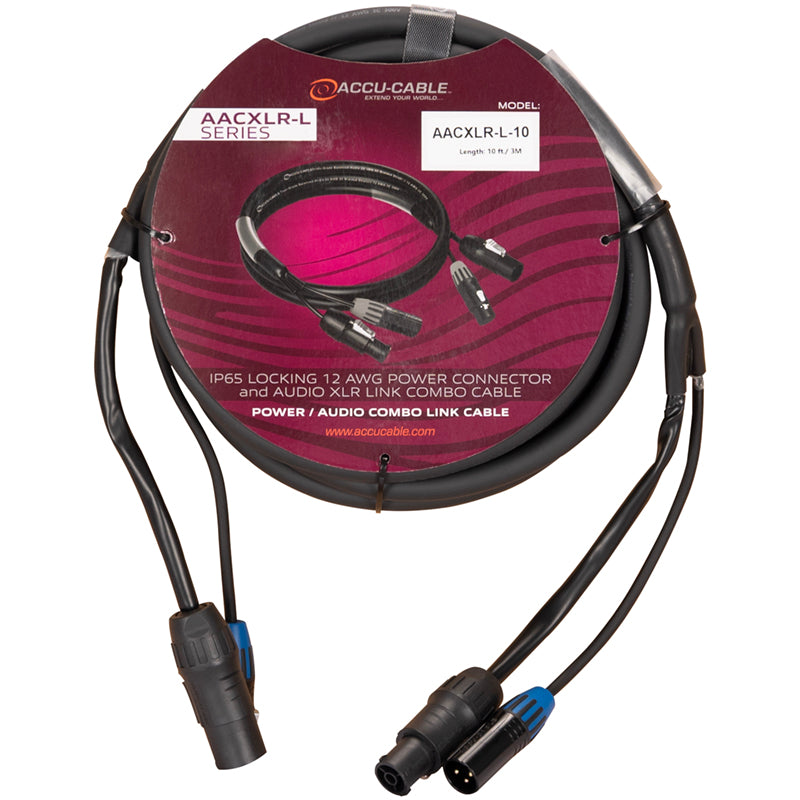

Connect compatible powered speakers with greater placement flexibility using the Accu-Cable AACXLR-L-10. This 10 ft / 3 m cable combines balanced 3-pin XLR audio and locking power connections into one flexible assembly for cleaner stages, faster setups, and more organized installations.
UPC: 810087375478SKU: AACXLR-L-10

AACXLR-L-10

The Accu-Cable AACXLR-L-10 Power/Audio Combo Link Cable provides the additional reach needed to link compatible powered speakers across stages, platforms, and permanent audio installations. Its 10 ft / 3 m length combines balanced audio and power connections into one streamlined cable, reducing clutter and simplifying system setup.

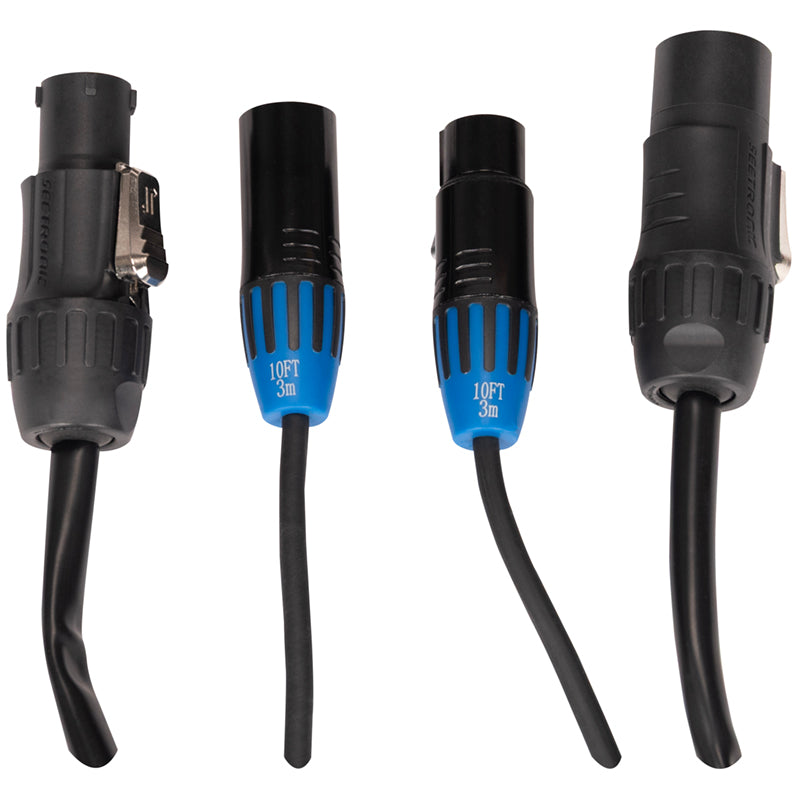

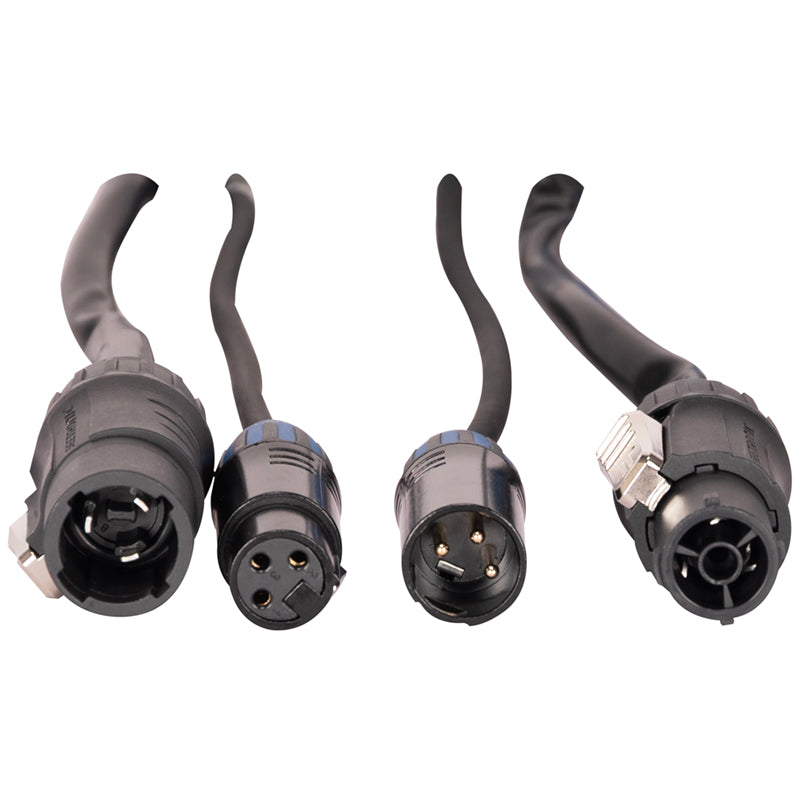

The XLR-M to XLR-F connection carries balanced audio from the output of one powered speaker to the input of the next. At the same time, locking IP-M to IP-F connectors link power between compatible equipment. This integrated design helps production professionals, installers, and venue operators reduce the number of individual cables required for each speaker connection.

Constructed with two-conductor 20 AWG twisted-pair audio wiring, a braided shield, three-conductor 12 AWG power wiring, and a flexible 12 mm PVC jacket, the AACXLR-L-10 is designed for professional audio production, touring, corporate events, churches, and entertainment venue installations.

Specifications

Key Features:
  • Combines balanced audio and locking power connections
  • Designed for linking compatible powered speakers
  • Reduces the number of cables required for each connection
  • 10 ft / 3 m length supports wider speaker spacing
  • Helps create cleaner stages and permanent installations
  • Simplifies equipment setup and teardown
  • Heavy-duty 12 AWG power conductors
  • Shielded twisted-pair audio construction
  • Flexible PVC jacket for convenient cable routing
  • Suitable for portable production and fixed installations


Specifications:

  • Model: AACXLR-L-10
  • Cable length: 10 ft / 3 m
  • Audio connector A: 3-pin XLR male
  • Audio connector B: 3-pin XLR female
  • Audio cable: Two-conductor 20 AWG twisted pair
  • Audio shielding: Braided shield
  • Power connector A: Locking IP male
  • Power connector B: Locking IP female
  • Power cable: Three-conductor 12 AWG
  • Outer jacket: Flexible PVC
  • Cable diameter: 12 mm


Recommended Applications:

  • Powered speaker systems
  • Concert tours
  • Live production
  • Corporate audiovisual events
  • Houses of worship
  • Theaters and performing arts centers
  • Nightclubs, bars, and lounges
  • Entertainment venue installations
  • Professional and commercial audio installations

Specifications are subject to change without notice.
