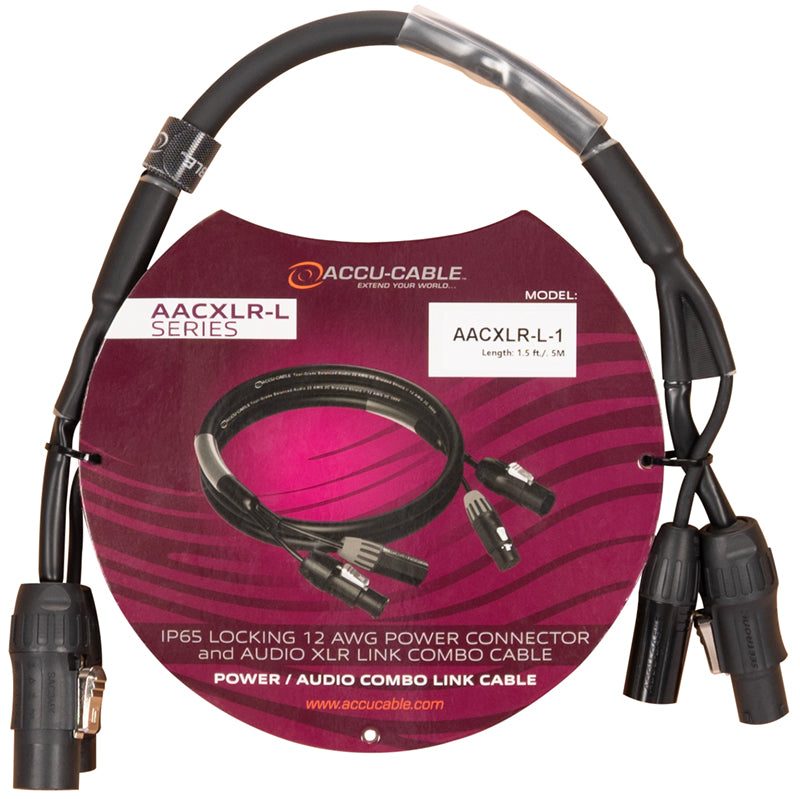

The Accu-Cable AACXLR-L-1 combines balanced 3-pin XLR audio and locking power connections in one compact 1.5 ft / 0.5 m cable. Ideal for linking closely positioned powered speakers, it reduces cable clutter while creating a clean, professional-looking setup.
UPC: 810087375454SKU: AACXLR-L-1

AACXLR-L-1

Create a clean and convenient connection between closely positioned powered speakers with the Accu-Cable AACXLR-L-1 Power/Audio Combo Link Cable. This compact 1.5 ft / 0.5 m cable carries balanced audio and power through one flexible assembly, eliminating the need to run separate cables between compatible components.

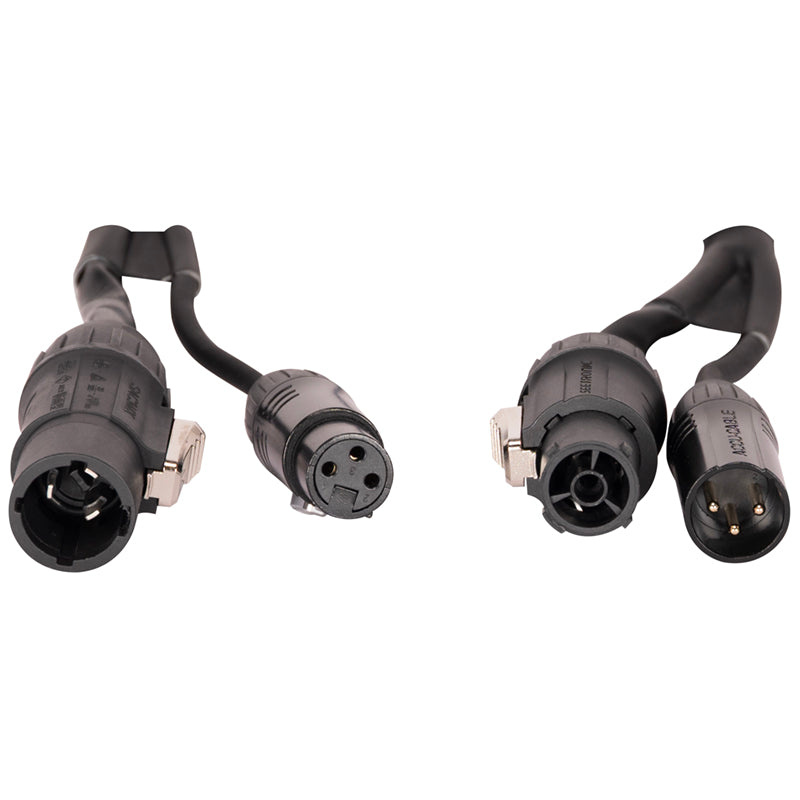

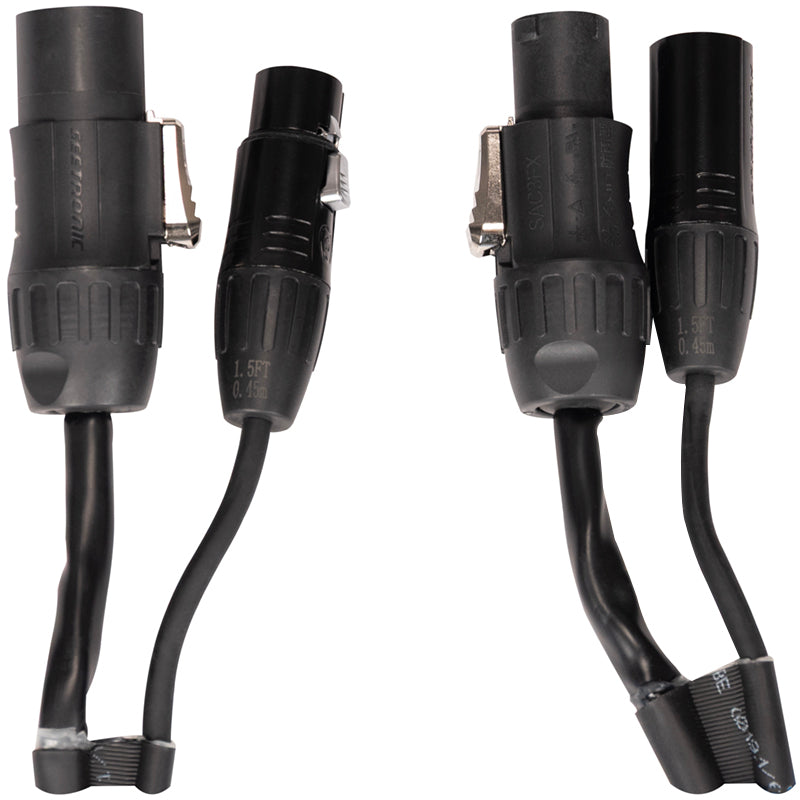

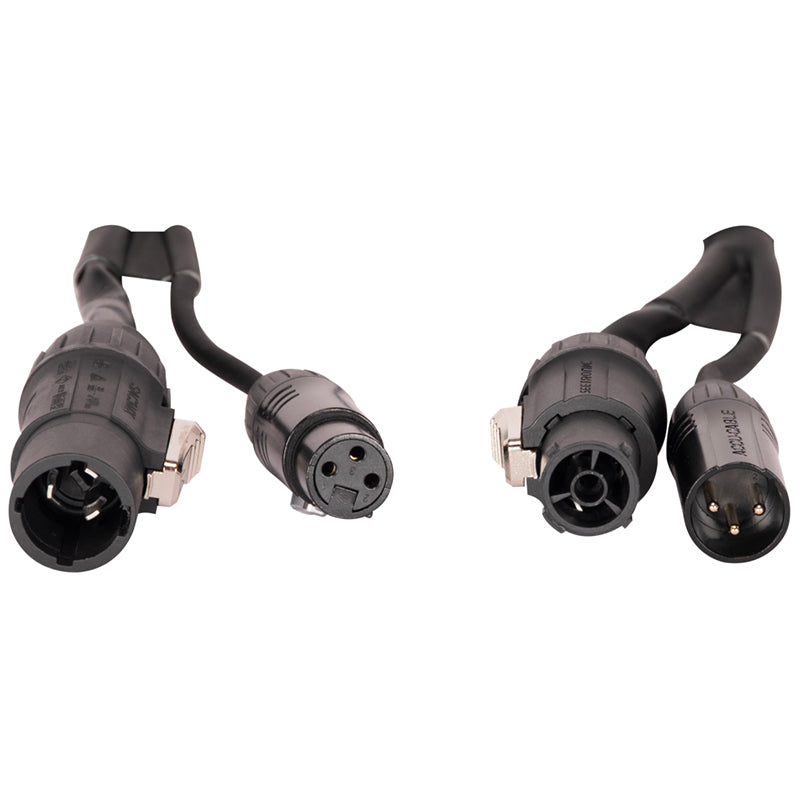

The XLR-M to XLR-F audio connection makes it easy to link the audio output of one powered speaker to the input of the next, while the locking IP-M to IP-F power connection passes power between compatible devices. Its short length is ideal for adjacent line-array elements, speaker stacks, floor monitors, and equipment installed closely together.

Built with 20 AWG twisted-pair audio conductors, a braided shield, 12 AWG power conductors, and a flexible 12 mm PVC outer jacket, the AACXLR-L-1 delivers a compact and organized cabling solution for professional audio systems.

Specifications

Key Features:
  • Combines balanced audio and power in one cable
  • Designed to link compatible powered speakers
  • Reduces the need for separate audio and power cables
  • Helps create cleaner stages and installations
  • Compact length for closely positioned equipment
  • Flexible PVC jacket for easy routing
  • Ideal for portable and permanently installed audio systems


Specifications:

  • Cable length: 1.5 ft / 0.5 m
  • Audio connector A: 3-pin XLR male
  • Audio connector B: 3-pin XLR female
  • Audio cable: Two-conductor 20 AWG twisted pair
  • Audio shielding: Braided shield
  • Power connector A: Locking IP male
  • Power connector B: Locking IP female
  • Power cable: Three-conductor 12 AWG
  • Outer jacket: Flexible PVC
  • Cable diameter: 12 mm


Recommended Applications:

  • Powered speaker stacks
  • Line-array elements
  • Floor monitors
  • Concert and touring systems
  • Corporate audiovisual systems
  • Houses of worship
  • Entertainment venue installations
  • Professional audio installations


Specifications are subject to change without notice.
