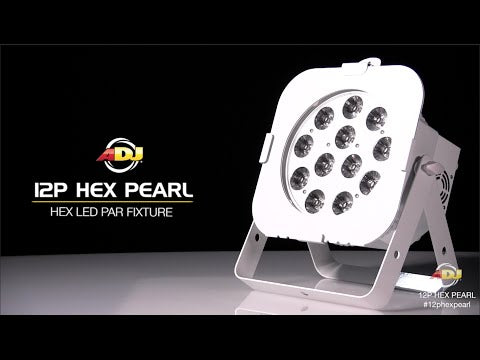

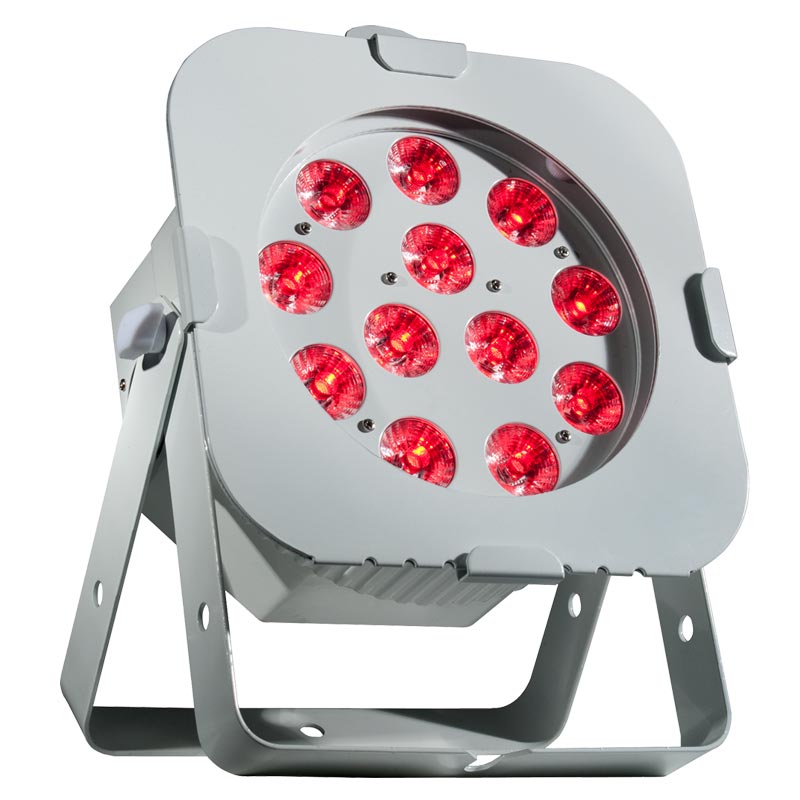

12P HEX Pearl

• Ultra bright, flat wash fixture with 12 x Red, Green, Blue, Amber, White UV LED pixels
• White metal casing

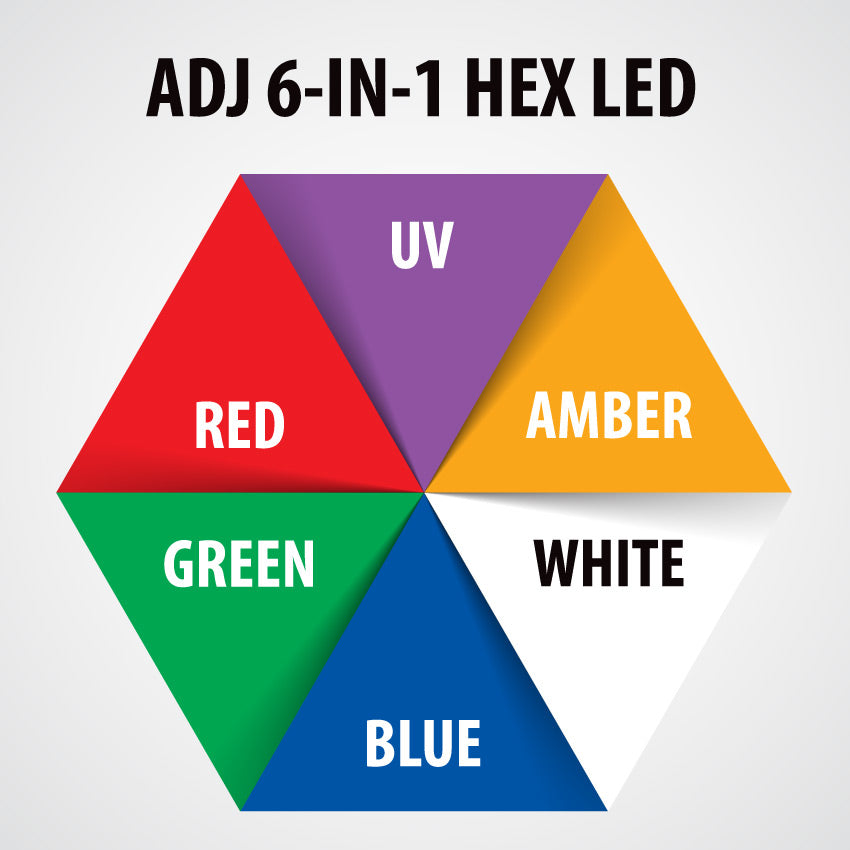

• Smooth RGBAW + UV color mixing

• Great as an architectural wall wash or for performance stages where traditional stage lighting emit a lot of heat onto performers

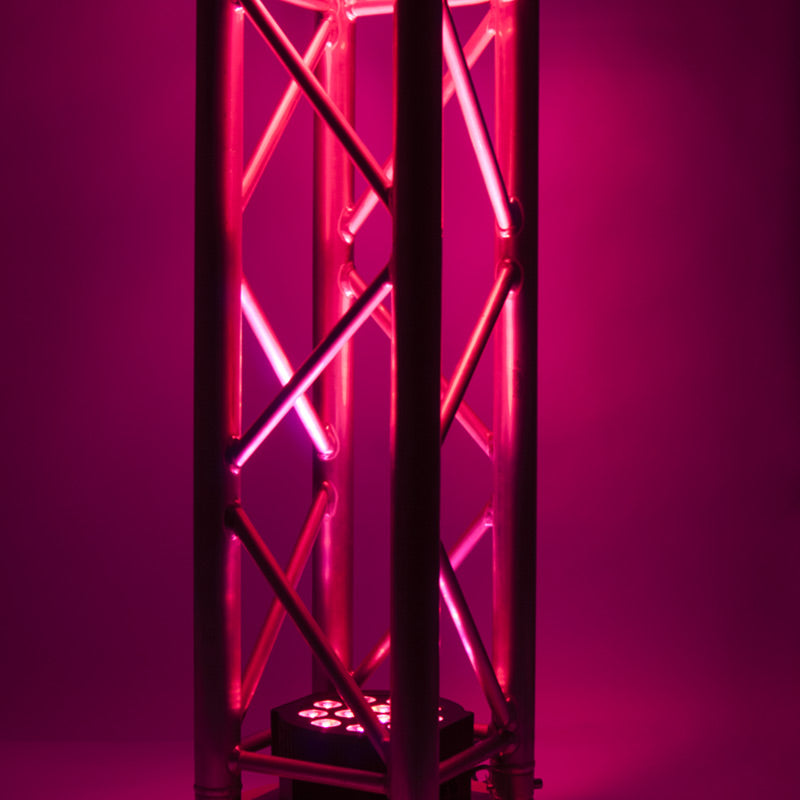

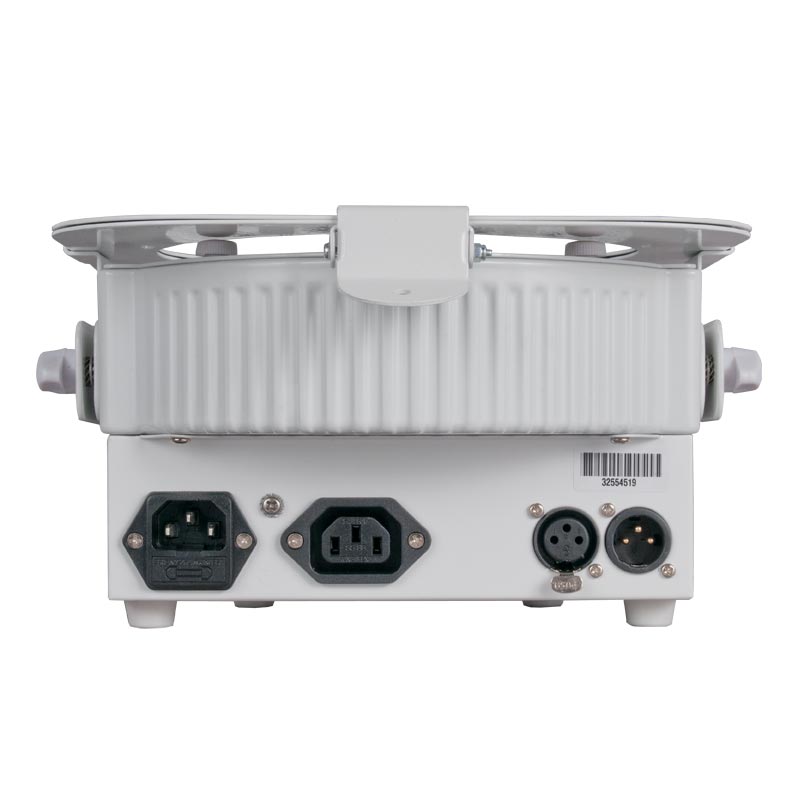

• Intelligently designed, patent pending power DMX Ins/Outs sit sideways so the unit can be set flat on the ground or set inside truss

• 4 DMX Modes: 6, 7, 8, 12 channel

• 5 Operational modes: Static Color Mode, RGBAW UV Dimmer Mode, Program Mode, Sound Active Mode and DMX Controlled, RDM (Remote Device Management)

• 7 Built-In Programs

• 63 built-in Color Macros

• Flicker Free operation (No flickering on camera)

• 5 selectable Dimmer Curves (Standard, Stage, TV, Architectural Theatre)

• LED pulse and strobe effect

• Electronic Dimming: 0 - 100%

• Beam angle: 30-degree
• Includes metal gel frame

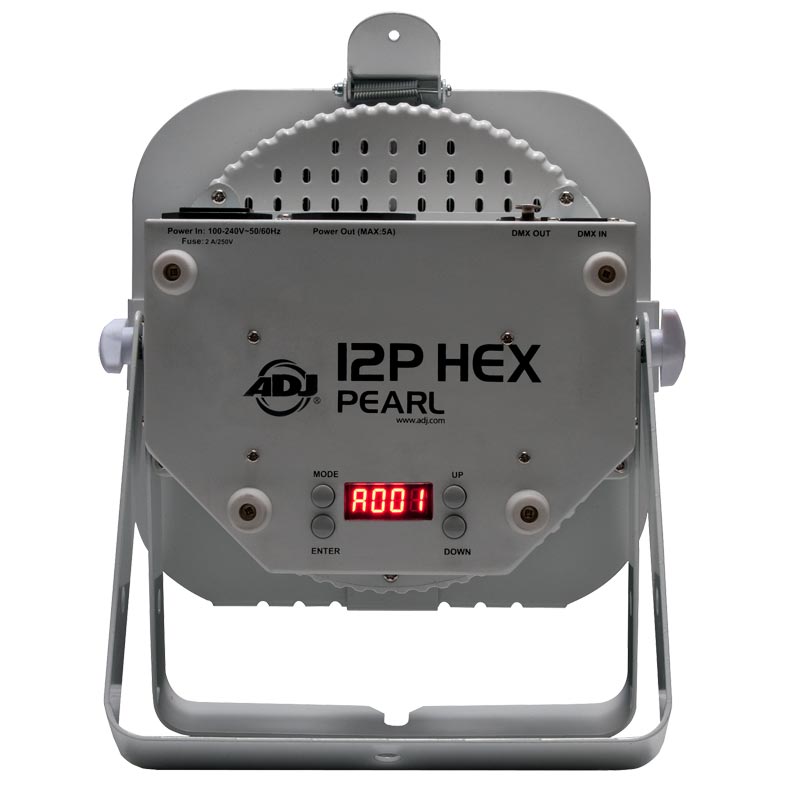

• 4-button, DMX digital display on rear panel

• Compatible with Dotz Par RF wireless remote control (sold separately)

• Dual yoke allows fixture to be hung or set on the ground

• Data linkable via 3-pin XLR cables
• With Wired Digital Communication Network

• Power linkable via IEC power cables. (6x 12P Hex’s Max @ 110V, 13x 12P Hex’s Max @ 240V

• Light Source: 12x 12-Watt RGBAW + UV LEDs, (Rated at approximately 50,000 hrs.)
• Light Output: 2270 LUX @2M; 733 LUX @4M (30-degree beam)
• UV Wavelength: 395nm
• Refresh Rate: 3.6KHz

• Power Draw: 150W total (All LED's @ Full On)

• Multi-voltage operation: AC 110-250V, 50/60Hz (IEC power In/Out)

• Dimensions (LxWxH): 11.75” x 10” x 5.5”/ 298 x 249 x 136mm

• Weight: 9 lbs. / 3.9 kgs
• ETL Approved
