10 MXR
The American Audio MXR Series offers DJs the tactile feel and operation of a traditional DJ mixer while playing and controlling music from software on their computer.

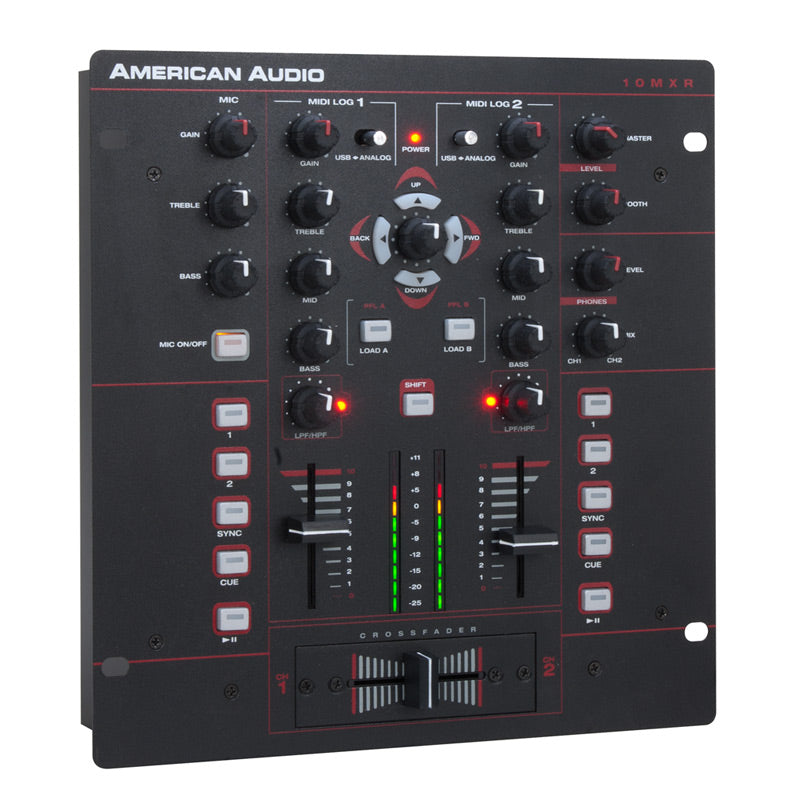

The 10 MXR is a 10-inch, 2-Channel MIDILOG™ Mixer with Midi/Analog control, built-in DSP D-Core Sound Card with 4-In/4-Out audio interface, Balanced XLR Outputs, MIDI Navigation Controls and user assignable control buttons to make it easy to customize and play your music. ®
Specifications
• 10-inch, 2-Channel MIDILOG™ Mixer (compatible with any “Midi Learn” Software or Analog Inputs – such as CD Players, Turntables, etc.)

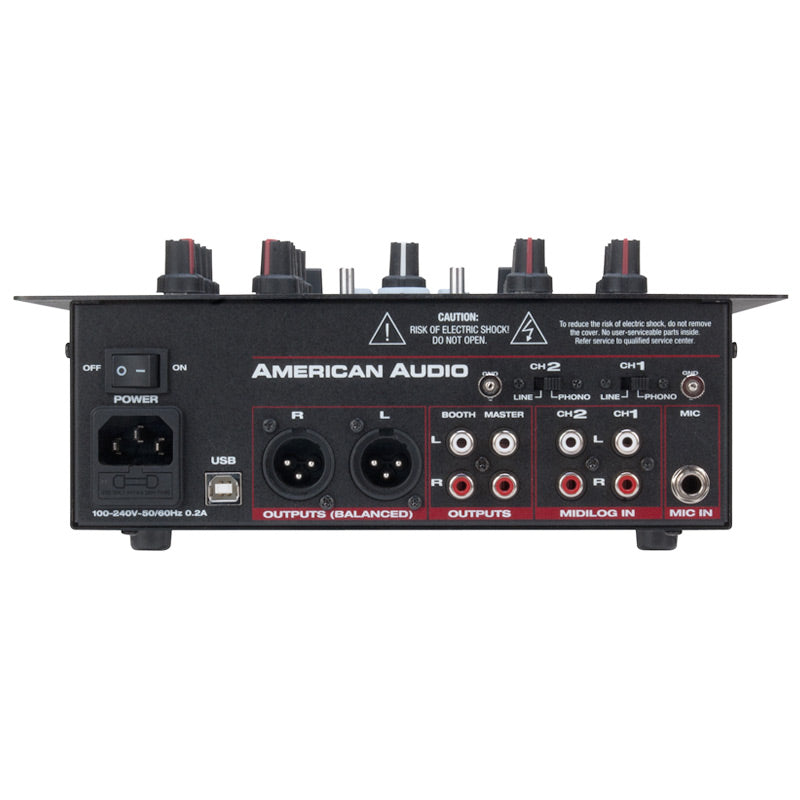

• Inputs: 2 Line, 2 Phono, 1 Mic
• 18 On-board Midi Control Buttons (Mapable)
• MIDI interface (USB MIDI I/O)
• Built-in DSP D-Core™ Sound Card with 4-In/4-Out audio interface
• Balanced XLR Outputs
• 3-Band EQ with Rotary Kills (Treble, Mid, Bass)
• Midi Navigation Controls to allow easy software navigation of your music library
• Crossfader Curve Adjustment
• Crossfader Direction Switch (Forward/Reverse)
• Master, Booth, 1/4-inch Stereo Phone Level amp; Mix Controls
• Microphone Volume Control + 2-Band EQ (Treble amp; Bass)
•Low/High Pass Filter Control per channel
• 10 segment VU meter
• Audio inputs: RCA
• Microphone input: ¼” Balanced
• 1/4-inch Stereo Phone Jack
• Multi-voltage operation: AC 100V~240V 50/60Hz
• Dimensions (LxWxH): 10.25”x10”x 3.5” / 260x254x85mm
• Weight: 6 lbs. / 2.5 kg.
10 MXR Parts & Service
Our 10 MXR Parts and Support page is your hub for technical support for your product. Here you’ll find support docs, service resources, and replacement parts specifically matched to your 10 MXR. You can also use this area to plan future maintenance, extending the life of your investment and minimizing downtime.
