PIXIE DRIVER 2000 V2
UPC#: 810087370107
Advantage Points: 450
Redemption Points: 9000
SKU
PIX261
ADJ's Pixie Driver 2000 V2 is designed specifically for the ADJ Pixie Strip 30, 60, and 120 series, and provides easy and versatile control options including simple on-board manual dimming and strobe control, and full pixel mapping control.
Control Features:
• Power / data supply for ADJ Lighting Pixie Strip 30, Pixie Strip 60, and Pixie Strip 120
• Manual RGB mode
• Internal programs
• Manual Dimming and Strobe Control
• Full Pixel Mapping Control
• 2,040 Pixels via Kling-Net
• 340 Pixels via Art-Net and sACN (streaming ACN)
• OLED screen with 4-button menu
• RDM compatible
• USB port for Firmware Updates
Control Quantity:
KlingNet/Art-Net/sACN: max 34x Pixie Strip 30; 17x Pixie Strip 60; 8x Pixie Strip 120
ArtNet: 170 pixels max each port
sACN: 170 pixels max each port
Connections:
• Power: PowerLock Input
• Two KlingNet / Artnet ethernet ports
• Two 4-pin DC24V power/data outputs to Pixie Strips
Mounting Options:

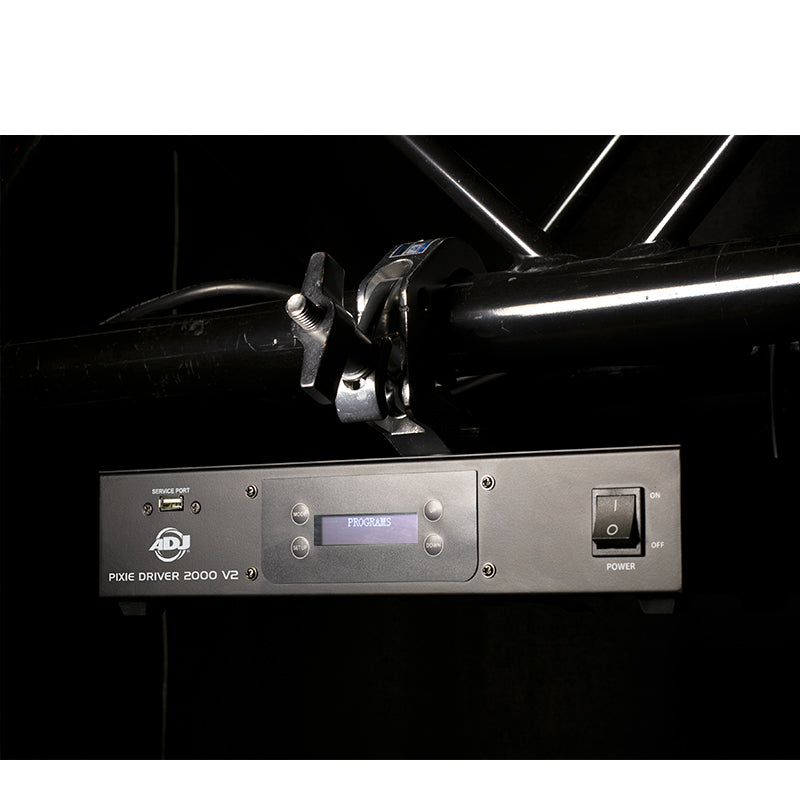

• Bolt to add a clamp to hang from truss (clamp and truss not included)

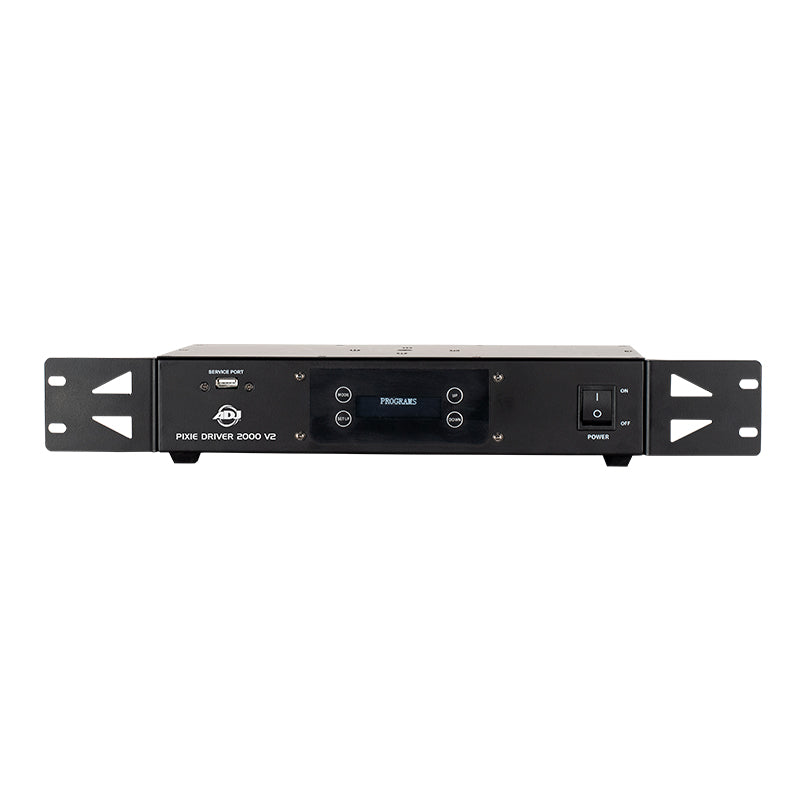

• Includes 19-inch rack mount ears
• Safety eye
Electrical:
• Multi-voltage operation: AC 100-240V, 50/60Hz
• Power Consumption: 400W max
• -4°F to 113°F (-20°C to 45°C)
Dimensions / Weight:
• Dimensions (LxWxH): 18.9” x 7.11” x 2.91” / 480x180.8x74mm
• Weight: 5.6 lbs. / 2.5 kg.
What's Included:
• Twist-Lock power cable
• 19-inch rack mount ears
• 4-pin data cable
Approvals:
CE | cETLus
Accessories:
PSLC1 (PIX158): 1-foot Pixie Strip Link Cable
PSLC3 (PIX174): 3-foot Pixie Strip Link Cable
PSLC5 (PIX188): 5-foot Pixie Strip Link Cable
PSLC10 (PIX200): 10-foot Pixie Strip Link Cable
PSLC15 (PIX213): 15-foot Pixie Strip Link Cable
PSLC25 (PIX229): 25-foot Pixie Strip Link Cable
PSLC50 (PIX242): 50-foot Pixie Strip Link Cable
Specifications are subject to change without notice.
Videos
There are currently no videos available for this product.
Downloads
The following downloads are available for this product:
| Title | Description | |
|---|---|---|
| Pixie Driver 2000 V2 3D Cad Drawing | Cad Drawing | Download |
| Pixie Driver 2000 V2 - 2D Cad Drawing | Cad Drawing | Download |
| Pixie Driver 2000 V2 - Dimensional Drawing | Dimensional Drawing | Download |
| Pixie Driver 2000 V2 - User Manual | User Manual | Download |
| Pixie Driver 2000 V2 - Driver Output Limitations | Driver Output Limitations | Download |
AVAILABLE APRIL 2022 FROM ADJ USA

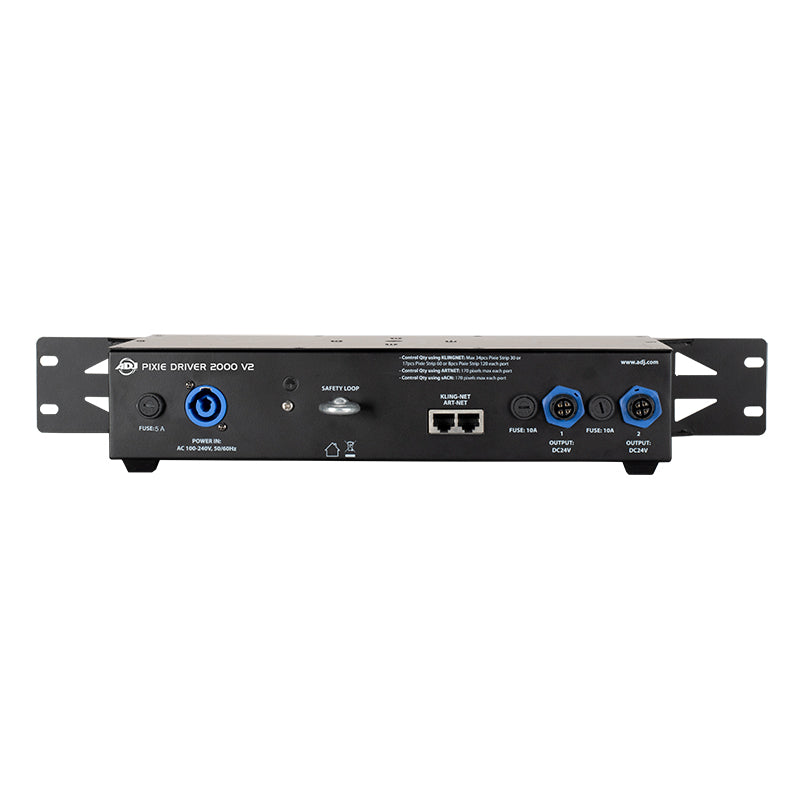

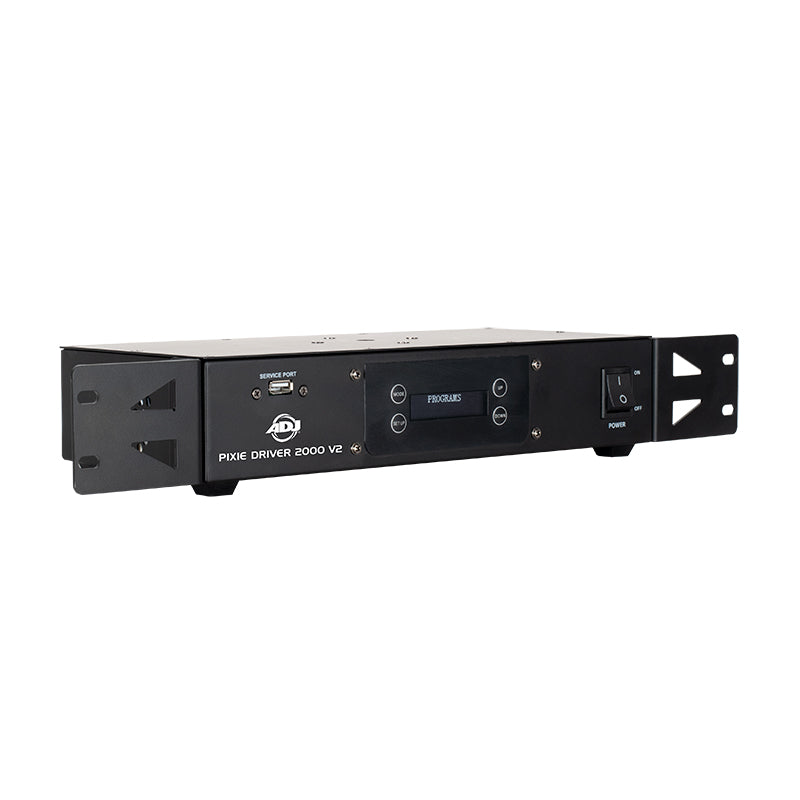

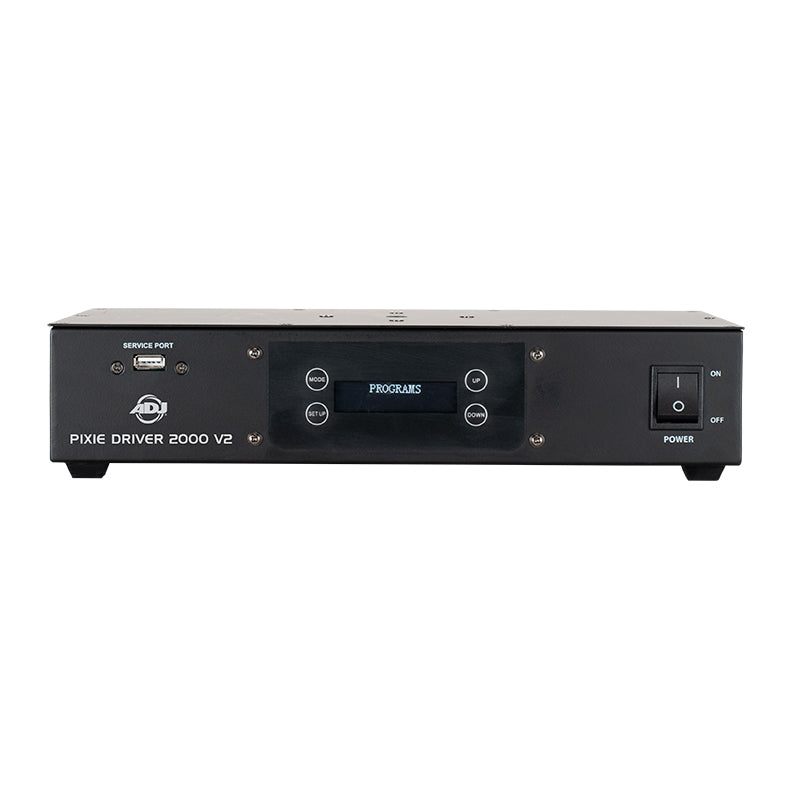

The Pixie Driver 2000 V2 features a universal auto switching power supply (100-240V), a 4-button LCD control menu display, RJ45 Ethernet in/out ports, and (2) outputs which use proprietary, 4-pin combo cables (sold separately) that supply power and data to each pixel strip (available in lengths from 1 to 50 feet). The Pixie Driver 2000 can be mounted in a standard 19-inch rack (rack ears included) or attached to truss with a clamp (not included). There is a USB port on the front panel to easily make updates to the firmware.
