Pixie Driver 2000

UPC#: 818651027860
Advantage Points: 450
Redemption Points: 9000
SKU
PIX142
ADJ's Pixie Driver 2000 is designed specifically for the ADJ Pixie Strip 30, 60, and 120 series, and provides easy and versatile control options including simple on-board manual dimming and strobe control, and full pixel mapping control.

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Control Features:
• Power / data supply for ADJ Lighting Pixie Strip 30, Pixie Strip 60, and Pixie Strip 120
• Manual RGB mode
• Internal programs
• Manual Dimming and Strobe Control
• Full Pixel Mapping Control
• 2,040 Pixels via Kling-Net
• 340 Pixels via Art-Net and sACN (streaming ACN)
• OLED screen with 4-button menu

Control Quantity:
KlingNet: 34 Pixie Strip 30; 17 Pixie Strip 60; 8 Pixie Strip 120
ArtNet: 170 pixels max each port
sACN: 170 pixels max each port

Connections:
• Power: PowerLock Input
• Two KlingNet / Artnet ethernet ports
• Two 4-pin DC24V power/data outputs to Pixie Strips

Mounting Options:
• Bolt to add a clamp to hang from truss (clamp and truss not included)
• Includes 19-inch rack mount ears
• Safety eye

Electrical:
• Multi-voltage operation: AC 110-240V, 50/60Hz
• Power Consumption: 400W max
• -4°F to 113°F (-20°C to 45°C)

Dimensions / Weight:
• Dimensions (LxWxH): 18.9” x 7.11” x 2.91” / 480x180.8x74mm
• Weight: 5.6 lbs. / 2.5 kg.

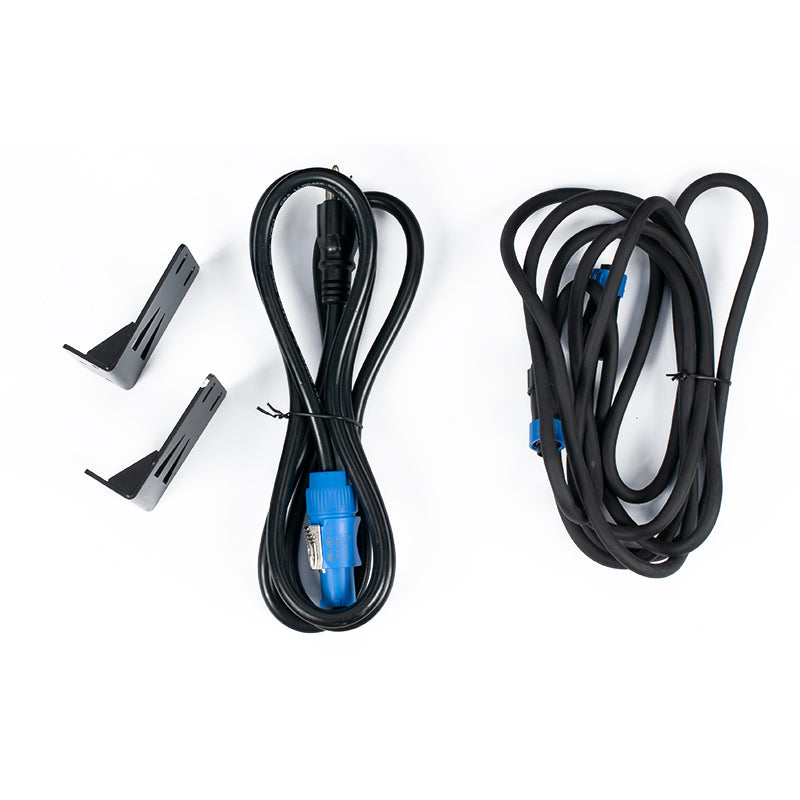

What's Included:
• PowerLock power cable
• 19-inch rack mount ears
• 4-pin data cable

Approvals:
CE | cETLus

Accessories:
PSLC1 (PIX158): 1-foot Pixie Strip Link Cable
PSLC3 (PIX174): 3-foot Pixie Strip Link Cable
PSLC5 (PIX188): 5-foot Pixie Strip Link Cable
PSLC10 (PIX200): 10-foot Pixie Strip Link Cable
PSLC15 (PIX213): 15-foot Pixie Strip Link Cable
PSLC25 (PIX229): 25-foot Pixie Strip Link Cable
PSLC50 (PIX242): 50-foot Pixie Strip Link Cable

Videos

Downloads

The following downloads are available for this product:

Title Description
Pixie Driver 2000 User Manual User Manual Download
Pixie Driver 2000 2D CAD Drawing CAD Drawing Download
Pixie Driver 2000 Dimensional Drawing Dimensional Drawing Download
Pixie Strip Series Cut Sheet Pixie Strip Series Cut Sheet (3MB PDF) Download
Pixie Driver 2000 Driver Output Limitations Driver Output Limitations Download
Pixie Driver 2000 is designed specifically for the ADJ Pixie Strip 30, Pixie Strip 60, and Pixie Strip 120. It provides easy and versatile control options including simple on-board manual dimming and strobe control, plus full pixel mapping control of 2,040 max pixels via Kling-Net, 340 max pixels via Art-Net or sACN (streaming ACN) protocols.

The Pixie Driver 2000 features a universal auto switching power supply (100-240V), a 4-button LCD control menu display, RJ45 Ethernet in/out ports, and (2) outputs which use proprietary, 4-pin combo cables (sold separately) that supply power and data to each pixel strip (available in lengths from 1 to 50 feet). The Pixie Driver 2000 can be mounted in a standard 19-inch rack (rack ears included) or attached to truss with a clamp (not included).
