Novastar Novapro HD

The new NOVAPRO HD is an advanced high performance LED display controller, video processor, and configuration device that supports multiple signal formats. Compatible with all ADJ Video Panels. The new NOVAPRO HD is an advanced high performance LED display controller, video processor, and configuration device that supports multiple signal formats. Compatible with all ADJ Video Panels. The new NOVAPRO HD is an advanced high performance LED display controller, video processor, and configuration device that supports multiple signal formats. Compatible with all ADJ Video Panels.
SKU: NOV001 | UPC: 837874018431
The new NOVAPRO HD is an advanced high performance LED display controller, video processor, and configuration device that supports multiple signal formats. Compatible with all ADJ Video Panels.
Advantage Points: 0

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description

Details

The new NOVAPRO HD is an advanced high performance LED display controller, video processor, and configuration device that supports multiple signal formats including DP / HDMI / VGA / DVI / CVBS / 3G-SDI, up to 1080p @60Hz input resolution, 165MHz pixel clock and 4G-Bit output bandwidths. NOVAPRO HD also includes DMX512 and GenLock interfaces, Ethernet ports for communication through standard TC/IP and USB control for cascading with additionalNOVAPRO HD’s. NOVAPRO HD is compatible with all of ADJ’s current video products.

Specifications

Specifications

FEATURES:

No Computer or External Scaler Needed (standard rectangular layouts only)

Up to 1080p @60Hz Input Resolution

165Mhz Pixel Clock / 4G-Bit Output Bandwidth

Multiple Video Signal Format Support

Cascade Multiple Units Together

Rack Mountable Aluminum Enclosure (screws not included)

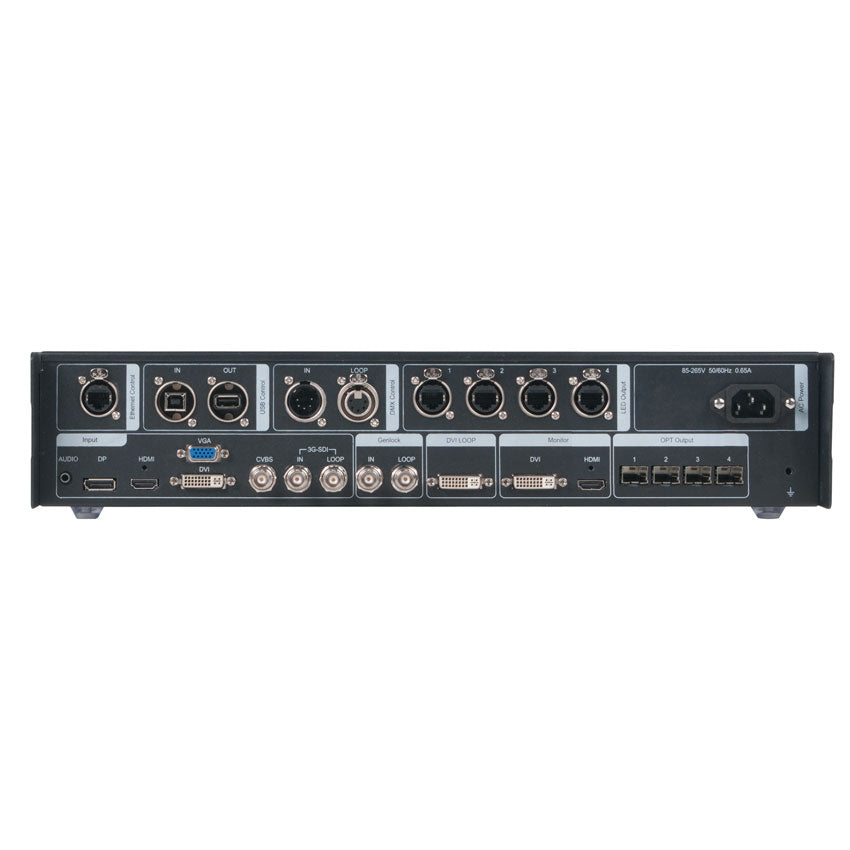

CONTROL / CONNECTIONS:

 (1) Input and (4) Output RJ45 EtherCON Ports

 USB, 5pin DMX, and GenLock In/Out Ports

 Audio Input: 1/8 inch connector

 Video Input: DP / HDMI / VGA / DVI / CVBS / 3G-SDI

 Locking IEC Power Input



 SIZE / WEIGHT:

 Length: 19.0” (483mm)

 Width: 15.3” (389mm)

 Height: 3.5” (88.2mm)

 Weight: 13.2 lbs. (6.0kg)



 ELECTRICAL:

 AC 85-265V - 50/60Hz - 0.65A

 Max Power Consumption: 30W


Videos

Videos

There are currently no videos available for this product.

Downloads

Downloads

The following downloads are available for this product:

Title Description
Pinpoint GO WW Plus User Manual Download
PinPoint GO WW Plus Photometrics Download
PinPoint GO WW Plus CAD Drawing Download

FAQs

Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

There are no FAQ's for Novastar Novapro HD
