myDMX 2.1

myDMX 2.1, DMX Control Software, has a new hardware dongle that will be compatible with software features in future software versions. myDMX 2.1, DMX Control Software, has a new hardware dongle that will be compatible with software features in future software versions. myDMX 2.1, DMX Control Software, has a new hardware dongle that will be compatible with software features in future software versions. myDMX 2.1, DMX Control Software, has a new hardware dongle that will be compatible with software features in future software versions.
SKU: MYD215 | UPC: 819730019257
myDMX 2.1, DMX Control Software, has a new hardware dongle that will be compatible with software features in future, upgradeable software versions.
Advantage Points: 300

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description

Details

Software Update: The November 21, 2016 update to ADJ’s myDMX 2.1, myDMX 2.0 & myDMX Buddy (MAC & PC) provides bug fixes and overall enhancements. Click on the Downloads tab to download the update for free.

ADJ’s myDMX 2.1 is a multi-platform DMX control software/hardware system (Windows and OSX Mac compatible). myDMX 2.1 has a new hardware dongle that will be compatible with software features in future, upgradeable software versions, which will be available for purchase at https://store.dmxsoft.com/



512 DMX channel, software based, control system. Includes effects generator and external MIDI triggering. Compatible with myDMX 2.1 software. For PC & Mac operating systems.



• Easy-to-use DMX software

• 512 DMX channels

• Extensive fixture profile library

• SSL2 Profile editor & support

• 3D Visualizer

• MIDI triggering

• Drag and drop effects generator

• Works with simple scenes/steps

• Windows and Mac installers that will download the latest ssl library with an internet connection upon install.

• “Maintenance” application that installs with the program to check for component updates or new versions of the software.

• “Cloud search for profiles” Search for the latest and greatest fixture profiles from within the program itself, no more hunting through dropbox

• Barrel drum rotation added to scene builder

• Program now reads special characters such as ‘&’

• Improved multi Pan and Tilt support

• Users can now multi select steps in a scene and modify a channel parameter without it interfering with the rest of the channels

• Vast optimizations and stability improvements for both Windows and Mac OS

• Not compatible with ARM based Windows tablets (only Intel)
• Additional feature and software upgrades available at https://store.dmxsoft.com/

Specifications

Specifications

Minimum System Requirements:

• Windows / Mac laptop or desktop computer with USB port

Windows 7 & 8 compatible (64-Bit) and Mac OS X 10.7 (lion), 10.8 (mountain lion), 10.9 (Mavericks), 10.10 (Yosemite)

• 800x600 screen resolution

• 256MB Memory

• Clock frequency: 800 MHz

• 32MB RAM video card supporting Microsoft DirectX 9.0

• Open GL 3.1 or higher for 3D visualizer

• Video graphics card; open GL 3.1 or higher for 3D visualizer

Best Performance System Requirements:

• Laptop or desktop computer with USB port

• Windows 7 & 8 compatible (64-Bit) and Mac OS X 10.7 (lion), 10.8 (mountain lion), 10.9 (Mavericks), 10.10 (Yosemite)

• 1280x1024 screen resolution

• 512MB Memory

• Clock frequency: 1.5 GHz

• 128MB RAM video card supporting Microsoft DirectX 9.0

• Open GL 3.1 or higher for 3D visualizer

• Video graphics card; open GL 3.1 or higher for 3D visualizer

Videos

Videos

There are currently no videos available for this product.

Downloads

Downloads

The following downloads are available for this product:

Title Description
myDMX 2.1 Software for MAC. Nov. 21, 2016 Software update: provides bug fixes and overall enhancements. Download
myDMX 2.1 Software for PC. Nov. 21, 2016 Software update: provides bug fixes and overall enhancements. Download
myDMX 2.1 Software for PC March 27, 2017 myDMX 2.1 Software for PC March 27, 2017 Download
myDMX 2.1 Software for MAC March 27, 2017 myDMX 2.1 Software for MAC March 27, 2017 Download

FAQs

Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

Will this unit run a sequence of events stand alone without the computer once a chase has been programmed ?

MyDMX 2.1 does not offer a stand alone option.

is mydmx 2.1 software compatable with mydmx 2.0 dongle?

Yes.

Is MyDMX 2.1 compatible with MyDMX Buddy?

Yes, MyDMX Buddy is compatible with MyDMX 2.1 software. http://www.adj.com/mydmx-buddy

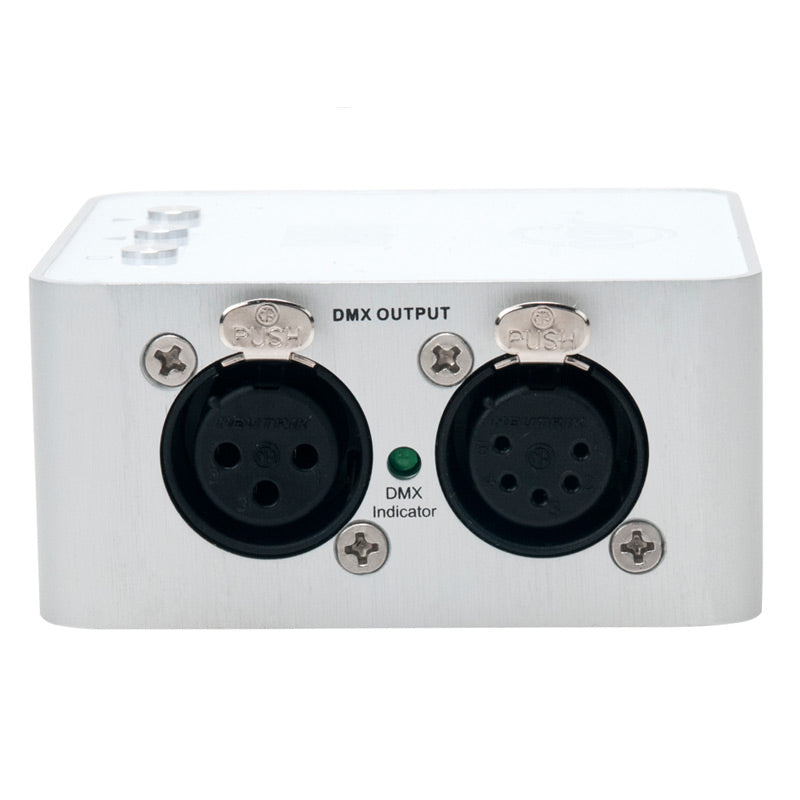

Do both DMX outputs work simultaneously?

Yes, both outputs can be used simultaneously.

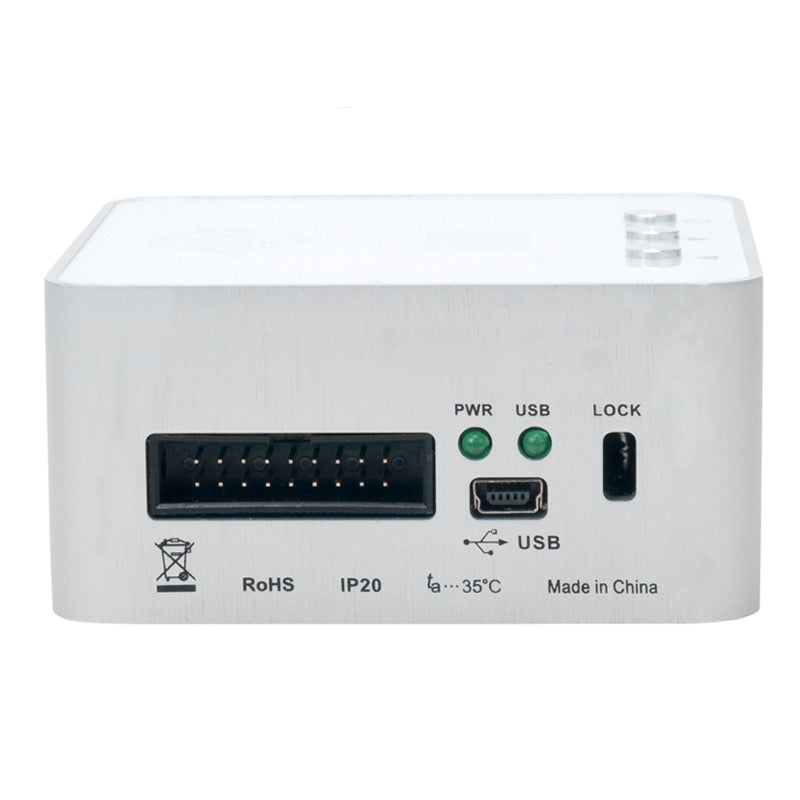

what is the connection for next to the usb connection?

Next to the USB connection, you'll find a lock port which can be used to attach an anti-theft security cable.

Can I run 2 universes, 1 with the My DMX 2.0 dongle and the other with a My DMX Buddy dongle?

MyDMX 2.0 does not support multiple universes.

Will you still make profiles for if requested?

Yes, please submit your requested to support@americandj.com

will mydmx 2.1 will work on Windows 10 ?

Yes, MyDMX 2.1 is fully compatible on Windows 10.

Is it possible to use many 2.1 together to get more than 512 channels? How many is possible to link?

Yes, but only when running MyDMX 3.0 software. You can successfully connect up to 20 interfaces.
