Mega TriPar Profile Plus

SKU: MEG944 | UPC: 819730014535
The ADJ Mega Tripar Profile Plus is a compact, low profile par designed for uplighting and stage lighting, and will bring color and excitement to any party. This fixture features an unique “sit-flat” design so that it may sit directly on the ground or inside truss without the scissor yoke because the power & DMX ins and outs are mounted on the side of the fixture, not on the rear.
Advantage Points: 100

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description

Details

The ADJ Mega Tripar Profile Plus is a compact, low profile par designed for uplighting and stage lighting, and will bring color and excitement to any party. This fixture features an unique “sit-flat” design so that it may sit directly on the ground or inside truss without the scissor yoke because the power & DMX ins and outs are mounted on the side of the fixture, not on the rear.

The Mega Tripar Profile Plus features 5 x 4-Watt, 4-N-1 RGB + UV LEDs which offers smooth Color Mixing, has a 40-degree beam angle, 5 operational modes (including DMX, Sound Active Mode, RGB + UV Dimmer Mode, Auto Run Mode, & Static Color Mode), and has 5 DMX Channel modes for a variety of programming options. Users can also use the ADJ LED RC wireless remote, which is sold separately, to control the Mega Tripar Profile Plus.

Specifications

Specifications

• Ultra bright slim flat black Par with 5 x 4-Watt, 4-IN-1 Quad LEDs
• Smooth RGB + UV Color Mixing (fast or slow color change operation)

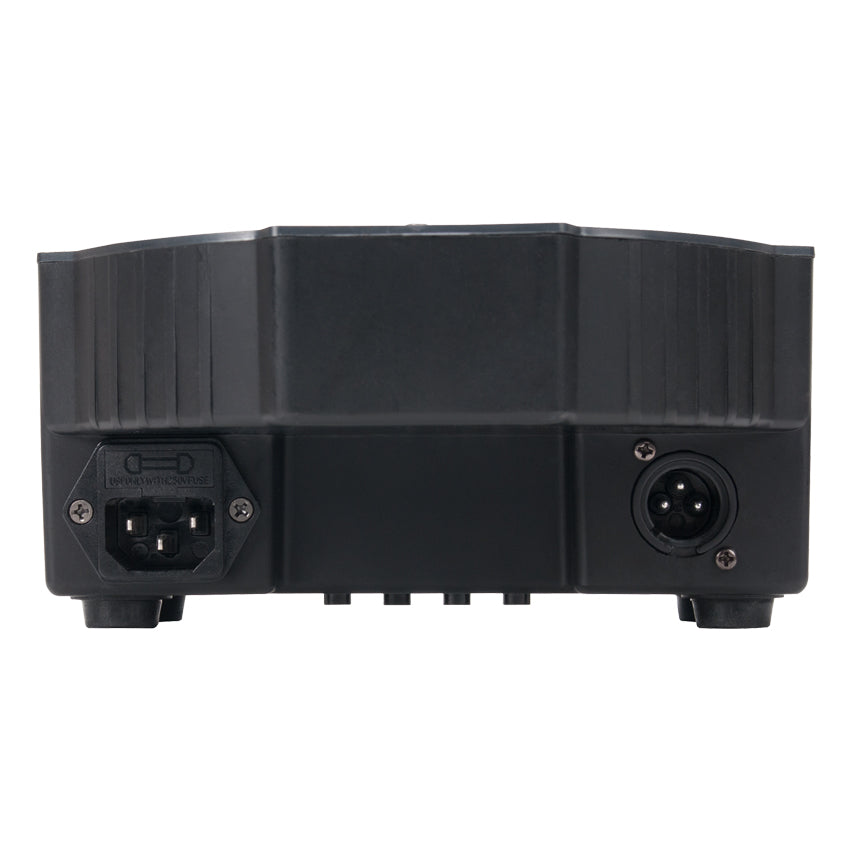

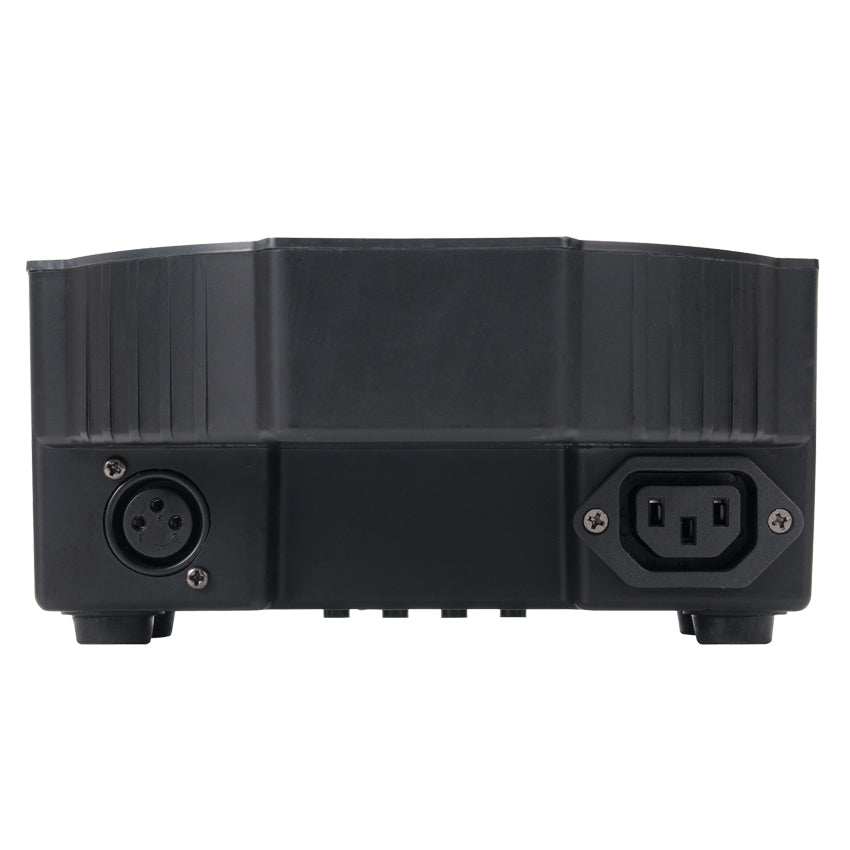

• Unique “sit-flat” design: Power & DMX Ins/Outs intelligently designed so the unit can be set flat on the ground or set inside truss

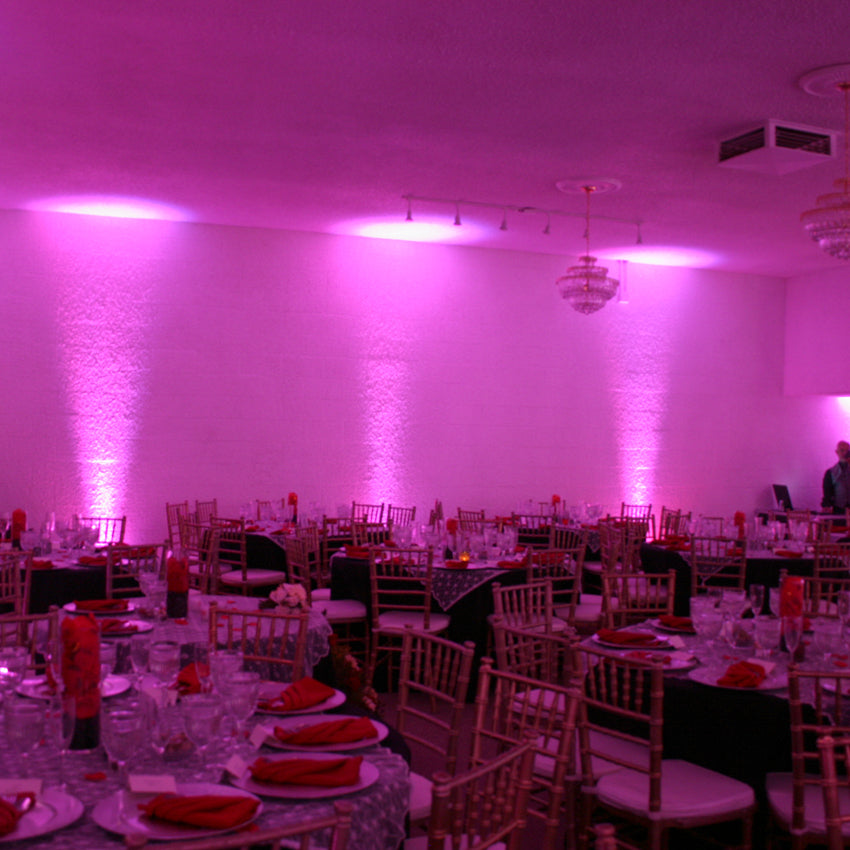

• Great as an architectural wall wash or for performance stages where traditional stage lighting emit a lot of heat onto performers
• 5 DMX Channel modes: 4, 5, 6, 9 or 10 channel modes
• 5 Operational modes: Auto Run Mode (16 Color Change Mode, 16 Color Fade Modes, & 1 Combined Mode), Sound Active Mode (16 Modes), RGB + UV Dimmer Mode, Static Color Mode (64 Colors), and DMX Controlled

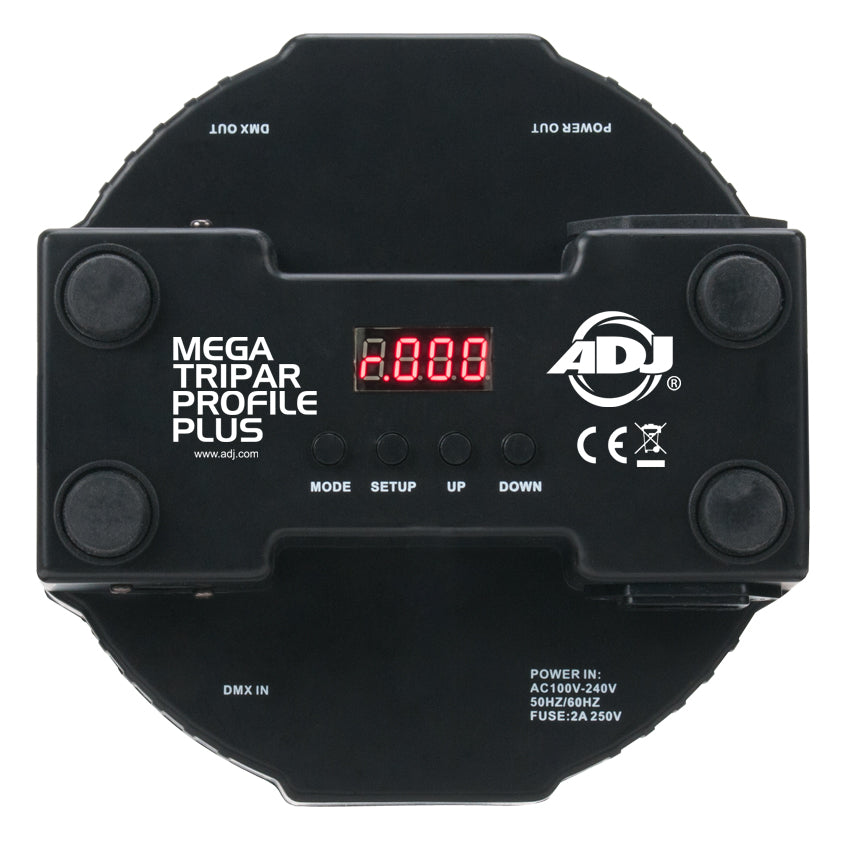

• Digital DMX Display with 4-button menu for easy navigation
• Stand Alone or Master/Slave Configuration
• Beam Angle: 40 degrees
• 64 built-in Color Macros
• DMX-512 protocol
• Color strobe effect
• Linkable via 3-pin XLR cable
• Electronic Dimming: 0-100%
• Flicker Free
• Refresh Rate: 504Hz
• Includes a scissor yoke to hang on truss, mount on a wall or set on the ground
• Long Life LEDs (50,000 hrs.)
• Light output: 774 LUX @ 2M; 177 LUX @ 4M (40-degree beam)
• Power Draw: 21W Max
• IEC AC input and output to daisy chain power. (link up to 30 fixtures on one 20Amp circuit). IEC power link cables sold separately.
• Compatible with ADJ LED RC2 wireless infrared remote control up to 30 ft./ 10M (sold separately)
• Multi-voltage operation: AC 100V-240V 50/60Hz
• Power cable length: 1.8 meter (IEC)
• Dimensions (LxWxH): 8.75”x8.75”x3.25”/ 225x220x85mm
• Weight: 2.7 lbs./ 1.23 kg.

Specifications subject to change without notice.

OPTIONAL ACCESSORIES:

Mounting Clamps Click here
Controllers Click here

Videos

Videos

Downloads

Downloads

The following downloads are available for this product:

Title Description
Mega Tripar Profile Plus User Manual Download
Mega TRIPAR Profile Plus CAD Drawing Download
Mega TriPar Profile Plus Photometric Test Reports Photometric Test Reports Download
Mega TriPar Profile Plus Photometric IES Files Photometric IES Files Download

FAQs

Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

Mega TriPar Profile Plus - Lumens Rating? How Many? Thanks.



Mega TRI PAR PROFILE is 115.5 Lux at 15 Meters.

How maximum UV power output of Mega Tripar Profile Plus (R=G=B=0, UV=255) compares to maximum UV power of UV LED BAR 20? What is the Mega Tripar Profile Plus' peak wavelength in UV mode?

We are using 4 UV LED in the Mega Tripar profile at 1 W each, so the led uv bar 20 is 4 times more powerful than the Mega Tripar Profile.  The waveleinght is not listed. If you want that information please contact info@americandj.com.

Hello I am interested in purchasing the Megatri par profile plus pack. I want to use it for up lighting and stage washing. I have a few questions: 1.Are you able to colour mix on the fixture itself? 2.Are you able to colour mix using the RC2 remote? 3.Does it give a white light? 4.If you have the UV off, does this mean the fixture will only output 15W instead of 20W? Thanks Daniel

You can color mix from the on board menu or the ADJ LED RC2.You can get white light but it will be more to the cool side. The UV lamp is only is about 3W of output so you will have about 17W.
