MDF2-9SYS
UPC#: 818651026771
Advantage Points: 3144
Redemption Points: 62880
SKU
MDF216
3x3 complete floor panel system includes 9 MDF2 panels, power supply, cables and ramps inside flight case.
3x3 Complete Panel System in Flight Case Includes:
• 9x MDF2 (MDF200) - Dance Floor Panels
• 9x MDF2DR (MDF401) - Dummy Ramp
• 16x MDF2FCB (MDF352) - Floor connection bracket
• 4x MDF2CR (MDF417) - Corner Ramp
• 3x MDF2PR (MDF384) - Power Ramp
• 1x MDF2PSUX9 (MDF232) - 200W Power Supply
• 1x MDF2MPC16 (MDF297) - 16 foot power cable to ramp
• 1x AC3PDMX15 (AC3PDMX15) - 15 foot 3-pin male to female DMX Cable
• 1x MDF2FC9 (MDF433) - Flight Case for 9 MDF Panels
Videos
Downloads
The following downloads are available for this product:
| Title | Description | |
|---|---|---|
| MDF2-9SYS User Manual | MDF2-9SYS User Manual | Download |
ADJ’s MDF (Magnetic Dance Floor) System is a robust, lightweight and extremely easy to setup portable LED dance floor solution. Each panel (MDF2) features an array of 3-in-1 RGB LEDs that cause its opaque tempered glass surface to glow intensely in an almost limitless selection of vibrant colors. With surface dimensions of 600mm x 600mm (23.62” x 23.62”) and a low height of just 70mm (2.76”), the individual panels weigh just 26.57 lbs. (12.05 kgs.) yet can support a weight of up to 300 kgs/m2 (61.5 lbs/ft2) – more than enough for a dense crowd of party goers!

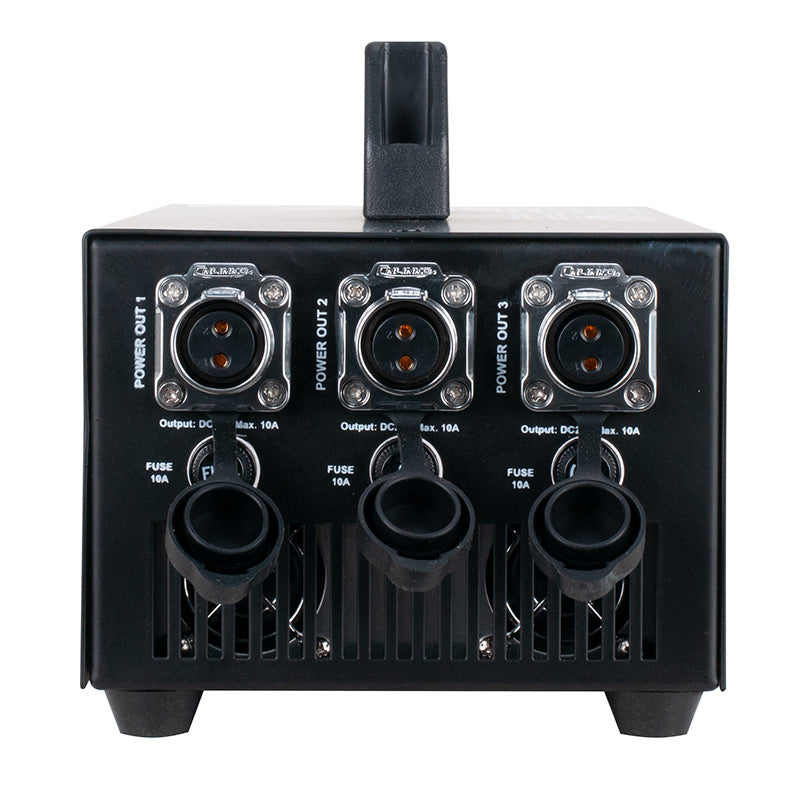

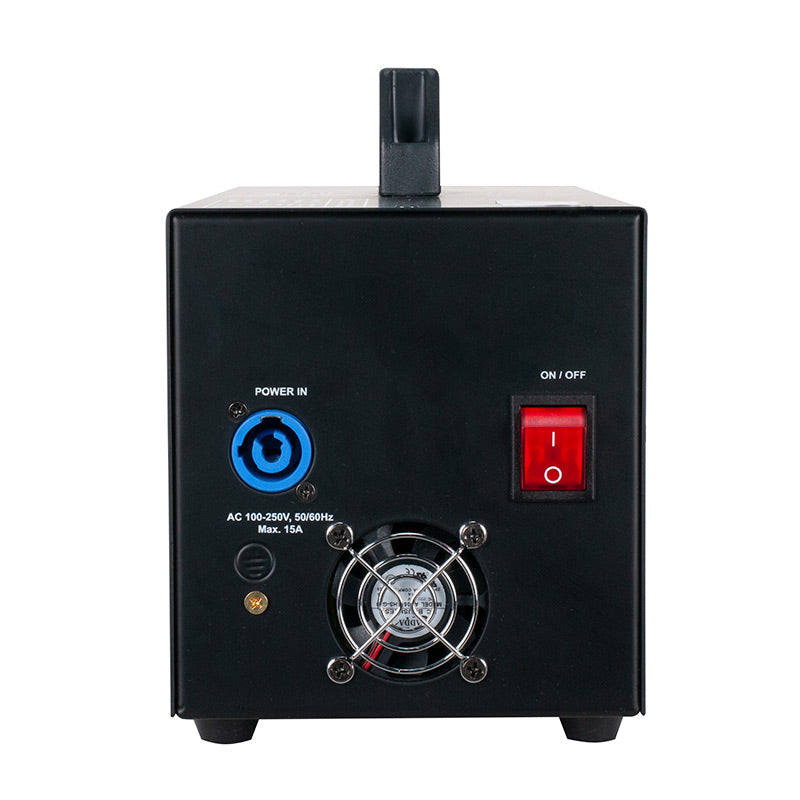

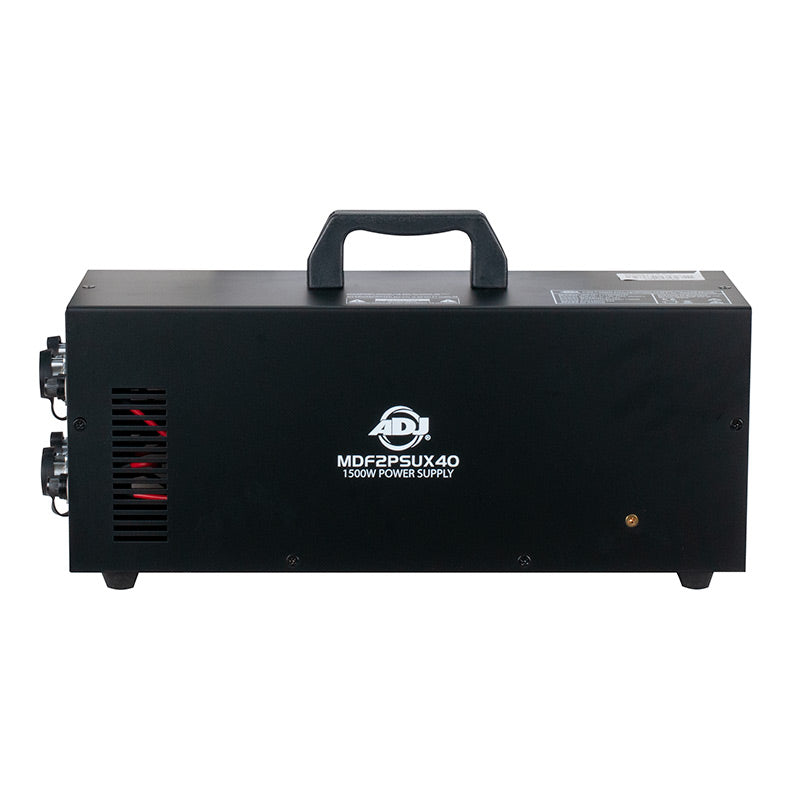

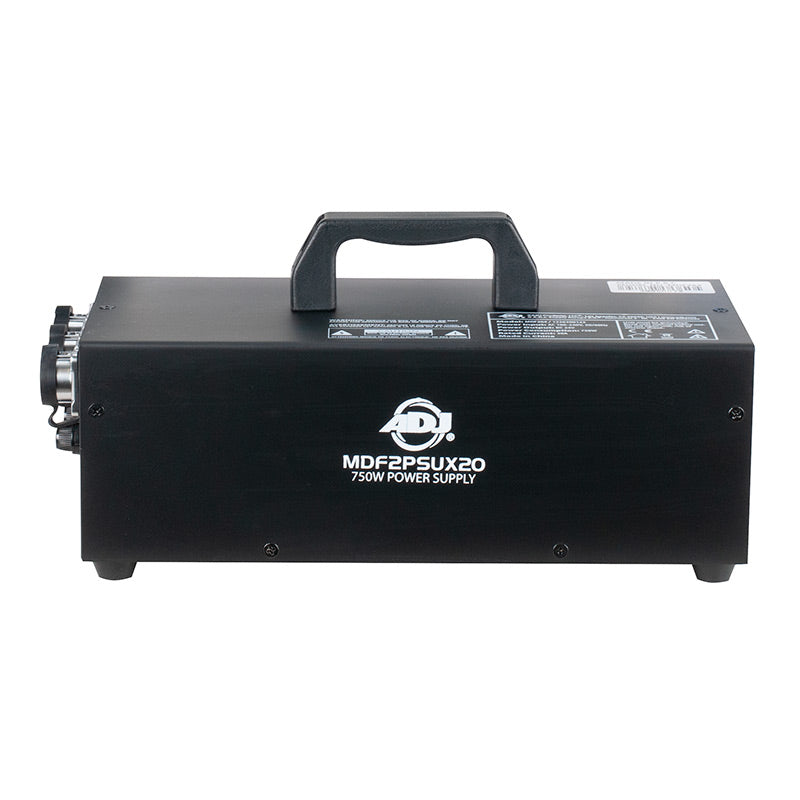

The panels fit together together quickly and easily thanks to an innovative magnetic locking system as well as a convenient cable-free power and data transmission arrangement that connects adjacent units in a row. Power and DMX control is then supplied to each row via a dedicated power ramp (MDF2PR) which features 3-pin XLR input and output sockets alongside proprietary 4-pin 24V DC power connections. Power is supplied to the system by a choice of dedicated power supply units designed to supply different quantities of panels (9, 15, 20 or 40), while a complete range of accessories is also available. These include edging ramps (for the three other sides) and corner ramps as well as a dedicated 9 panel flight case and special tool for lifting panels from the middle of a dancefloor.
Thanks to its easy-to-setup design, the MDF Series is ideal for temporary event use by mobile entertainment and event production companies. However, it is also suitable for permanent installation in nightclubs and bars looking to create a uniquely eye-catching dancefloor. The panels and accessories are all available individually, but can also be purchased in a complete pack of 9 panels complete with all cables, ramps and a flight case.
