Jolt Panel FX2
UPC#: 810087372439
Advantage Points: 880
Redemption Points: 17600
SKU
JOL299

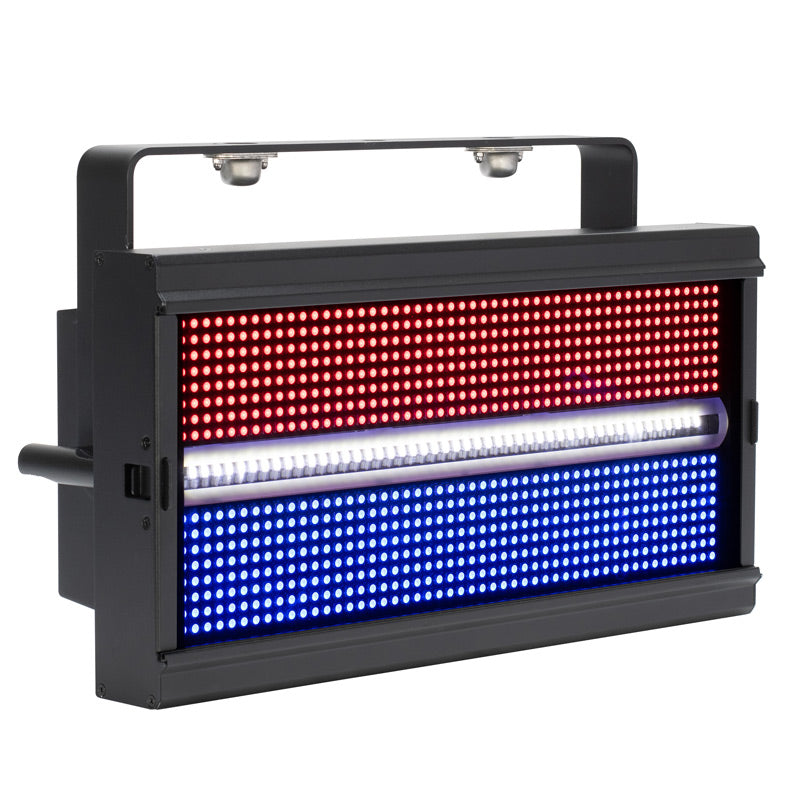

The ADJ Jolt Panel FX2 provides lighting designers with the creative potential of generating strikingly bright white strobe flashes, vibrant color washes, and animated ‘eye candy’ chase effects ideal for concert productions, festival stages and rental houses, as well as for permanent installation in large nightclubs.
Light Source:
• 800 x 0.5W RGB SMD LEDs + 48 x 5W Cool White SMD LEDs
• 73° Beam Angle
• 111° Field Angle
• Color Temperature: Red: 620-630nm. Green: 515-525nm. Blue: 460-470nm. / Cool White: 6900-7400K
• CRI: 69.4
• 50,000 Hour Average LED Life
Features:
• 40 x RGB LED zones
• 6 x Cool White LED zones
• 25 built-in RGB LED Program Macros
• 9 built-in Cool White LED Program Macros
Control:
• Control Protocol: DMX, Aria X2 and RDM
• 10 DMX Modes: 6, 9, 13, 18, 36, 41, 51, 81, 126 and 141 channel modes
• Dim Modes: 6 Presets (Standard, Stage, TV, Architectural, Theatre & Stage 2)
• Dim Curves: 4 Presets (Linear, Square Law, Inv Square Law and S Curve)
• 0-100% Smooth Dimming
• Strobe, shutter & pulse control
• Max Strobe Rate 20Hz. Min Strobe Rate: 1Hz.
• With Wired Digital Communication Network
• Display: OLED display with 4-button touch menu
Connections:
• Data: IP20 Indoor locking 5-pin DMX In/Out
• Power: IP65 Outdoor locking power In/Out
Electrical:
• 100-240V 50Hz/60Hz (Auto Sensing)
• Max Power Consumption: 214W @120V., 208W @230V.
• Max Power Link: 6pcs @120V., 12pcs @230V.+
• Fuse Protected: T5A/250V Glass Fuse (5*20MM)
Dimensions / Weight:
• Length: 5.28" (134.2mm)
• Width: 16.42” (417mm)
• Height: 10.26” (260.5mm)
• Weight: 13.67 lbs. (6.2 kg)
What’s Included:
• 1x 6ft (1.83m) Outdoor locking power to Edison cable (U.S.)
• 1x Frost Filter
Optional Accessories:
• 180mm Omega Bracket
• JPFXBLKF (Black Filter)
• JPFXLINF (Linear Effect Filter)
Approvals and Ratings:
• CE
• cETLus Approved (Control # 4010765)
• IP20
Specifications subject to change without notice.
Videos
There are currently no videos available for this product.
Downloads
There are currently no downloads available for this product.:
AVAILABLE END OF MAY FROM ADJ USA

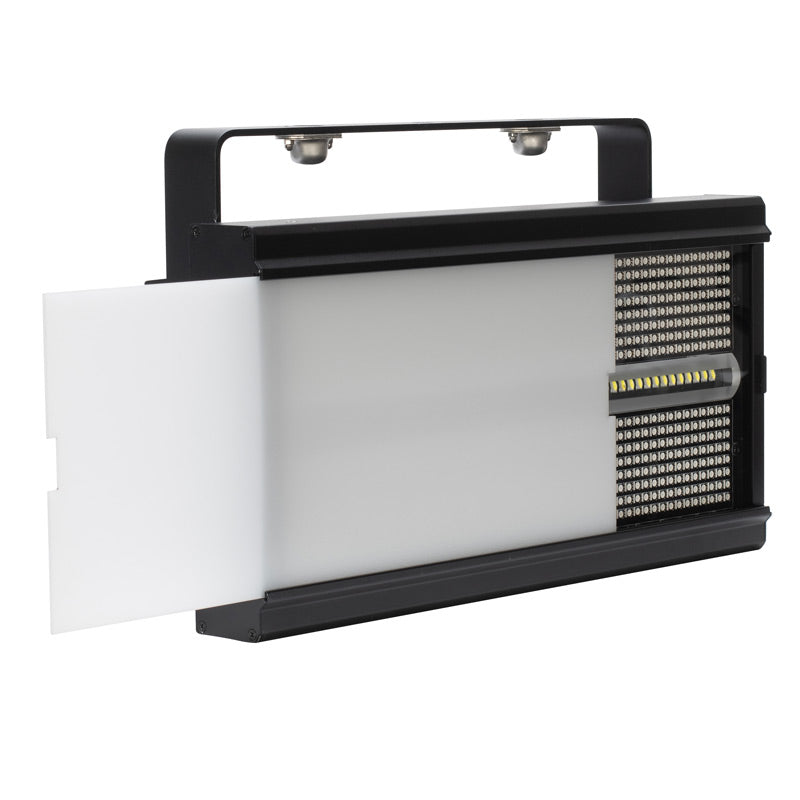

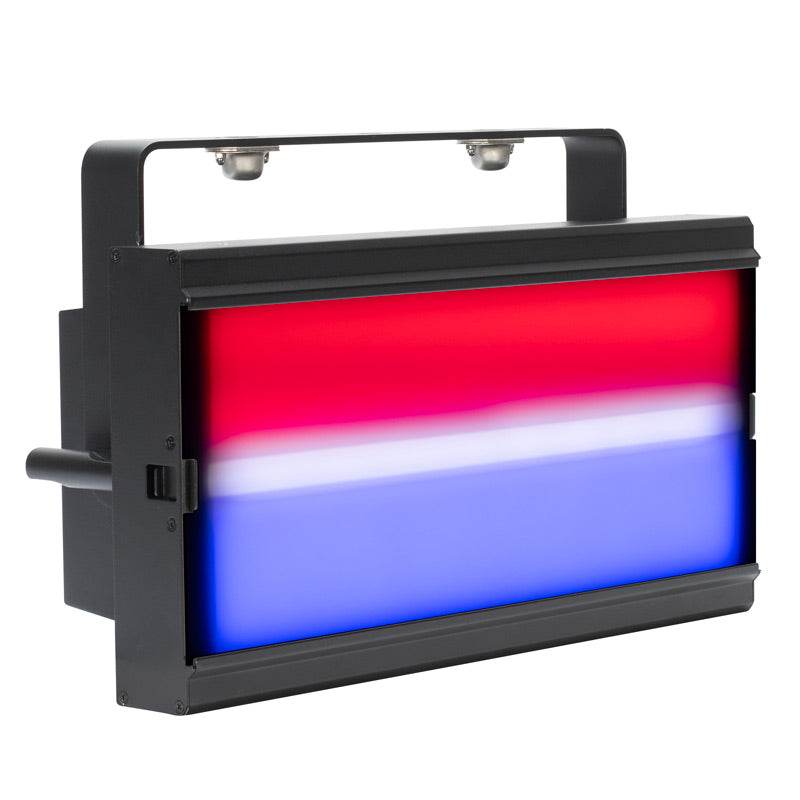

Building off the success of the original Jolt Panel FX, the new Jolt Panel FX2 features upgrades that will help Lighting Designers add a new level of creativity to their lightshows. ADJ’s proprietary Aria X2 wireless DMX is built-in to each fixture (it is also compatible with ADJ’s WiFLY EXR wireless DMX), which allows data distribution to occur wirelessly. There is a channel system on the front of the unit that allows for light shaping filters to be easily and conveniently added to the fixture. These filters blur the pixel dots and provide designers with another creative way to change the effect from project to project.

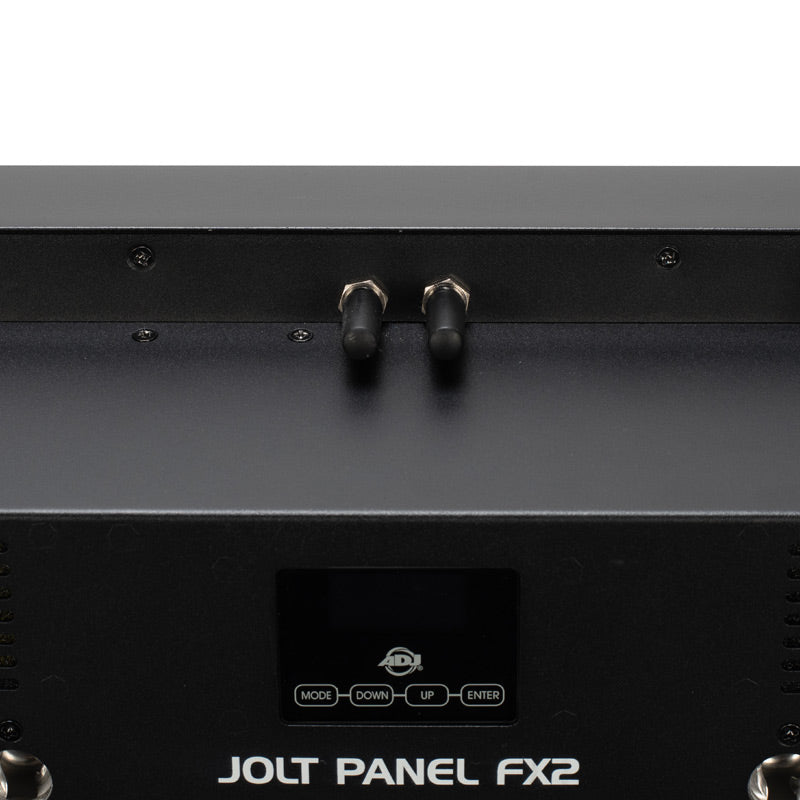

The Jolt Panel FX2 offers users an easy way to navigate the built-in features from an LCD display with a 4-button menu system. The display allows users to change dimming modes, dimming speed, programs, color macros, LED refresh rate and gamma settings, as well as setting the DMX address and channel modes.

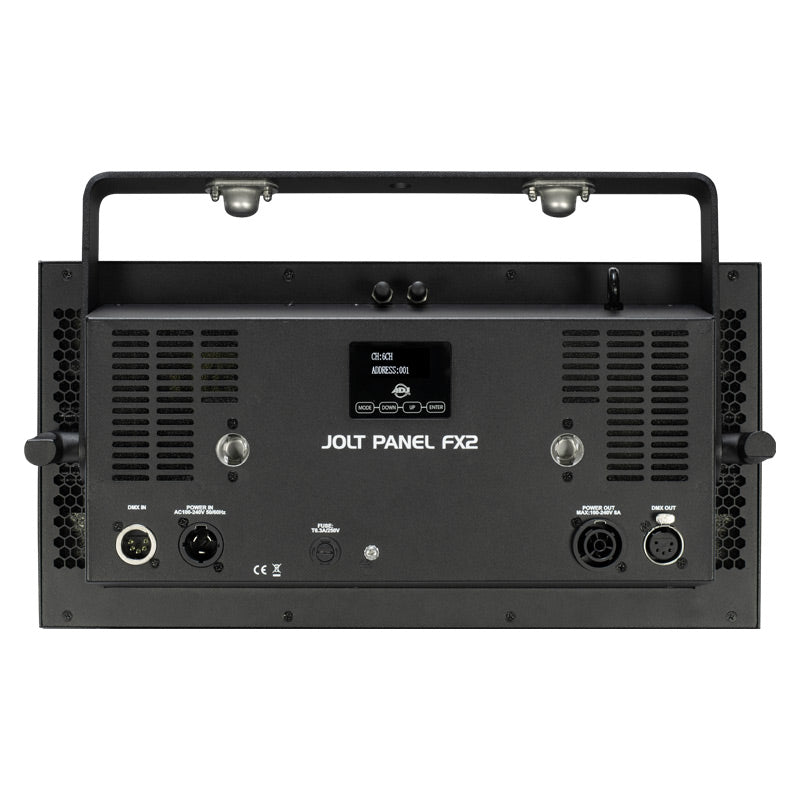

The rear panel has conveniently located 5-pin DMX in/out connections, locking power in/out sockets to daisy chain power, plus an OLED display with 4-button menu. There are also holes to connect an omega bracket to the Jolt Panel FX2 as an alternative to its variable angle bracket.
