Jolt Panel FX

UPC#: 810087370237
Advantage Points: 720
Redemption Points: 14400
SKU
JOL140

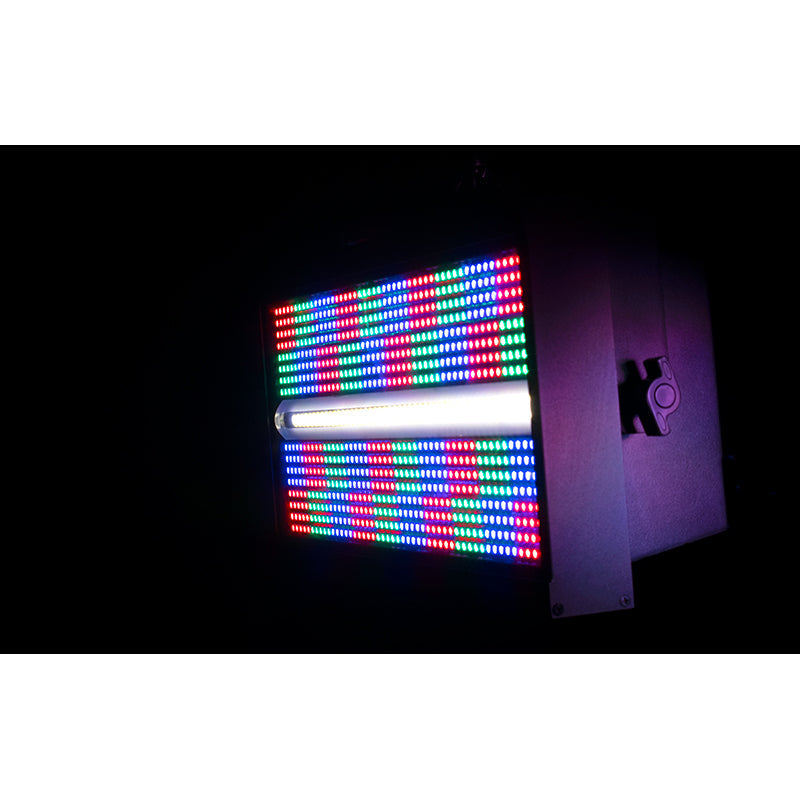

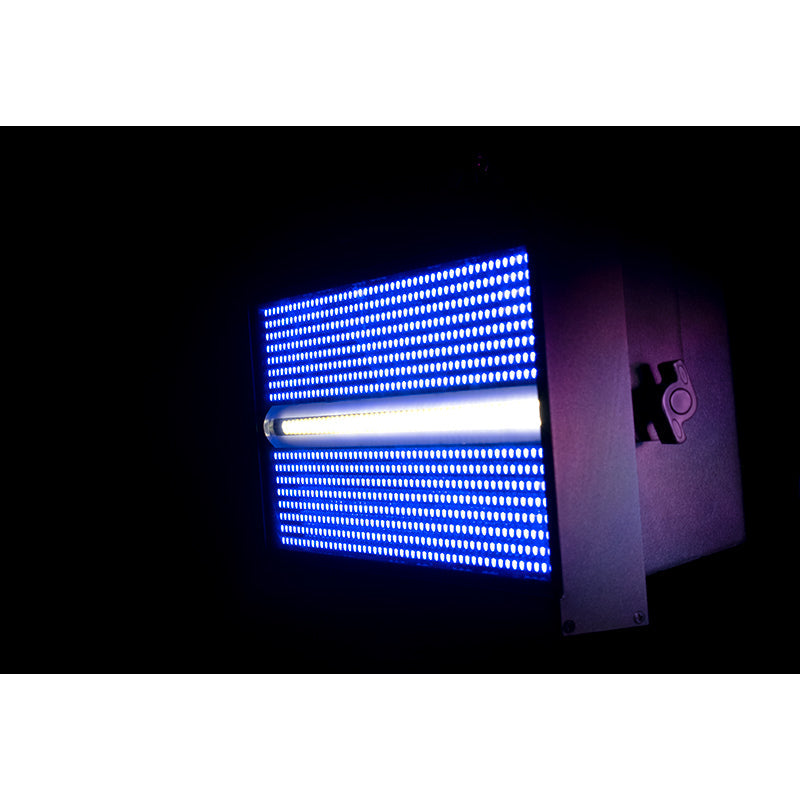

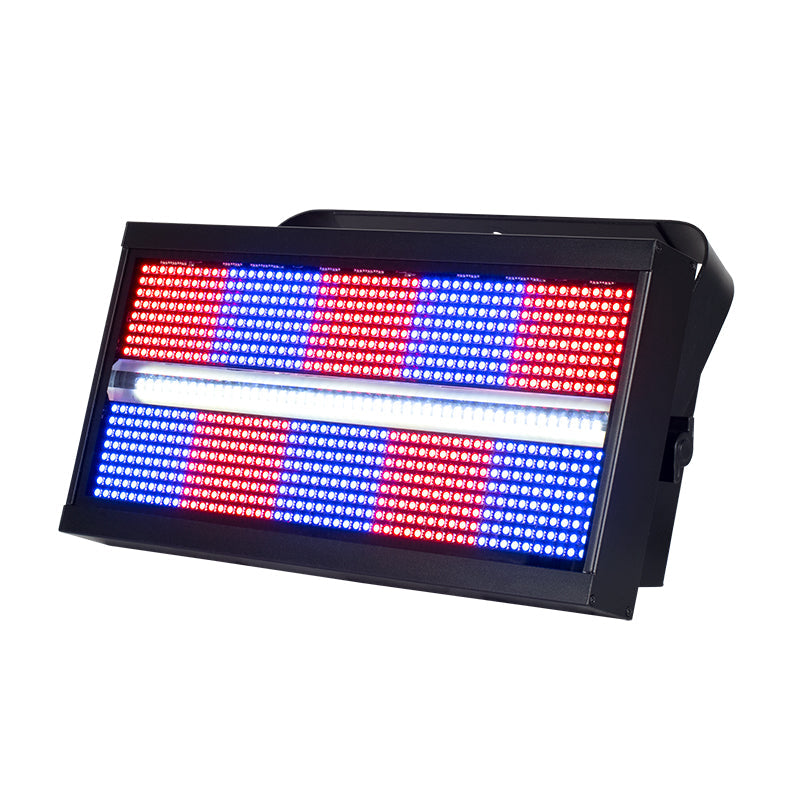

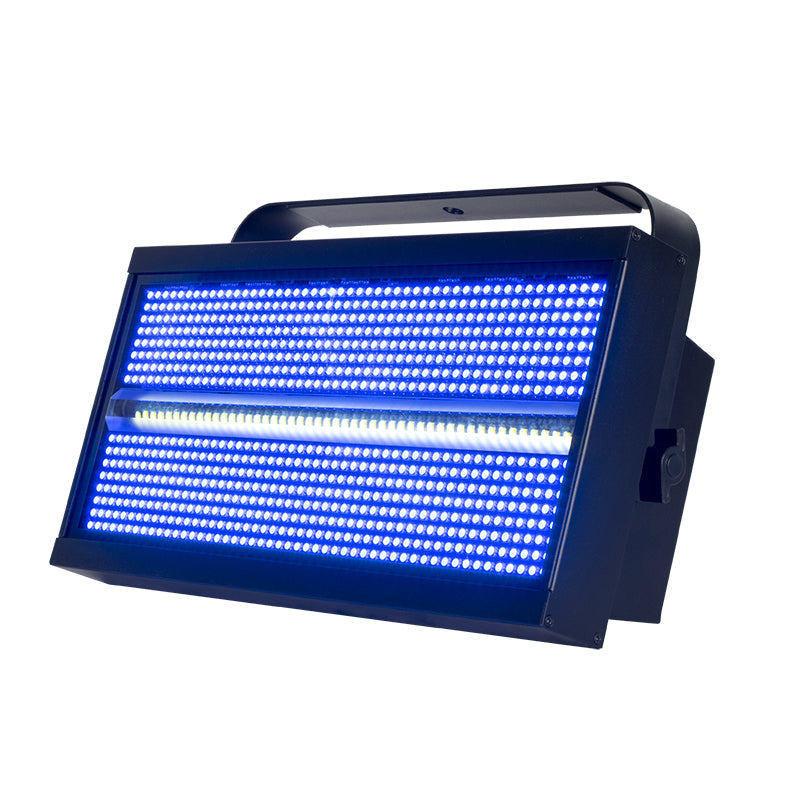

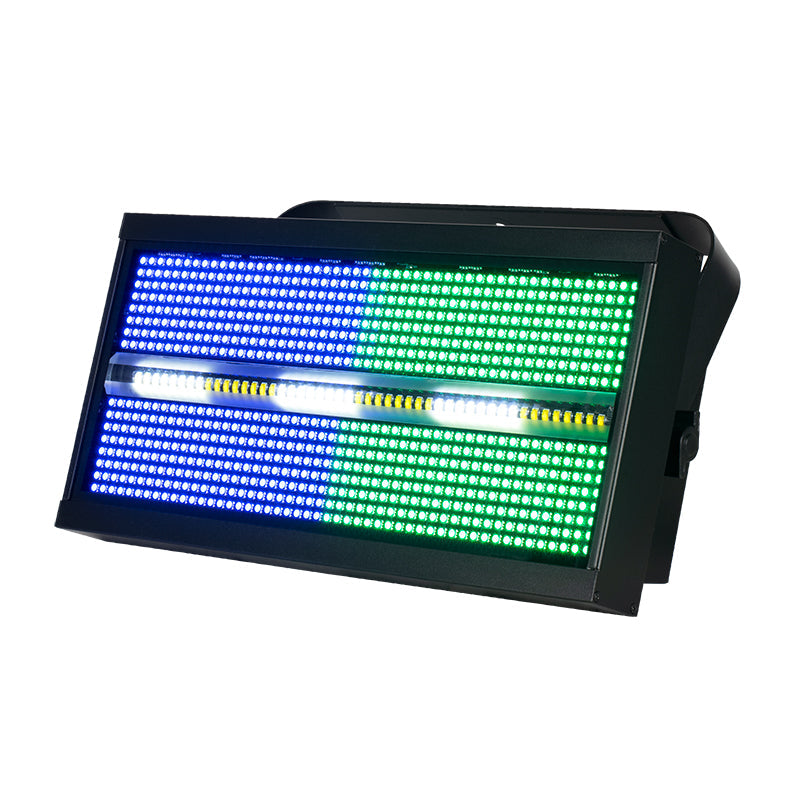

The Jolt Panel FX is an extremely versatile fixture ideal for concert tours, one-off event production and permanent nightclub installations. It features a central strip of 48 x 5-Watt cool white SMD LEDs, surrounded on both sides by a total of 800 x 0.3W RGB SMD LEDs. This provides lighting designers with the creative potential of generating both strikingly bright white strobe effects and vibrant color washes from the same compact fixture.

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Light Source:
• 800 x 0.3W RGB SMD LEDs + 48 x 5W Cool White SMD LEDs
• RGB LEDs: 121 Degree Beam Angle
• Cool White LEDs: 89 Degree Beam Angle
• Color Temperature: Red: 620-630nm. Green: 515-525nm. Blue: 460-470nm. / Cool White: 5000-6500K
• 50,000 Hour Average LED Life

Features:
• 40 x RGB LED zones
• 6 x Cool White LED zones
• 25 built-in RGB LED Program Macros
• 9 built-in Cool White LED Program Macros

Control:
• Control Protocol: DMX, RDM
• 10 DMX Modes: 6, 9, 13, 18, 36, 41, 51, 81, 126 and 141 channels
• Dim Modes: 6 Presets (Standard, Stage, TV, Architectural, Theatre & Stage 2)
• 0-100% Smooth Dimming
• Strobe, shutter & pulse control
• Max Strobe Rate 25Hz. Min Strobe Rate: 0.35Hz.
• With Wired Digital Communication Network
• Display: OLED display with 4-button touch menu

Connections:
• Data: 5-pin DMX In/Out
• 180 degree mounting bracket system
• Ready for Omega Bracket (Sold Separately)
• Power locking power in/out

Electrical:
• 100-240V 50Hz/60Hz (Auto Sensing)
• Max Power Consumption: 330W (2.7A@120V~60Hz, 1.4A@230V~50Hz)

Dimensions / Weight:
• Length: 6.3” (159.5mm)
• Width: 15.9” (405mm)
• Height: 9.9” (250.5mm)
• Weight: 14.1 lbs. (6.4kg)

What’s Included:
• 1x Power locking power cable
• 1x Omega Bracket
• 1x Single Yoke

Approvals:
• cETLus approved (Control # 4000358)

Videos

Downloads

The following downloads are available for this product:

Title Description
Jolt Panel FX Cut Sheet 2.3MB PDF File Download
Jolt Panel FX - 3D Cad Jolt Panel FX - 3D Cad Download
Jolt Panel FX - 2D Cad Jolt Panel FX - 2D Cad Download
Jolt Panel FX - Dimensional Drawing Jolt Panel FX - Dimensional Drawing Download
Jolt Panel FX - Photometric IES Files Jolt Panel FX - Photometric IES Files Download
Jolt Panel FX - Photometric Reports Jolt Panel FX - Photometric Reports Download
Jolt Panel FX - DMX Traits DMX Traits Download
Jolt Panel FX - User Manual User Manual Download
Arriving Now From ADJ USA

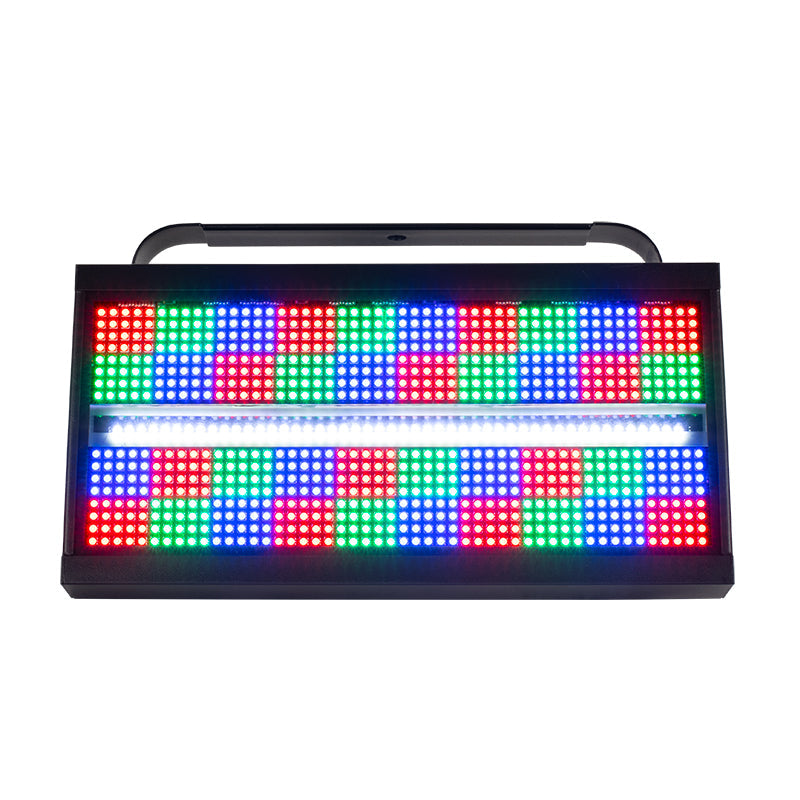

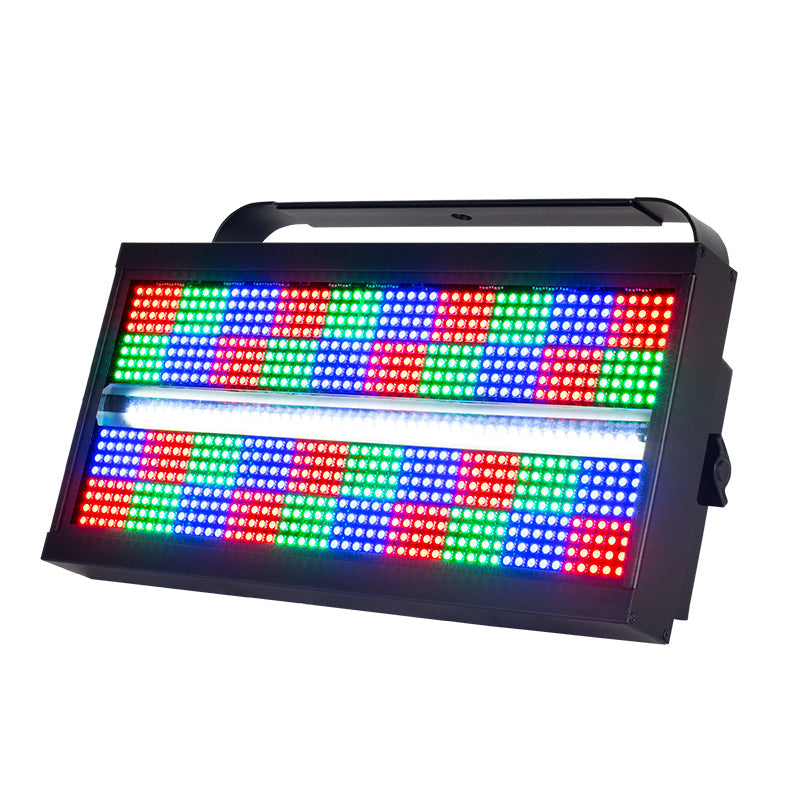

The ADJ Jolt Panel FX is an innovative multi-use strobe / eye candy fixture. It is equipped with 800 0.3W RGB SMD LED for color strobing and eye candy effects, and 48 5W white SMD LED located in the center of fixture to create the traditional look of a strobe. Zone chasing control provides an eye candy effect when used together with the white LEDs. The Jolt Panel FX’s massive light output is specifically designed for large stages, nightclubs, live events and touring.

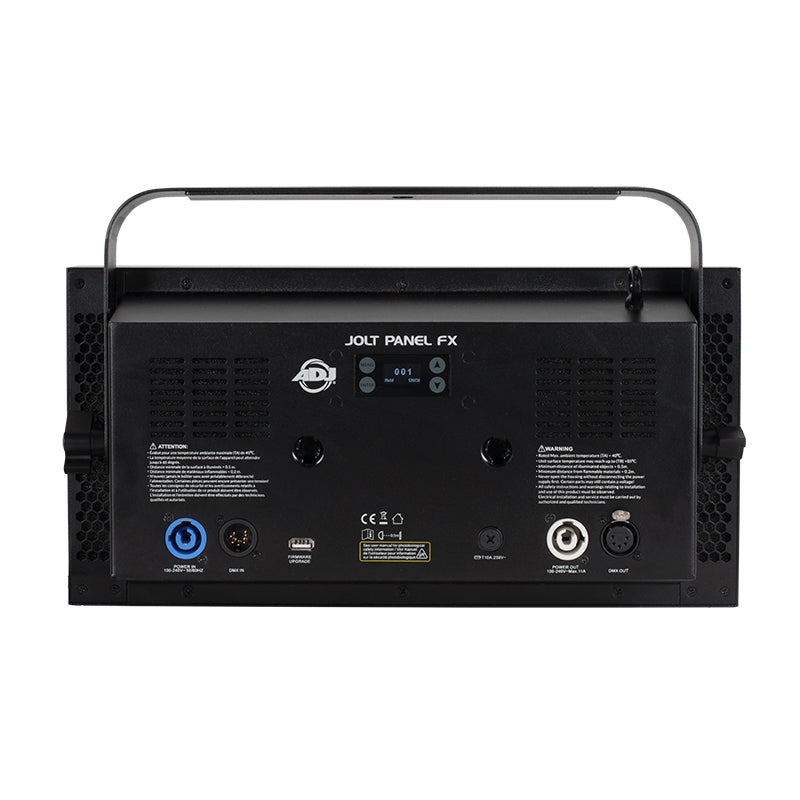

The rear panel has conveniently located connections 5-pin DMX in/out connections along with locking power in/out to daisy chain power. There is also a USB input that allows uses a fast and convenient way to update firmware. There are also hole to connect an omega bracket to the Jolt Panel FX.

The Jolt Panel FX offers users an easy way to navigate the built-in features from a LCD display with a 4-button menu system. The display allows users to change dimming modes, dimming speed, programs, color macros, LED refresh rate, gamma settings and DMX channel modes.

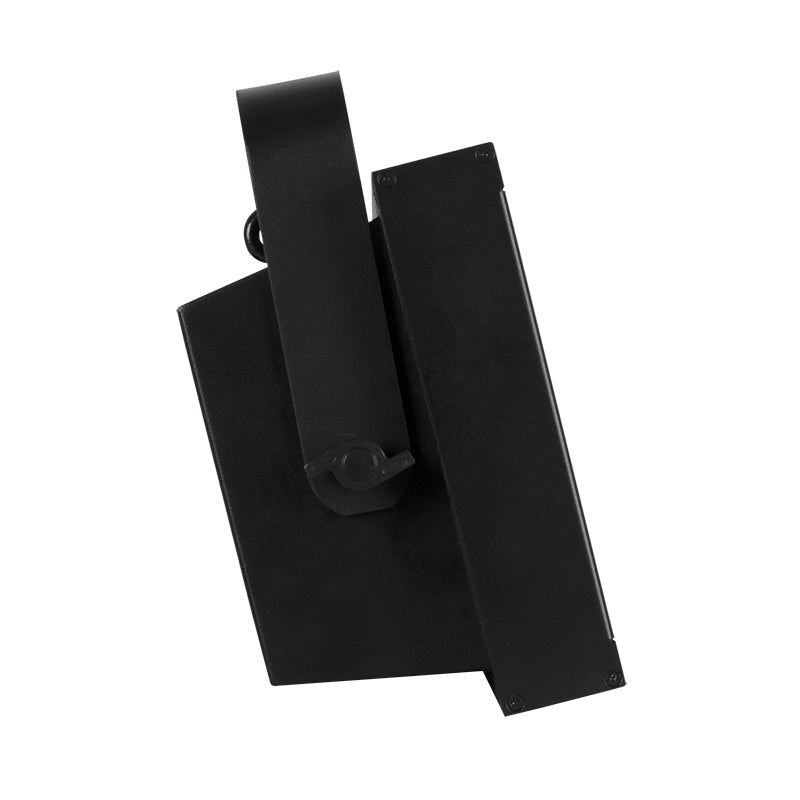

A scissor yoke, and an omega bracket come with the fixture so the it can be attached to a clamp and hung on truss.
