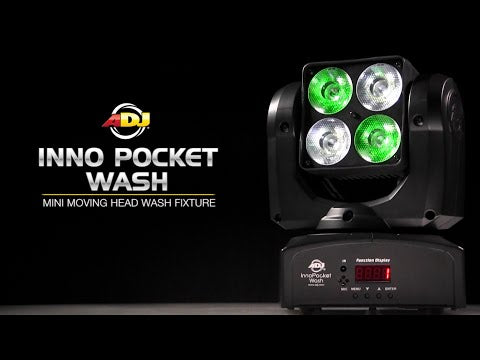

Inno Pocket Wash

SKU: INN790 | UPC: 819730013774
The Inno Pocket Wash is a mini Moving Head that creates beautiful washes of color with its 28-degrees beam angle. Its compact size and lightweight makes it ideal for mobile entertainers, small club and bars, roller rinks, bowling centers, churches or any mobile production. Compatible with the ADJ Airstream IR App.
Advantage Points: 350

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description

Details

Available now from ADJ USA -  Contact an ADJ Dealer for pricing

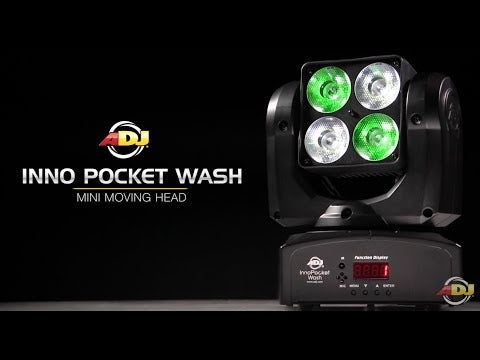

The Inno Pocket Wash is a mini Moving Head that creates beautiful washes of color with its 28-degrees beam angle. Its compact size and lightweight makes it ideal for mobile entertainers, small club and bars, roller rinks, bowling centers, churches or any mobile production.

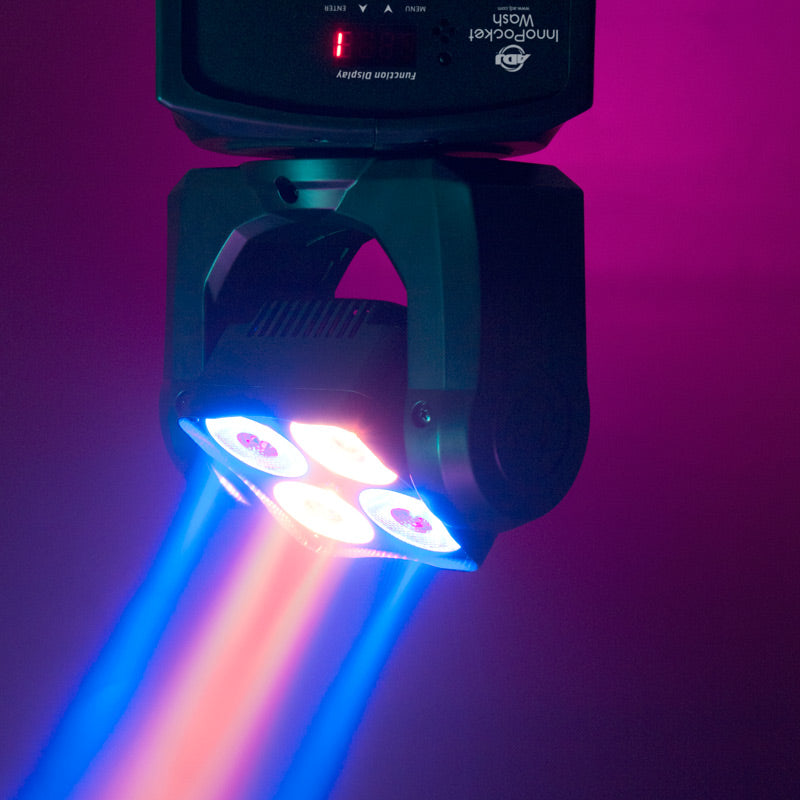

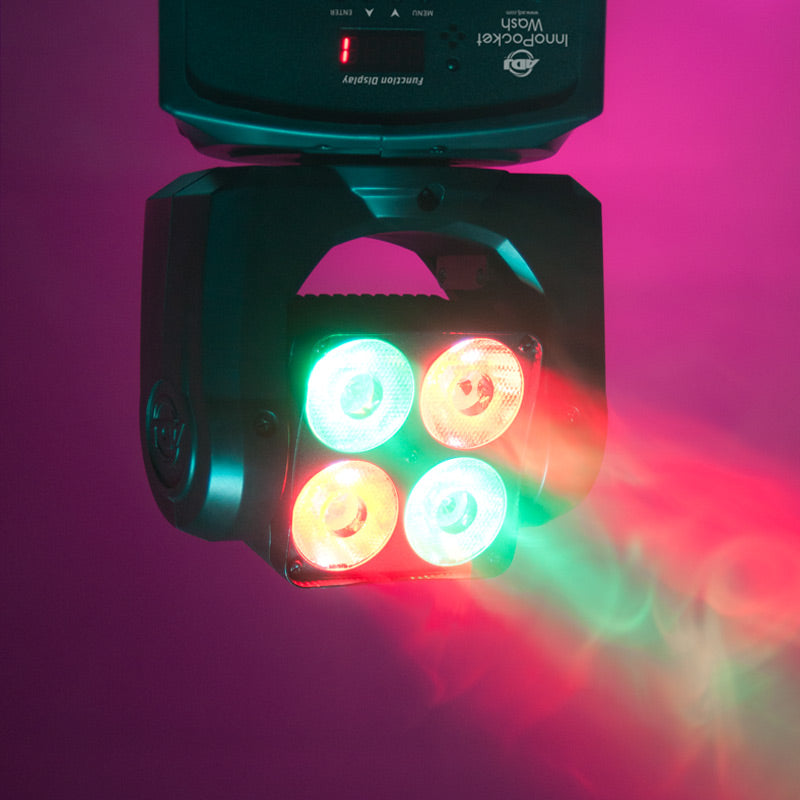

Featuring 4x 10W 4-IN1 Quad LEDs (RGBW - Red, Green, Blue and White), the Inno Pocket Wash will give pure lighting excitement with its fast moving head and brilliant washes of color. It has a pan and tilt inversion mode that makes one head do the opposite of another when linked together.
Users may control the Inno Pocket Wash by Sound activation with its 4 built-in shows, the optional UC IR wireless remote, or use a DMX controller to create your own light shows.

Specifications

Specifications

• High output mini Moving Head with a bright 4 x 10W Quad RGBW LED source
• 3 Operational modes: DMX Control, Sound Active Mode & Show Mode
• 4 DMX Channel Modes: 9/11/19/21
• 4 Built-in shows
• Beam Angle: 28-degrees
• 540° pan / 180° tilt (8-bit & 16-bit)

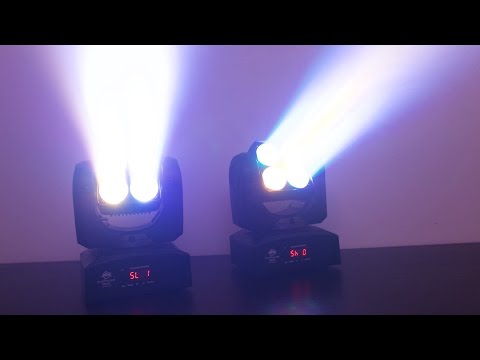

• Pan /Tilt Inversion mode
• 5 selectable Dim Curves (Standard, Stage, TV, Architectural & Theatre)
• Shutter: Pulse effect; random strobe slow to fast
• Dimming: 0% - 100%
• Display Inversion Mode

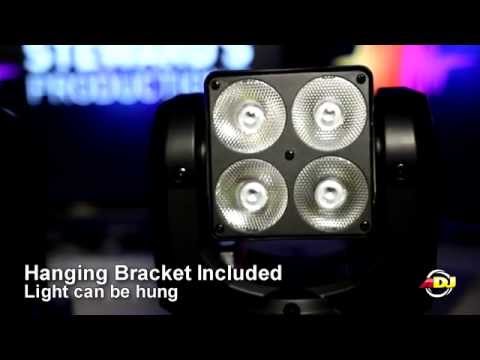

• Omega bracket included
• Linkable: DMX via 3-pin XLR cable
• With Wired Digital Communication Network
• Optional ADJ UC IR wireless remote control: Full On, Stand by, Strobe, Color Change, Dimming, Sound Active On/Off  (ADJ UC IR Not Included)
• Compatible with the ADJ Airstream IR App
• PWM (Pulse Width Modulation): 1.1K
• Strobe Rate: 0.7-12HZ
• DB Rating @ 1Meter: Front: 44.2; Back: 46; Left: 43.5;
Right: 44
• Power consumption: 64.5W (Full-On)
• Power Cable Length: 1.5m (IEC)
• Multi-voltage Operation: AC 100 - 240V, 50/60Hz
• LED Source: 4 x 10W 4-in-1 RGBW LED source (Rated at approximately 50,000 hrs)
•Light Output: 6778 LUX @2M; 1795 LUX @4M (28-degree)
• Dimensions (LxWxH): 6.75” x 5.75” x 8.5” / 171 x 149 x 214mm
• Weight: 6 lbs. / 2.8 kgs.
• ETL Approved

OPTIONAL ACCESSORIES:

Mounting Clamps Click here
Controllers Click here

Videos

Videos

Downloads

Downloads

The following downloads are available for this product:

Title Description
Inno Pocket Wash Cut Sheet Download
Inno Pocket Wash Photometrics Download
Inno Pocket Wash User Manual Download

FAQs

Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

I have an Elation Magic 260 controller. Is it possible to control the Inno Pocket Wash in 19 or 21 channel mode with my controller? I ask because the maximum number of channels per fixture on the Magic 260 seems to be 16.

The maximum number of channels on the Magic 260 is 16 and no more. It will not control more channels. The WiFLY WLC 16 will give you 32 channels per fixture.

What ADJ bag would you recommend for 2 or more fixtures?

The F4P586 or F4 Par bag will carry 2 units. I do not make a larger bag for this kind of light.

I have the pocket spot and the wash. Can I connect them as master slave even though they are different lights? I made my own Dmx cable and when I connect them they move together but one of them won't turn on. Thank you in advance.

It will not work. You need to have the spots reperate from the wash fixtures in order to do master & slave. Let me know if you have any further questions.

Thanks,

The video and photos on you site shows the units mounted horizontal but the manual clearly states that the unit should only be mounted vertically. Is horizontal mounting allowed ?

In order to avoid internal damage, it is not recommended to mount this fixture horizontally. Straight up or straight down only.
