Inno Pocket Fusion

(Discontinued)
SKU: INN964 | UPC: 819730014559
The Inno Pocket Fusion features a 12W LED barrel mirror scanner with a 4.9mW green laser. It includes 8 built-in shows and pan/tilt inversion modes for an exciting non-DMX lightshow. It also has 3 operational modes, 5 DMX channel modes, and 5 dim curves. Compatible with the ADJ Airstream IR App.
Advantage Points: 300

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description

Details

The Pocket Series revolution continues with another compact, light weight lighting fixture, the Inno Pocket Fusion.

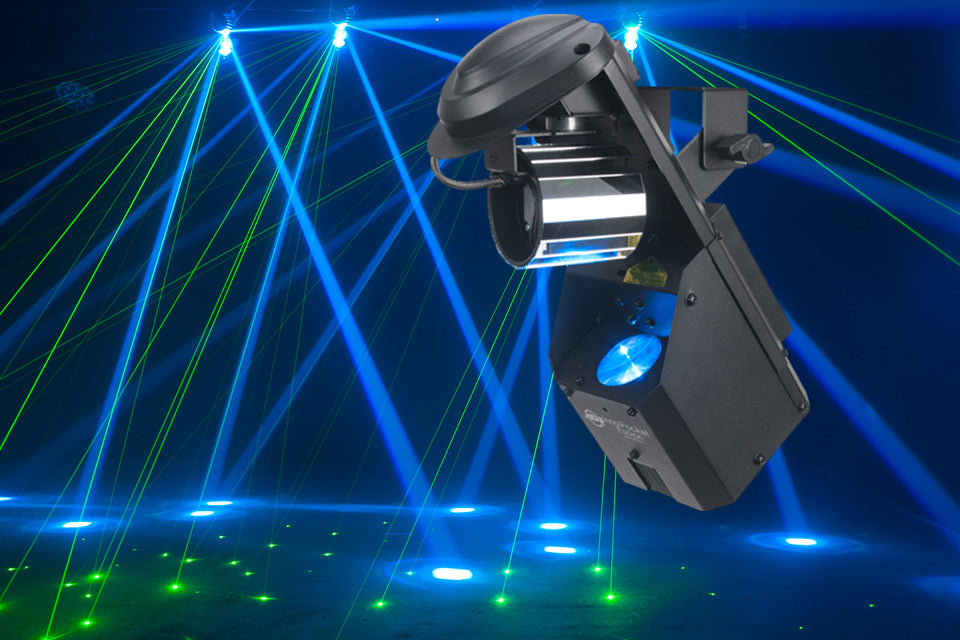

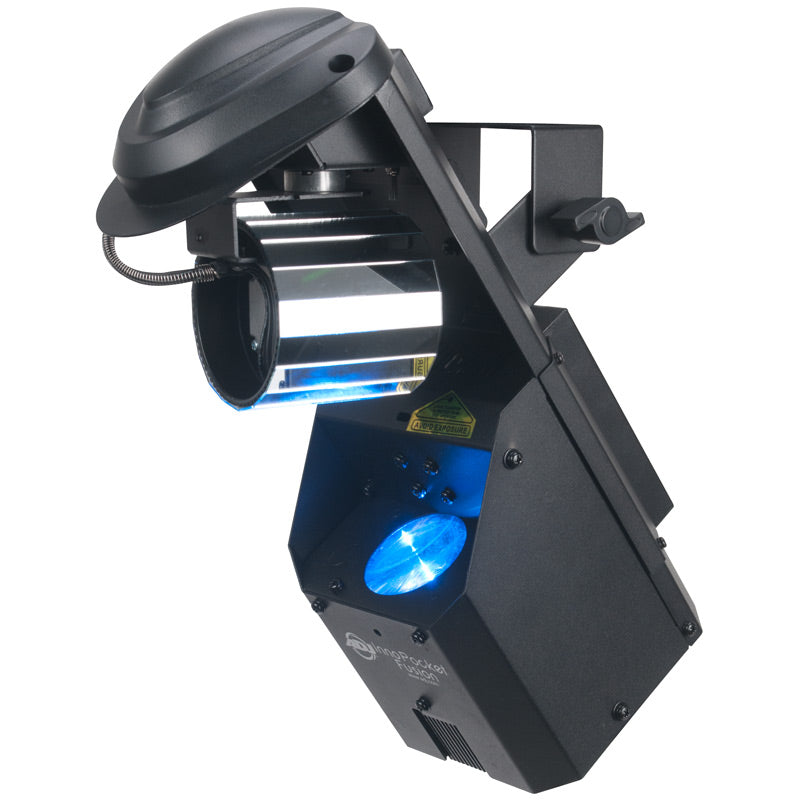

The Inno Pocket Fusion features a 12W LED barrel mirror scanner with a 4.9mW green laser for a fantastic, energy driven lighting effect. This Scanner is designed for any mobile entertainer, small and mid-size stages and nightclub, bar, lounge, bowling and entertainment centers.

This fixture features 8 built-in shows and pan/tilt inversion modes for an exciting non-DMX lightshow. It also has 3 operational modes, 5 DMX channel modes, and 5 dim curves to help lighting designers create custom, one of a kind DMX lightshows.

The fast mirror speed and high quality, precision stepper motors react greatly to high-energy music, plus the Barrel Mirror produces multiple LED beams and laser beams that shoot around a room for a unique effect. This fixtures compliments any one of ADJ’s Pocket Series fixtures.

Specifications

Specifications

• 12-Watt LED DMX Barrel Mirrored Scanner + Green Laser (2-FX-1)
• 8 colors  + white
• 4.9mW green laser diode
• 3 Operational modes: DMX, Sound Active & Internal Show control modes
• 5 DMX channel modes: 2/6/8/9/11
• 8 built-in shows
• Beam Angle: 5-degrees
• X/Y mirror movement
• Stepper motors with micro stepping
• 5 selectable Dim Curves (Standard, Stage, TV, Architectural & Theatre)
• Shutter: Pulse effect; random strobe slow to fast
• Dimming: 0% - 100%
• Pan/Tilt Inversion Mode

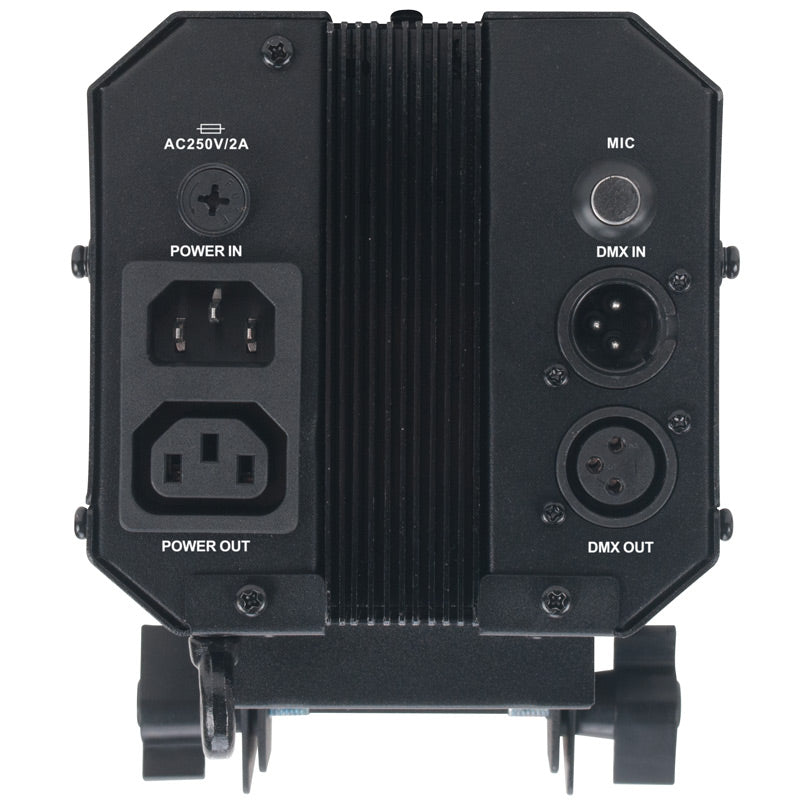

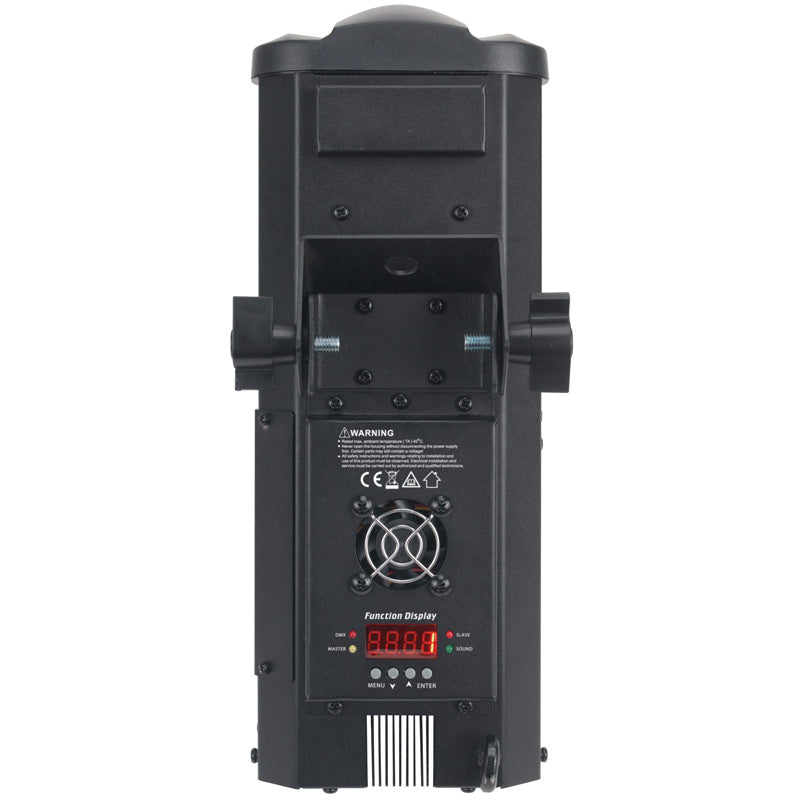

• IEC AC IN/OUT on rear to daisy chain power (up to 22 Inno Pocket Fusions @ 120V and 38 Inno Pocket Fusion @ 230V )
• Hanging Yoke + safety hook included
• Optional IR wireless remote control: Full On, Stand by, Strobe, Color Change, Laser On/off, Dimming, Sound Active On/Off  (ADJ UC IR Not Included)
• Compatible with the ADJ Airstream IR
• Power consumption: 32W (Full-On)
• Light output: 13,300 LUX @ 2M; 3,610 LUX @ 4M (2-degree beam)
• Multi-voltage Operation: AC 100 - 240V, 50/60Hz
• Power cable length: 1.5 meter (IEC)
• LED Source: 12W White LED source (Rated at approximately 50,000 hrs)
• Dimensions (LxWxH): 13.5 x  5.25 x 7 / 340 x 132 x 177mm
• Weight: 7.5 lbs. / 3.4 kgs.

Specifications subject to change without notice

Videos

Videos

Downloads

Downloads

The following downloads are available for this product:

Title Description
Inno Pocket Fusion User Manual Download

FAQs

Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

How many facets (mirror strips) does this unit have?

Please send your question to info@americandj.com and it will be forwarded to engineering for the information.

how can connect to Dmx inno pocket roll ,cause I bought 2 and I set at 512 and the lights aren't work just have movement but not lights. My Dmx controler is chauvet obey 3 and works whith all my lights but not with inno pocket roll

Please call us at 800-322-6337 and ask for tech Support. We will provide a walk through.

What's the difference between "6 DMX channels" (Inno Pocket Roll) and "5 DMX channel modes 2/6/8/9/11" (Inno Pocket Fushion)?

The units are different in operation so Channels 1 are the same in both but from 2 on they are different. THe roller combines roll speed and direction on ch2 strobing on 3,color on 4 + speed,dimmer on 5 and dimmer modes on 6.

the Inno Pocket Fusion has Tilt on 2, Colors on 3, strobing on 4 Master dimmer on 5,Laser on 6 and 7,laser strobe on 7,Built in shows on 8 show speed and sound sensitivity on 9, dimmer mode on 10 and Blackout modes on 11.

As you can see they are very different units.

Since a Inno Pocket Scan Pack (2 lights plus bag) and a Inno Pocket Roll Pack (2 lights plus bag) are both available; is there any plan to make a Inno Pocket Fusion Pack (2 lights plus bag) available? Since the Fusion is similar to the roll (fusion adds a laser); offering a Fusion package would make sense.

Thanks for getting in contact with us. I will pass along your request to our Deveopment team.

1. Are the dimmer/pan tilt/shutter only controlled by a dmx controller and can you explain each the manual doesn't offer anything specific ? 2. What are Standard, Stage, TV, Architectural & Theatre Dim Curves? 3. What is the difference or a description of each of the 8 show modes? thanks!

Yes, the dimmer, pan, tilt and shutter functions are only accessible via DMX.

Dimmer = Overall intensity of LED

Pan= Left and Right movement of head

Tilt= Up and down movement of head

Shutter= controls blackout or strobe function

The dimmer curve allows for different wave forms of dimming. In the end, it's all preference, but it can be critical when recording video. A very slow or very fast dimming speed is not ideal for video.

We have no information on the individual shows. It's just a random sequence of colors and movements. I suggest you go through each show and select the one that works best for your application.
