Inno Color Beam Z7

Video

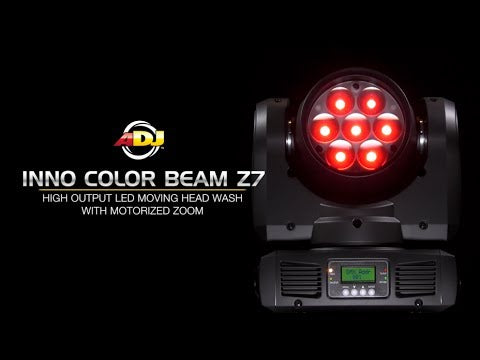

Inno Color Beam Z7
This unit my be positioned on the floor or mounted, or to truss or the ceiling using thesupplied Omega bracket.The electronic strobe/pulse effect will allow for random strobe effects thatrange in speed allowing for a spectacular display of flashing lights. Withthe daisy-chain capability, the Inno Color Beam Z7 maybe be powered linked for quicker set-up and connectivity.Compatible with the American DJ UC3 easy-to-use controller (soldseparately). The ADJ Inno Color Beam Z7 will give your next eventthe pure lighting excitement it needs to take it to the next level of professional light shows.
Specifications
- High Output LED Moving Head Wash with motorized zoom
- Motorized Zoom: 10 ~ 60-degree beam angle
- 3 Operational Modes: Sound Active, DMX Controlled or Show Mode
- 14 DMX channels
- 64 Built-In Color Macros
- 4 Built-In light shows
- Electronic Dimming: 0% - 100%
- Five Dimmer Curve Modes
- Pan/Tilt Inverse Mode for contrasting movement when fixtures are linked together
- Fast Pan Tilt Movement
- Pan: 540-degree; Tilt: 220-degree
- 16-Bit Fine Pan/Tilt control
- 4-Button DMX LCD menu
- Stepper motors with micro stepping
- Includes Omega bracket for truss mounting
- 3-pin XLR In/Out
- Fan cooled
- Electronic Strobe/Pulse effect; random strobe slow to fast
- Compatible with American DJ UC3 Series easy-to-use controllers (sold Separately)
- IEC AC IN/OUT on rear to daisy chain power
- (up to 4 Inno Color Beam Z7’s @ 120V and 8 Inno Color Beam Z7’s @ 230V )
- PWM (Pulse Width Modulation): 1K
- Strobe Rate: 1-19HZ
- Light Source: 7x 10W RGBW Quad Color (4-IN-1) Osram LEDs
- Light Output: 12700 LUX @2M; 3200 LUX @4M (10-degree), 980 LUX @2M; 265 LUX @4M (60-degree beam), 1240 LUX @4M (13 degree beam)
- Long Life LED (Rated at approximately 50,000 hrs)
- Power Cable Length: 1.5M (IEC)
- Multi-voltage Operation: 100-230V, 50Hz/60Hz
- Power Consumption: 104W
- Dimensions(LxWxH): 10.5” x 6.75” x 13.5”/ 262 x 167 x 340mm
- Weight: 17 lbs./7.5 kg.
- ETL Approved
Downloads
Cut sheet
Photometrics
User manual

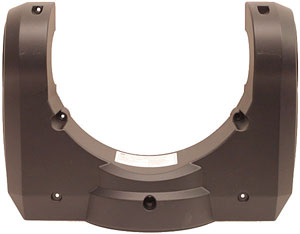

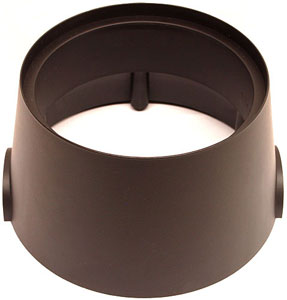

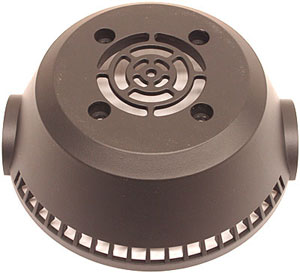

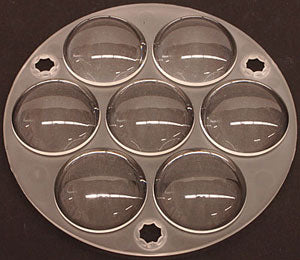

Inno Color Beam Z7 Parts & Service
Our Inno Color Beam Z7 Parts and Support page is your hub for technical support for your product. Here you’ll find support docs, service resources, and replacement parts specifically matched to your Inno Color Beam Z7. You can also use this area to plan future maintenance, extending the life of your investment and minimizing downtime.
Inno Color Beam Z7 Parts & Service
