Focus Spot Three Z

The ADJ Focus Spot Three Z is a 100W LED Moving Head with motorized focus and motorized zoom allowing for a variable beam angle from 13 ~ 18-degrees. The ADJ Focus Spot Three Z is a 100W LED Moving Head with motorized focus and motorized zoom allowing for a variable beam angle from 13 ~ 18-degrees. The ADJ Focus Spot Three Z is a 100W LED Moving Head with motorized focus and motorized zoom allowing for a variable beam angle from 13 ~ 18-degrees. The ADJ Focus Spot Three Z is a 100W LED Moving Head with motorized focus and motorized zoom allowing for a variable beam angle from 13 ~ 18-degrees. The ADJ Focus Spot Three Z is a 100W LED Moving Head with motorized focus and motorized zoom allowing for a variable beam angle from 13 ~ 18-degrees. The ADJ Focus Spot Three Z is a 100W LED Moving Head with motorized focus and motorized zoom allowing for a variable beam angle from 13 ~ 18-degrees. The ADJ Focus Spot Three Z is a 100W LED Moving Head with motorized focus and motorized zoom allowing for a variable beam angle from 12 ~ 18-degrees. The ADJ Focus Spot Three Z is a 100W LED Moving Head with motorized focus and motorized zoom allowing for a variable beam angle from 12 ~ 18-degrees. The ADJ Focus Spot Three Z is a 100W LED Moving Head with motorized focus and motorized zoom allowing for a variable beam angle from 12 ~ 18-degrees.
SKU: FOC407 | UPC: 819730019035

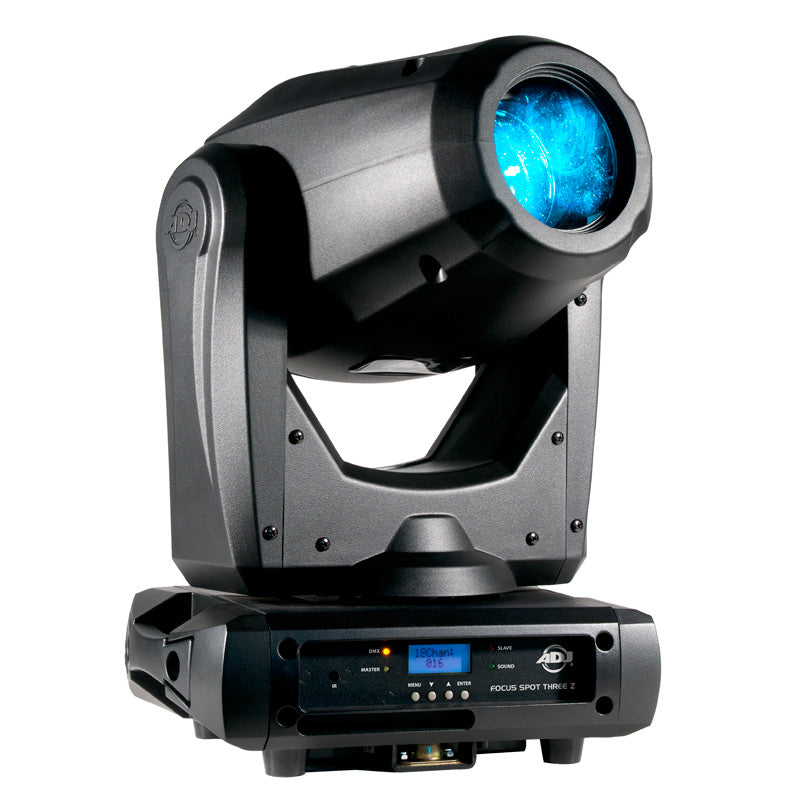

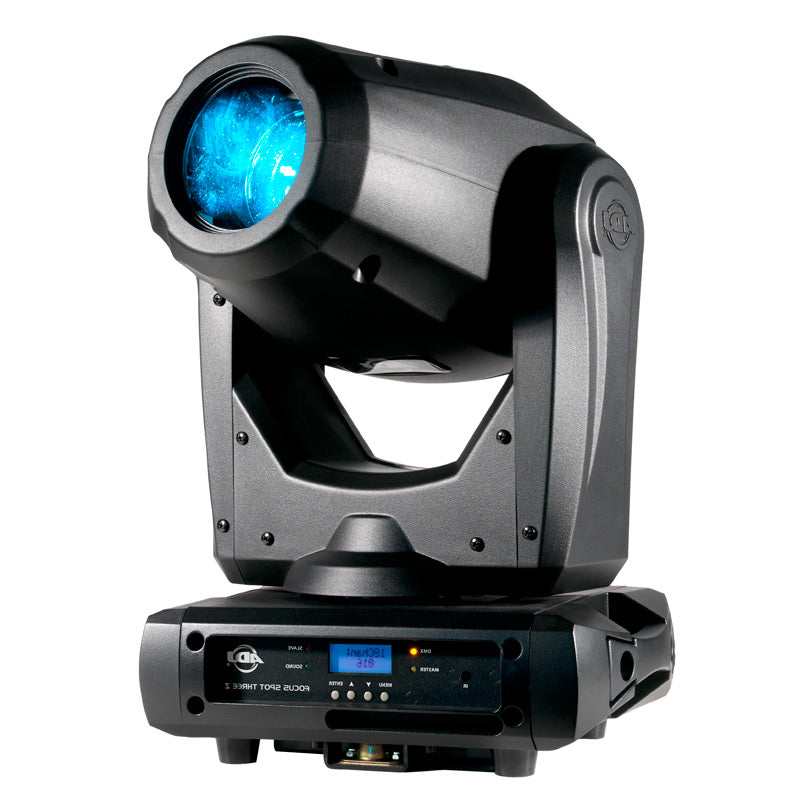

The ADJ Focus Spot Three Z is a 100W LED Moving Head with motorized focus and motorized zoom allowing for a variable beam angle from 12 ~ 18-degrees.
Advantage Points: 1000

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description

Details

Available Now! • $899.99

The ADJ  Focus Spot Three Z is a 100W LED Moving Head with motorized focus and motorized zoom allowing for a variable beam angle from 12 ~ 18-degrees.  In addition, ADJ has fitted the Focus Spot Three Z with one rotating GOBO wheel, one fixed GOBO wheel and one color wheel, letting users generate unique patterns and effects in a series of vibrant hues. There are two 6-facet prisms (one circular and one linear), enabling spellbinding multi-beam effects capable of filling wide spaces with color and movement.



The Three Z is extremely versatile and has everything clubs, theaters, churches, concert productions and lighting professionals are looking for in a professional LED spot Moving Head. It has 18 & 21 DMX channel modes, Pan/Tilt Inversion, 16-Bit Fine Pan/Tilt, 3-pin DMX I/nOut, PowerCon In/Out power connectors, and a 4-Button DMX LCD menu with 180-degree inverse view mode.

Securely transport and store up to 4 Focus Spot Three Z fixtures in he ADJ QRC-FS3Z road case.

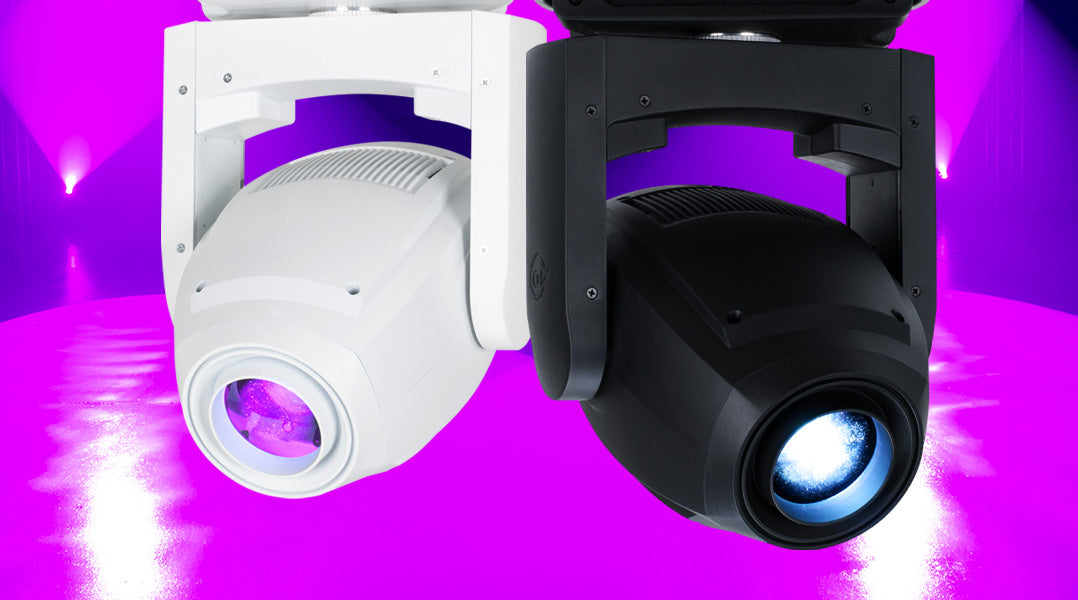

Learn more about the Focus Spot Three Z from the product spotlight article: CLICK HERE



Specifications

Specifications

Features:
• High Output 100W LED Moving Head spot with motorized zoom

• Motorized Focus
• Motorized Zoom: 12 ~ 18-degree beam angle

• 3 Operational Modes: Sound Active, Show Mode, & DMX Controlled

• 4 Built-in lighting shows
• Electronic Dimming: 0% - 100%

• Electronic Strobe/Pulse effect; random strobe slow to fast

• 5 Dimming Curves

• Pan/Tilt Inverse Mode for contrasting movement when fixtures are linked together
• Fast Pan Tilt Movement

• Gobo Shake effect
• Two 6-facet rotating prism effects (one circular & one linear)
• 16-Bit Fine Pan/Tilt control
• Stepper motors with micro stepping

• 3-pin XLR In/Out
• With Wired Digital Communication Network
• 4-Button DMX LCD menu with 180° Inverse View mode
• Includes Omega bracket for truss mounting
• Fan cooled

Specifications:
• Light Source: 100W High Output LED
• LUX : 12 Degrees: 13090 @ 3M / 18 Degrees: 6300 @ 3M
• Variable beam angle: 12~ 18-degree beam angle
• 18 & 21 DMX channel modes

•  8 Colors + Spot
• 2 Independent Gobo Wheels: Gobo Wheel 1 has 7 Static Gobo’s + Spot; Gobo Wheel 2 has 6 Rotating Gobo’s + Spot
• Interchange Gobos on wheel 2: 23.8 mm Gobo Size; 20mm Viewable
• Pan: 540-degree; Tilt: 270-degree

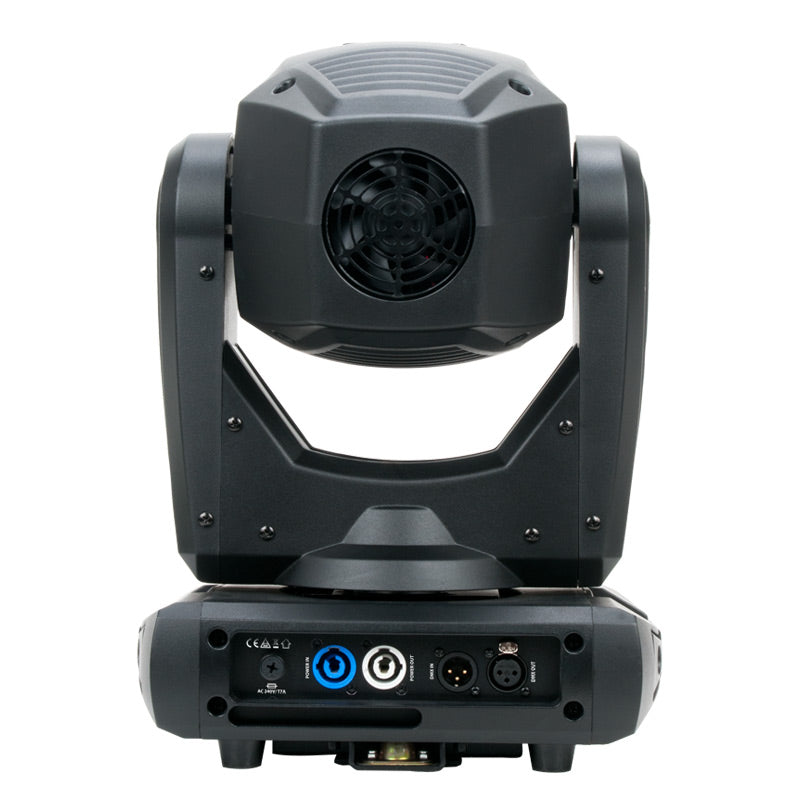

• PowerCon AC In/Out on rear to daisy chain power (up to 3 Focus Spot Three Z’s @ 120V and 6 Focus Spot Three Z’s @ 230V )
• PWM (Pulse Width Modulation): 1.2K
• Strobe Rate: 0.3-20HZ
• DB Rating @ 1Meter: Front: 52; Back: 50.4; Left: 51.1;
Right: 50.7; Top: 52.1

• Long Life LED (Rated at approximately 50,000 hrs)
• Multi-voltage Operation: 100-230V, 50Hz/60Hz
• Power Consumption: 230W
• Dimensions (LxWxH): 7.25” x 11.25” x 19.75”/ 183 x 284 x 489mm
• Weight: 26 lbs. /12 kgs.
• ETL Approved
• Includes: Omega bracket to hang on truss & 5-foot powerCON power cord

Securely transport and store up to 4 Focus Spot Three Z fixtures in he ADJ QRC-FS3Z road case.

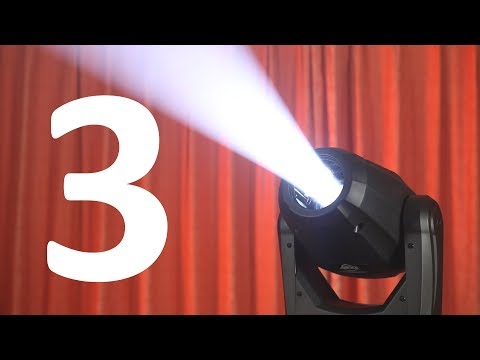

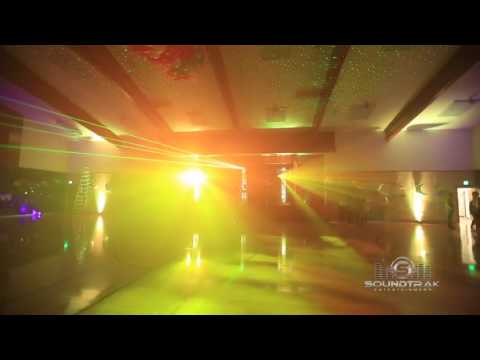

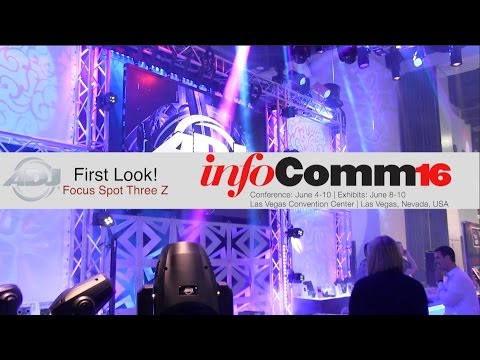

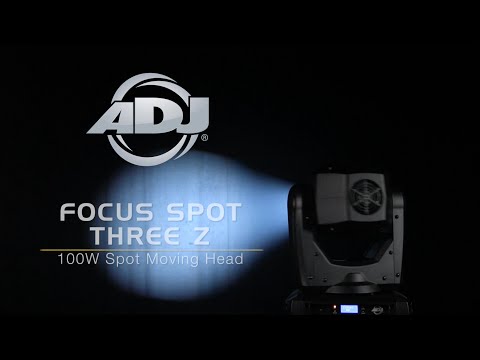

Videos

Videos

Downloads

Downloads

The following downloads are available for this product:

Title Description
Focus Spot Three Z CAD Drawing Download
Focus Spot Three Z Color & Gobo Wheel Download
Focus Spot Three Z User Manual Download
Focus Spot Three Z Photometric Test Report Photometric Test Report Download
Focus Spot Three Z Photometric IES Files Photometric IES Files Download

FAQs

Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

myDMX 2.0 haven't ssl to Focus Three Z

The profile can be downloaded from the following link...  https://www.dropbox.com/s/ychnzocclbdqgkx/Focus%20Spot%203Z.ssl2?dl=0

is there a mydmx 2.1 profile for this? if not could you make one?

The profile can be downloaded from the following link.

http://tinyurl.com/goxjxf3
