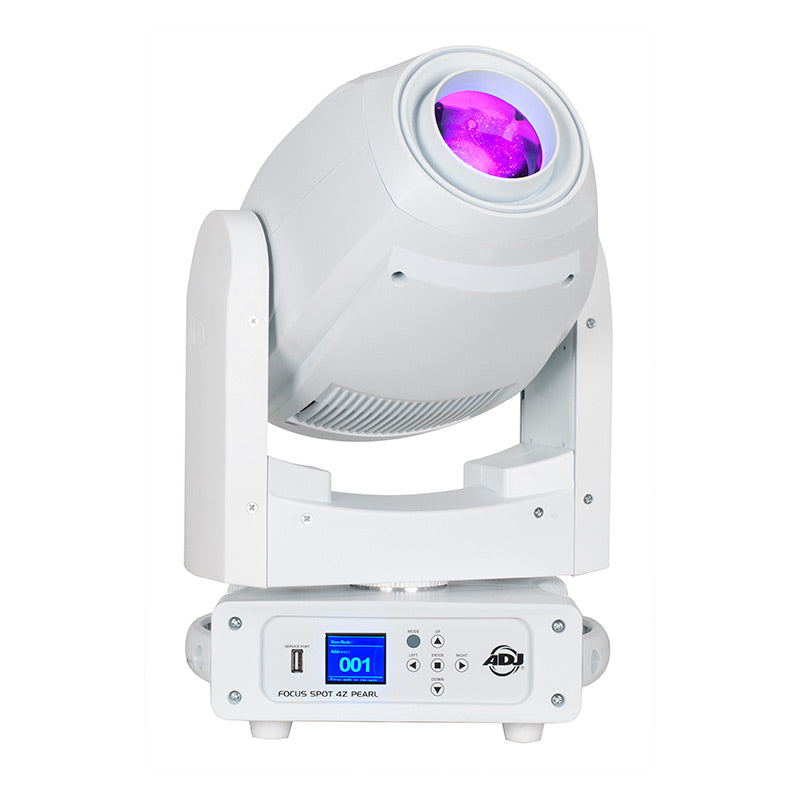

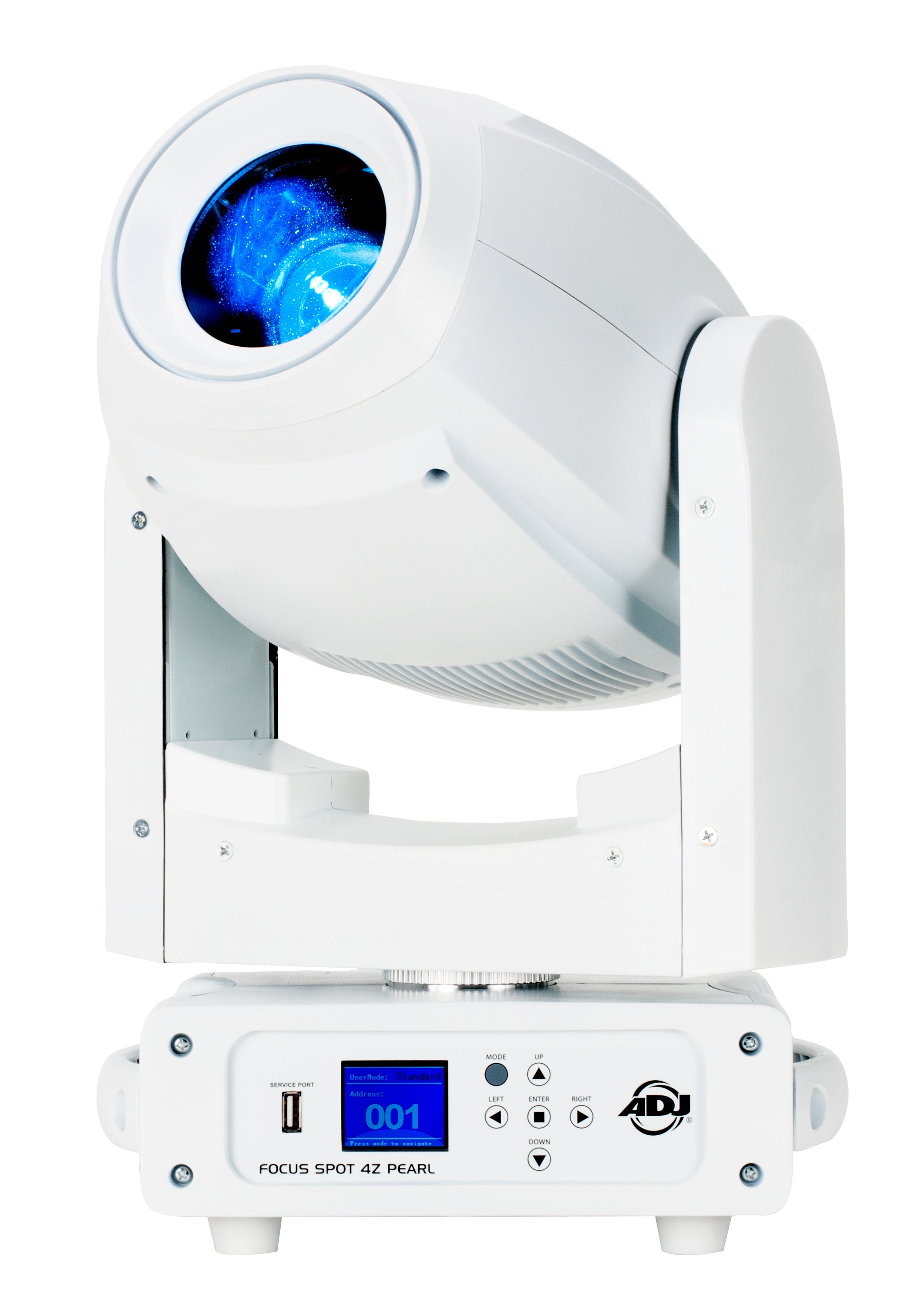

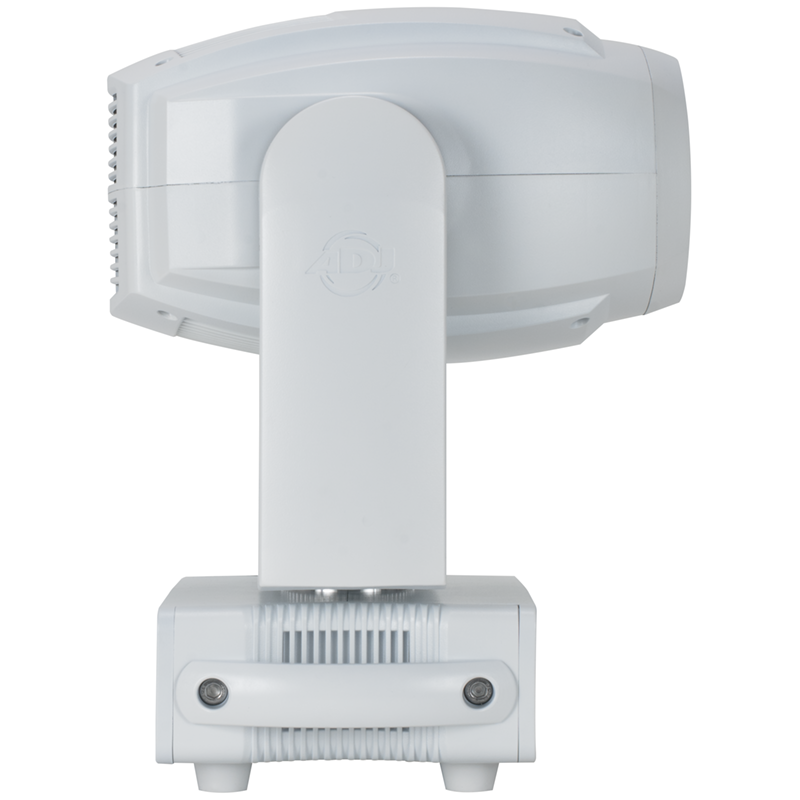

Focus Spot 4Z Pearl

UPC#: 818651026245
Advantage Points: 1100
Redemption Points: 22000
SKU
FOC225
200W LED Moving Head Spot Fixture with Motorized Focus & Motorized Zoom (11 ~ 22-degrees). Equipped with 6 GOBOs plus open, 8 colors + white and 2 prism wheels. White exterior housing.

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Light Source:

• 200W Cool White LED Engine (50,000 hr.)


Features:

• Motorized Focus

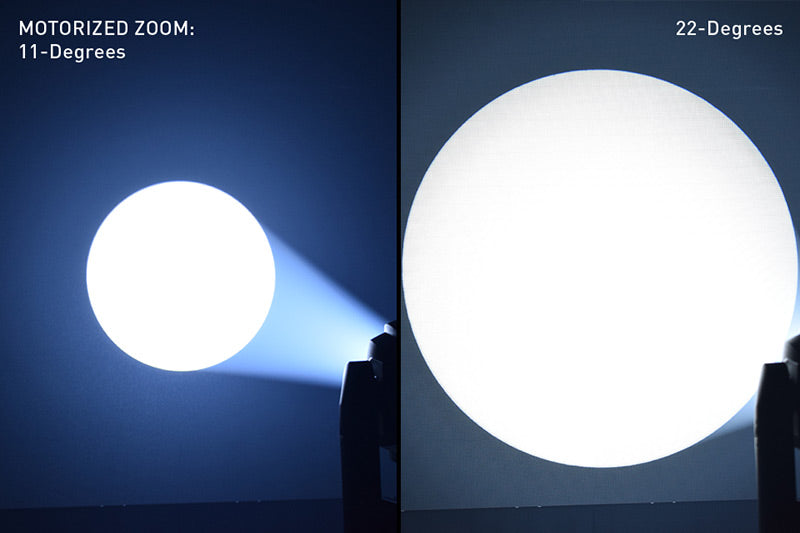

• Motorized Zoom: 11 ~ 22-degrees plus 16-bit Fine Zoom

• 2 Prism FX: Rotating 5-facet Linear & rotating 6-facet Circular

• 0-100% smooth dimming

• Various strobe speeds

• USB firmware update port

• 2 cooling fans

• White exterior housing

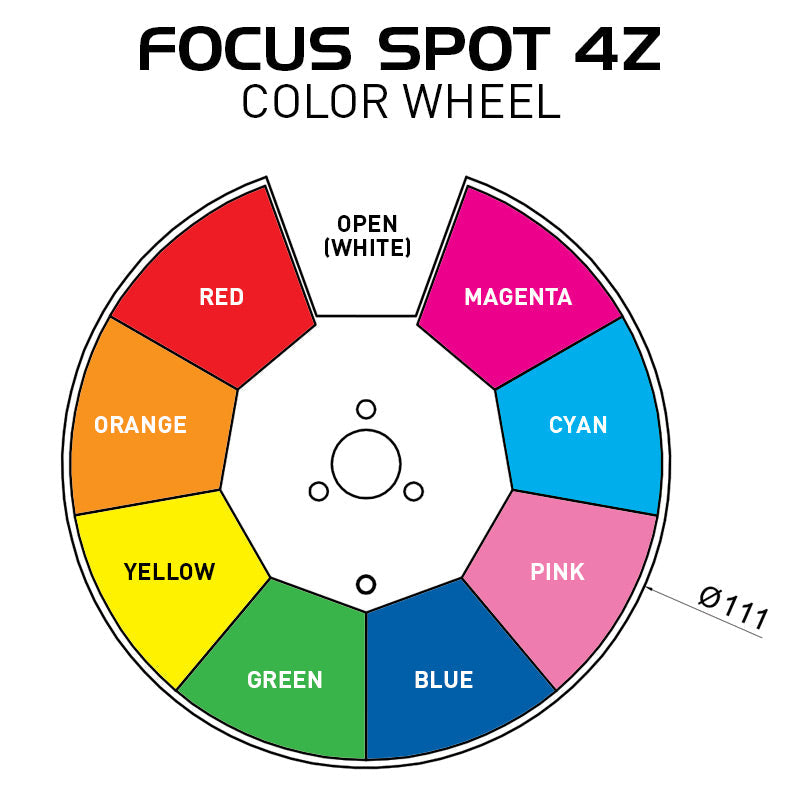

 Color Wheel:

• 8 dichroic colors + white

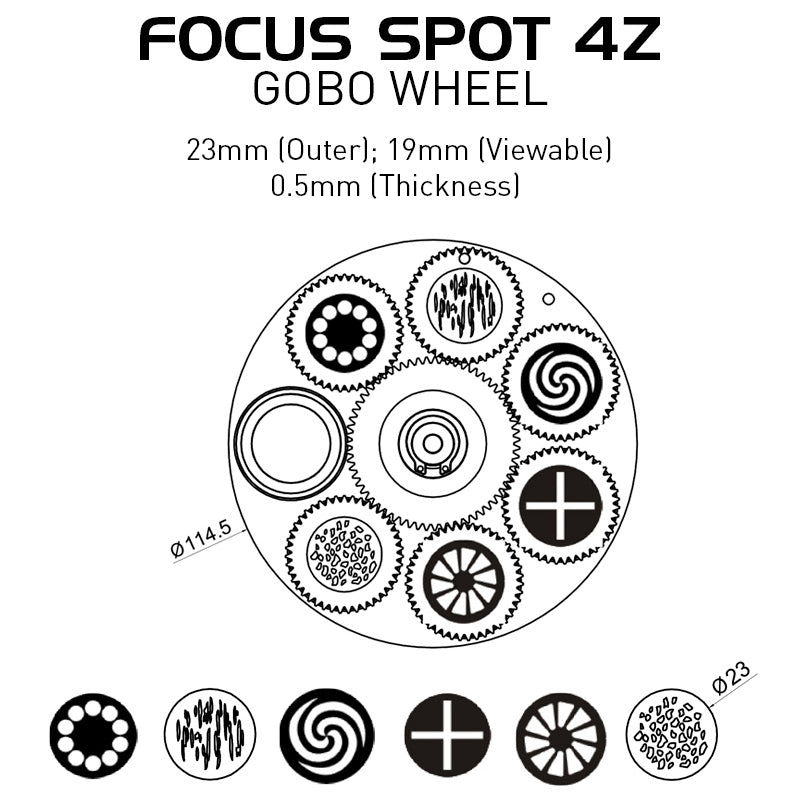

GOBO Wheel:

• 6 aluminum GOBOs + open

• All GOBOs removable & rotatable

• GOBO Shake Effect

• GOBO size: 22.5mm (outer); 19mm (viewable); 0.5-2mm (thickness)


 Prism Wheel:

• Prism Wheel 1: Rotatable 5-facet Linear

• Prism Wheel 2: Rotatable 6-facet Circular

• Prism Indexing


Control:

• 3 DMX Channel Modes: 16/18/22 Channels

• Color LCD display with 6-button function menu

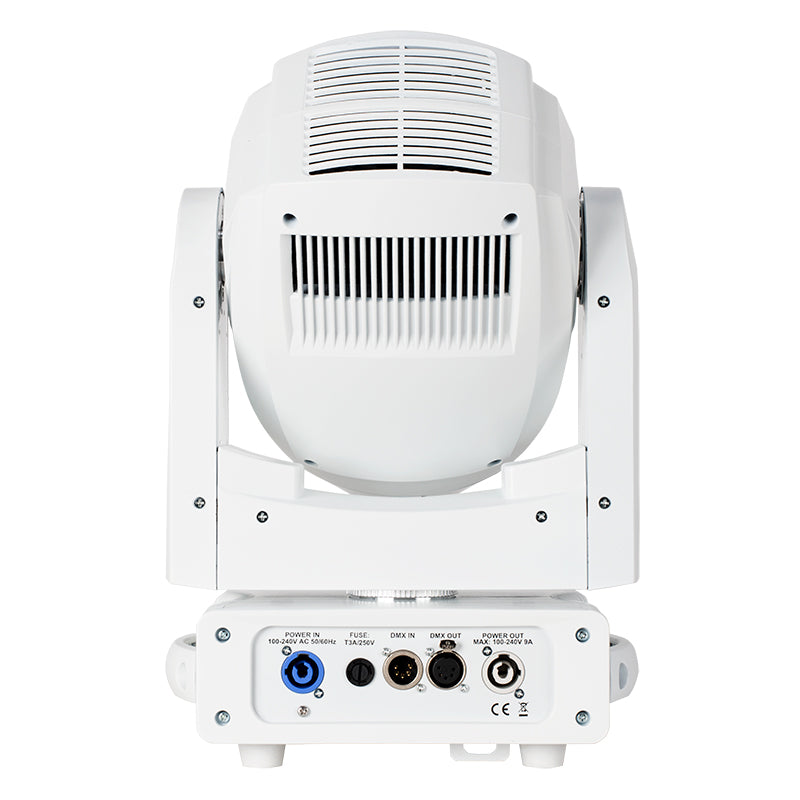

• Data In/Out: 5-pin DMX

• Power In/Out: Locking power In/Out connections (Daisy chain 4 units @ 120V; 10 units @ 240V)

• Control Mode: DMX512 or internal programs

• 6 Dimming Curve Modes: Standard, Stage, TV, Architectural, Theatre, Stage 2

• 0-100% smooth dimming

• Various strobe speeds

• USB firmware update port

• With Wired Digital Communication Network

• RDM (Remote Device Management)


Pan/Tilt:

• Pan: 540 & 630 degrees

• Tilt: 270 degrees


Dimensions & Weight:

• Dimension: 7.15” (L) x 10.97” (W) x 18” (H) / 181.5 x 278.6 x 457.4mm

• Weight: 23 lbs. / 10 kg.


What’s Included:

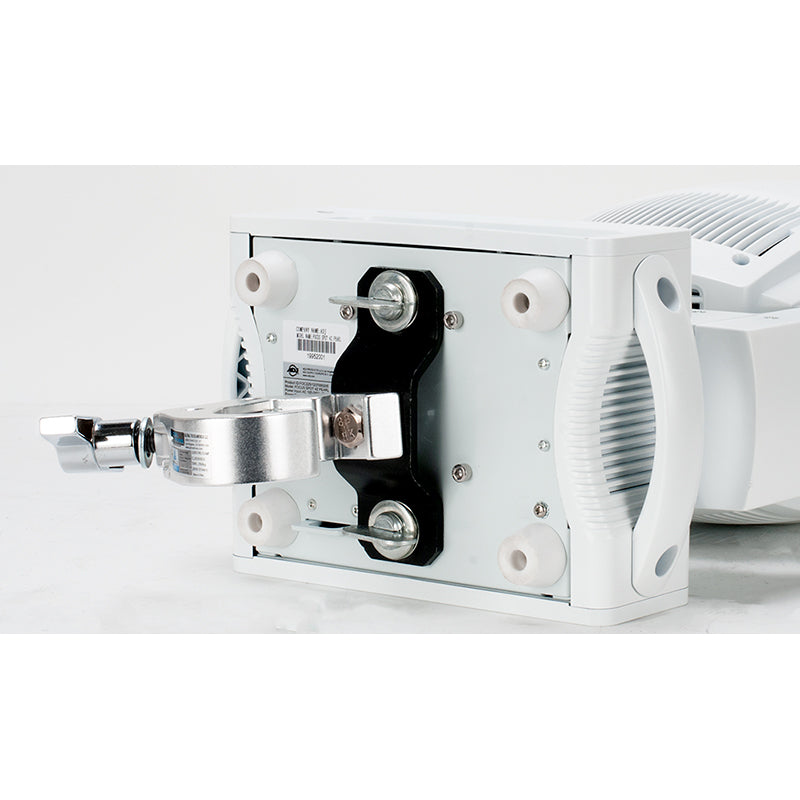

• Omega Bracket

• 6 ft/3M locking power to Edison cable

• Safety Cable


Optional Road Cases:

• DRC MH: 2 Focus Spot 4Z Pearl fit in the DRC MH Road Case

• QRC MH: 4 Focus Spot 4Z Pearl fit in the QRC MH Road Case


Rating/Approvals:

• cETLus approved (Control #4010765)

Videos

Downloads

The following downloads are available for this product:

Title Description
Focus Spot 4Z Cut Sheet Focus Spot 4Z Cut Sheet (3MB PDF). Revised July 2022 Download
Focus Spot 4Z User Manual User Manual Download
Focus Spot 4Z Pearl - DMX Traits DMX Traits Download
Focus Spot 4Z Photometric Test Reports Photometric Test Reports Download
Focus Spot 4Z Photometrics IES Files Photometrics IES Files Download
Focus Spot 4Z 3D CAD CAD Drawing Download
Focus Spot 4Z Pearl 2D Cad Drawing Cad Drawing Download
Available now from ADJ USA

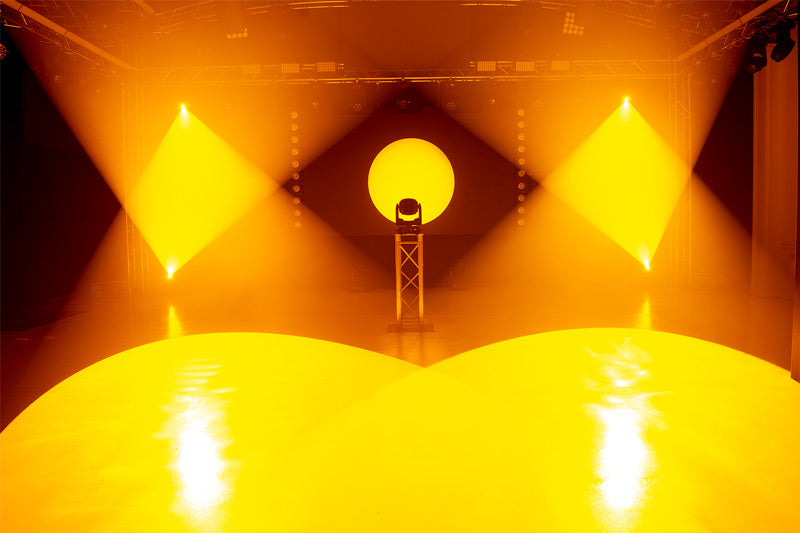

The Focus Spot 4Z Pearl is powered by a brilliant 200W cool white LED engine and is equipped with motorized focus and zoom (11 ~ 22-degree zoom), and has a white exterior housing. Its designed for temporary live events and fixed installations in nightclub, stages or churches. It is professionally fit with one GOBO wheel with 6 rotating/replaceable GOBOS, 8 vibrant colors plus white, and 2 prism wheels (one 5-facet linear and one 6-facet circular).

The Focus Spot 4Z has locking power In/Out connections to daisy chain the power, as well as 5-pin DMX In/Out to transmit a DMX signal from one fixture to the next. There is a USB firmware update port built-in plus advanced control options such as: 16-bit fin pan and tilt, multiple DMX control modes, and 6 different dimming options. The Focus Spot 4Z offers a robust light output in a light weight, compact foot print (18-inch high and one 23 pounds).



Read the Focus Spot 4Z Pearl product spotlight.

Read the Focus Spot 4Z Pearl press release.
