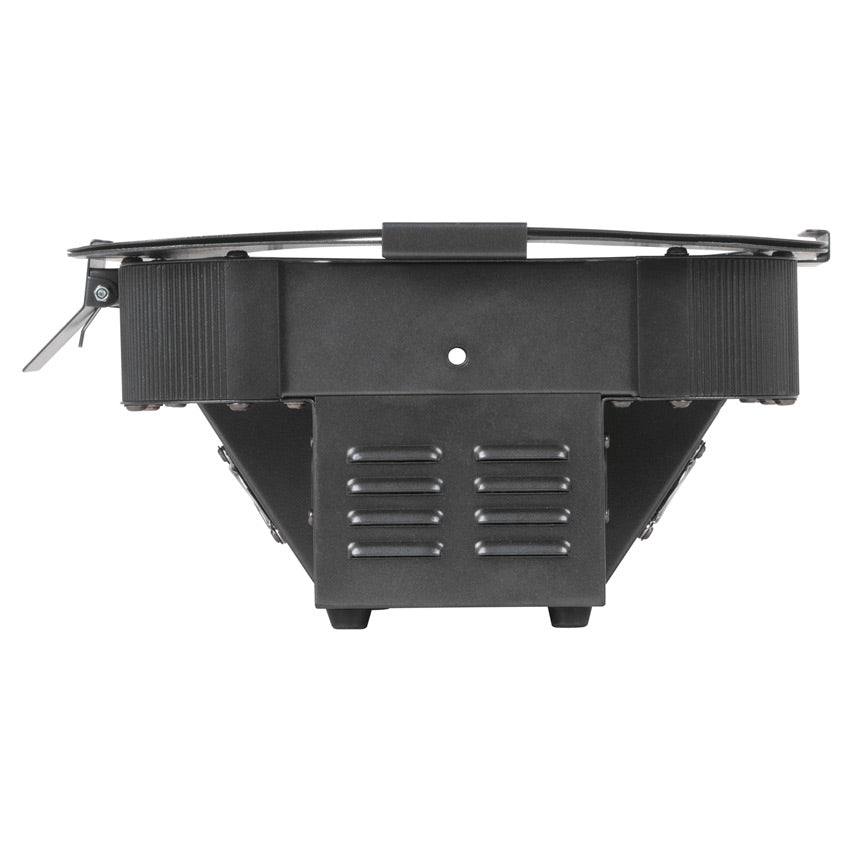

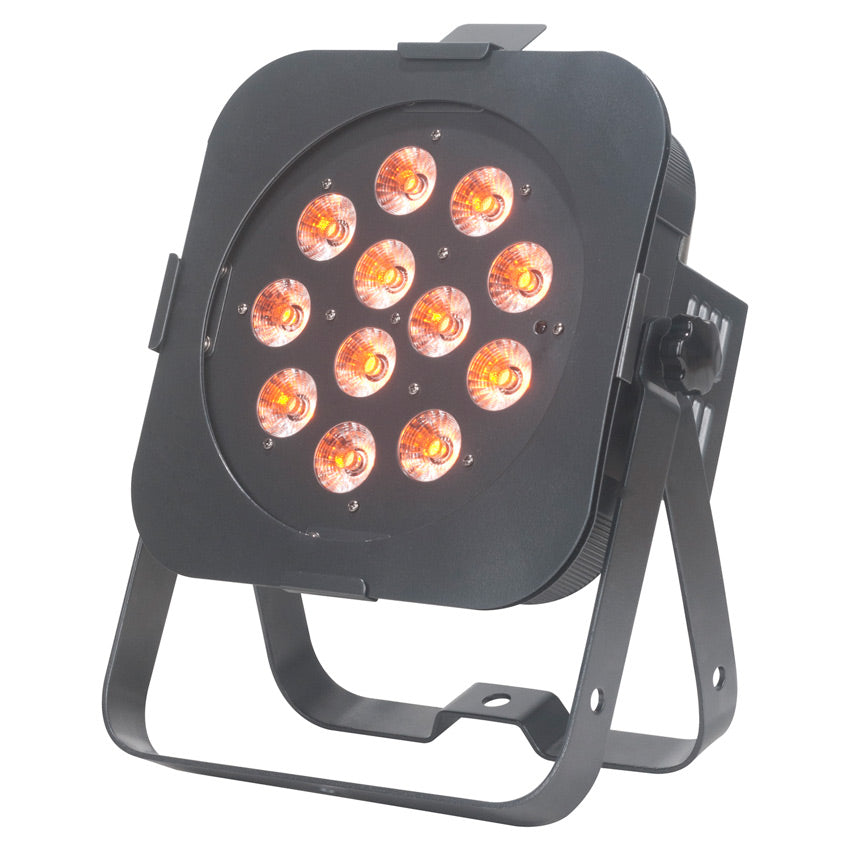

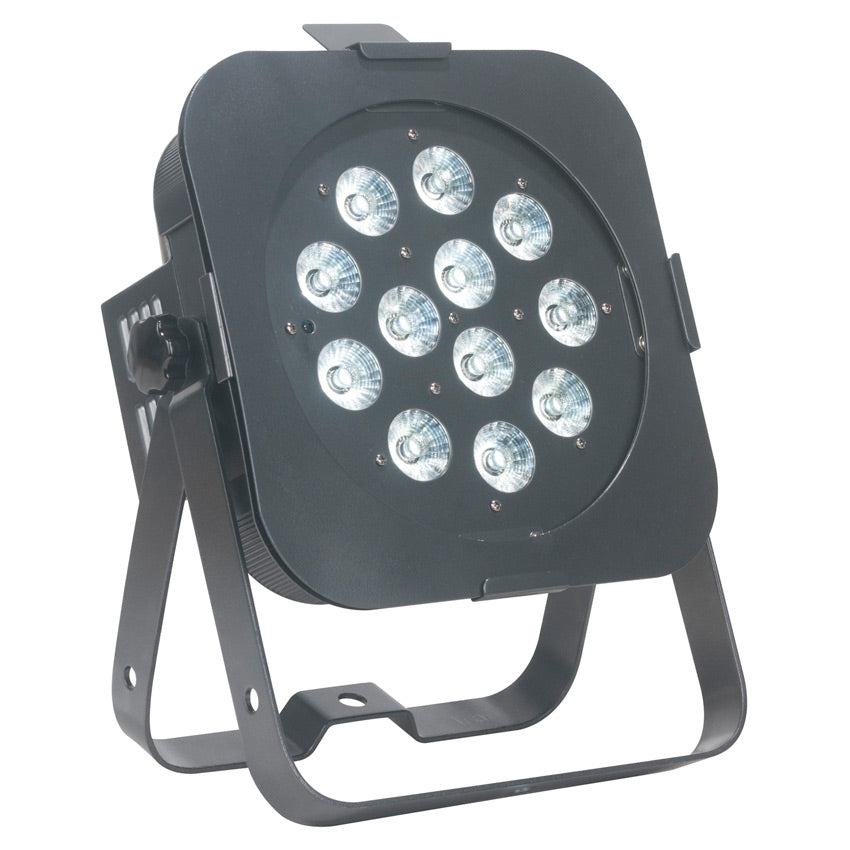

Flat Par TW12

SKU: FLA120 | UPC: 819730013026
The Flat Par TW12 is a dynamic white, 60W LED flat Par fixture which features twelve 5-watt “Tri-white” 3-IN-1 LEDs (warm white, cool white, amber on one LED chip). The dynamic white LEDs give lighting designers the ability to control a variety of white color temperatures from a single Par fixture; from a warm yellow-amber tungsten hue to a super blue-white discharge look. This allows for greater white lighting control and appeal towards performers skin tones.
Advantage Points: 250

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description

Details

The Flat Par TW12 is a dynamic white, 60W LED flat Par fixture which features twelve 5-watt “Tri-white” 3-IN-1 LEDs (warm white, cool white, amber on one LED chip). The dynamic white LEDs give lighting designers the ability to control a variety of white color temperatures from a single Par fixture; from a warm yellow-amber tungsten hue to a super blue-white discharge look. This allows for greater white lighting control and appeal towards performers skin tones.

The TRI LEDs also eliminating color shadows for smooth, seamless color mixing and giving user endless possibilities for stages, productions and lightshows. The dynamic white With a 40-degree beam angle, the color washes provided by the Flat Par TW12 are far-reaching, while 0-100% electronic dimming and easily activated LED pulse and strobe effects offers the ability to dim the unit evenly. The Flat Par TW12 may be controlled by the 4-button LED display on the rear of the fixture, or by DMX protocol. The scissor yoke and rubber feet allow for this Par to be placed on the ground for additional lighting applications, such as uplighting. A gel frame is included so that diffusion filters may be place in the light path for wider light washing options.

Specifications

Specifications

  • 60W Dynamic White LED Flat Par
  • 12x 5-Watt TRI LED 3-IN-1 CW/WW/A (Cool White/Warm White/Amber - 50,000 hrs.)
  • 7 DMX Modes: 1, 2, 3, 4, 5, 6 & 7 channels
  • TRI LEDs Eliminate color shadows when mixing Dynamic White LEDs
  • LED pulse and strobe effect
  • Electronic Dimming: 0 - 100%
  • Beam angle: 40-degree
  • Flicker Free

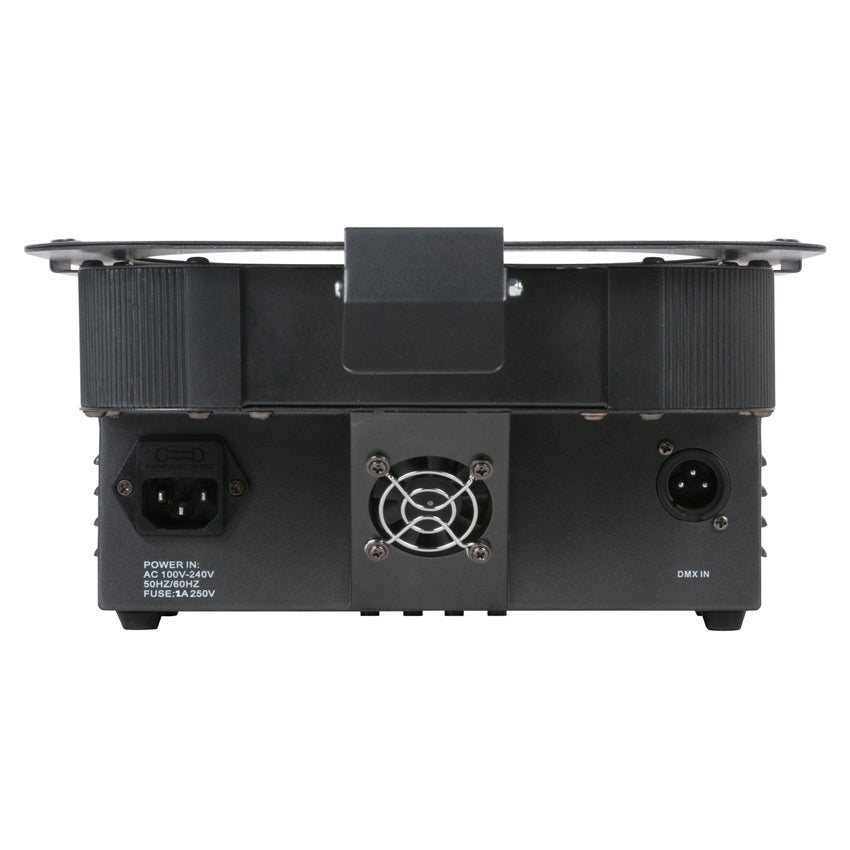

  • 4-button, DMX digital display on rear panel
  • Optional ADJ LED RC3 wireless remote control (sold separately)
  • Dual yoke allows fixture to be hung or set on the ground
  • Data linkable via 3-pin XLR cables
  • Power Draw: 61W total (All LED's @ Full On)
  • Color Temperature: >6500°K (Cool White); >2700°K (Warm White)
  • Light output: 1650 LUX @ 2M; 393 LUX @ 4M (40-degree beam)
  • CRI Values: 70-80 (Cool White & Warm White)
  • Power Cable Length: 1.8m (IEC)
  • Multi-voltage operation: AC 100-240V, 50/60Hz (IEC power In/Out)
  • Dimensions (LxWxH): 13” x 11” x 4.25”/ 328 x 280 x 105mm
  • Weight: 7.5 lbs. / 3.25 kg.
  • ETL Approved

Videos

Videos

Downloads

Downloads

The following downloads are available for this product:

Title Description
Flat Par TW12 User Manual Download
Cutsheet Download
Flat Par TW12 Photometric Test Reports Photometric Test Reports Download
Flat Par TW12 Photometric IES Files Photometric IES Files Download

FAQs

Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

we are interested in spotlighting in a church. What is the optimal distance from light to subject ?

The optimal distance varies on light intensity deaired and area of coverage. At 16' distance the Flat Par TW 12 wil produce 253 lux at full output and cover an 18' field.
