Flat Par QWH5XS

UPC#: 819730016515
Advantage Points: 250
Redemption Points: 5000
SKU
FLA968

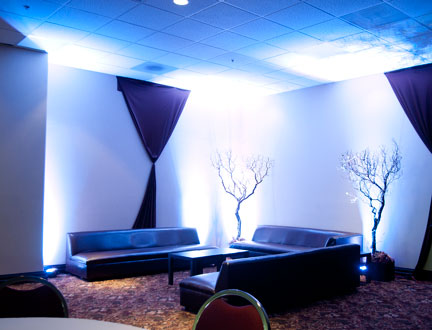

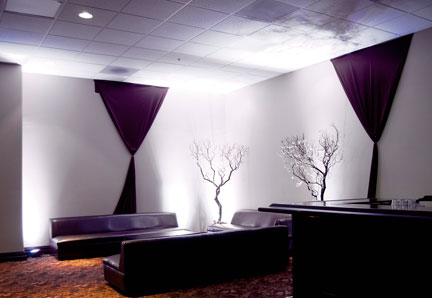

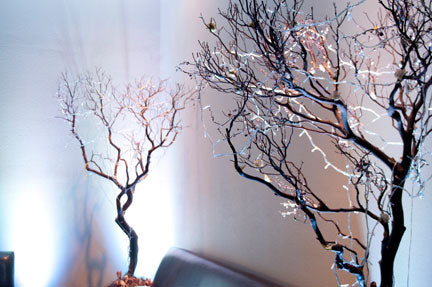

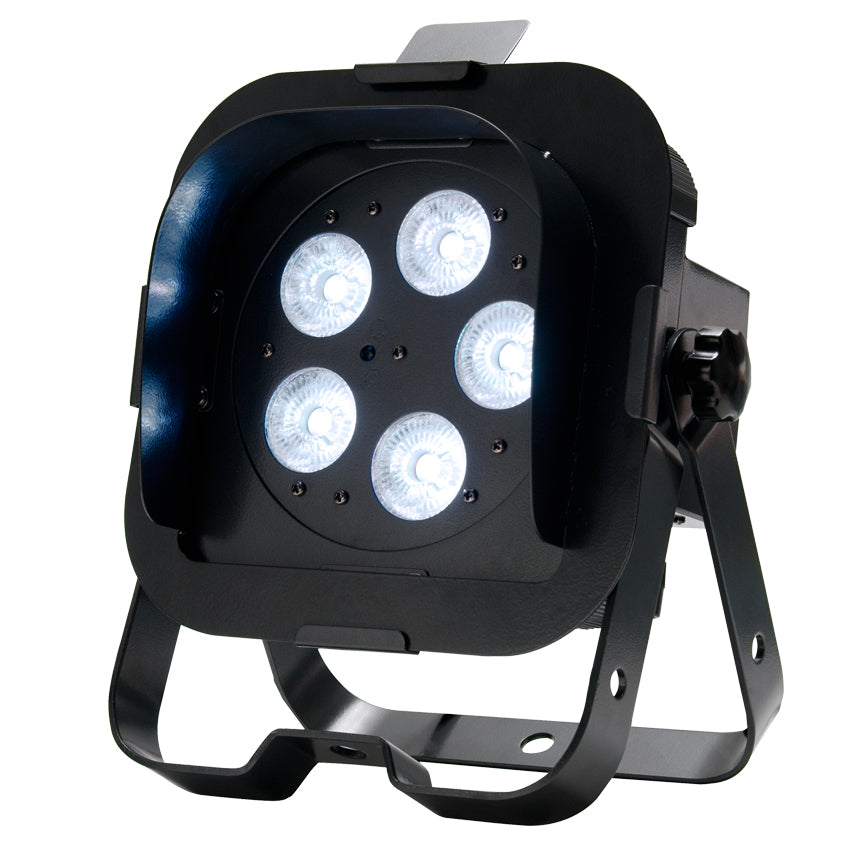

The ADJ Flat Par QWH5XS is a compact, low profile LED Par designed for washing small stages, uplighting or truss warming. Its powered by five 5-Watt Quad LEDS (4-IN-1 RGBW) and comes with a gel filter for inserting diffusion filters and a snoot.

Where to Buy

Enter your zip code below to find this product at a retailer near you!

• Ultra bright slim fixture with 5x 5-Watt QUAD LEDs (4-in-1 RGBW- Red, Green, Blue & White)

• Snoot Frame included helps limit unwanted light exposure

• Unique “sit flat” design – Power & DMX Ins/Outs are intelligently designed so the unit can be set flat on the ground or set inside truss

• Great for performance stages where traditional par cans emit a lot of heat onto performers

• Low profile case design

• Wireless infrared remote control up to 15 ft./4.5M (Model: ADJ LED RC2 - sold separately)

• 8 DMX Channel modes: 1, 2, 3, 4, 5, 6, 7 or 8 channel modes

• 6 Operational modes: Manual Color Mode; Color Change Mode; Color Fade Mode; Auto (Program Run) Mode; Sound Active Mode and DMX-512 Mode

• Smooth RGBW color mixing (fast or slow color change operation)

• QUAD LED (4-in-1) projects no RGB shadows

• 15 built-in Color Macros

• LED Pulse & strobe effect

• Flicker Free

• Electronic Dimming: 0 - 100%

• Beam angle: 25-degree

• Linkable via 3-pin XLR cable (In/Out)

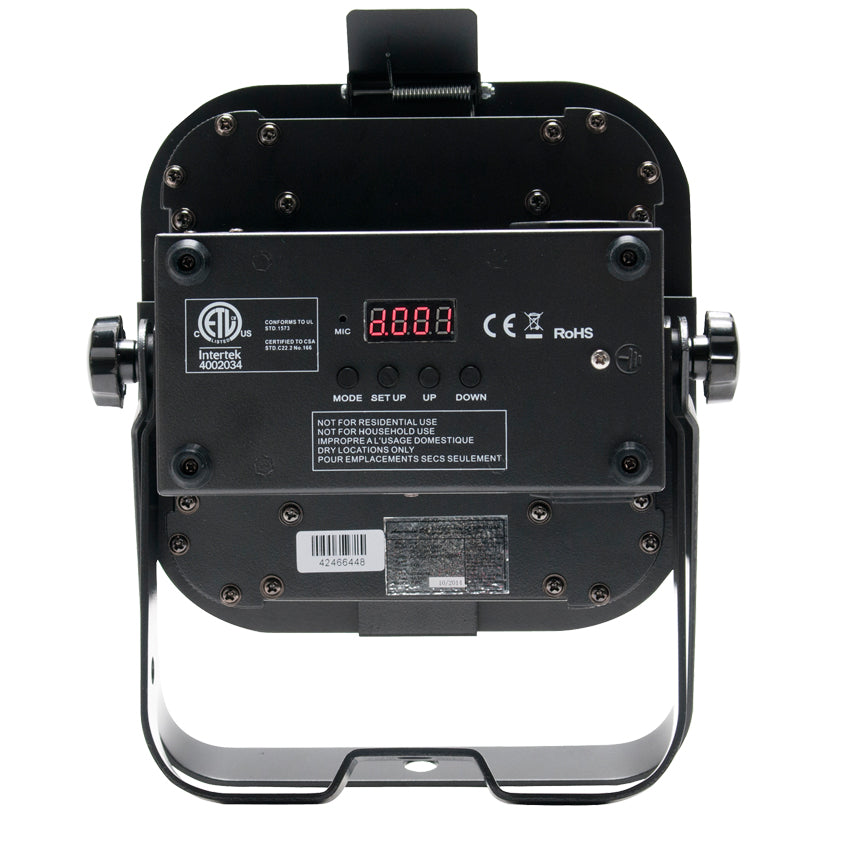

• 4-button LED DMX display on rear panel

• Dual bracket yoke allows fixture to be hung or set on the ground

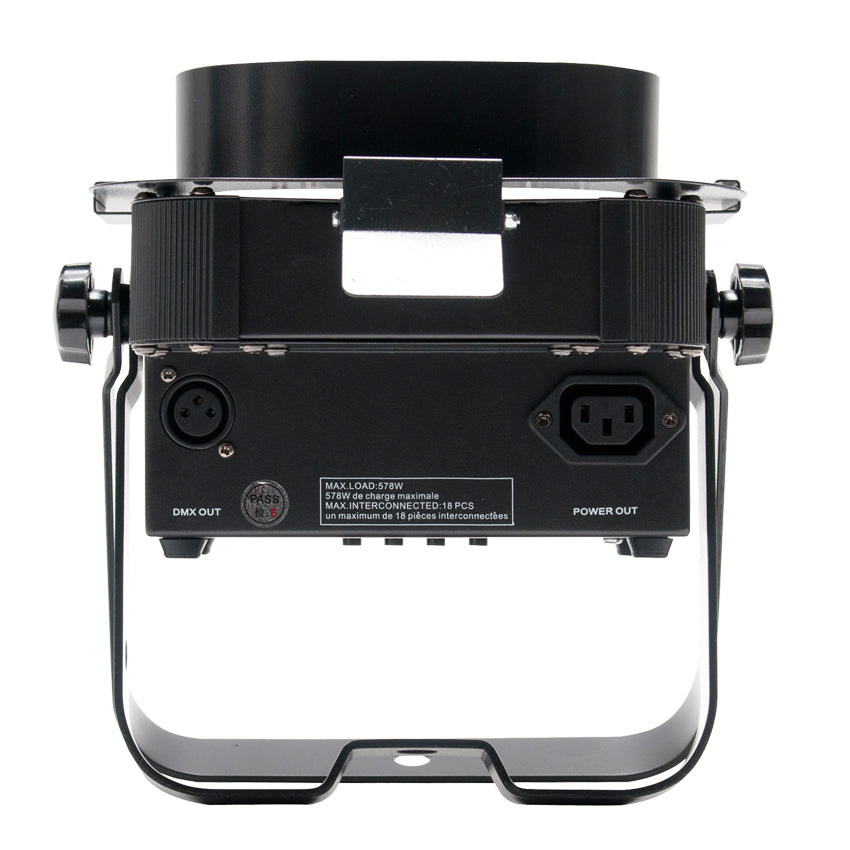

• IEC AC IN/OUT outlets on rear to daisy chain power (up to 18 units)

• Includes gel frame for optional diffusion filters

• Run all night – No duty cycle

• Light output: 2730 LUX @ 2M; 611 LUX @ 4M (25-degree beam)
• Long Life LEDs (50,000 hrs.)

• Power Draw: 34W max
• Power cable length: 1.8m (IEC)

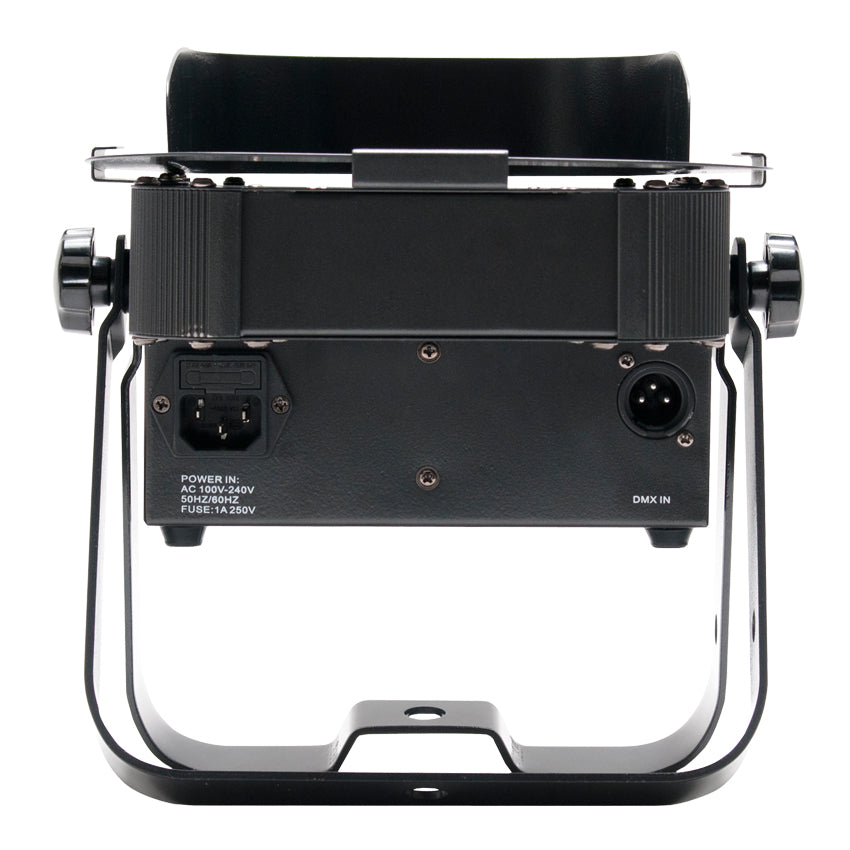

• Multi-voltage operation: AC 100-240V, 50/60Hz (IEC power In/Out)

• Dimensions (LxWxH): 10.75”x9”x4.5” / 272x230x115mm

• Weight: 6 lbs. / 2.5 kg.

Videos

There are currently no videos available for this product.

Downloads

The following downloads are available for this product:

Title Description
Flat Par QWH5XS User Manual The ADJ Flat Par QWH5XS is a compact, low profile LED Par designed for washing small stages, uplighting or truss warming. Its powered by five 5-Watt Quad LEDS (4-IN-1 RGBW) and comes with a gel filter for inserting diffusion filters and a snoot. Download

Take your color mixing to the next level with the ADJ Flat Par QWH5XS professional “low profile” LED fixture. It features five 5-Watt QUAD LEDs (4-in-1 RGBW) with smooth RGB color mixing as well as a true amber LED to get the hard to achieve orange and amber hues.



The units “low profile,” sideways power & DMX Ins/Outs and dual hanging brackets make it ideal for mobile entertainers, permanent installations and for inserting into truss or for uplighting.



The Flat Par QWH5XS has 8 different DMX channel modes, and may also run in Sound Active or Primary/Secondary modes. Users can also go “wireless” with the ADJ LED RC2 wireless remote (sold separately). This LED fixture also features: 15 Color Macros, Electronic Dimming (0-100%), IEC AC IN and OUT on rear to daisy chain power and a 25-degree beam angle. The Flat Par QWH5X LEDs are rated at 50,000 hours, and only draws 34-Watts of power per fixture.
