Encore Profile 1000 WW

Pro Ellipsoidal with a 120W High Powered WW COB LED source Pro Ellipsoidal with a 120W High Powered WW COB LED source Pro Ellipsoidal with a 120W High Powered WW COB LED source Pro Ellipsoidal with a 120W High Powered WW COB LED source
SKU: ENC264 | UPC: 819730017932
120W Warm White LED Ellipsoidal with manual zoom and a 12-30-degree beam angle.
Advantage Points: 700

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description

Details

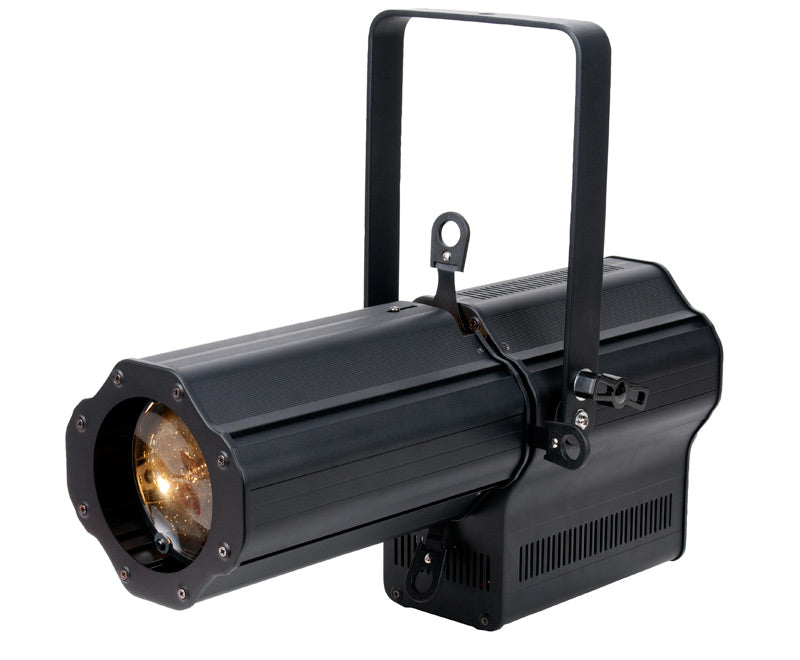

The ADJ Encore Profile 1000 WW is a modern 120W LED Ellipsoidal. It features a bright 120W COB LED source, variable strobe speed and dimming capabilities. Additional features include: adjustable zoom and focus, shutters for manual framing and 3-pin and 5-pin DMX connections. This fixture stays cool and consumes 144W of power.

Learn more about ADJ’s Encore Profile fixtures in this product spotlight article: CLICK HERE




Specifications

Specifications

Features:

• Pro Ellipsoidal with a 120W (Updated 3/23/16) High Powered WW COB LED source: Color Temperature 3200k, CRI 98

• 4 Operating Modes: Dimmer Mode, Color Fade Mode, Sound Active Mode, & DMX Controlled0

• Stand Alone Setup or Master-Slave Setup

• 3 DMX Channel Modes: 1/2/3

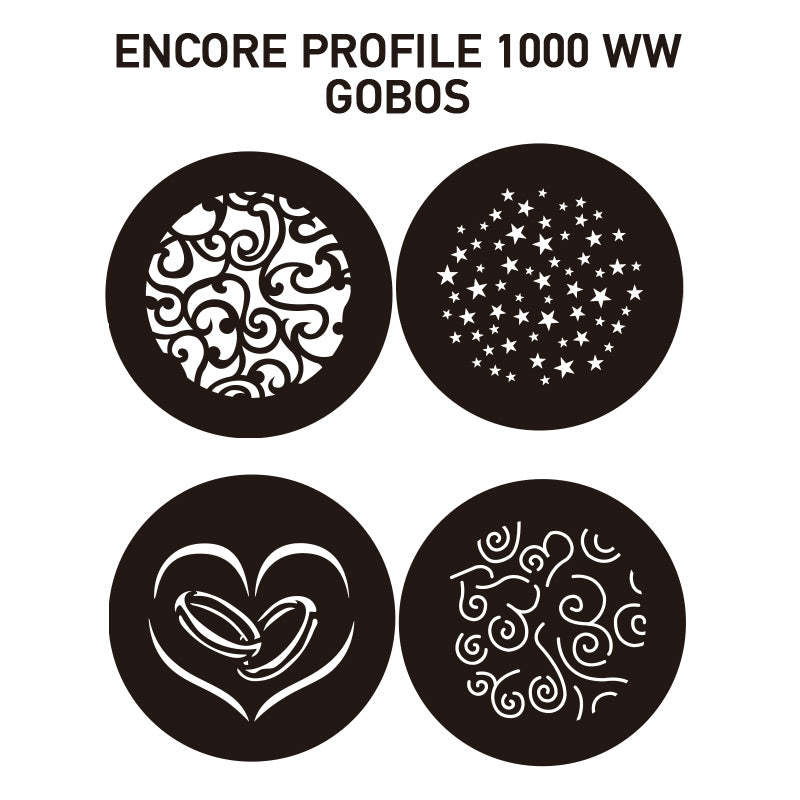

• Includes 4 Glass Gobos

• 5 Dimmer Modes

• Electronic Strobing

•  0-100% Electronic Dimming Control

• Manual Zoom and Focus

• Manual Framing Shutters

• Fan Cooled

• Hanging Bracket

• UC IR & Airstream IR Compatible (sold Separately)

Specifications:

• 1 x 120W (Updated 3/23/16) Warm White COB LED source; Color Temperature 3200K, CRI98 (Lamp life approx. 50,000 hrs)

• 12º - 30º Manually adjustable Beam angle
Gobo Dimensions: Outer 61mm; Inner: 51mm; Thickness: 2mm: Accepts Type M Gobos

• Light Output: 5970 LUX @ 2M; 1514 @4M (12-degree), 1346 LUX @2M; 345 LUX @4M (30-degree)

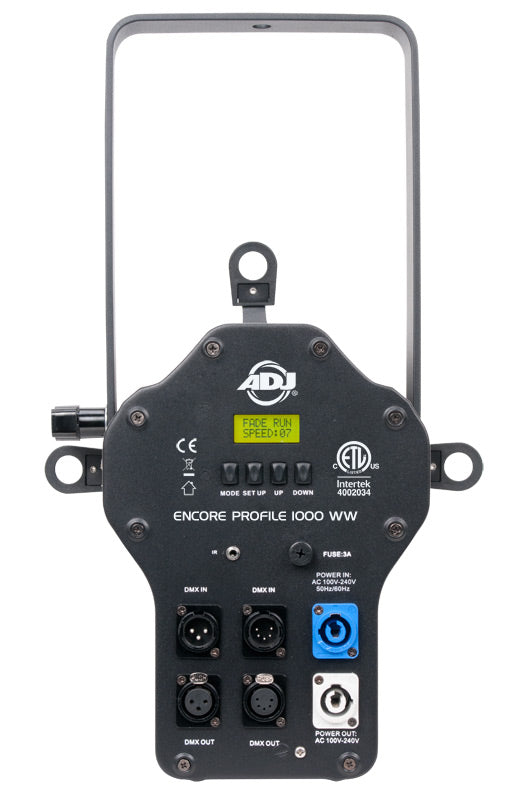

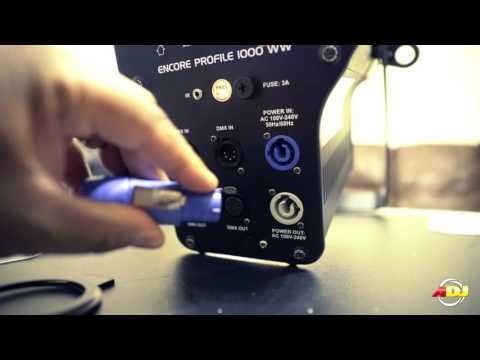

• PowerCon In and Out

• 3 and 5 Pin DMX Connections

• Power Consumption: 144W maximum

• Power con In & Out to Daisy chain Power (Connect up to 5 Fixtures at 110V)

• Multi-voltage operation: AC 100-240V 50/60Hz (non switchable)

• Dimensions (LxWxH): 22” x 9.75” x 12.25” / 560 x 250 x 385mm

• Weight: 19 lbs. / 8.5 kg.
• ETL Approved

Videos

Videos

Downloads

Downloads

The following downloads are available for this product:

Title Description
Encore Profile 1000 WW User Manual Download
Encore Profile 1000 WW Gobo's Download
Encore Profile 1000 WW CAD Drawing Download
Encore Profile 1000 WW Photometric Test Reports Photometric Test Reports Download
Encore Profile 1000 WW Photometric IES Files Photometric IES Files Download
