Encore Profile 1000 Color

120W RGBW LED Ellipsoidal with a 12-30-degree beam angle. 120W RGBW LED Ellipsoidal with a 12-30-degree beam angle. 120W RGBW LED Ellipsoidal with a 12-30-degree beam angle.
SKU: ENC132 | UPC: 819730017949
120W RGBW LED Ellipsoidal with manual zoom and a 12-30-degree beam angle.
Advantage Points: 800

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description

Details

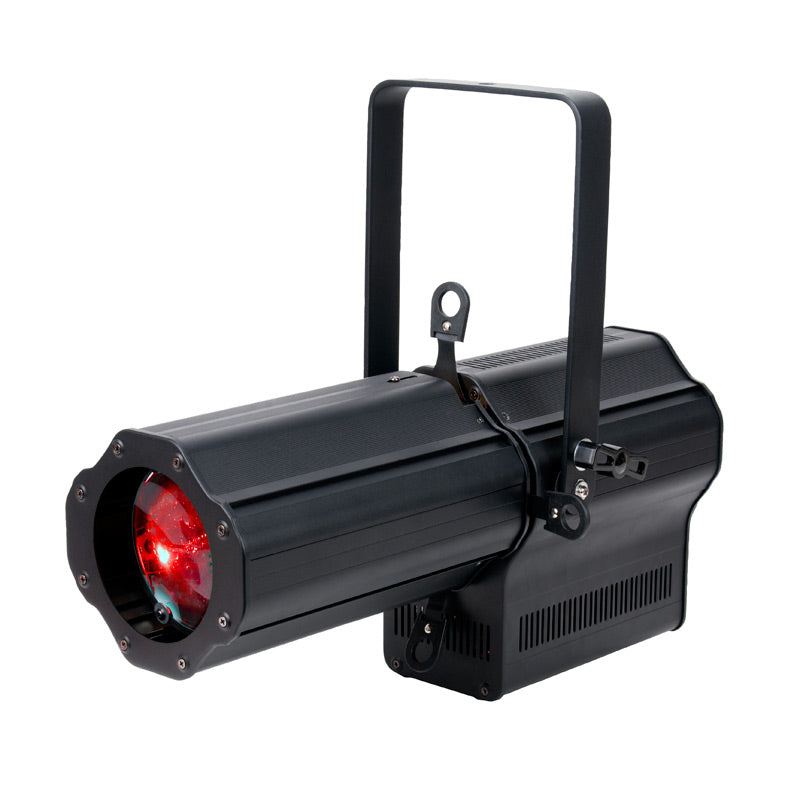

The ADJ Encore Profile 1000 Color is a modern 120W LED Ellipsoidal with an adjustable zoom range from 12 degree to 30 degree. It features a bright 120W LED source, 64 colors, variable strobe speed and dimming capabilities. Additional features include: adjustable zoom, shutters for manual framing and 3-pin and 5-pin DMX connections. This fixture stays cool and consumes 144W of power.



Learn more about ADJ’s Encore Profile fixtures in this product spotlight article: CLICK HERE

Specifications

Specifications

Features:
• 120W RGBW Ellipsoidal with zoom
• 7 Operating Modes: RGBW Dimmer Mode, Color Change Mode, Color Fade Mode, Auto Run Mode, Static Color Mode, & DMX Controlled
• Master/Slave Mode
• 5 DMX Channel Modes: 4/5/6/10/11
• 64 Static Colors

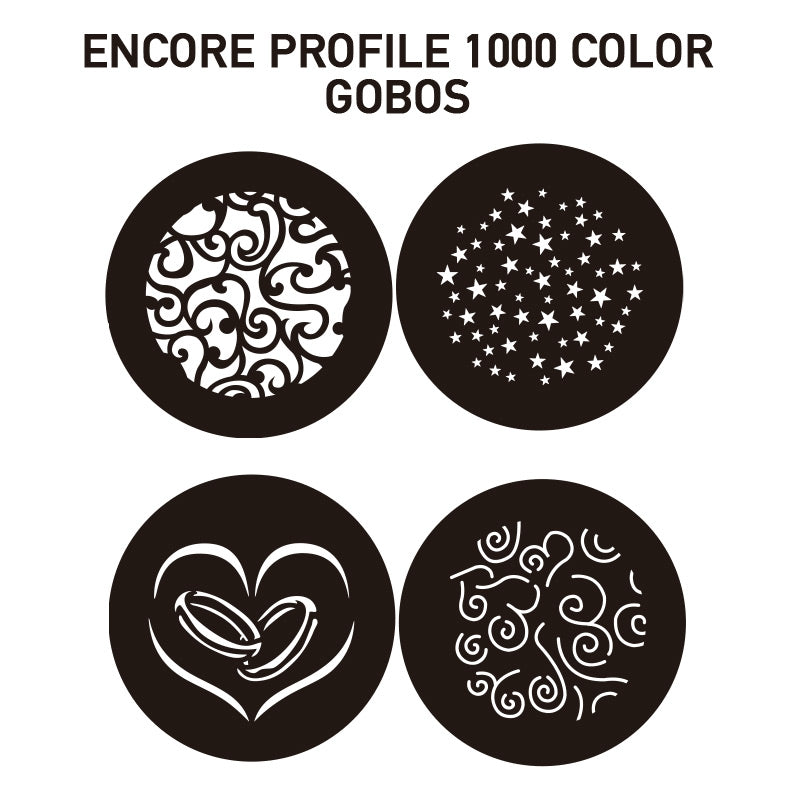

• Includes 4 replaceable Glass Gobos
• 5 Dimmer Modes
• Typical Throw: 40 meter (12º) to 28 meter (30º)
• Strobing
• 0-100% electronic dimming
• Manual Zoom- 12-30 degree
• Manual focusing
• Manual Framing Shutters
• Fan Cooled
• Hanging Bracket
• UC IR Control (sold Separately) & Airstream IR Compatible (Transmitter Included)

Specifications:
• 1 x 120W RGBW 4-in1 COB LED source
• Gobo Dimensions: Outer 61mm; Inner: 51mm; Thinkness: 2mm: Accepts Type M Gobos
• 12º - 30º Beam angle

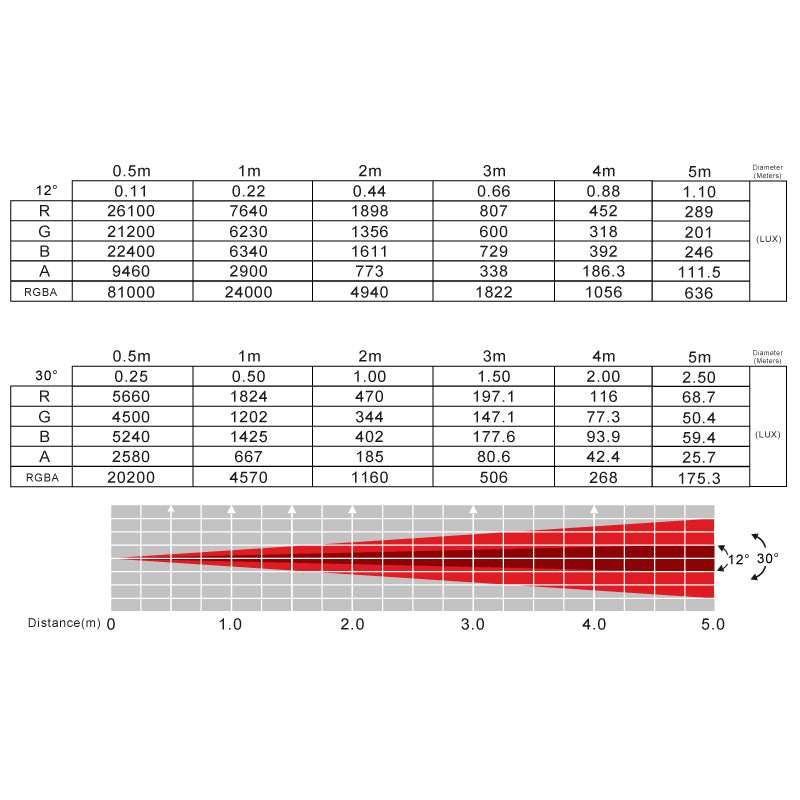

• Light Output: 4940 LUX @2M; 1056 LUX @4M (12-degree), 1160 LUX @2M; 268 LUX @4M (30-degre)
• Adjustable Pulse Width Modulation: 900 Hz,1000 Hz,1100 Hz,1200 Hz,1300 Hz,1400 Hz, 1500 Hz,25000Hz
• Gamma Adjustment: 2.0, 2.2, 2.4, 2.8
• White Color Balance Adjustment

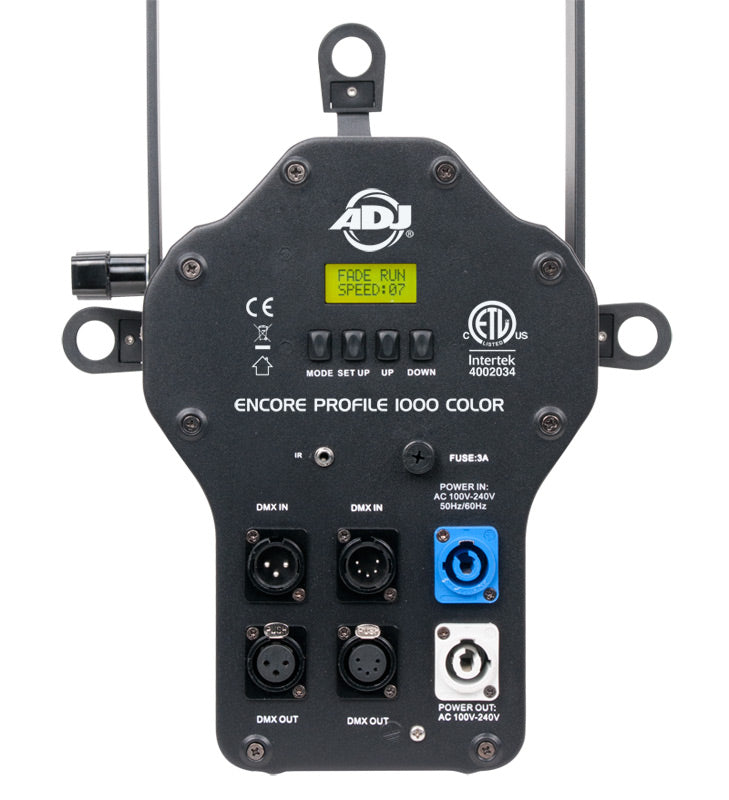

• PowerCon In and Out
• 3 and 5-pin DMX
• Power Consumption: 144W maximum
• Multi-voltage operation: AC 100-240V 50/60Hz (auto sensing)
• Dimensions (LxWxH): 22” x 9.75” x 15.25” / 560 x 250 x 385mm
• Weight: 19 lbs. / 8.5 kg.
• ETL Approved

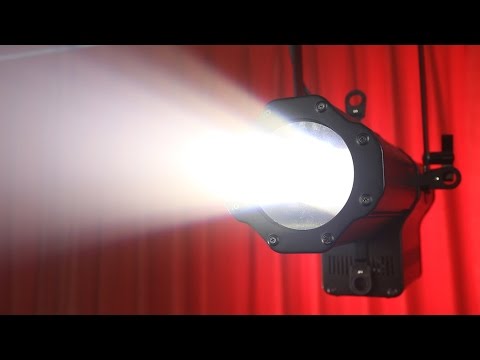

Videos

Videos

Downloads

Downloads

The following downloads are available for this product:

Title Description
Encore Profile 1000 Color Cut Sheet Download
Encore Profile 1000 Color User Manual Download
Encore Profile 1000 Color Gobo's Download
Encore Profile 1000 Color CAD Drawing Download
Encore Profile 1000 Color Photometric Test Reports Photometric Test Reports Download
Encore Profile 1000 Color Photometric IES Files Photometric IES Files Download

FAQs

Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

is there a user manual available?

Hello James,

At the moment we do not have a user manual for this product since it's fairly new. Just keep checking fallowing up with us. We will soon have one available.

Thanks,

In DMX-4 mode are you limited to 64 static colors, or can you mix RGBW each at 0-255 for ~4.29 billion color combinations?

Hello Andrew,

Thank you for reaching out to us. In 4CH dmx mode you can only do color mixing between red,blue,green and white. The color macro are available in 10ch and 11ch dmx mode. Let me know if you have any further questions.

Thanks,
