Encore LP18IP

UPC#: 818651029758
Advantage Points: 740
Redemption Points: 14800
SKU
ENC368

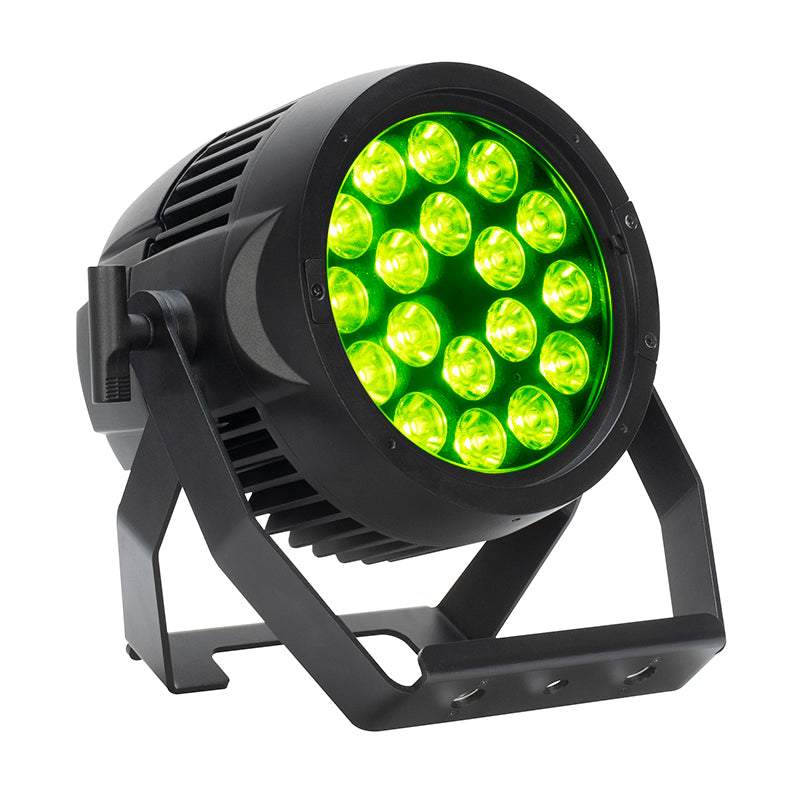

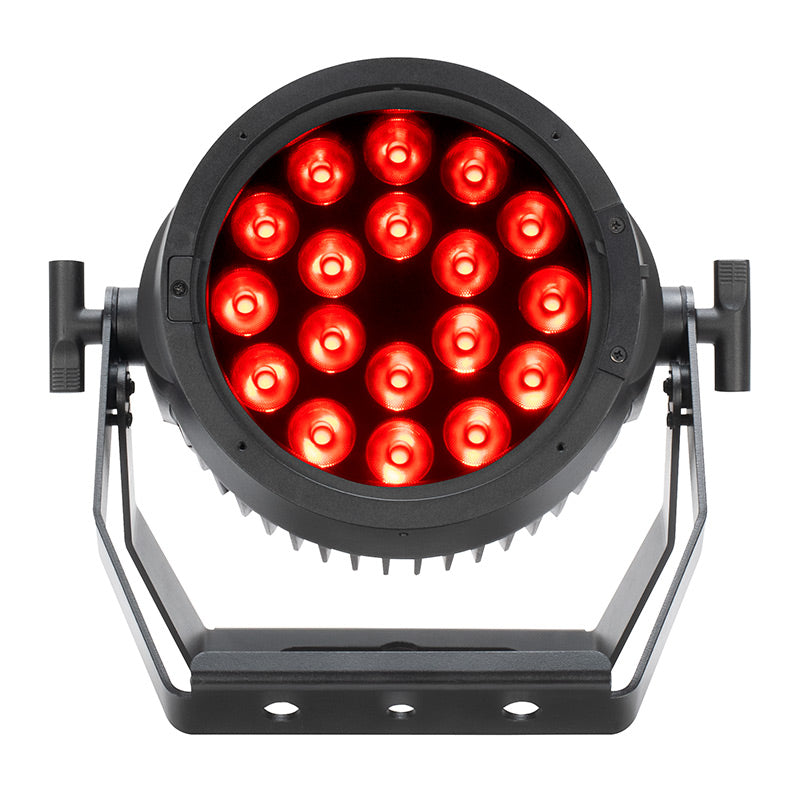

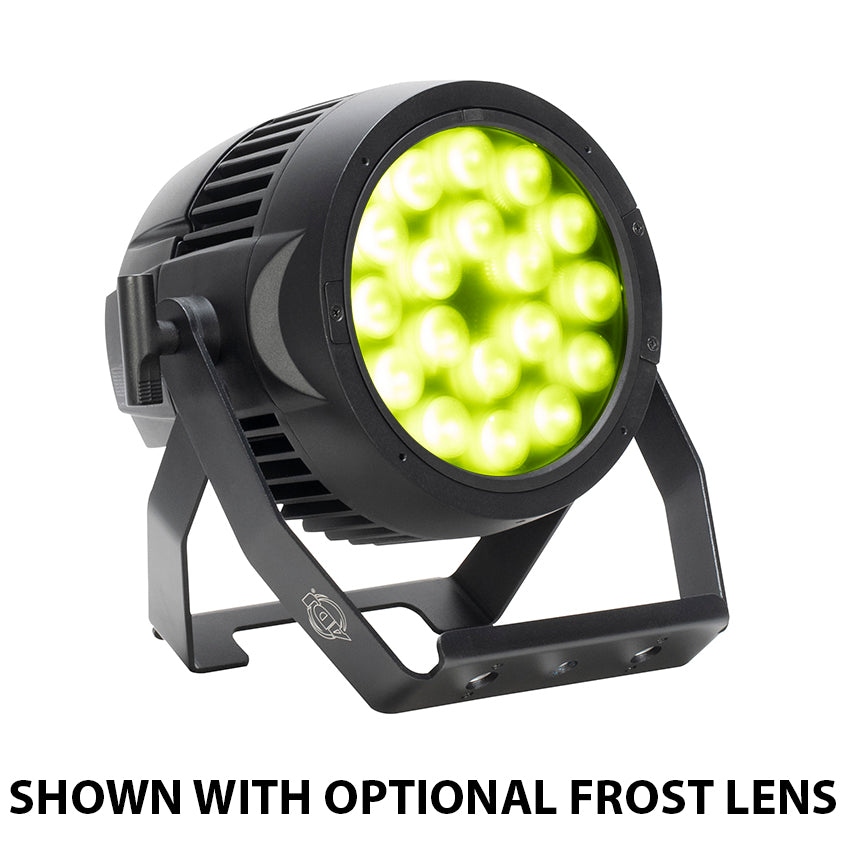

The ADJ Encore LP18IP is a versatile, heavy duty Par with eighteen (18) 20W Quad LEDs (4-IN-1: Red, Green, Blue & Lime), a 10° beam angle, and all metal construction. It is IP65 outdoor rated to protect against, rain, snow and dust for temporary outdoor events. It offers flicker free operation for TV and film and linear white color temperature control from 2700K - 7000K. A removable 25-degree frost filter is included.

Where to Buy

Enter your zip code below to find this product at a retailer near you!

SOURCE:
• Light Source: 18 x 20-Watt Quad RGBL LEDs (4-IN-1: Red, Green, Blue & Lime)

PHOTMETRIC DATA:
• Beam angle: 10° (includes 25° removable frost filter)
• CRI: 86.2
• CRI R9: 82.8
• Lumens: 7300

EFFECTS:

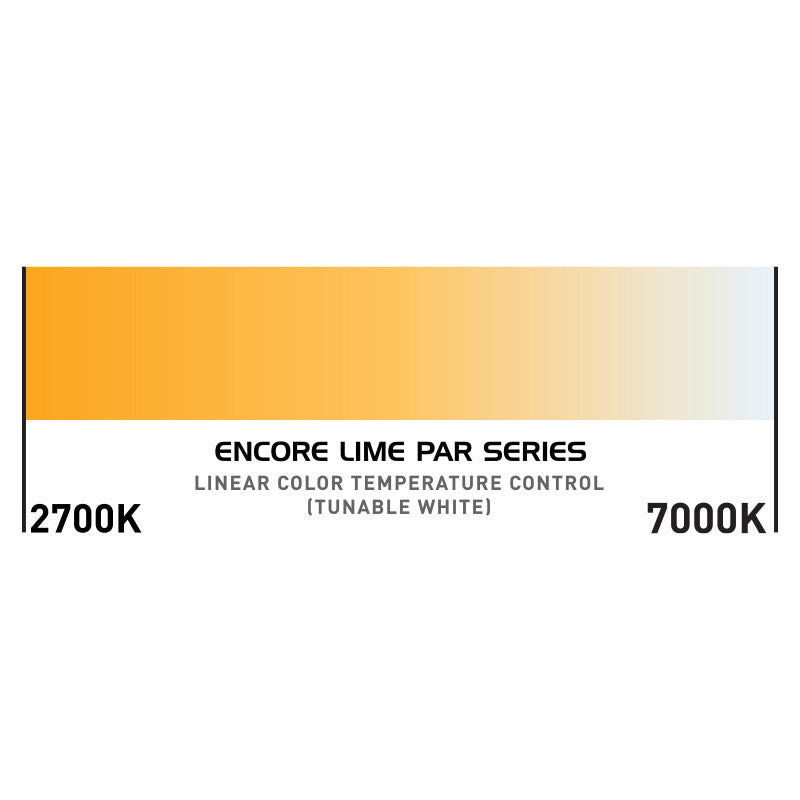

• Linear Color Temperature Control (2700K to 7000K)

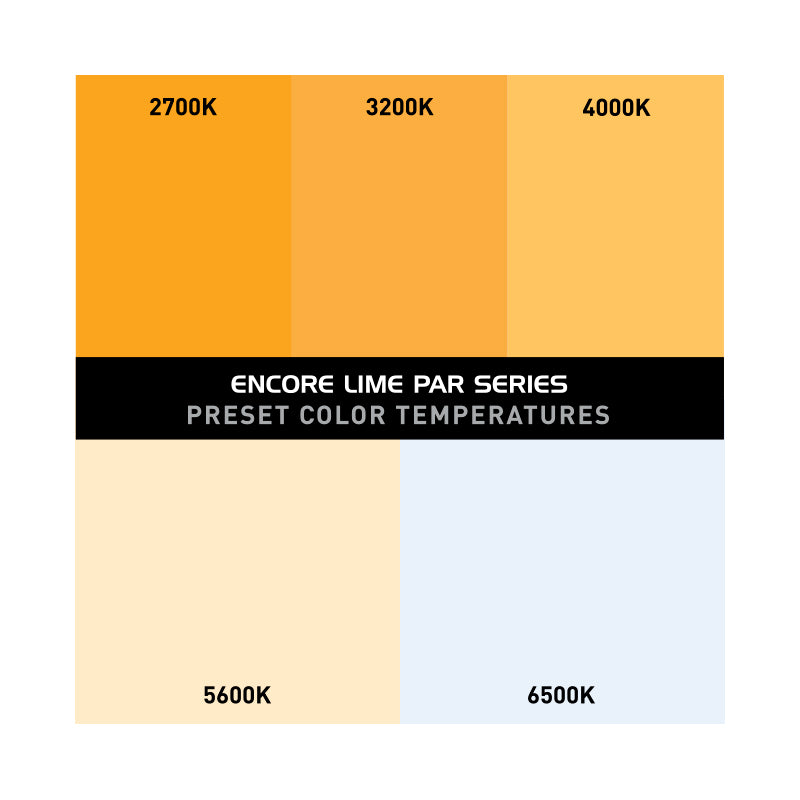

• Preset Color Temperatures (2700K, 3200K, 4000K, 5600K and 6500K)
• 16-Bit Fine Color Control (Red, Green, Blue & Lime)
• 64 built-in Color Macros

CONTROL / CONNECTIONS:

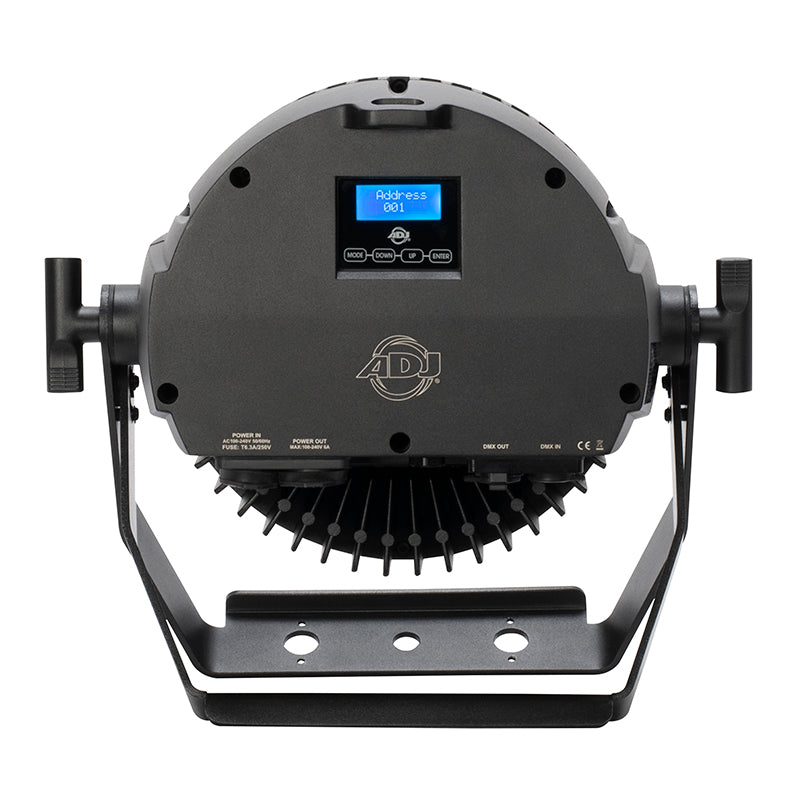

• 4-button, DMX digital display on rear panel
• Operational modes: Static Color Mode, RGBL Dimmer Mode, Program Mode and DMX Controlled
• Supports RDM (Remote Device Management)
• With Wired Digital Communication Network
• 6 selectable Dimming Modes (Standard, Stage, TV, Architectural, Theatre & Stage 2)
• 4 selectable Dim Curves (Linear, Square Inv. Squa, S-Curve)
• Adjustable Refresh Rate (14 presets from 900 – 25,000Hz)
• Flicker Free operation (No flickering on camera)
• LED pulse and strobe effect
• Electronic Dimming: 0 - 100%
• 6 DMX Modes: 4, 7, 8, 10, 13, & 16-channel
• Quiet fan mode

CONSTRUCTION:

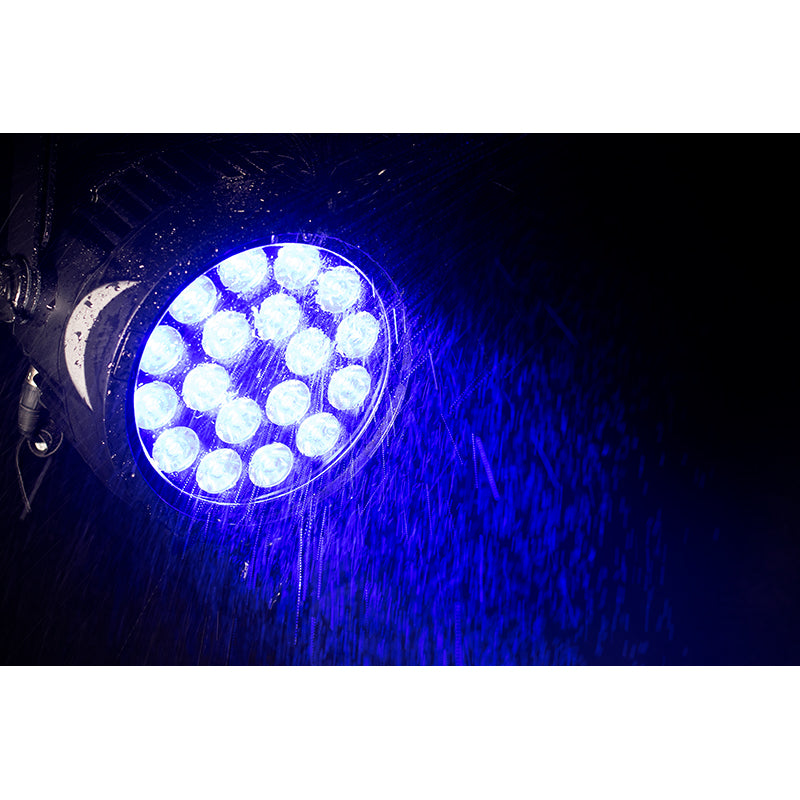

• IP65 Rated: Ingress Protection against liquid, snow, dust and sand
• All metal construction

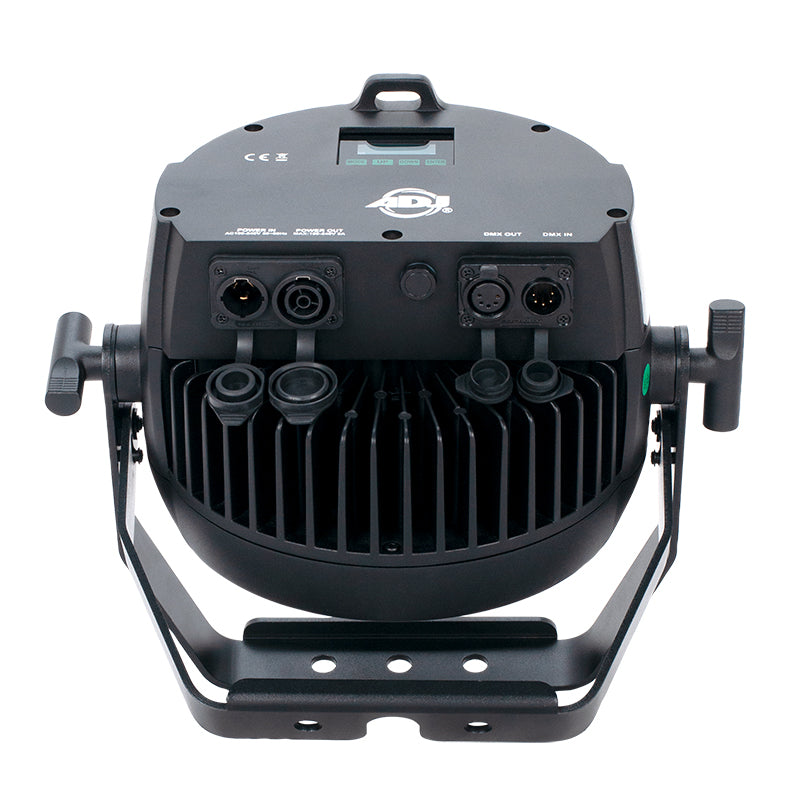

• IP Rated rubber covers protect In/Out Locking Power connectors and IP rated 5-pin sockets
• Locking, outdoor IN/Out Power connectors
• Data linkable via 5-pin XLR DMX connections
• Scissor Yoke & safety eye

ELECTRICAL / THERMAL:
• Multi-voltage operation: AC 100-240V, 50/60Hz
• Daisy chain: 2 @ 120V, 6 @ 220V
• Max power: 365W

DIMENSIONS / WEIGHT:
• Dimensions (LxWxH): 9.2” x 13.3” x 11.6” / 233.4x338x294mm
• Weight: 16.1 lbs. / 7.3 kg.

APPROVALS / RATINGS:
• cETLus (Control # 4010765)
• IP65

INCLUDED ACCESSORIES:
(1) 25° Frost Filter
(1) Power Cord

OPTIONAL ACCESSORIES:
ELP18L100: 100° frost filter for the Encore LP18IP
ELP18L60: 60° frost filter for the Encore LP18IP
ELP18L30X60: 30x60° frost filter for the Encore LP18IP
ELP18L1X40: 1x40° frost filter for the Encore LP18IP
ELP18L20: 20° frost filter for the Encore LP18IP
Z-8050000053: 107mm Omega Bracket
ELP18IPBDA: Barn Door / Gel Frame Kit

Videos

Downloads

The following downloads are available for this product:

Title Description
Encore LP18IP Cut Sheet Encore LP18IP Cut Sheet (PDF 2.5 MB) Revised April 2022 Download
Encore LP18IP - 2D Cad Encore LP18IP - 2D Cad Download
Encore LP18IP - Dimensional Drawing Encore LP18IP - Dimensional Drawing Download
Encore LP18IP - Vectorworks Symbol 2023 Encore LP18IP - Vectorworks Symbol 2023 Download
Encore Lp18IP - Vectorworks Symbol Vectorworks Symbol Ver. 2022 Download
Encore LP18IP - DMX Traits DMX Traits Download
Encore LP18IP - User Manual User Manual Download
Encore LP18IP IES Files Encore LP18IP IES Files Download
Encore LP18IP Photometric Test Report Encore LP18IP Photometric Test Report Download
Encore LP18IP 3D Cad Drawing Cad Drawing Download
Available now from ADJ USA

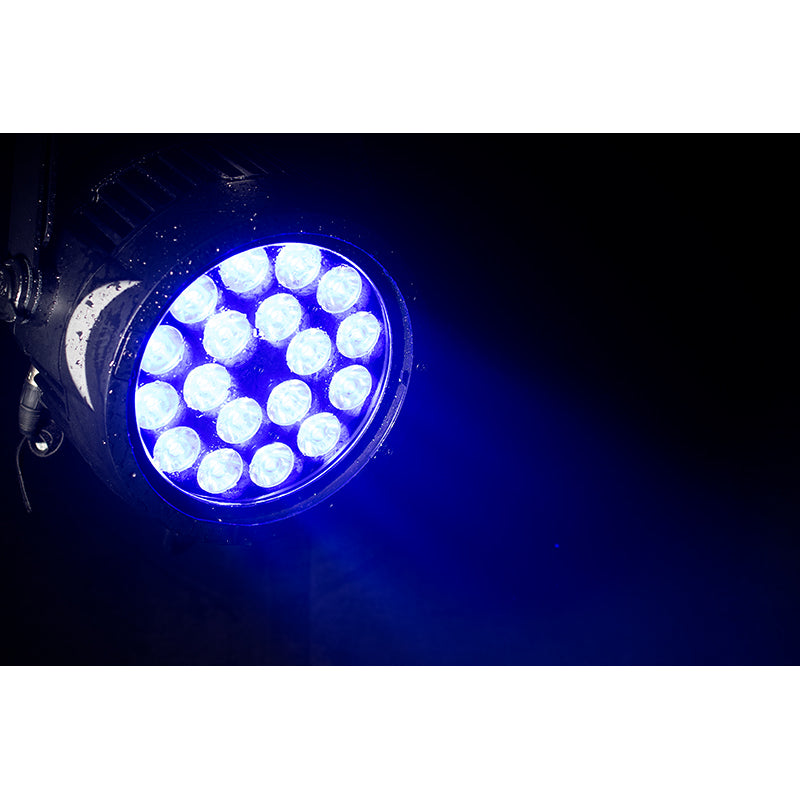

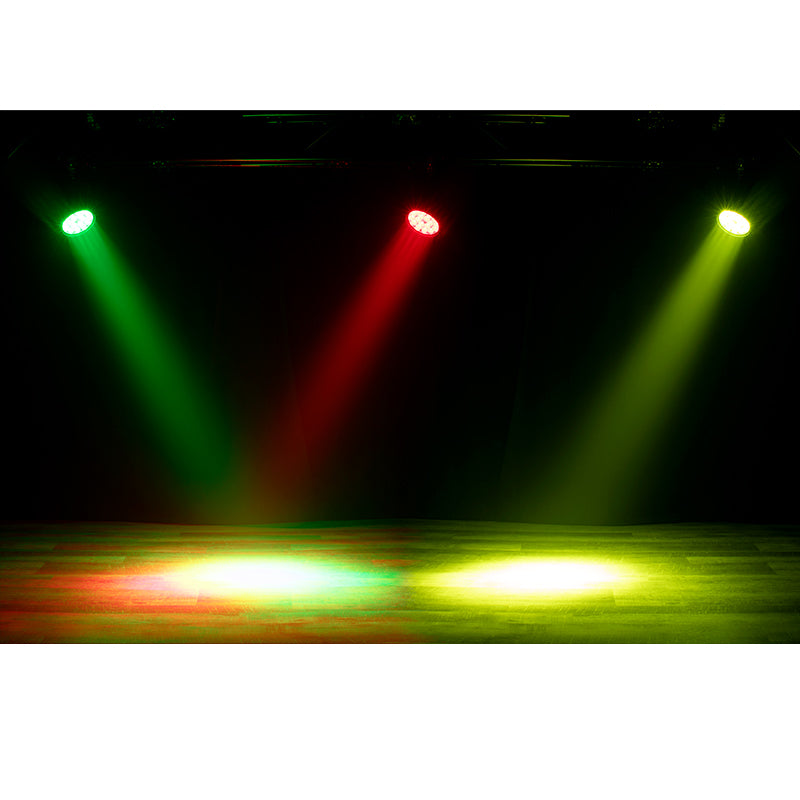

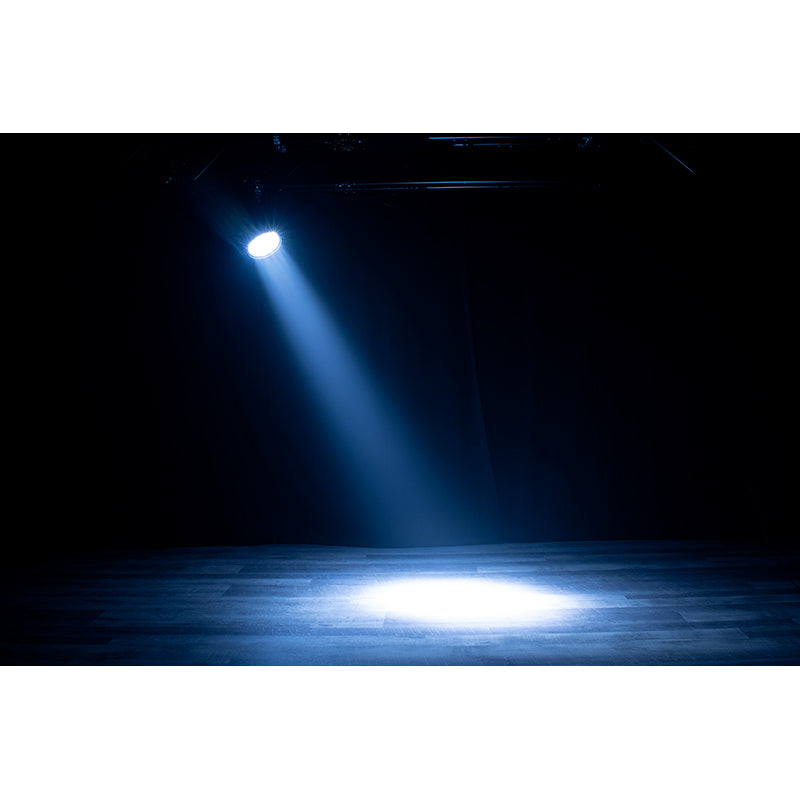

The ADJ Encore LP18IP is a versatile IP65 outdoor rated Par with 18 x 20-Watt (4-IN-1: Red, Green, Blue & Lime) Quad LEDs. With a 10° beam angle, users may produce wide washes with smooth color mixing from 64 built-in color macros utilizing red, green, blue and lime LEDs. Not only is this LED Par great for lighting indoor stages and venues, but with its IP65 rating, it’s a great solution for temporary outdoor lighting of stages or events. The IP65 rating helps protect the fixture from rain, snow and dust.

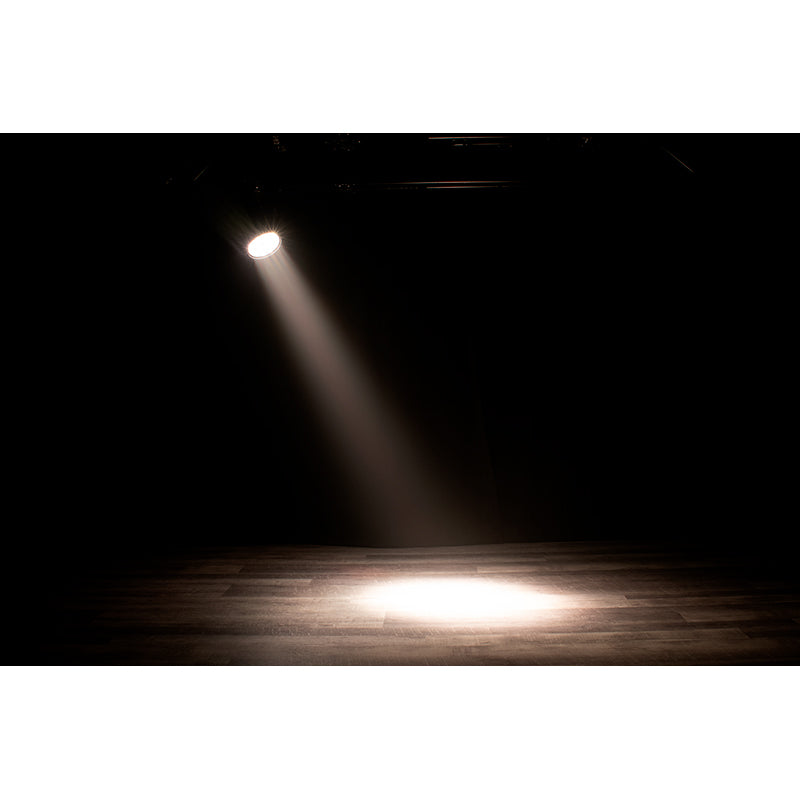

The fixture’s Quad LED engine offers flicker free operation for TV and film and linear white color temperature control from 2700K - 7000K.

The Encore LP18IP professional features include: 6 DMX modes, 5 operational modes, 6 selectable dimming modes, 4 selectable dimming curves, and a 4-Button DMX menu with digital display. The unit is equipped with outdoor Locking Power connectors and IP rated 5-pin DMX rubber covers and connectors. IP rated power linking and DMX cables are available, but standard 5-pin DMX cables may also be used for indoor applications.

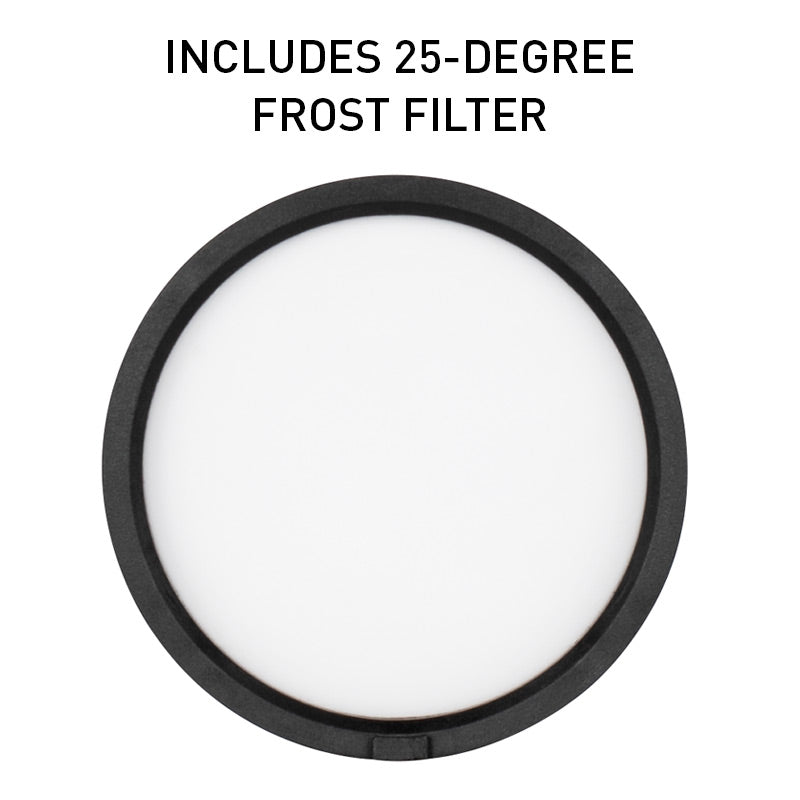

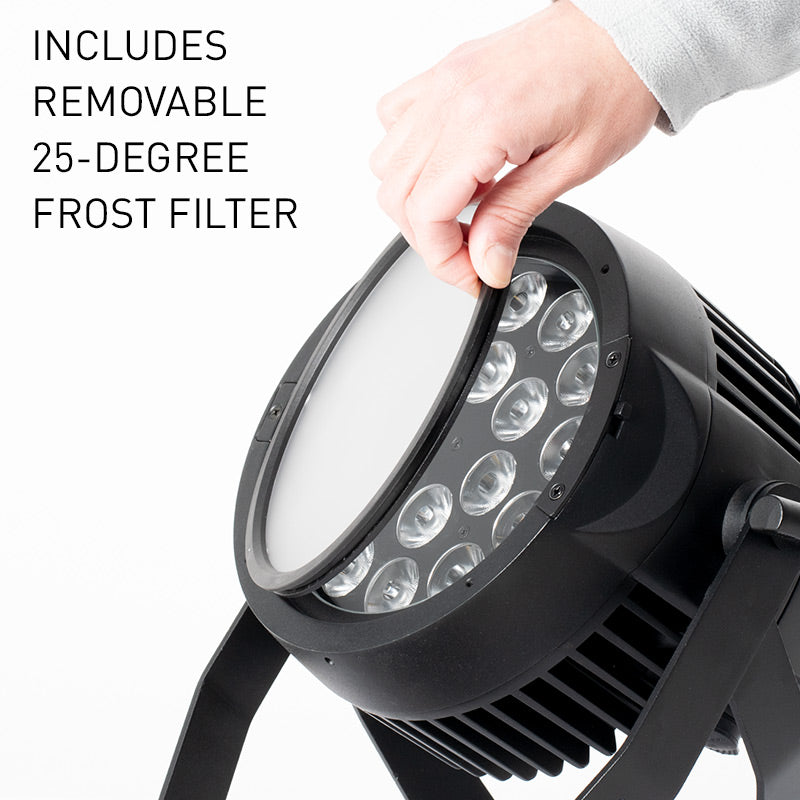

The Encore LP18IP includes a removable 25-degree frost filter. There are several additional frost filter options (sold separately) that customize the beam angle. All filter snap into the front of the fixture.
