Encore Burst UV IP

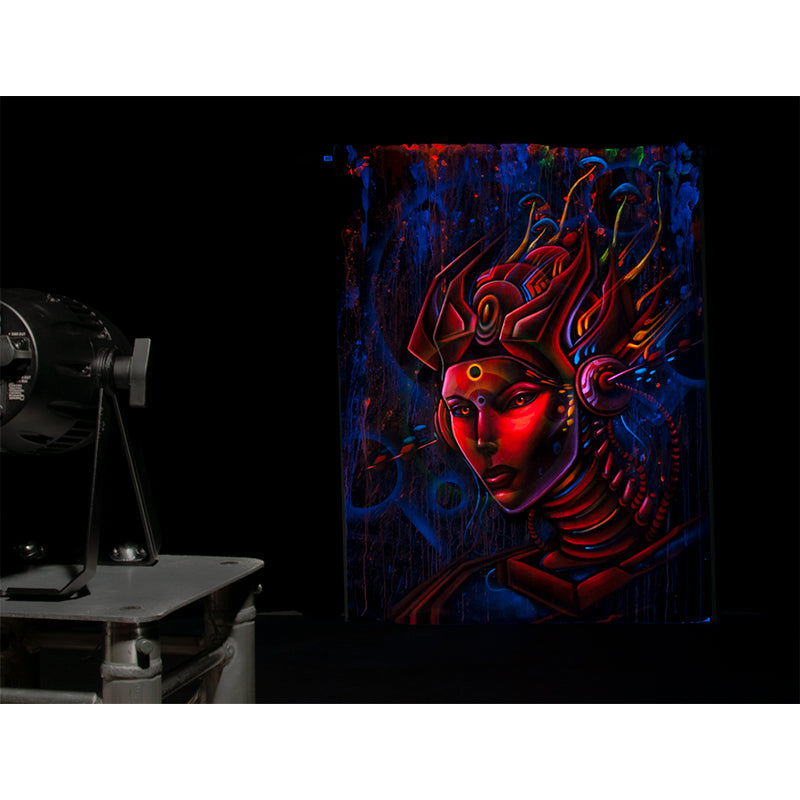

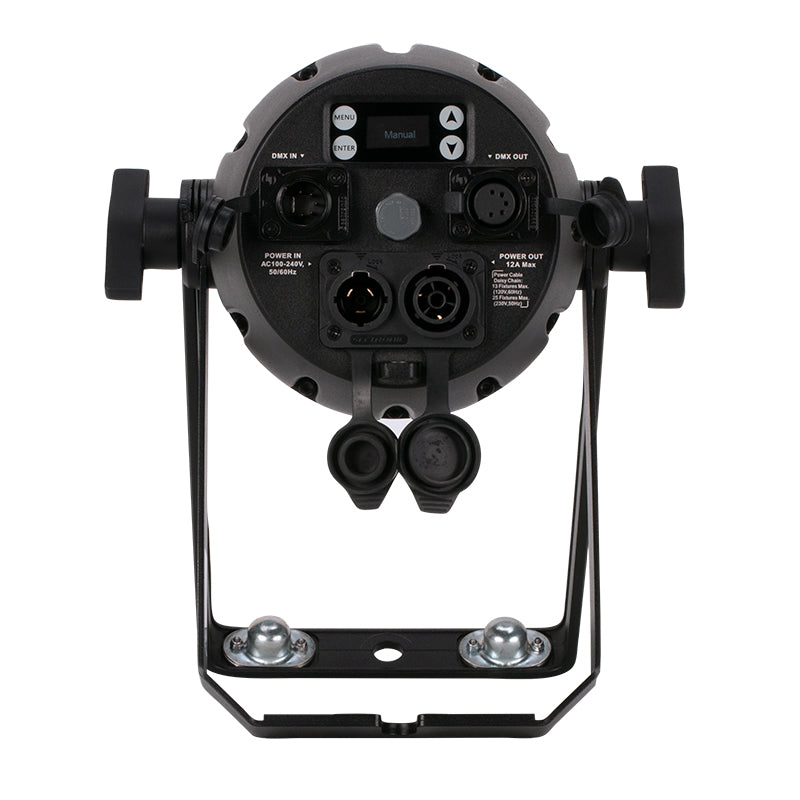

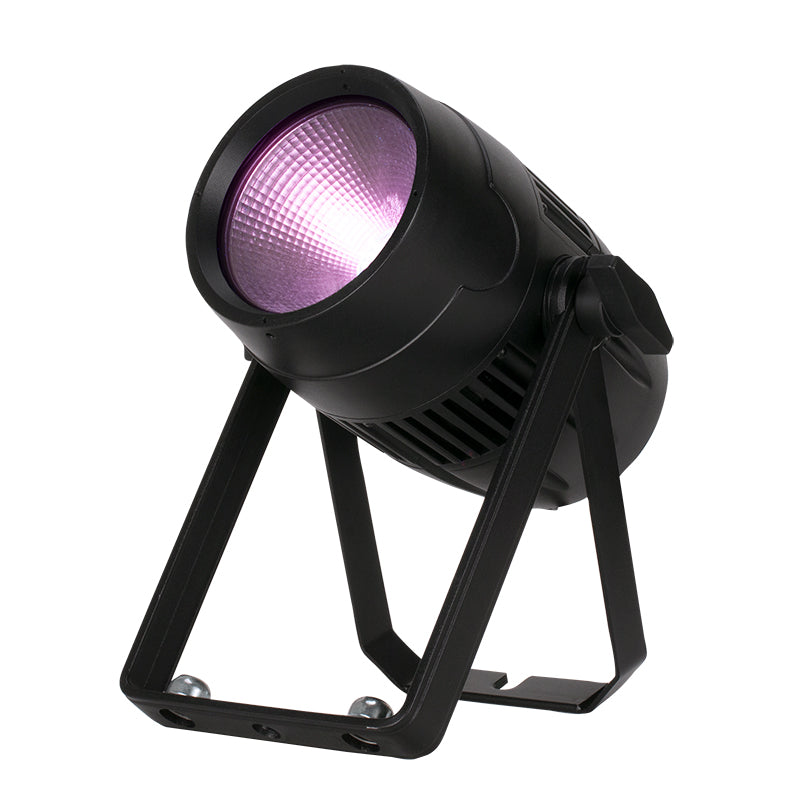

Encore Burst UV IP main unit photo Encore Burst UV IP rear unit photo Encore Burst UV IP FX photo Encore Burst UV IP FX photo Encore Burst UV IP Effects Photo
SKU: ENC569 | UPC: 818651026481
The ADJ Encore Burst UV IP is a high intensity, IP65 outdoor rated UV Wash. The fixture is constructed of a rugged Die Cast housing. The fixture features a UV LED. It has selectable dimming curves, strobe effect, 4-button LED menu system, 5-pin DMX In/Out plus Seetronic IP65 power locking IN/Out connections to daisy chain power (rubber protective covers over connections).Wave Length 365nm
Advantage Points: 650

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description

Details

Available now from ADJ USA • $649.99

The ADJ Encore Burst UV IP is a high intensity, IP65 outdoor rated Par light with a 50W Ultraviolet C.O.B. LED with a UV wavelength of 365nm. The fixture is constructed of a rugged metal housing with a 50-degree beam angle.


The Encore Burst UV IP has selectable dim modes, strobe effect, 4-button LED menu system, Seetronic 5-pin DMX In/Out plus Seetronic IP65 power locking In/Out connections to daisy chain data and power (rubber protective covers over connections).

Specifications

Specifications

Light Source:

• 1x 50W C.O.B. Ultraviolet LED (wavelength: 365nm)

• 50-degree Beam Angle

• 360nm wavelength

• 50,000 Hour Average LED Life

Features:

• Control Protocol: DMX & RDM

• DMX Modes: 4 (1/2/3/6)

• Dim Modes: 6 Presets (Standard, Stage, TV, Architectural, Theatre & Stage 2)

• Dim Speed control (0.1~10 Seconds)

• Dimming: 0 - 100%

• Strobe & pulse control

• Adjustable LED Refresh Rates (900~25k Hz)

• Adjustable Gamma Settings (2.0-2.8)

• With Wired Digital Communication Network

• Display: OLED display with 4-button touch menu

Connections:

• Data Input: Seetronic IP65 rated 5pin DMX In/Out

• Power Input: Seetronic IP65 power locking In/Out (with protective rubber caps)

• Safety Cable Loop

• Scissor yoke with Omega bracket attachment

Electrical:

• 100-240V 50Hz/60Hz (Auto Sensing)

• Max Power Consumption: 63W

IP65 Rated:

• Outdoor Rated: protects from dust, sand, moisture, liquid. 6 (Protection against Dust); 5 (Protection against Water)

Please note: you must use IP65 data and power cables in order for this fixture to be IP65 outdoor rated.

Dimensions / Weight:

• Length: 9.21” (234mm)

• Width: 9.8” (249mm)

• Height: 12.12” (308mm)

• Weight: 8.1 lbs. (3.6kg)

What’s Included:

• 1x Omega Bracket

• 1x Seetronic IP65 power locking power cable


Videos

Videos

Downloads

Downloads

The following downloads are available for this product:

Title Description
Encore Burst UV IP User Manual User Manual Download

FAQs

Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

There are no FAQ's for Encore Burst UV IP
