Encore Burst 100 IP

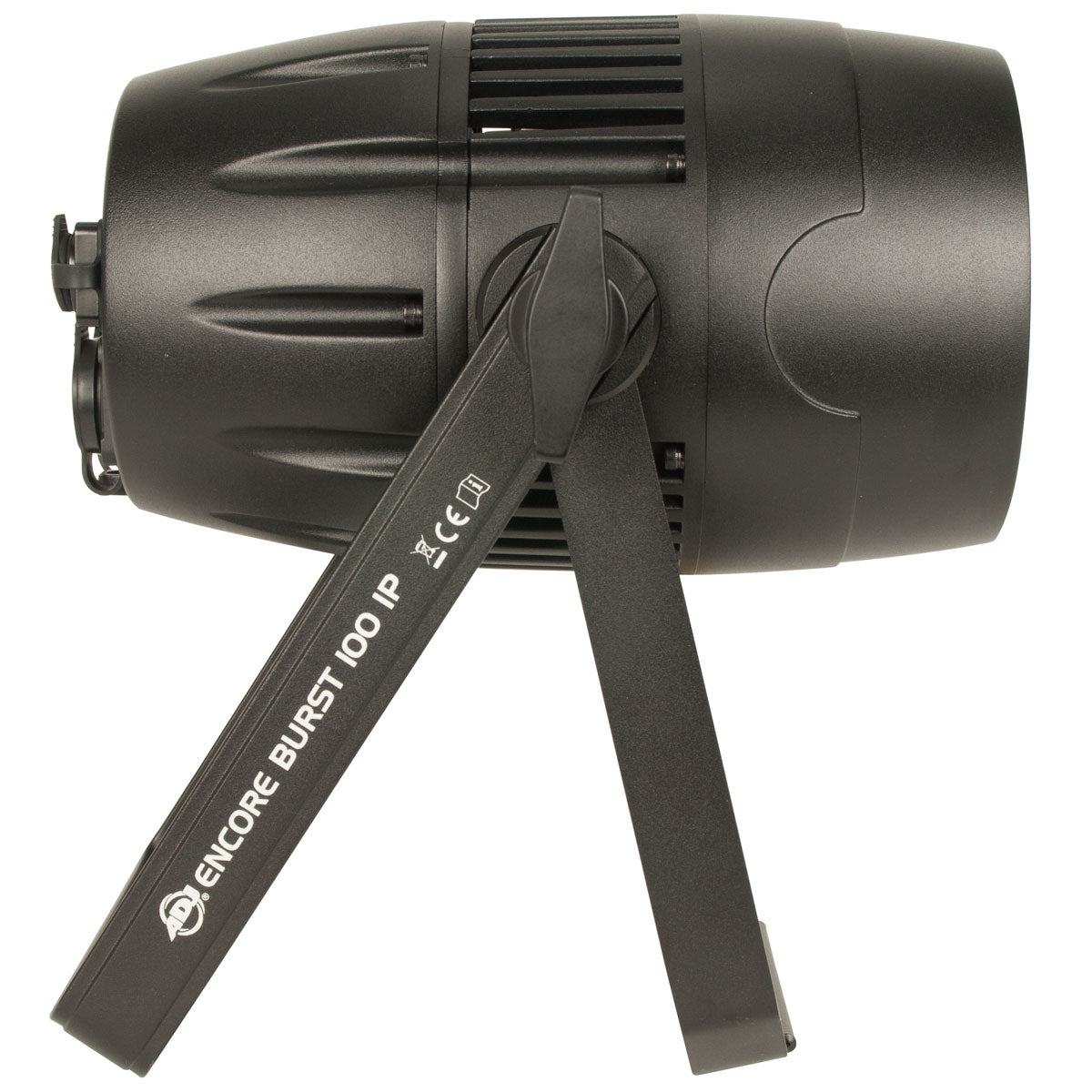

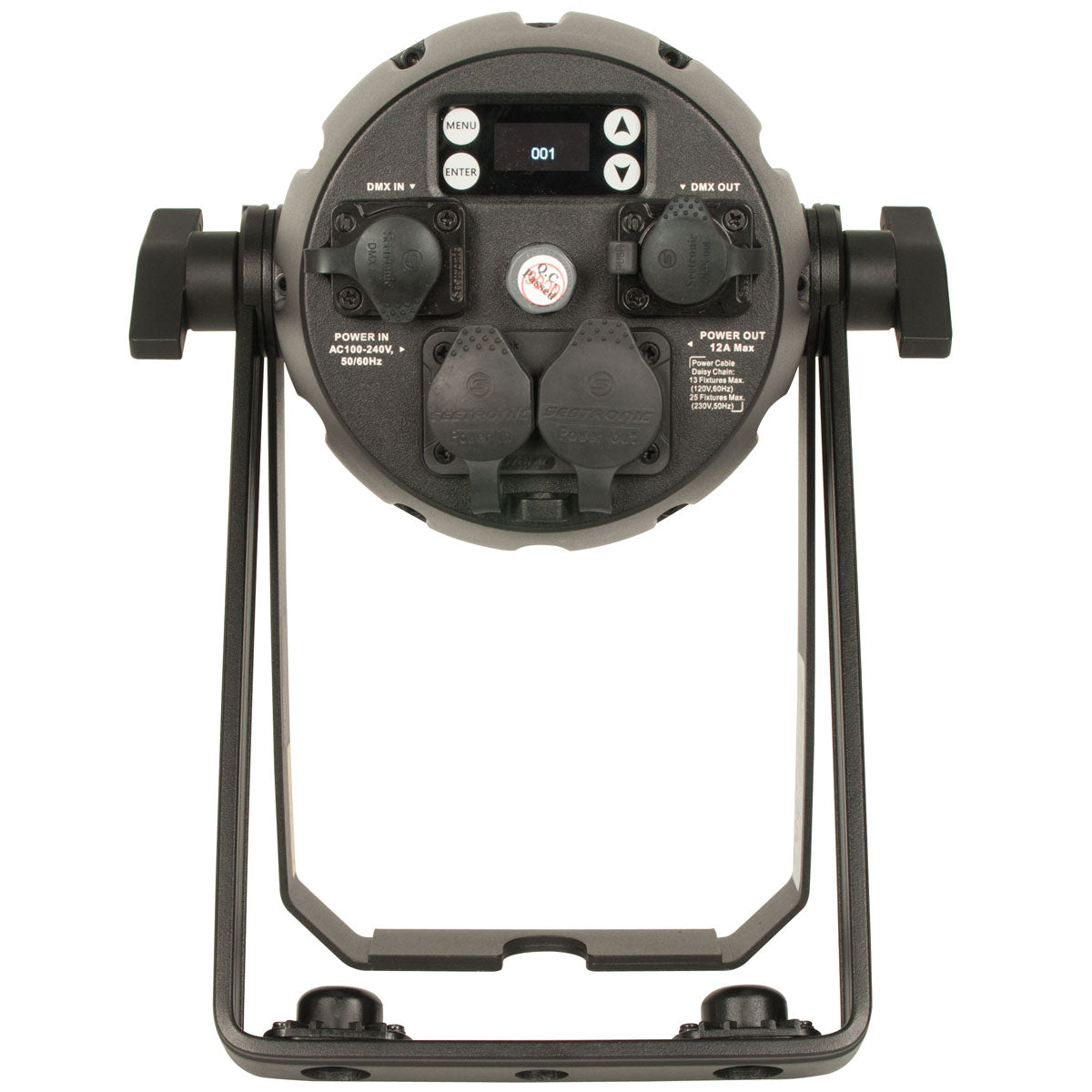

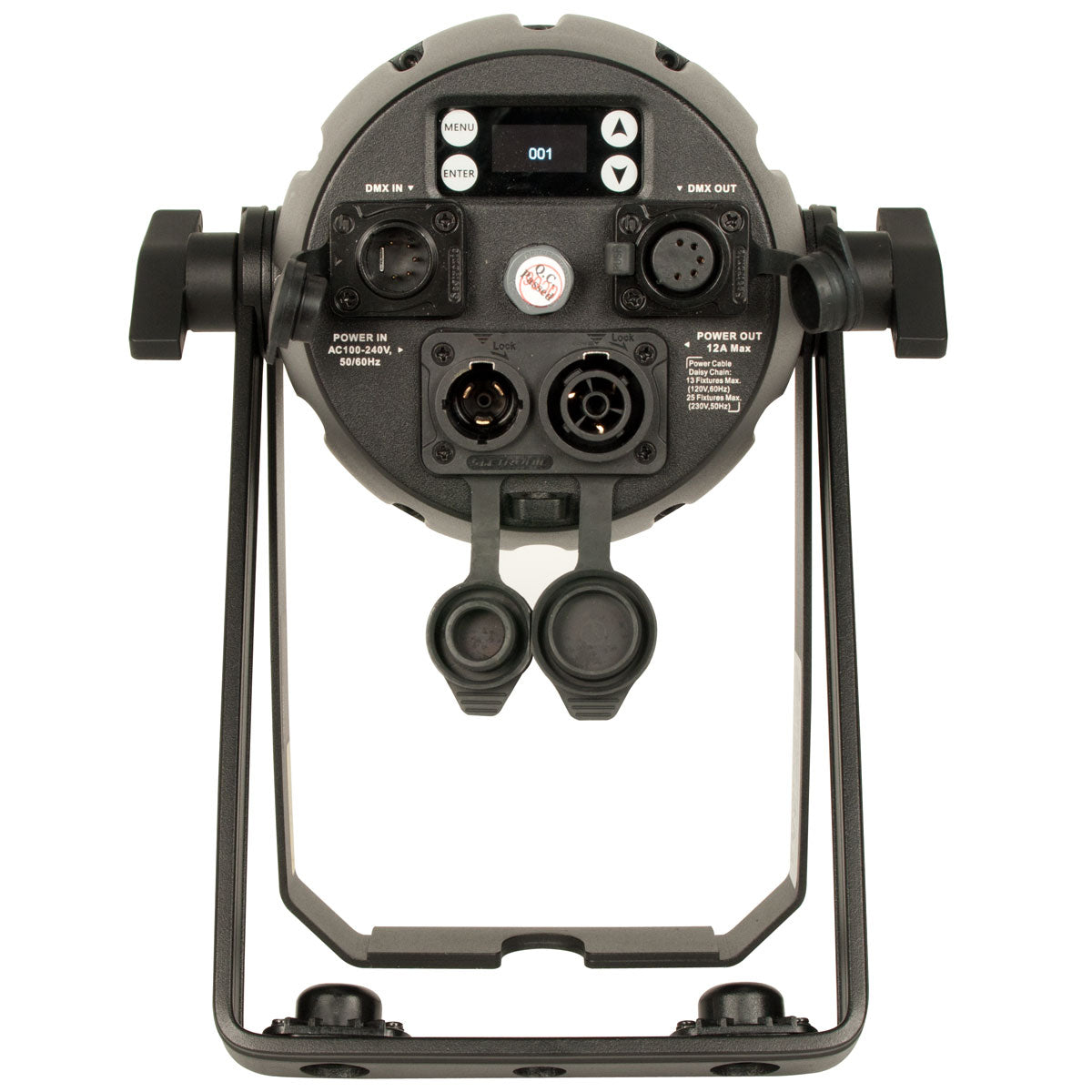

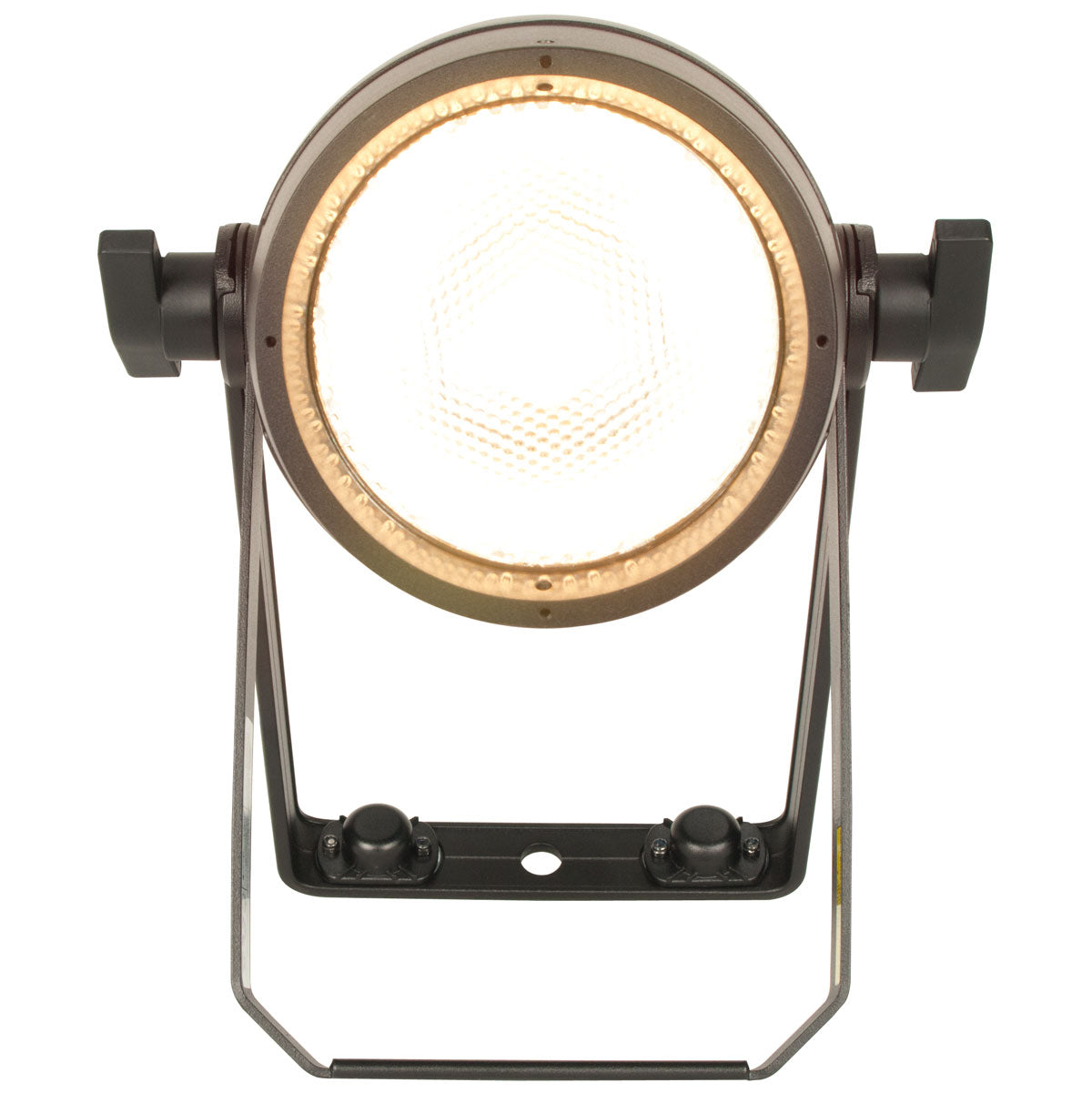

Encore Burst 100 IP main unit photo Encore Burst 100 IP front facing unit photo Encore Burst 100 IP side profile unit photo Encore Burst 100 IP rear unit photo with IP rubbers covers on Encore Burst 100 IP rear unit photo with rubber covers off Encore Burst 100 IP with omega bracket attached IP power cable & hanging bracket Encore Burst 100 IP FX image Encore Burst 100 IP FX image Encore Burst 100 IP FX image
SKU: ENC310 | UPC: 818651026023
High intensity, IP65 outdoor rated audience blinder/strobe with 125W Warm white (2700K) CREE C.O.B. LED and dim to warm feature.
Advantage Points: 550

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description

Details

Available now from ADJ USA • $549.99


The ADJ Encore Burst 100 IP is a high intensity, IP65 outdoor rated audience blinder/strobe with 125W Warm white (2700K) CREE C.O.B. LED and dim to warm feature. The fixture is constructed of a rugged metal housing. The fixture features a dim to warm effect that replicates a halogen-like dimming profile with a 50-degree beam angle.



The Encore Burst 100 IP has selectable dimming curves, strobe effect, 4-button LED menu system, 5-pin DMX In/Out plus Seetronic IP65 power locking IN/Out connections to daisy chain power (rubber protective covers over connections).

Specifications

Specifications

Light Source:

• 1x 125W Warm white (2700K) CREE C.O.B. LED with dim to warm feature (Tungsten effect)

• 2,700K Color Temperature (1,200K Tungsten Mode)

• 50-degree Beam Angle

• CRI: 81

• 6641 LUX @ 1M; 266 LUX @ 5M

• 50,000 Hour Average LED Life


Features:

• DMX Modes: 4 (1/2/3/4)

• Dimming Curve Modes: 6

• Dimming: 0 - 100%

• Strobe & pulse control

• Adjustable LED Refresh Rate (900-25,000Hz)

• Adjustable Gamma Settings (2.0-2.8)

• With Wired Digital Communication Network

• Display: OLED display with 4-button touch menu


Connections:

• Data Input: IP65 rated 5pin DMX In/Out

• Power Input: Seetronic IP65 power locking In/Out (with protective rubber caps)

• Safety Cable Loop

• Scissor yoke with Omega bracket attachment


Electrical:

• 100-240V 50Hz/60Hz (Auto Sensing)

• Max Power Consumption: 115W


IP65 Rated:

• Outdoor Rated: protects from dust, sand, moisture, liquid. 6 (Protection against Dust); 4 (Protection against Water)

Please note: you must use IP65 data and power cables in order for this fixture to be IP65 outdoor rated.


Dimensions / Weight:

• Length: 9.21” (234mm)

• Width: 9.8” (249mm)

• Height: 12.12” (308mm)

• Weight: 9.25 lbs. (4.2kg)

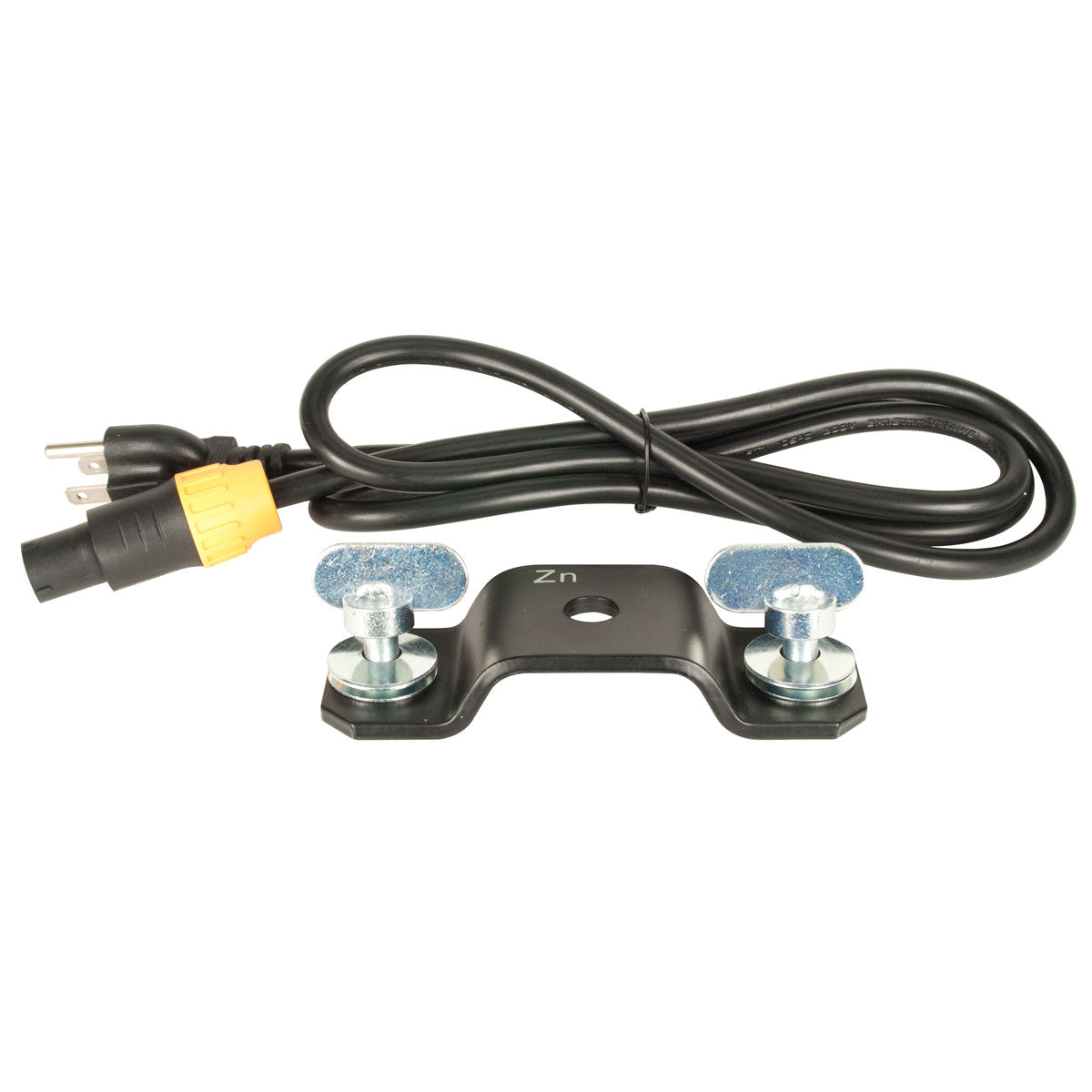

What’s Included:

• 1x Omega Bracket

• 1x Seetronic IP65 power locking cable

Videos

Videos

Downloads

Downloads

The following downloads are available for this product:

Title Description
Encore Burst 100 IP Photometric Data Photometric Data Download
Encore Burst 100 IP User Manual User Manual Download

FAQs

Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

There are no FAQ's for Encore Burst 100 IP
