Element ST HEX

New Product
ADJ Element ST HEX product photo ADJ Element ST HEX product photo ADJ Element ST HEX product photo ADJ Element ST HEX product photo ADJ Element ST HEX product photo ADJ Element ST HEX product photo ADJ Element ST HEX product photo ADJ Element ST HEX product photo ADJ Element ST HEX product photo ADJ UC IR Remote Control photo
SKU: ELE457 | UPC: 818651027853

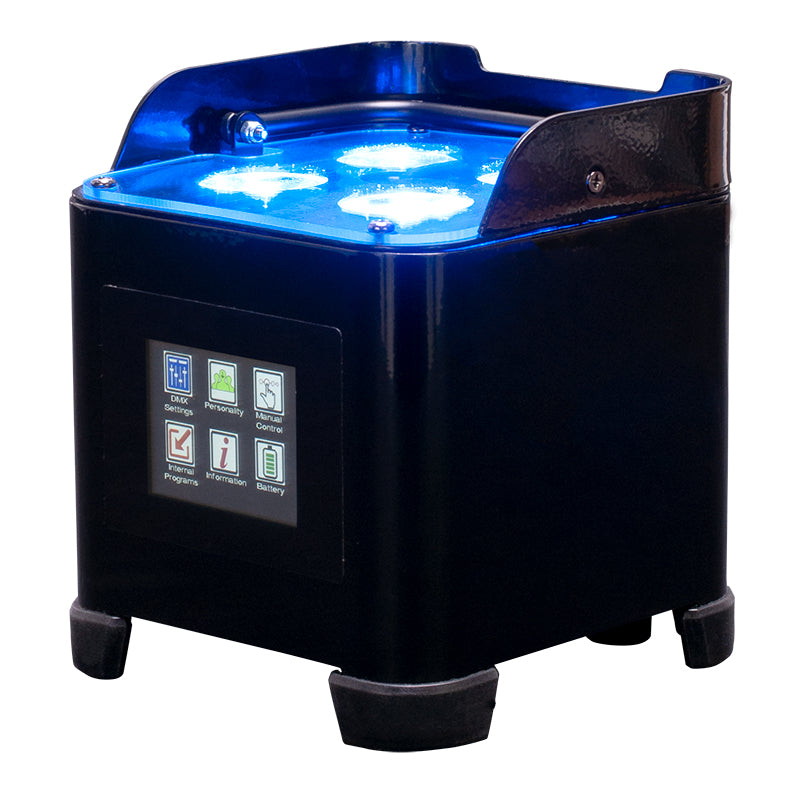

The ADJ Element ST HEX is a battery powered wireless LED up-light powered by four 6W HEX LEDs (RGBWA+UV). It features a compact design, WiFLY wireless DMX connectivity, variable-angle kick-stand and a full-color touch screen.
Advantage Points: 250

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description

Details

Available now from ADJ USA
The ADJ Element ST HEX is the of the latest addition to ADJ’s Element series of battery powered wireless LED up-lighters. Building on the success of ADJ’s popular Element Hex, the new model features an extremely compact design as well as a full-color touch screen display for extremely easy setup and DMX addressing. Utilizing the power of 4 x 6-Watt RGBAW+UV LEDs to generate a powerful wash of color with a 20-degree beam angle, the fixture features a built-in rechargeable battery that offers up to 8 hours of continuous operation as well as ADJ’s WiFLY EXR wireless DMX connectivity. Cleverly designed with a built-in variable-angle kick-stand and convenient carry handle, the unit is ideal for production companies, décor specialists and mobile entertainers.

Specifications

Specifications

Optical:
• 4 x 6-Watt RGBAW+UV LEDs (6-in-1 - Red, Green, Blue, Amber, White & UV)
• Life expectancy: rated at 50,000 hrs.
• LUX: >412@3M(9.8 ft.)
• Beam angle: 20-degree

Connection:

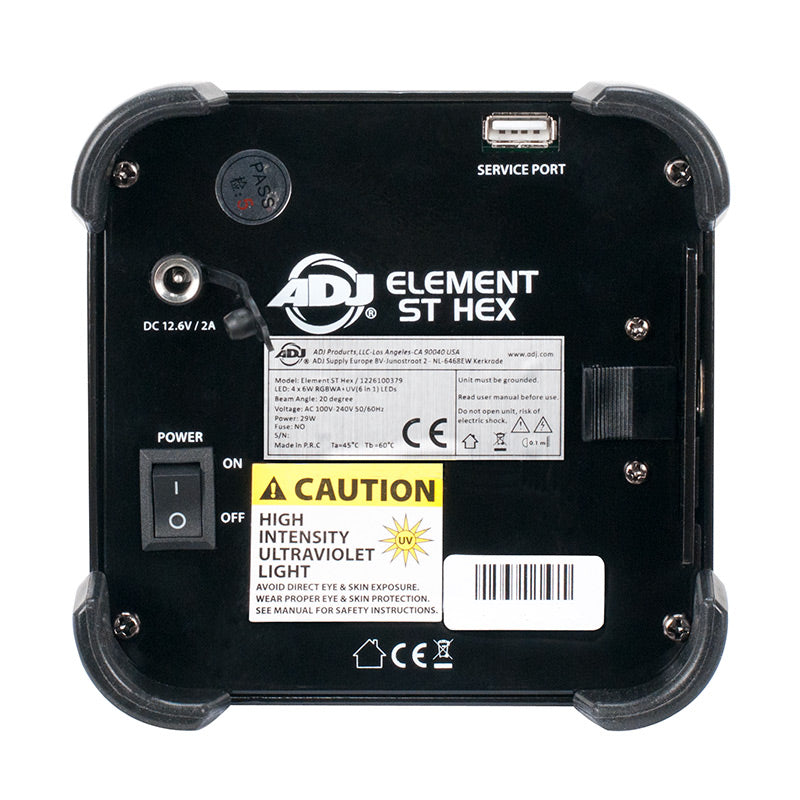

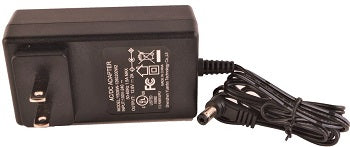

• 12.6VDC Power Input
• With Wired Digital Communication Network

Control:
• Control protocol: WiFLY EXR wireless DMX
• 5 DMX Channel modes: 6, 7, 8, 11 & 12
• WiFLY EXR Wireless DMX built-in

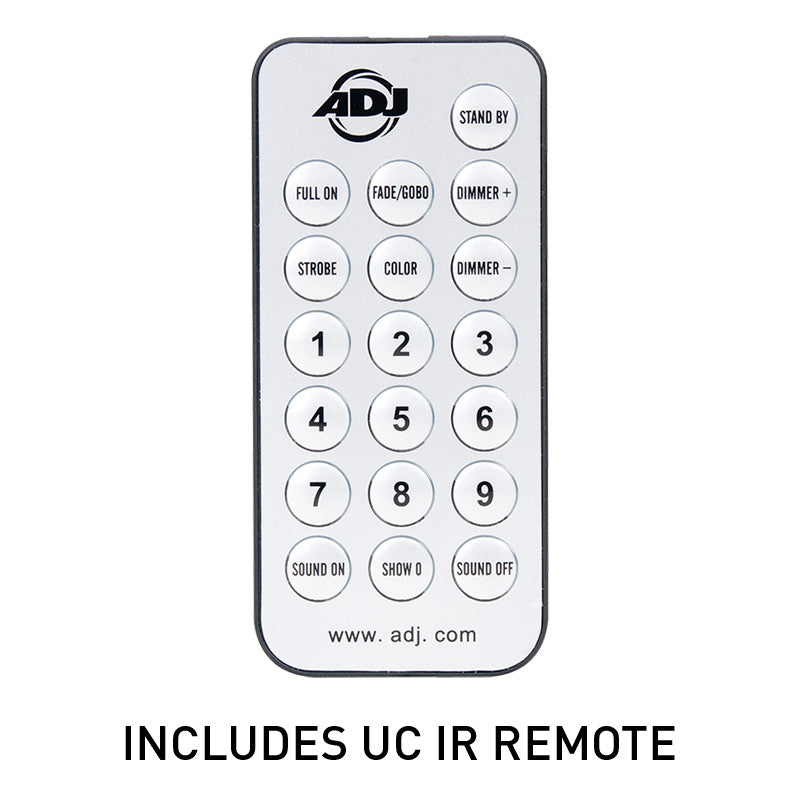

• UC-IR infrared wireless remote (included)
• 5 Operational modes: RGBAW+UV Dimmer Mode; Sound Active mode; Internal program mode; color macro mode; and DMX Controlled

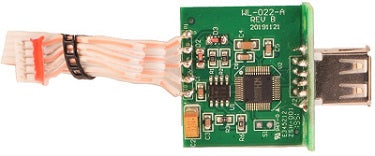

• USB service port

Features:
• Menu selectable languages: English or Spanish

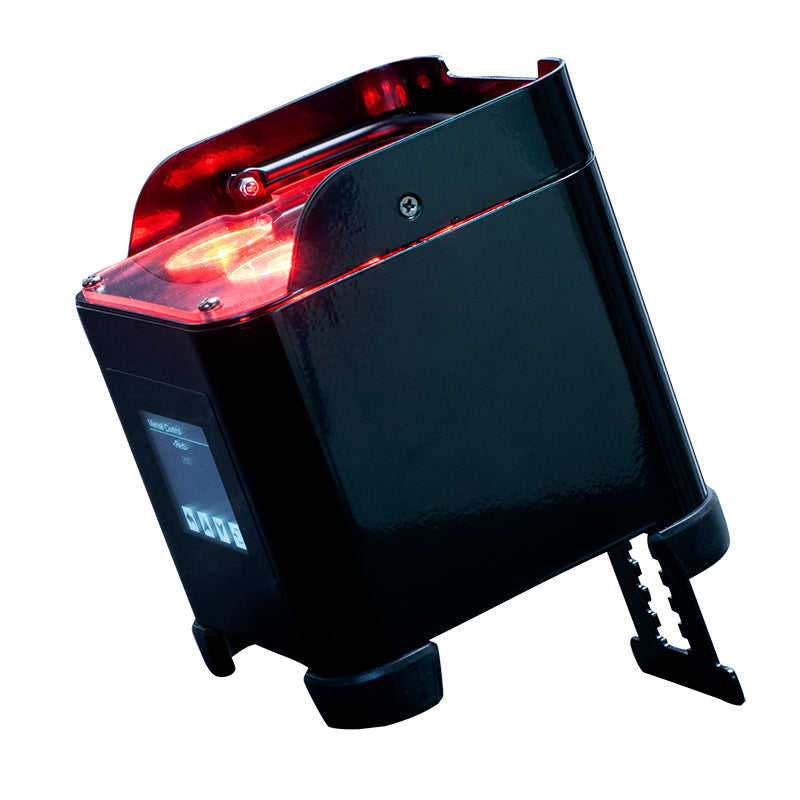

• Built-in tilt adjustment leg to angle figure while it’s on the floor

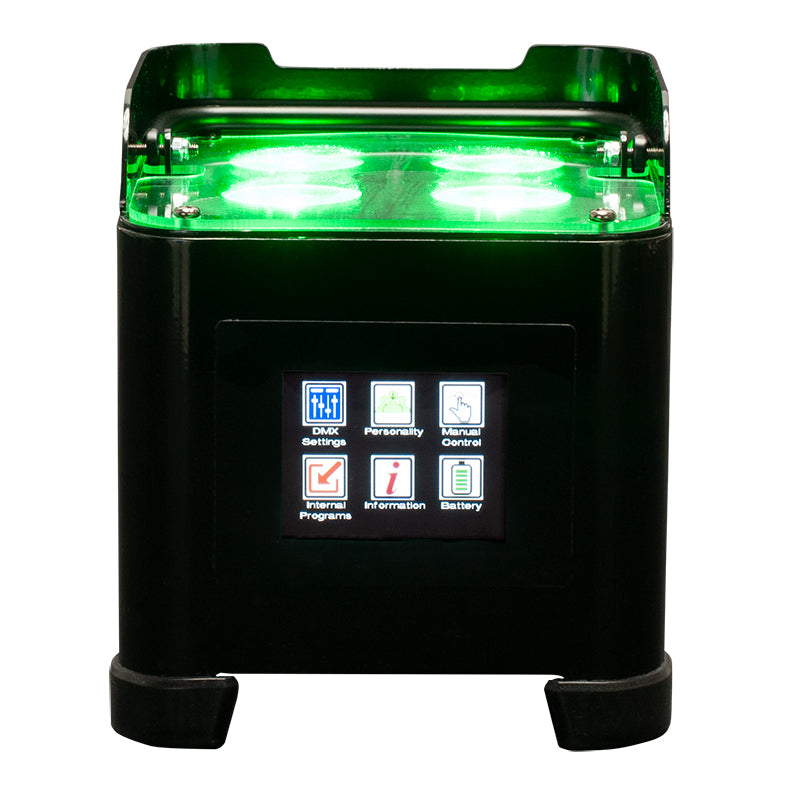

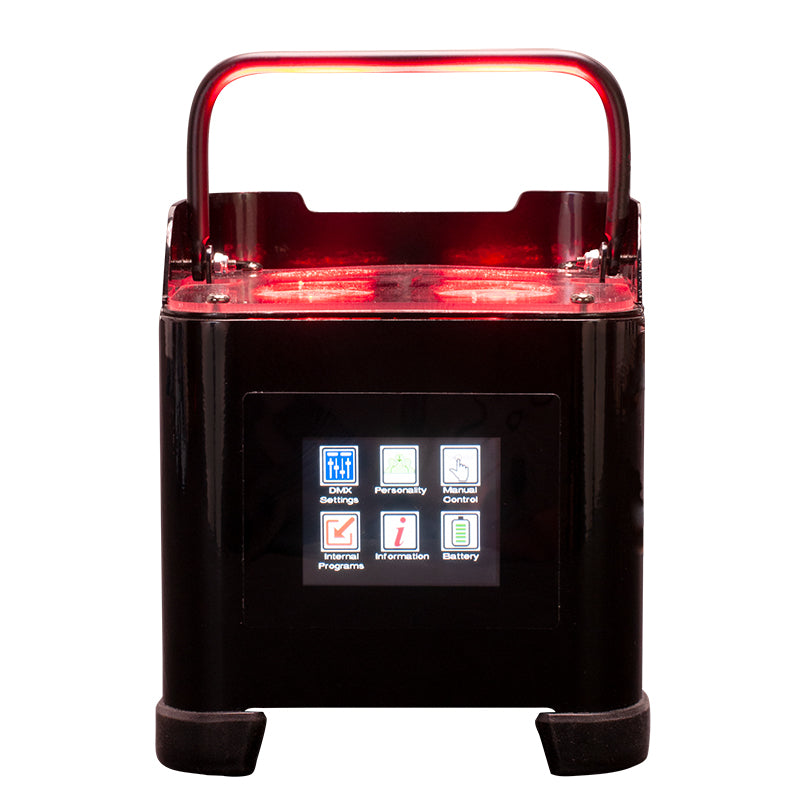

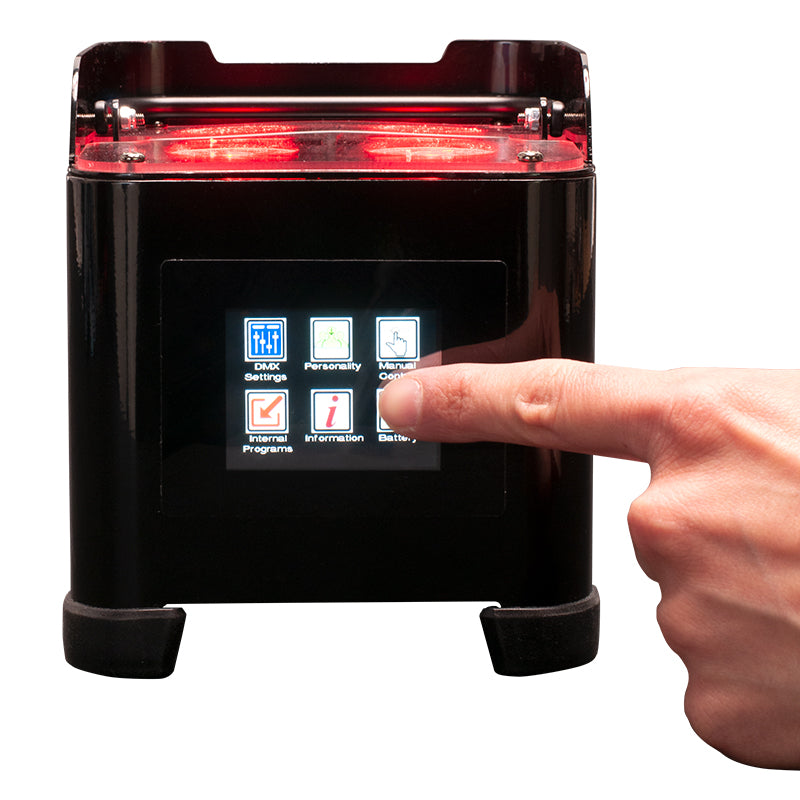

• DMX menu touch screen display
• Built-in WiFLY EXR wireless DMX: Up to 2,500 feet (760M) when used with ADJ’s WiFLY EXR Battery Transceiver
• 63 built-in Color Macros

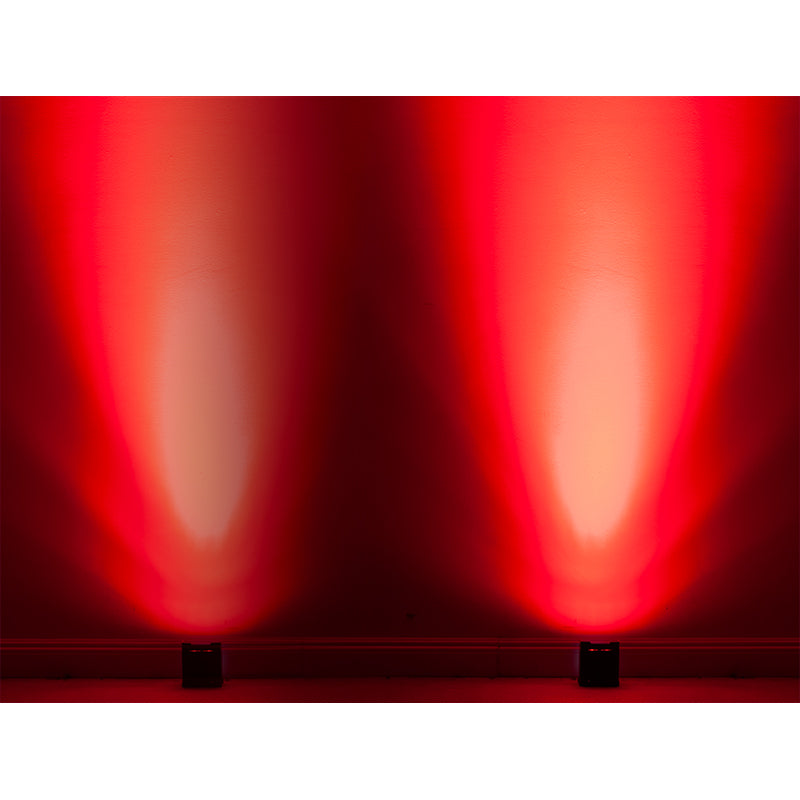

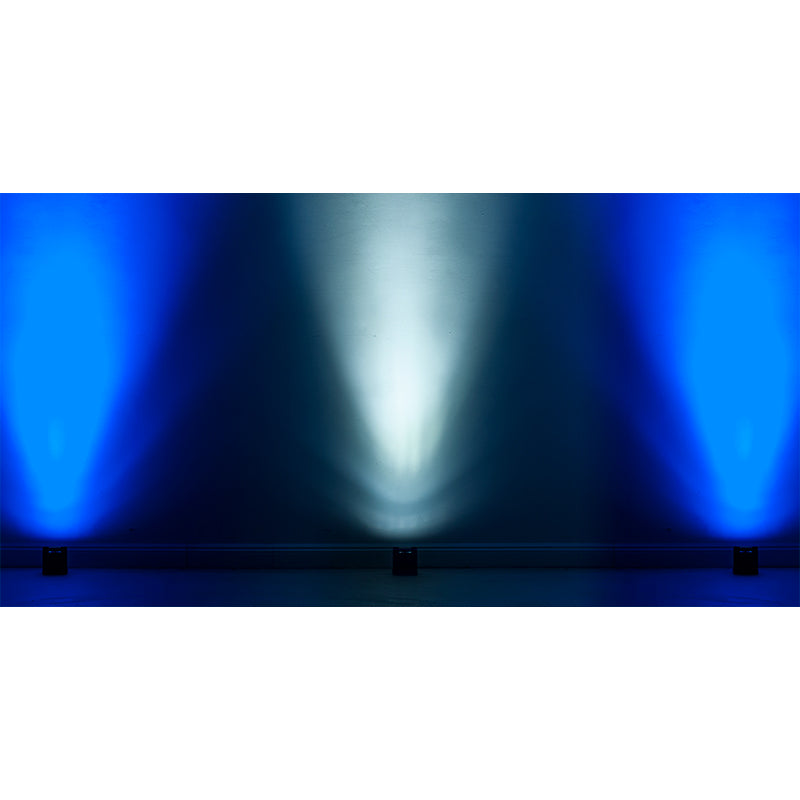

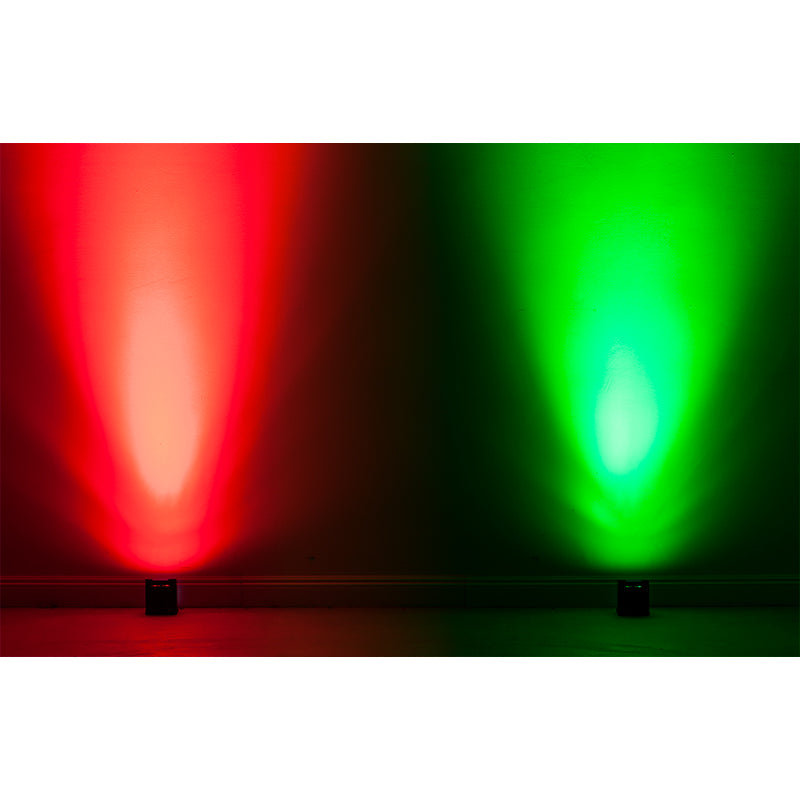

• Variable RGBAW+UV color mixing offers a smooth, seemingly unlimited color palette - Great for Stage or Wall Washing!
• LED pulse and strobe effect (0.1Hz-11Hz)
• Flicker Free Operation
• Electronic Dimming: 0 - 100% with 5 dimming curves
• Run all night – No duty cycle
• Energy Save Mode to preserve battery life
• Carry handle and snoot to hide handle and LED lenses

Battery:
• Battery Type: Fixed Lithium Battery
• Battery Energy: 73.26WH (Watt Hours)
• Battery Weight: 0.42 kg.
• Battery Voltage: 11.1V
• Battery Capacity: 6.6AH
• Total Lithium Ion Cells: 9 pieces
• Battery Wrap Material: PVC sleeving + highland barley paper
• Battery Charge Time: 5 Hours (With POWER switch On)
• Battery Life (Full Charge): 8 hours (Full On); Up to 12 hours (Static Colors or Chase Mode)

Electrical:
• Power Draw Total (All LED's @ Full On): 45W, 0.5A @ 120V/60Hz, 42W, 0.2A @ 220V/50Hz,
• Multi-voltage operation: AC 100-240V, 50/60Hz

Dimensions / Weight:
• Dimensions (LxWxH): 5.12” x 5.12” x 5.6” / 130 x 130 x 143mm
• Weight: 4 lbs. / 1.8kg.

Certifications:
• CE Approved
• IP20 Indoor rated



Videos

Videos

Downloads

Downloads

The following downloads are available for this product:

Title Description
Element ST Hex User Manual User Manual Download

FAQs

Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

There are no FAQ's for Element ST HEX
