Element H6 Pak Chr
UPC#: 810087371036
Advantage Points: 2700
Redemption Points: 54000
SKU
ELE611
The ADJ Lighting Element H6 Pak Chr is an all-in-one event up lighting system with (6) IP54-Rated battery powered chrome fixtures in a durable flight case with on-board battery charging solution. Includes one UCIR24 wireless remote. Suitable for indoor and temporary outdoor use.
Element H6 Pak includes:
6x Element H IP Chr fixtures (Chrome fixtures) packaged in an Element H6 FC (powered battery charging flight case) with IR remote, AC Cable and charging system (1 x UCIR24, 1x AC Cable, 6 x Charging bases)
Element H6 Pak Chr Dimensions / Weight (loaded case with 6 fixtures):
• Length: 26.42” (671mm)
• Width: 18.15” (461mm)
• Vertical Height: 17.76” (451mm)
• Loaded Weight: 84.66 lbs. (38.4 kg)
Pak Electrical / Thermal:
• Power Input: AC100VAC~240VAC, 50/60Hz
• IP65 Power Locking Input and Output
• Max Power Consumption: 200 Watts
• Power Draw: 3A max
• Charge status indicator
• -4°F to 113°F (-20°C to 45°C)
Fixture Specifications
Optical:
• 4 x 20-Watt RGBAW+UV LEDs (6-in-1 - Red, Green, Blue, Amber White & UV)
• Life expectancy: rated at 50,000 hrs.
• LUX: 1027 @ 2M; 257 @ 4M
• Beam angle: 17.6°
• Field angle: 28.7°
Connection:
• DMX: Wireless DMX
• With Wired Digital Communication Network
• Contact Charging system. *Charging base and power supply included
Control:
• Control protocol: Wireless DMX
• 7 DMX Channel modes: 6, 8, 9, 12, 14, 15 or 17 channels
• Remote control: Wireless DMX, UCIR24 (Included)
• 5 Operational modes: RGBAW+UV Dimmer Mode;Auto Run Mode (13 programs, & 1 color/fade combo mode); Static Color mode; and Wireless DMX Control
Features:
• IP54 Rated: partial protection from dust and water splashes

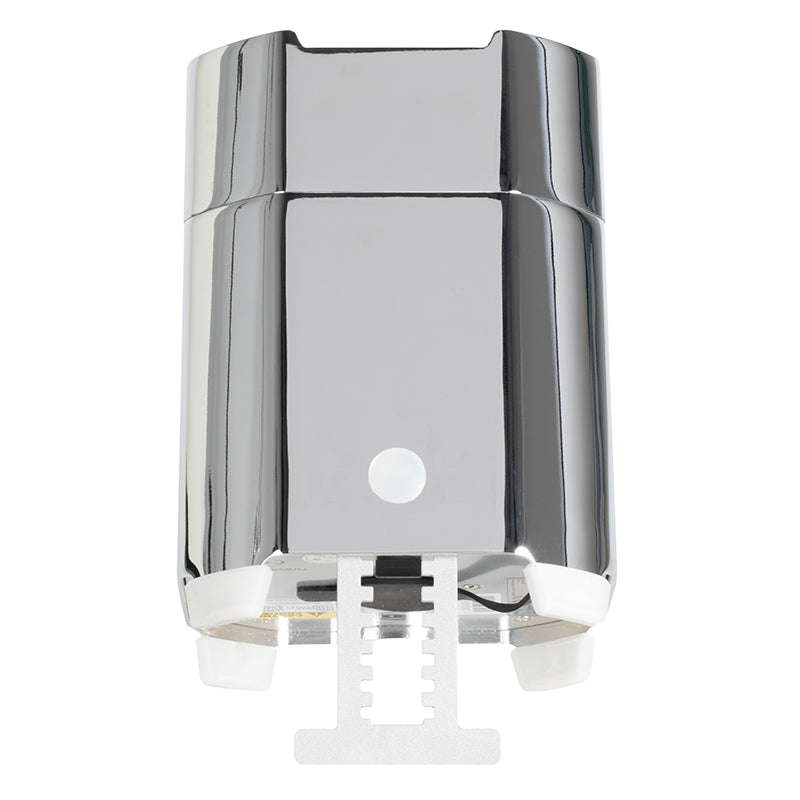

• Built-in kickstand to angle fixture when sitting on the floor
• 4-touch button OLED display inside cover panel
• Built-in Aria X2 wireless DMX with signal LED indicator
• 63 built-in Color Macros
• Variable RGBAW+UV color mixing offers a smooth, seemingly unlimited color palette - Great for Stage or Wall Washing!
• LED pulse and strobe effect (0.2Hz-11Hz)
• Flicker Free Operation
• Electronic Dimming: 0 - 100% with 6 dim modes and 4 dim curves
• Run all night – No duty cycle
• Battery charge indicator on each fixture
• Energy Save Mode
Battery:
• Battery Type: fixed polymer lithium battery
• Battery Energy: 59.2WH (Watt Hours)
• Battery Weight: 0.24 kg.
• Battery Voltage: 14.8V
• Battery Capacity: 4000mAh (Typical Capacity)
• Total Lithium Ion Cells: 4 pieces
• Battery Wrap Material: PVC sleeving + highland barley paper
• Battery Charge Time: 6 Hours
• Battery Life: 6 Hours in Normal mode and 12 hours in Energy save mode (single color)
• Easy to replace battery
Electrical:
• Power Draw Total (All LED's @ Full On): 20W
• Voltage operation: DC17V
Fixture Dimensions / Weight:
• Dimensions (LxWxH): 5.64” x 5.67” x 7.65” / 143.38 x 144.06 x 194.5mm
• Weight: 5.3 lbs. / 2.4kg.
Certifications:
• cETLus (Control #4002034)
• CE Compliant
• IP54 Outdoor rated
Specifications subject to change without notice.
Videos
Downloads
The following downloads are available for this product:
| Title | Description | |
|---|---|---|
| Element H6 Pak Chr - Cut Sheet | 3MB PDF File | Download |
| Element H6 Pak Chrome - User Manual | User Manual | Download |
| Element H6 Pak Chr - French User Manual | User Manual | Download |
| Element H IP Photometric Report | Element H IP Photometric Report | Download |
| Element H6 FC - Dimensional Drawing | Element H6 FC - Dimensional Drawing | Download |
| Element H6 FC - 2D Cad | Element H6 FC - 2D Cad | Download |
| Element H IP IES Files | Element H IP IES Files | Download |
AVAILABLE NOW FROM ADJ USA
The Element H6 Pak Chr fixtures boast four 20-watt RGBAW+UV LEDs with a life expectancy rated at 50,000 hours. With a beam angle of 17.6° and a field angle of 28.7°, these fixtures produce a LUX output of 1117 @ 2M and 298 @ 4M, making them perfect for stage up lighting and wall washing.
In addition to its impressive optical features, the Element H6 Pak Chr offers a range of convenient and easy-to-use features. It includes a built-in kickstand to angle the fixture when placed on the floor, a 4-touch button OLED display inside cover panel, and a battery charge indicator on each fixture.
The wireless DMX control protocol allows you to control your lighting system from anywhere in the room, and the 63 built-in color macros make it easy to create stunning lighting effects. With its variable RGBAW+UV color mixing and smooth dimming capabilities, the Element H6 Pak Chr offers a seemingly unlimited color palette.
This lighting system also boasts an energy-saving mode and a battery life of up to 6 hours in normal mode and 12 hours in energy-saving mode (single color). Each fixtures is compact and lightweight and comes in a robust IP54-rated casing with partial protection from dust and water splashes. Each fixture has a weight of 5.3 lbs (2.4kg), making it easy to transport and set up for your event.
Overall, the ADJ Lighting Element H6 Pak Chr is an exceptional lighting system that offers power, versatility, and convenience for all your event lighting needs. With its impressive features and durable design, this lighting system is perfect for event producers, and anyone looking to add some excitement and style to their event.
