Chameleon QBar Pro

Wall washing fixture that produces beams from 3 different angled lenses and is powered by 3x 30W quad-color (RGBA) LEDs. Wall washing fixture that produces beams from 3 different angled lenses and is powered by 3x 30W quad-color (RGBA) LEDs. Wall washing fixture that produces beams from 3 different angled lenses and is powered by 3x 30W quad-color (RGBA) LEDs. Wall washing fixture that produces beams from 3 different angled lenses and is powered by 3x 30W quad-color (RGBA) LEDs. Wall washing fixture that produces beams from 3 different angled lenses and is powered by 3x 30W quad-color (RGBA) LEDs. Wall washing fixture that produces beams from 3 different angled lenses and is powered by 3x 30W quad-color (RGBA) LEDs. Wall washing fixture that produces beams from 3 different angled lenses and is powered by 3x 30W quad-color (RGBA) LEDs.
SKU: CHA393 | UPC: 819730018960
Wall washing fixture that produces beams from 3 different angled lenses and is powered by 3x 30W quad-color (RGBA) LEDs.
Advantage Points: 300

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description

Details

Available Now! • $299.99

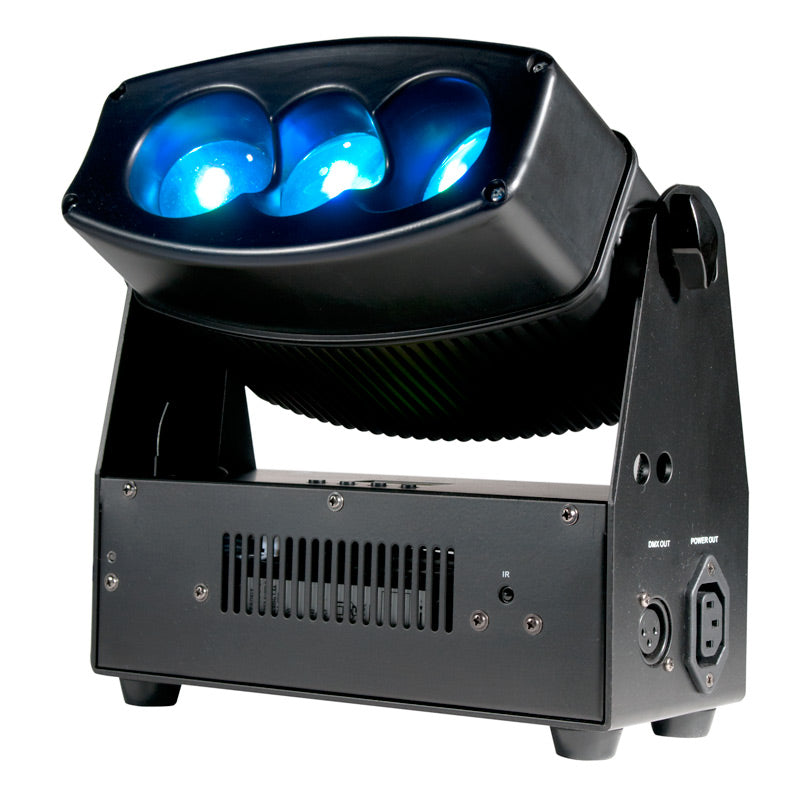

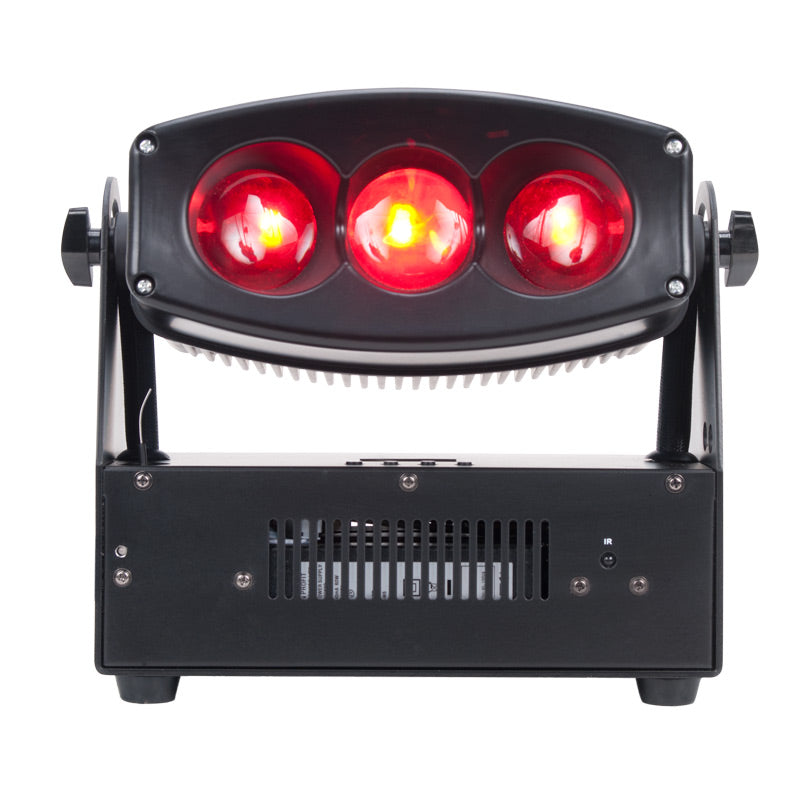

The ADJ Chameleon QBar Pro creates beams from 3 different angled lenses with offset colors for a one-of-a-kind effect. This unique wall washing fixture is powered by three 30W RGBA (4-IN-1) LEDs, and includes ADJ’s WiFLY EXR “Extend Range” wireless DMX up to 2,500 feet. The head is adjustable to change the beam direction.



The Chameleon QBar Pro has 6 DMX channel modes, 6 operational modes, 3-pin DMX and IEC In/Out to daisy chain power. Its compatible with all ADJ WiFLY fixtures and controllers.



Learn more about the Chameleon QBar Pro from the product spotlight article: CLICK HERE

Specifications

Specifications

Features:

Built-in WiFLY Extended Range wireless DMX (up to 2,500 ft)

• Adjustable head to manual change beam direction

• Individual Pixel Control

• 2 x 8 Character LCD Display

• 19 Built-In Programs

• 63 Color Macros

• LED pulse & strobe effect

• Electronic Dimming: 0 - 100%

• Compatible with all ADJ WiFLY fixtures and controllers plus the ADJ LED RC2, UC IR wireless remotes (both remotes sold separately), and Airstream IR

Specifications:

• 7 DMX channel modes 4/5/7/9/10/12/14

• 6 Operating Modes: RGBA Dimmer Mode, Built-In Program Mode (19 Programs), Auto Run Mode, Static Color Mode, Sound Active Mode, & DMX Control

• 15 degree beam angle

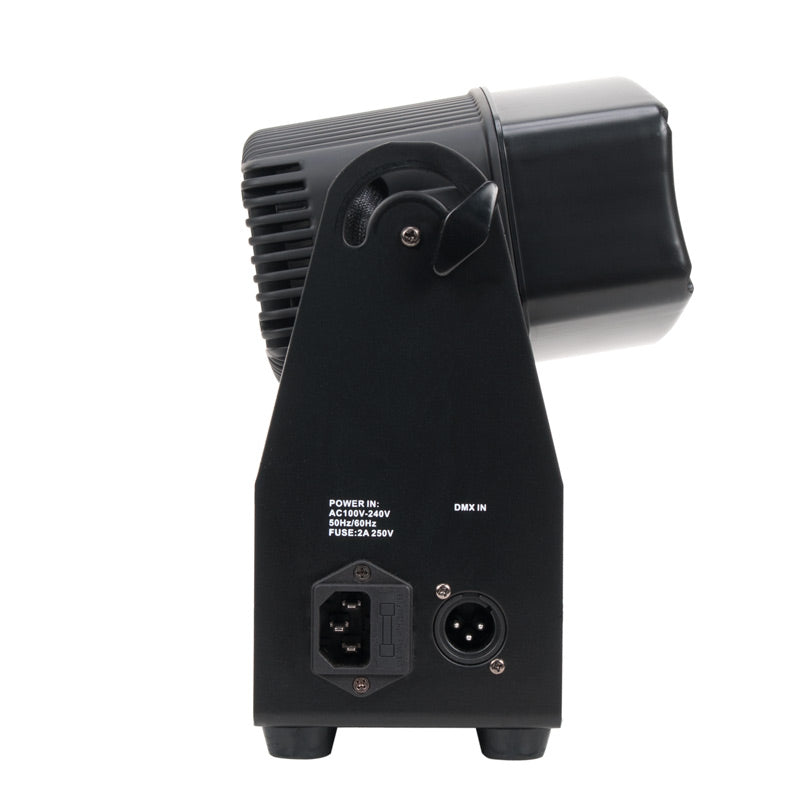

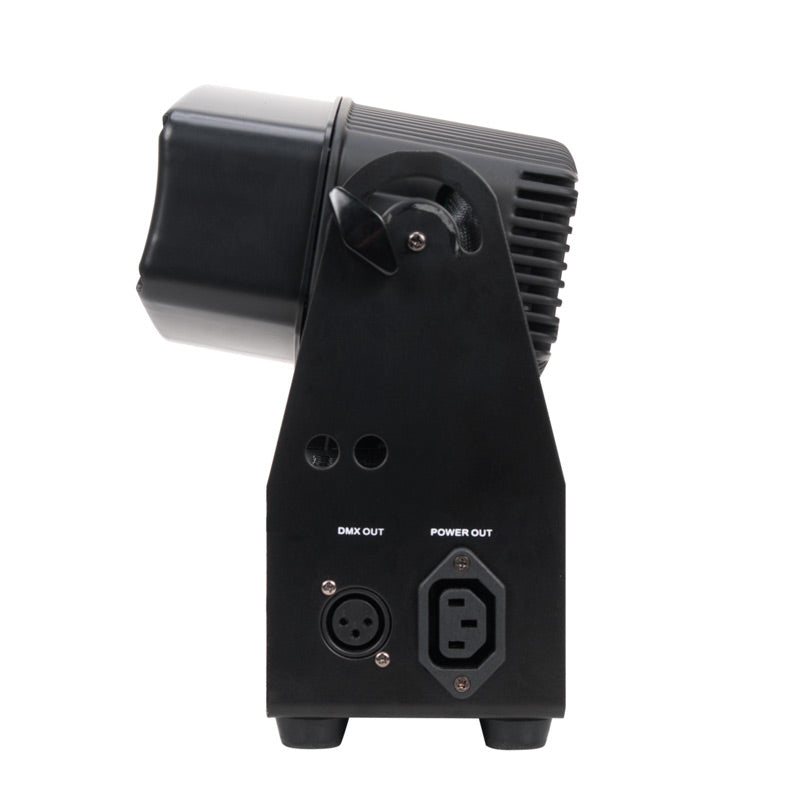

• DMX-512 Protocol 3-pin XLR In/Out

• IEC in/out to Daisy Chain Power (Connect up to 6 fixtures max.)

• Power Consumption: 100W

• Multi-voltage Operation: 100-240V, 50Hz/60Hz

• 3 x 30W RGBA (4-in-1) LEDs
• Refresh Rate: 900Hz
• Light Output: 196 LUX @ 2M; 53.6 LUX @4M (15-degree beam)

• Dimensions (LxWxH): 270 x 100 x 260mm / 10.5” x 4” x 10.25”

• Weight:  8 lbs. / 3.7 kg.

Videos

Videos

Downloads

Downloads

The following downloads are available for this product:

Title Description
Chameleon QBar Pro User Manual Download
Chameleon QBar Pro Photometric Chart Download
Chameleon QBar Pro CAD Drawing Download

FAQs

Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

There are no FAQ's for Chameleon QBar Pro
